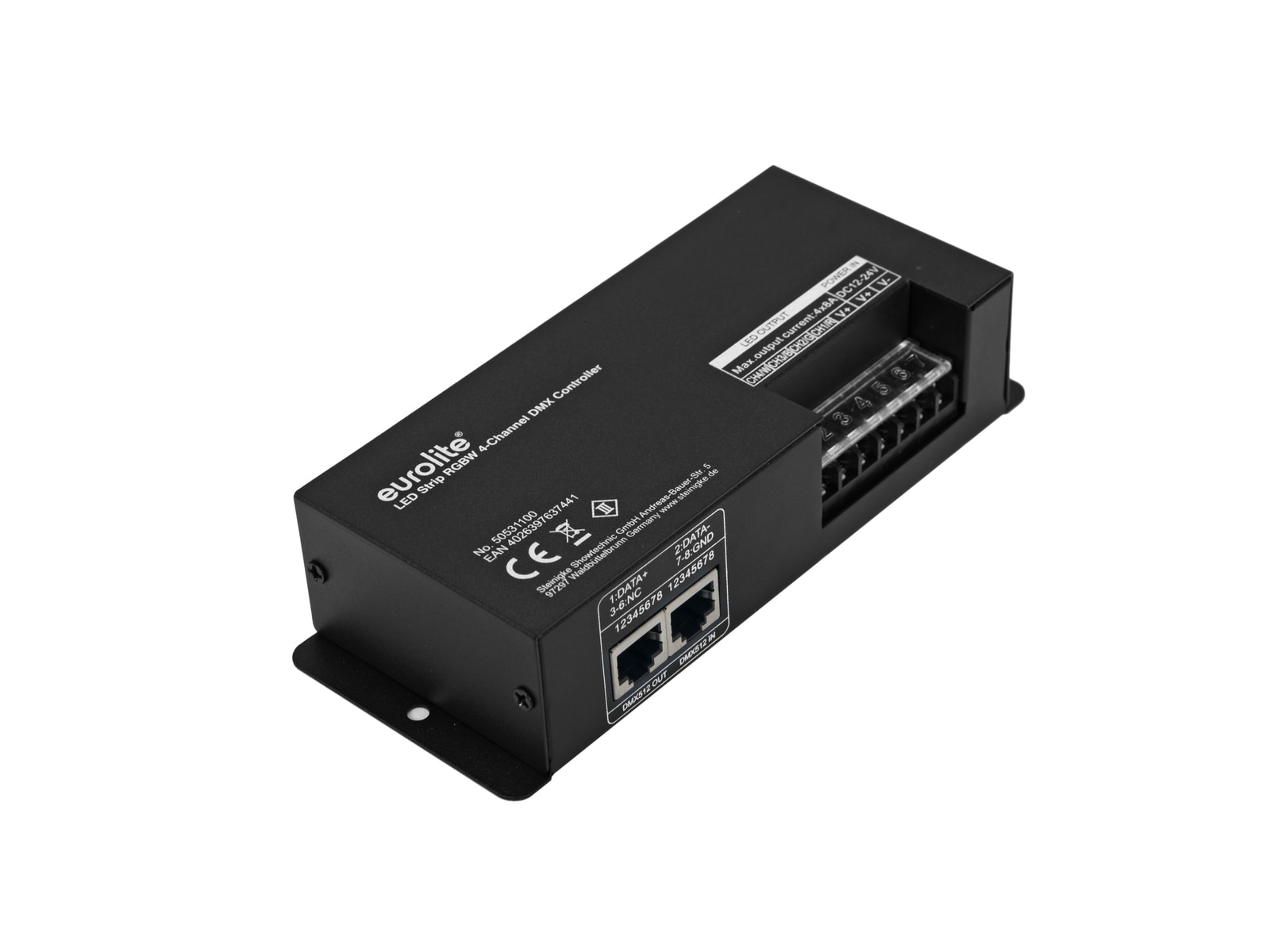

4-channel LED controller with DMX interface for RGB LEDs 12-24 V

• Compact LED controller for controlling RGBW LEDs (12-24 V) via DMX
• Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
• 4 separate control channels for individual color mixing of red, green, blue and white LEDs
• Switchable termination resistor
• Plug-in screw terminals for connecting the LEDs and the power supply

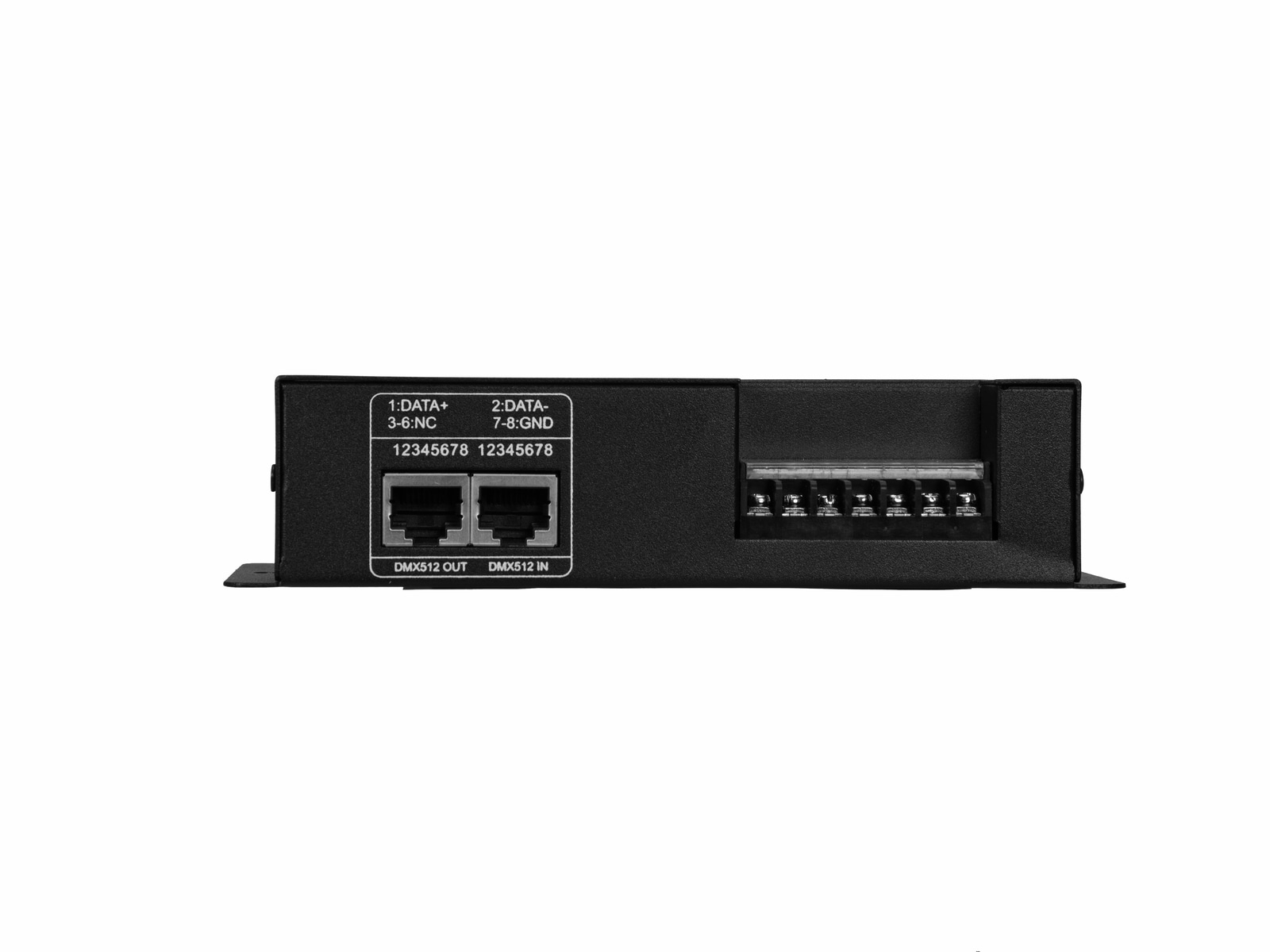

• RJ45 jacks for serial connection
• Rugged black metal housing
• Integrated show programs
• Control via stand-alone

Package contents

• 1 x device, 1 x user manual

Power supply:
12/24V DC
Power consumption:
Max. 384 W 12 V DC
Max. 768 W 24 V DC
Max. 96 W 12 V DC per channal
Max. 192 W 24 V DC per channal
Output current:
Max. 4 x 8 A per channal
Power connection:
Via screw terminal
Power output:
Screw terminal
DMX channels:
4

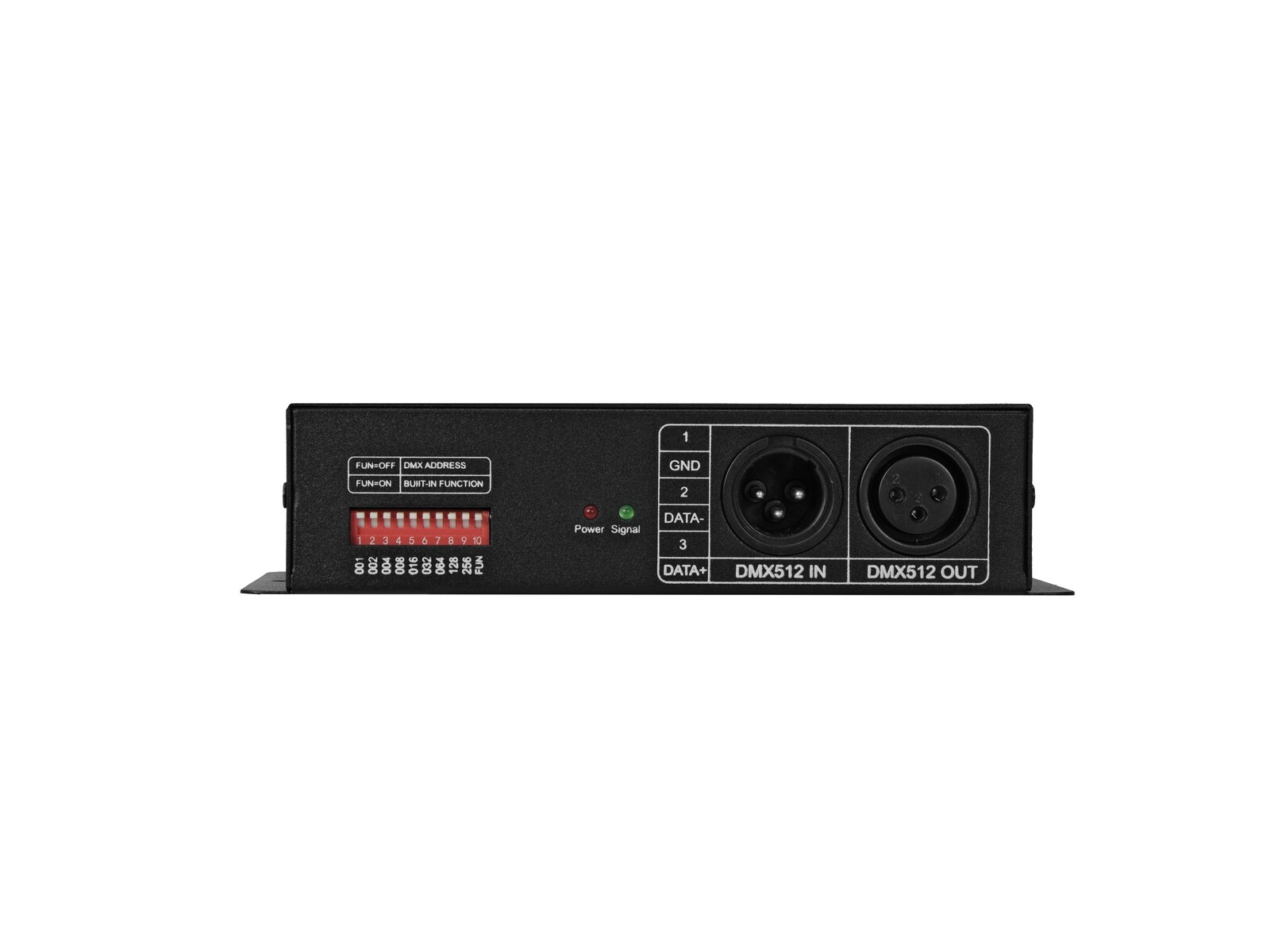

DMX input:
3-pin XLR (M) mounting version
1 x RJ-45 (F) mounting version
DMX output:
3-pin XLR (F) mounting version
RJ-45 (F) mounting version
Control:
Stand-alone
Dimensions:
Length: 16,4 cm
Width: 6,6 cm
Height: 3,8 cm
Weight:
300 g
