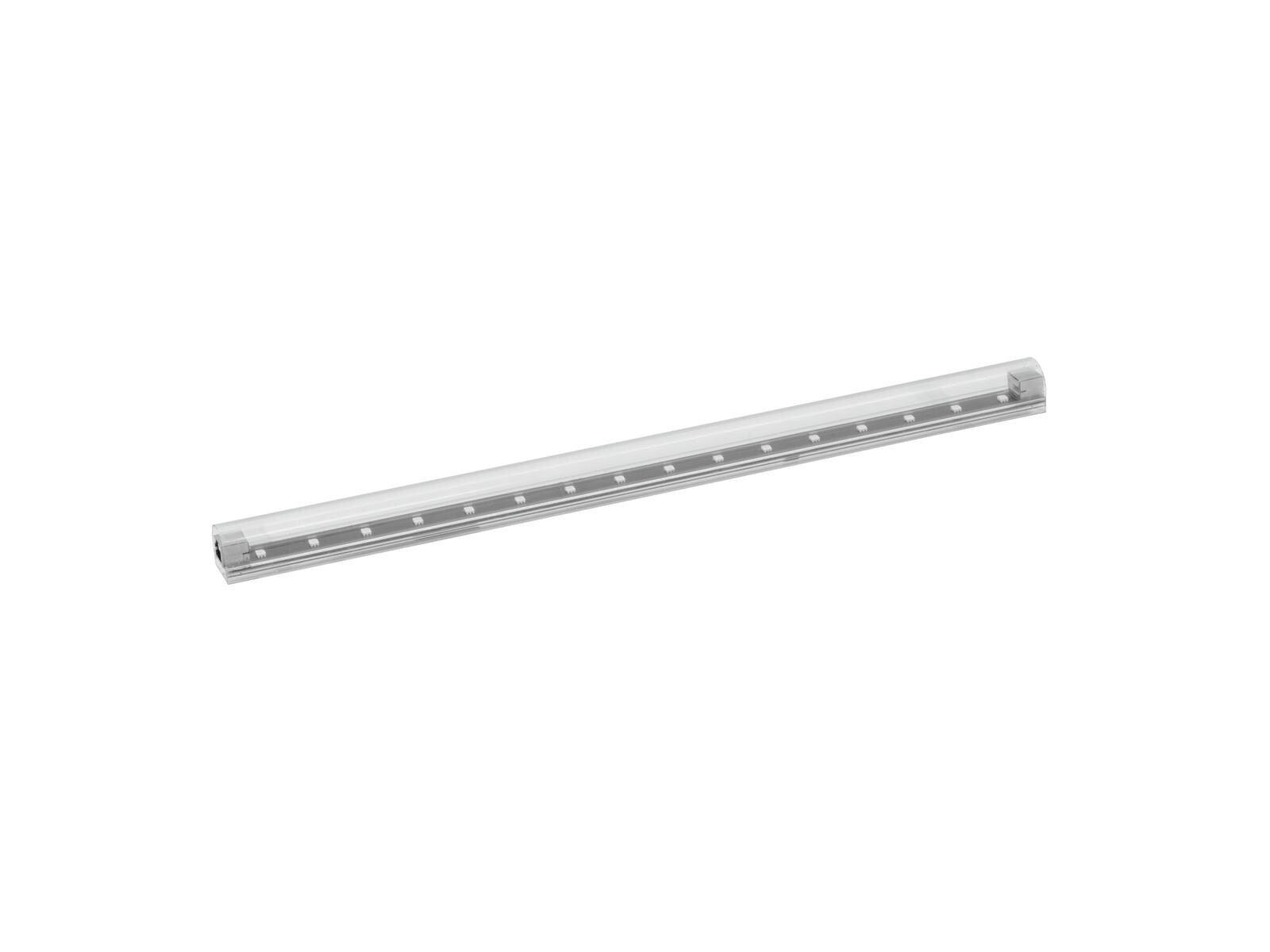

LED bar for pixel mapping applications
- LED bar with 16 or 32 pixels for video and pixel mapping applications via Art-Net
- Signal distribution via UTP cable
- Easily create animations with MADRIX or any other control software supporting Art-Net
- 16 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
LEDs controlled separately - Color blend stepless; Dimmer electronic
- Strobe effect
- 30 integrated show programs
- Control via accessory; master/slave function
- With a beam angle of 180°
- For application areas such as: Trade fair and shop fitting; clubs/dancing school; stage
Scope of delivery
| Power supply: | 24V DC |
| Power consumption: | 2 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via RJ-45 (F) mounting version |
| LED type: | 16 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Control: | Accessory; master/slave function |
| Beam angle: | 180° |
| Beam angle (1/2 peak): | 180° |
| Image: | 16 px Pixel pitch 30 mm |
| Housing color: | Silver |
| Connections: | Signal via 2 x RJ-45 (F) mounting version |
| Dimensions: | Length: 50 cm Depth: 3.2 cm Height: 3.2 cm |
| Weight: | 0.11 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
