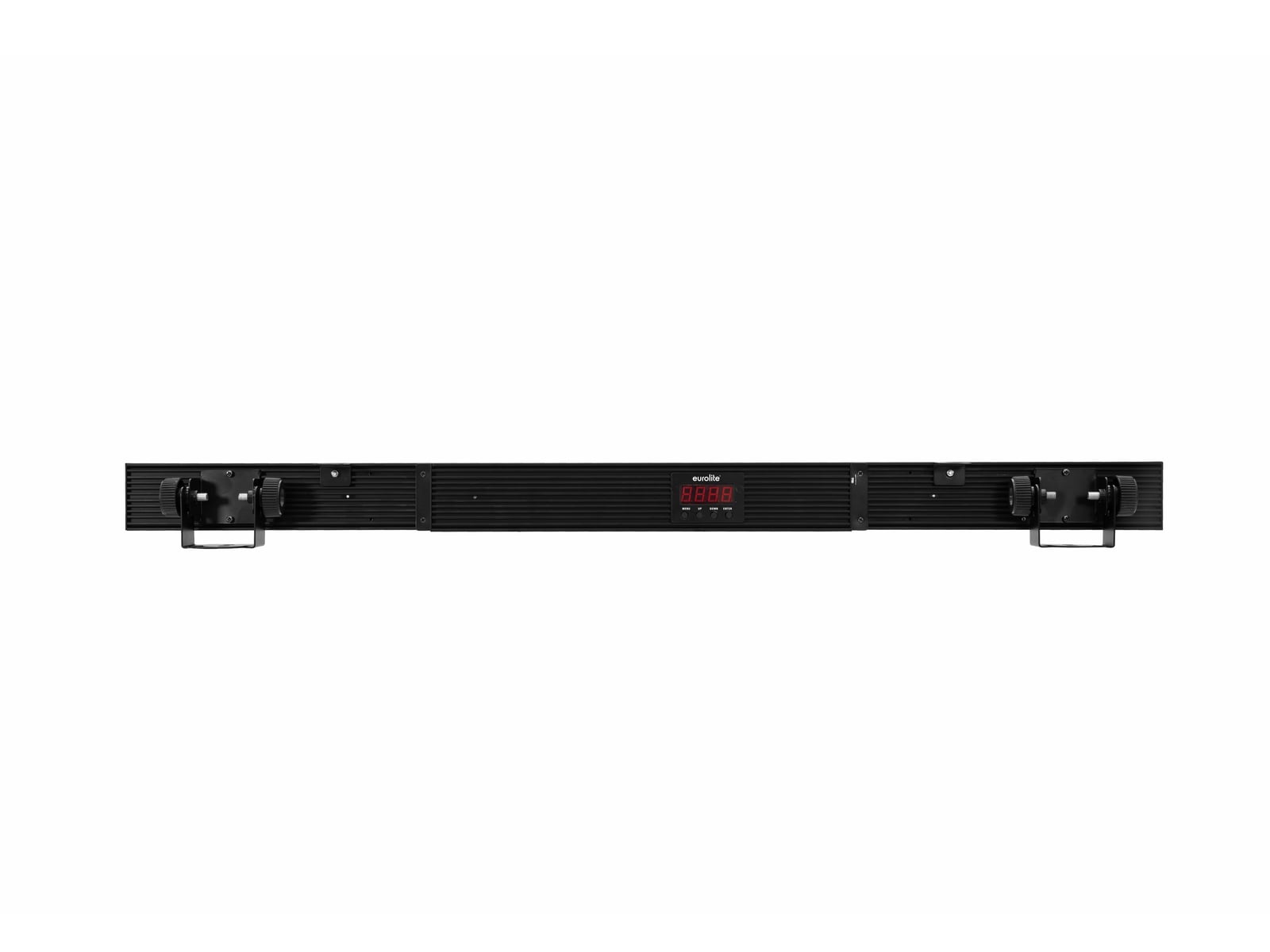

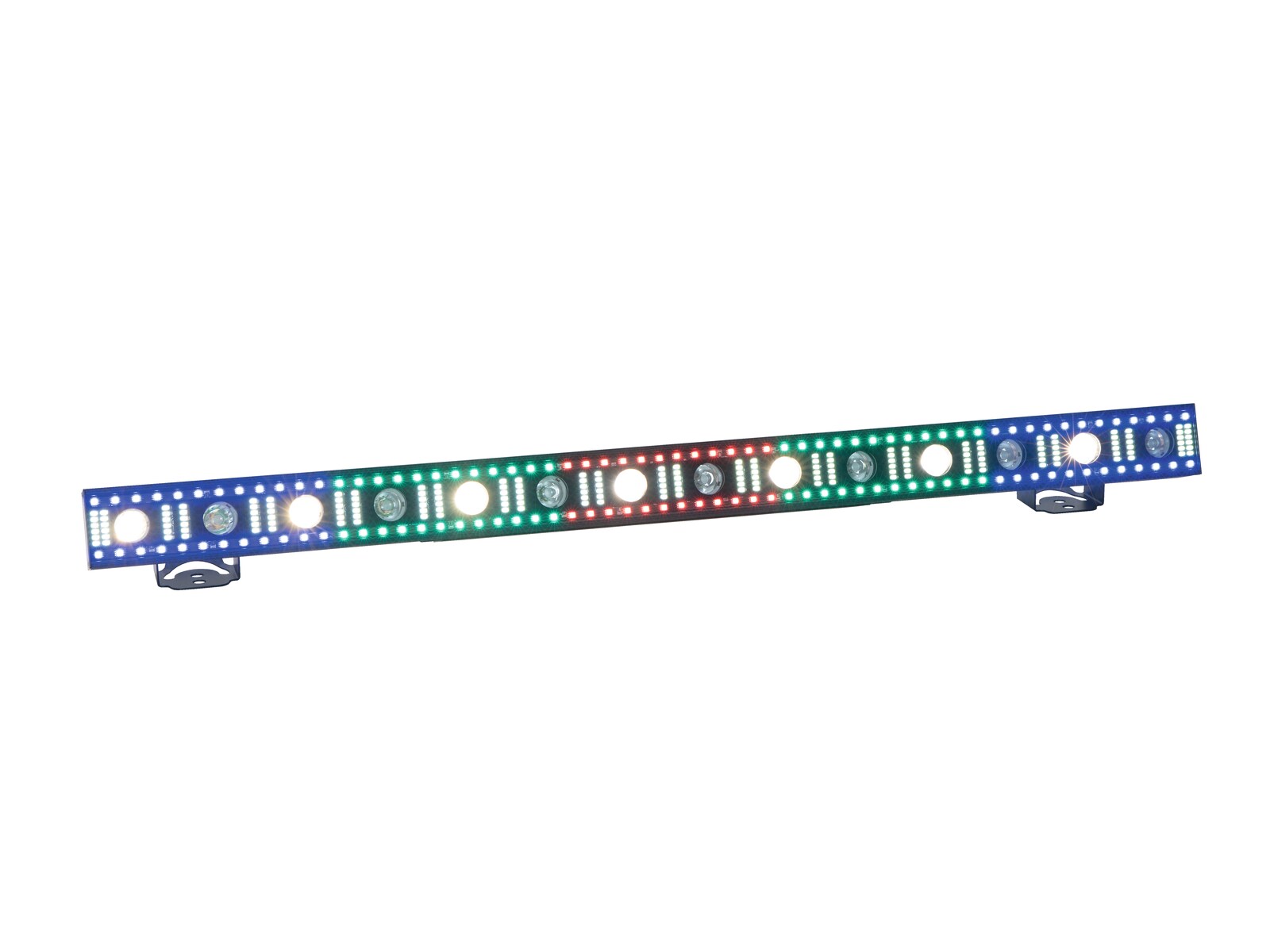

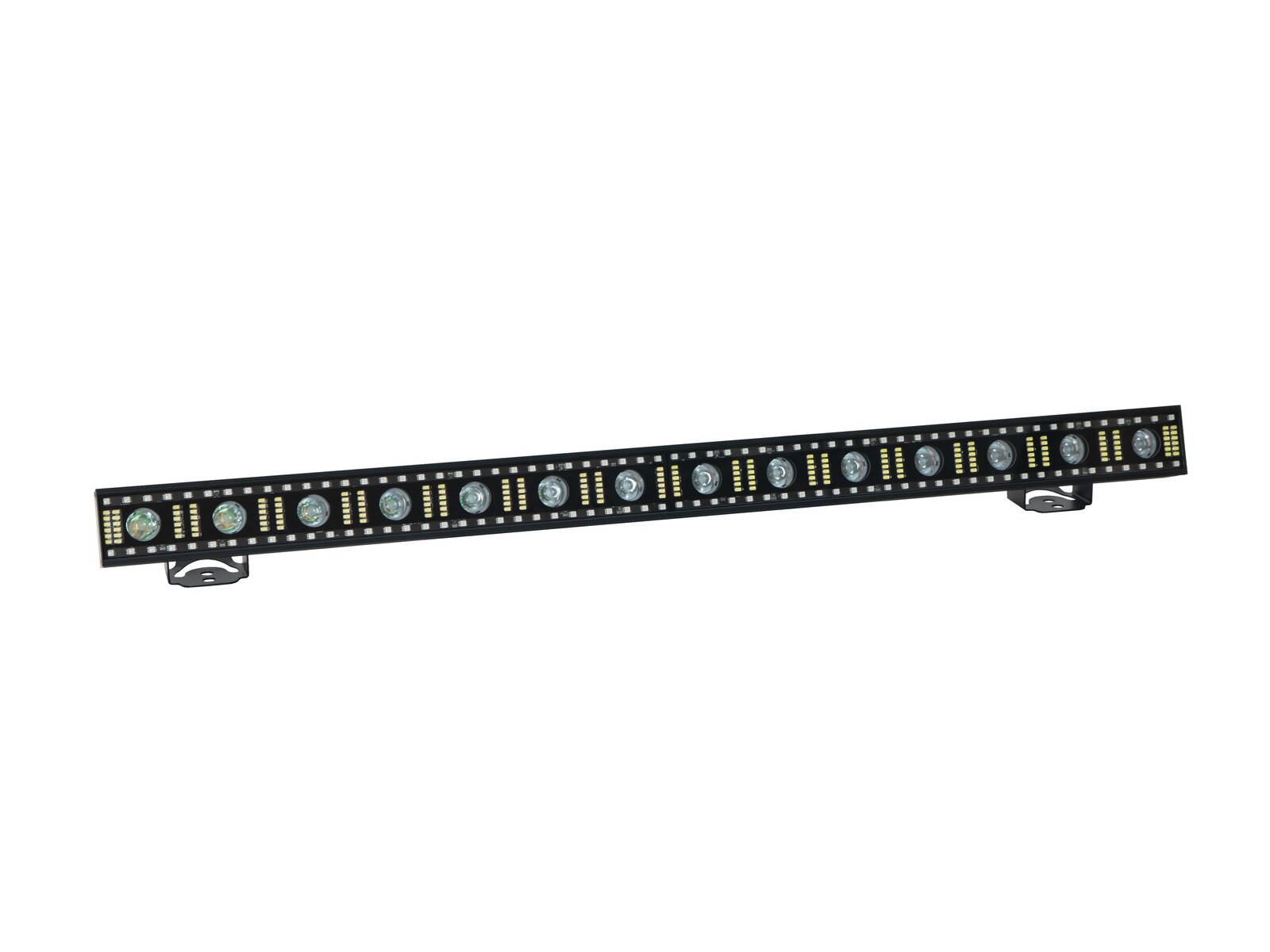

LED sunbar with 3 effects: warm white beam effects, strobe and ambient light

• 3 striking effects in one device: beam effect, stroboscope and ambient light
• When fog is used, this effect becomes especially attractive
• 180 powerful LEDs SMD 3535 cold white (CW)
  segments separate controlling
• 120 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
  segments separate controlling
• 14 powerful LEDs 3 W high-power warm white (WW)
  segments separate controlling
• Color change adjustable; Dimmer electronic; color blend stepless; running light adjustable
• Strobe effect
• Integrated show programs
• Direct color selection for 10 preset colors
• The device is cooled by passive convection cooling
• Control via DMX; Master/slave function; stand-alone; Sound to light
• Flicker-free
• With a beam angle of 6,5°
• With Mounting bracket
• CREE LED built-in
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain
• Mains input and output for power linking up to 8 units
• Silent operation
• 4 digit 7-segment LED display

Package contents

• 1 x light effect, 1 x power cord, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
95 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug included
Fuse:
T 3,15 A Fuse fix on board
Lamp type:
LED lamp
LED:
180 x SMD 3535 cold white (CW)
120 x SMD 5050 3in1 TCL RGB (homogenous color mix)
14 x 3 W high-power warm white (WW)
DMX channels:
2; 6; 34; 37
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; Master/slave function; stand-alone; Sound to light
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain
Beam angle:
6,5°
Beam angle (1/2 peak):
Spot 6,5°
Housing color:
Black
Attachment system:
2x Mounting bracket
Display type:
4 digit 7-segment LED display
Use of brands:
CREE LED built-in
Material:
Aluminum casting; metal
Dimensions:
Length: 1 m
Depth: 9 cm
Height: 8,5 cm
Weight:
3,88 kg
Noise classification:
Class 0 (no noise at all)
Power cord
Cable construction:
3 x 1,5 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
4 x Ø8mm; 1 x Ø10mm; 2 x Ø11mm
Material:
Metal, 1,5 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
