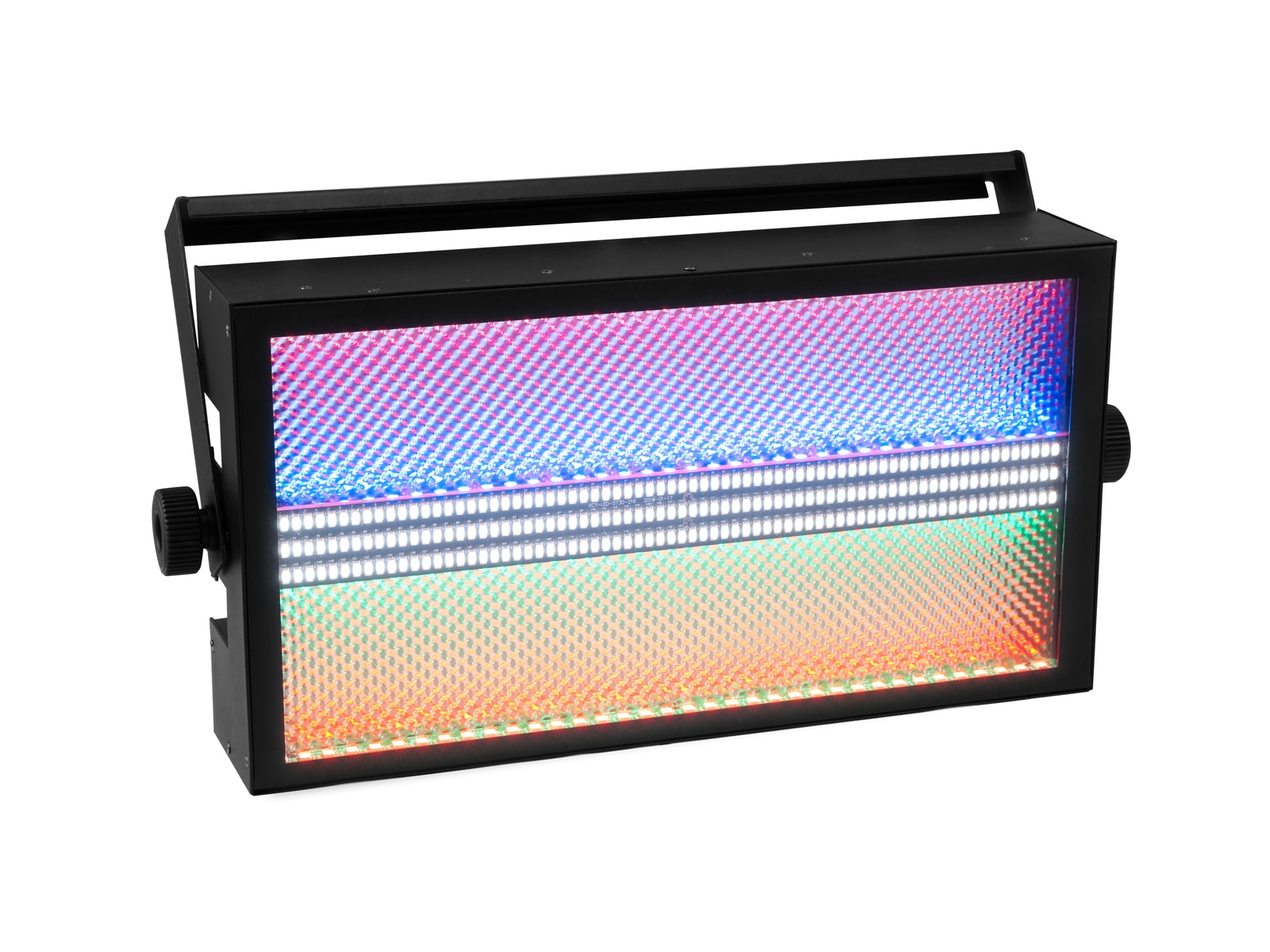

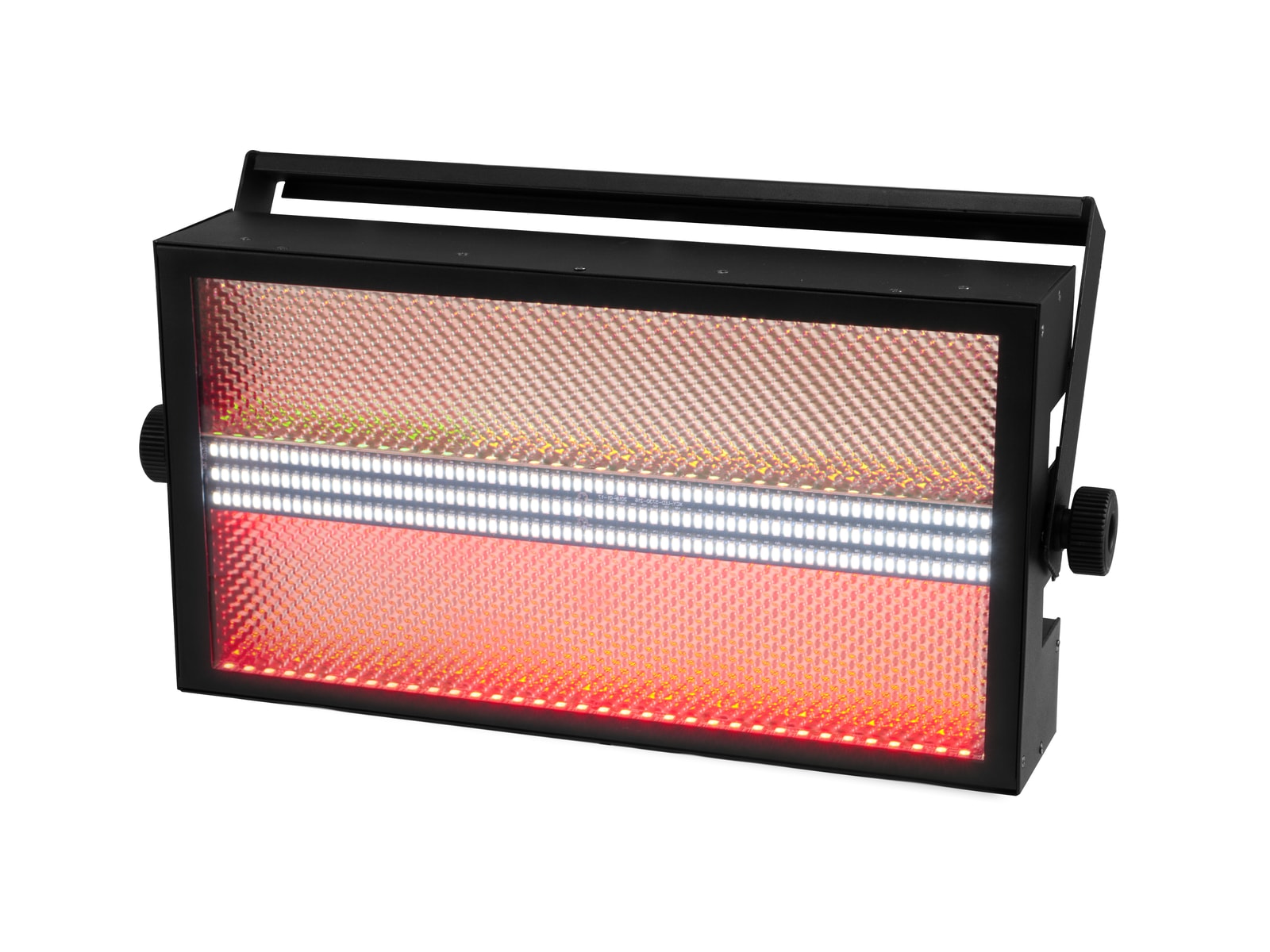

LED lighting effect with threefold effects

• Flat metal housing with integrated wall holders
• 216 powerful LEDs 0,5 W SMD 5730 cold white (CW)
• 144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
  LEDs separate controlling
• Strobe effect; Wash effect; Blinder effect
• 17 integrated show programs
• Control via Master/slave function; DMX; stand-alone; Sound to light
• Flicker-free
• With Mounting bracket
• 4 digit 7-segment LED display
• Dimmer electronic; color blend stepless
• Mains input and output for power linking up to 8 units
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain

Package contents

• 1 x light effect, 1 x mounting bracket, 1 x power cord, 2 x knurled screw, 2 x washer, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
95 W
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, F 2 A Fuse replaceable
LED:
216 x 0,5 W SMD 5730 cold white (CW)
144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
DMX channels:
7; 13; 22; 148
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
Master/slave function; DMX; stand-alone; Sound to light
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; Light Captain
Beam angle (1/2 peak):
120°
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Width: 45,5 cm
Depth: 8,5 cm
Height: 25,5 cm
Weight:
4,3 kg
Power cord
Cable construction:
3 x 1,0 mm² H05RN-F
Cable length:
Approx. 1,5 m
Mounting bracket
Diameter mounting holes:
3 x Ø11mm; 2 x Ø8mm
Material:
Metal, 2 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
