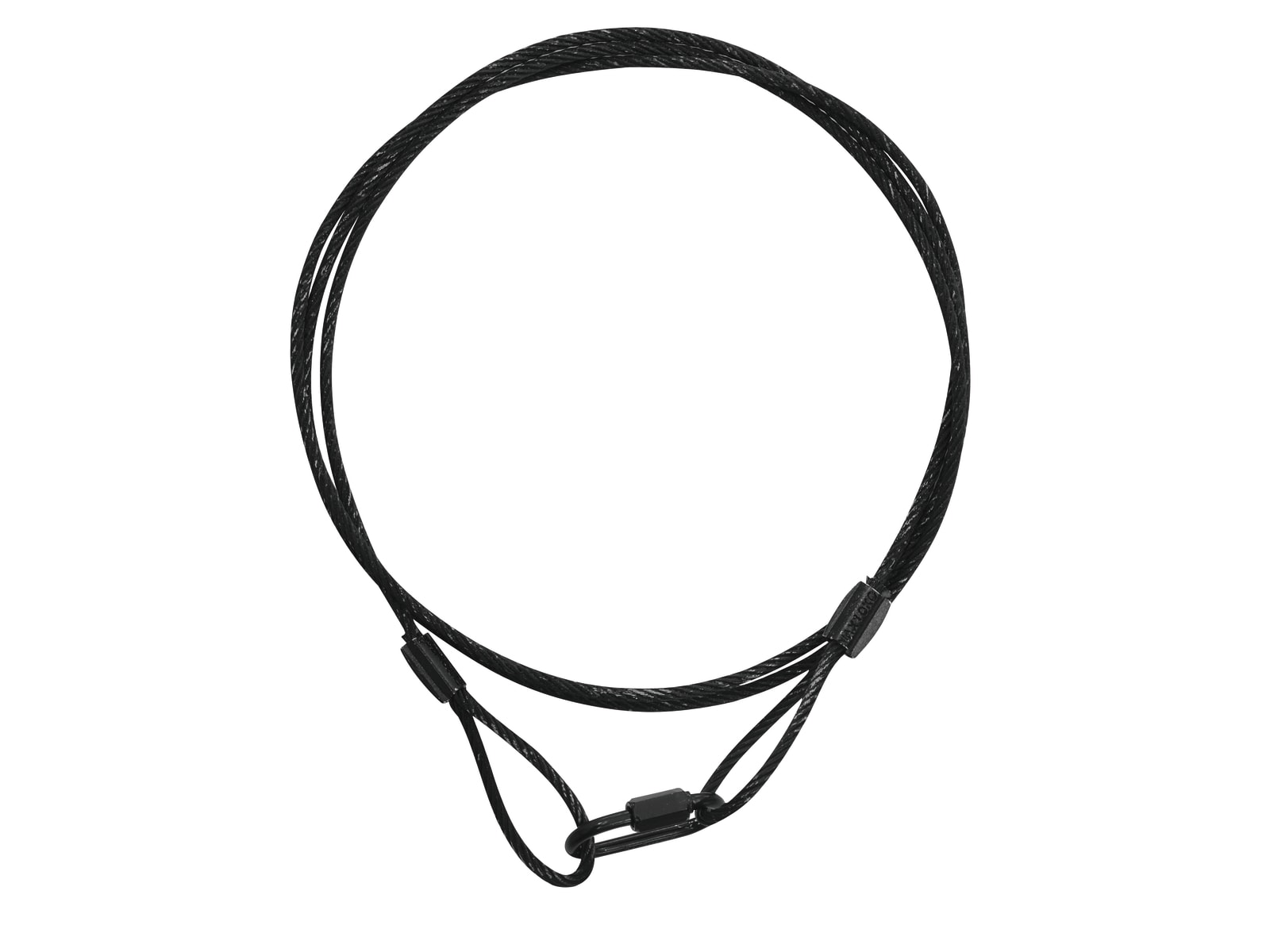

EUROLITE Steel Rope (SC) 900x3mm black without quick link

Steel rope with loops, grouted without grummet thimbles

• With steel core
• Stopping rope for general lifting purposes
• Rope with loop

EUROLITE Quick Link Type A-200

Quick link

• Complies with DIN 56927:2009-03
• For further information about this product, please refer to the Data Sheet under "Downloads"

Weight:
70 g
EUROLITE Steel Rope (SC) 900x3mm black without quick link
Maximum load WLL (5-fold):
100 kg
Design of the core:
6 x 19 WSC
Nominal tensile strenght of rope:
1770 N/mm²
Wire surface:
Zinc-plated
Color:
Black
Temperature range:
-40° C - +100° C
Dimensions:
Length: 90 cm
Diameter: Ø 3 mm
Weight:
40 g
EUROLITE Quick Link Type A-200
Maximum load WLL (10-fold):
200 kg
Standard:
DIN 56927:2009-03,
Shape:
A - small opening
Material:
Steel, zinc-plated
Opening:
0-7,5 mm
Dimensions:
Length: 4,50 cm
Width: 5,80 cm
Depth: 2,70 cm
Diameter: Ø 6 mm
Weight:
30 g
