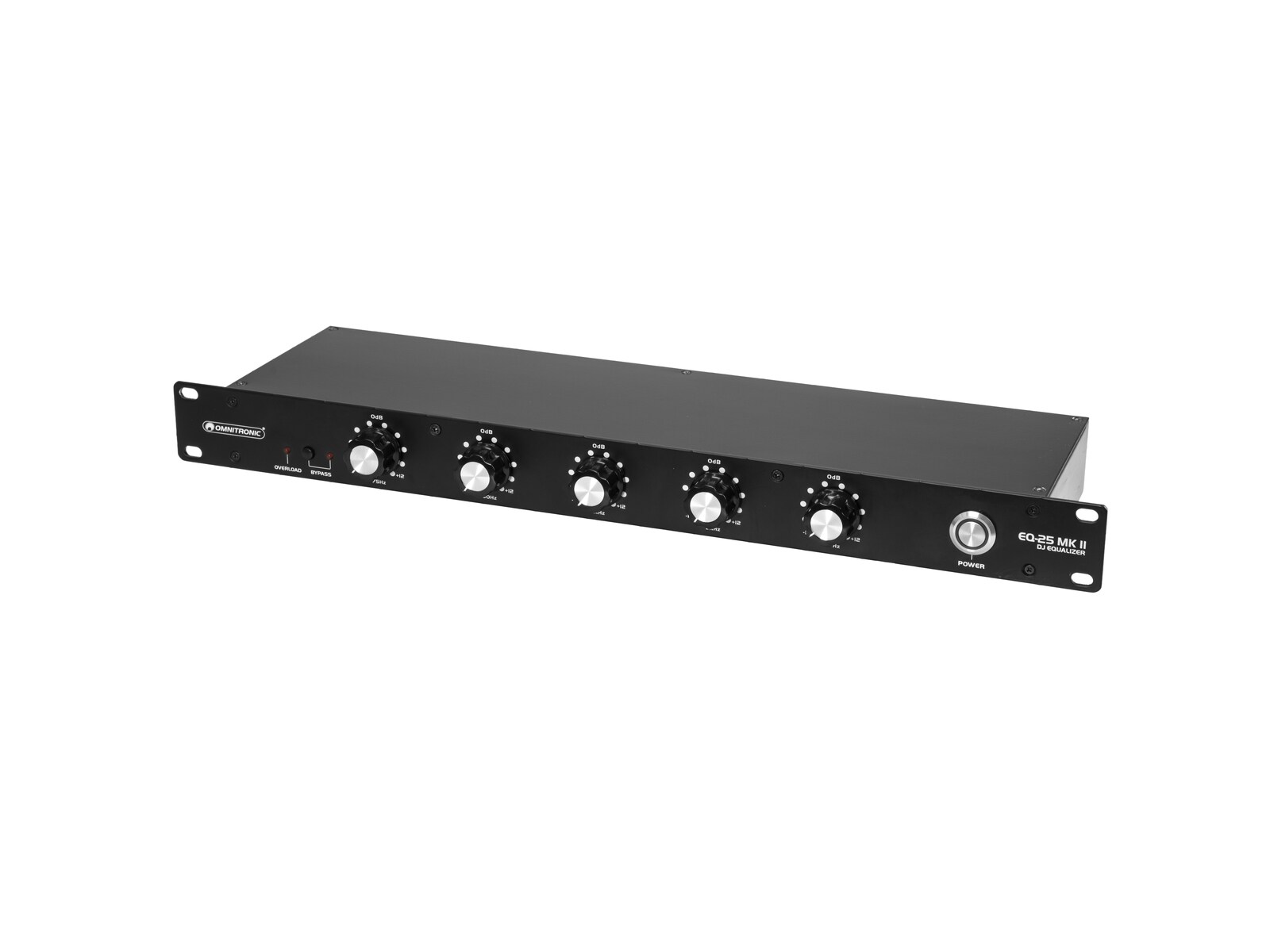

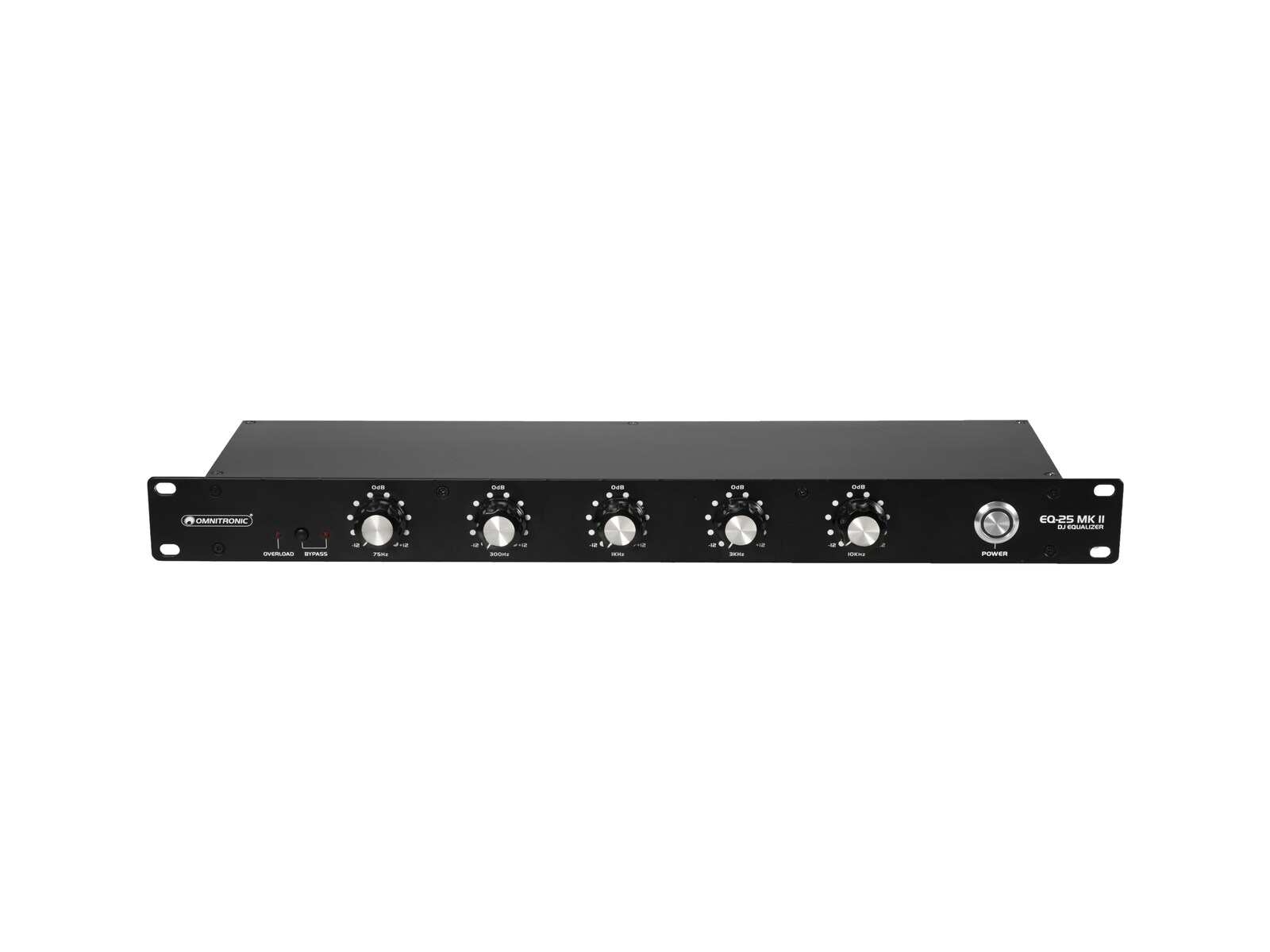

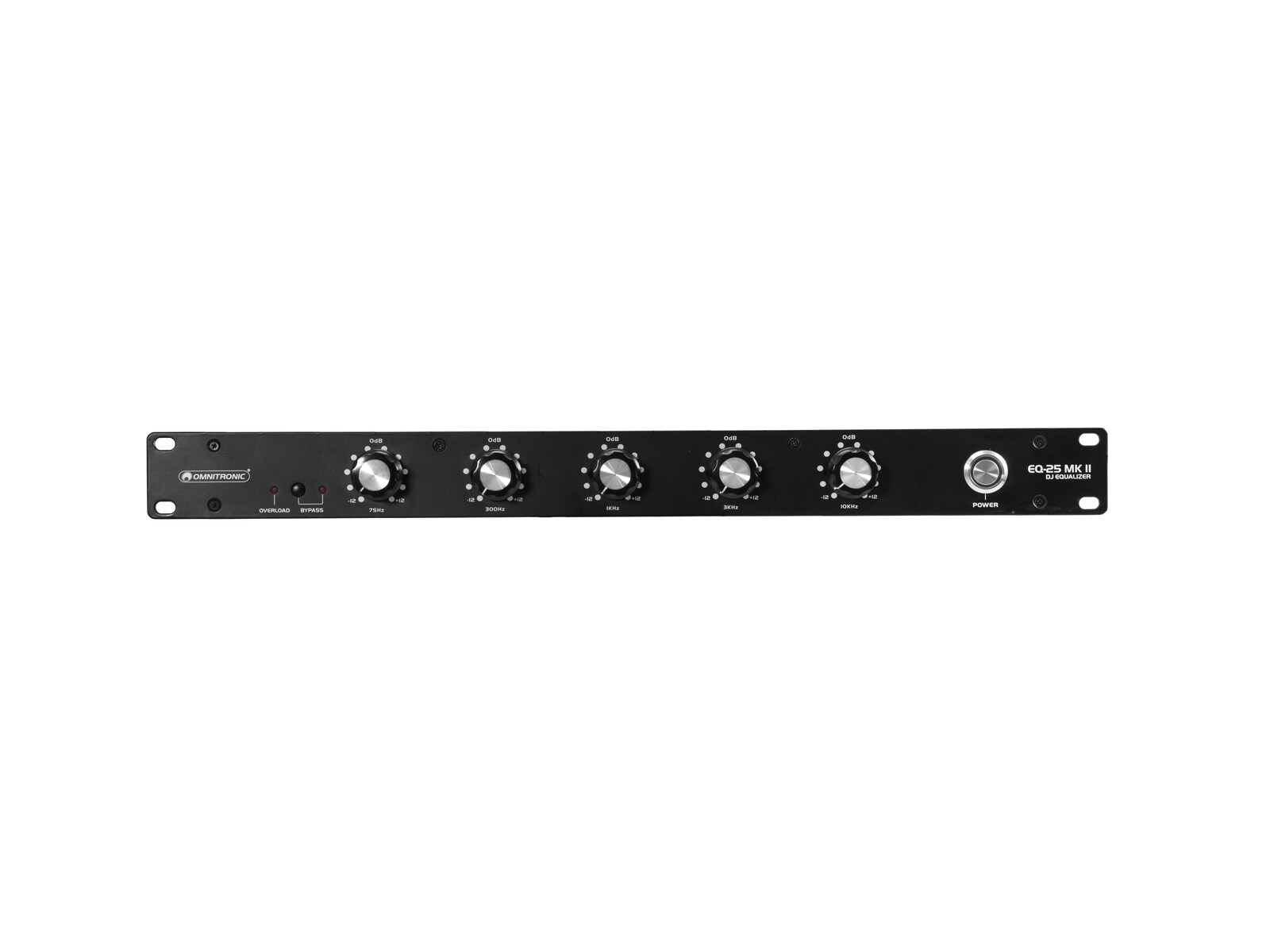

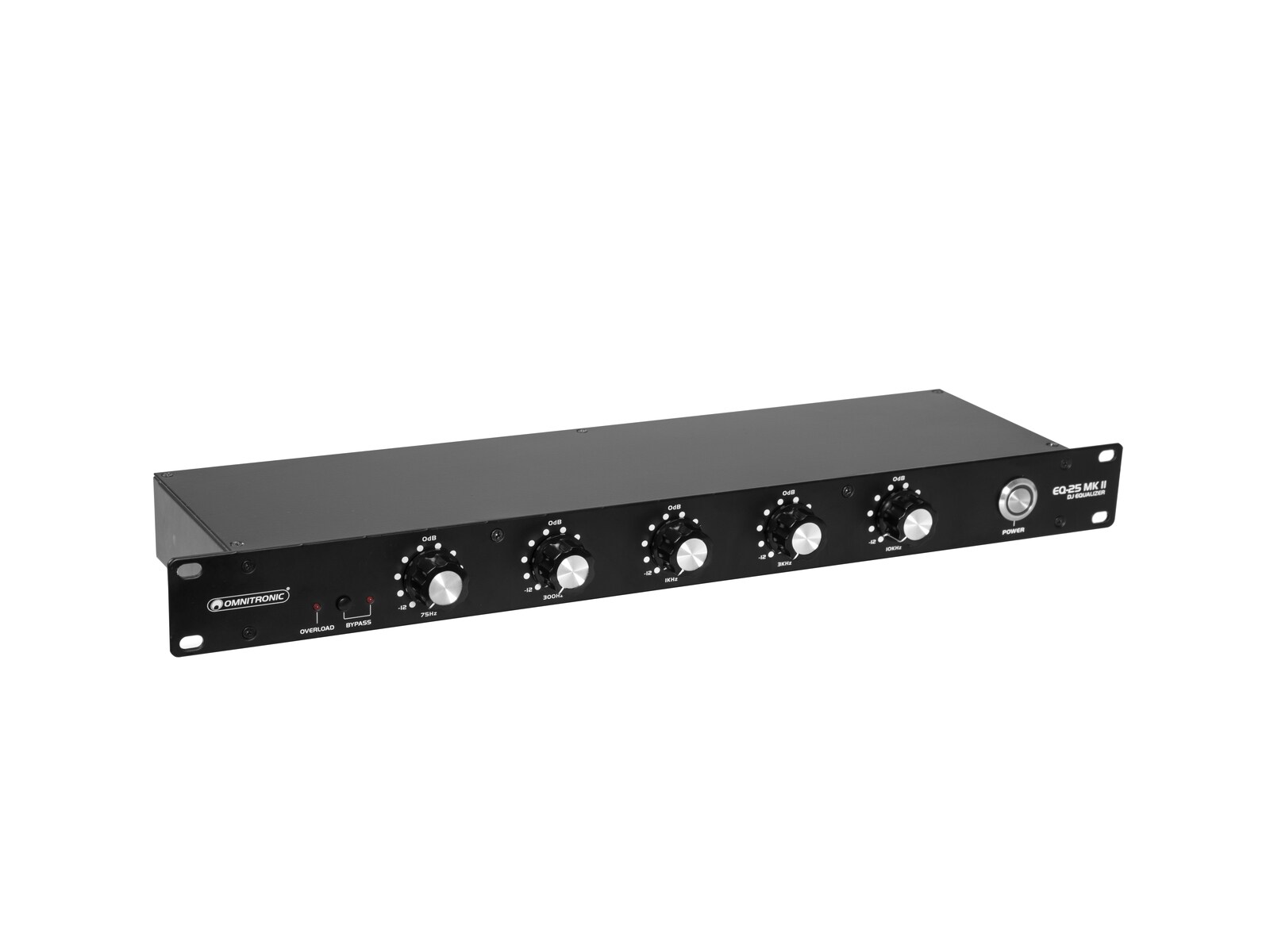

5-band stereo equalizer for DJs

• Allows smooth control for adjusting the overall tonal quality
• 5 graphic bands: 75/300 Hz, 1/3/10 kHz
• Control range ±12 dB
• Classic ALPS potentiometers (Blue Velvet RK27)
• Bypass switch allows instant comparison of original sound with processed sound
• Overload indication
• Balanced and unbalanced inputs/outputs (XLR/RCA)
• (19") 48.3 cm rack installation 1 U
• For application areas such as: Mobile djs/entertainer

Package contents

• 1 x device, 4 x foot, 1 x power cord

Power consumption:
12 W
S/N ratio:
>97 dB
Control range:
±12dB,
Connections:
Input: line via 2 x 3-pin XLR
Input: line via 2 x RCA (F) mounting version
Output: line via 2 x 3-pin XLR
Output: line via 2 x RCA (F) mounting version
Equalizer:
Master: 2 x 5-band tone control stereo
Centre frequency: 75/300 Hz, 1/3/10 kHz
Max. level:
Input: +22 dBu
Output: +22 dBu
Housing design:
(19") 48.3 cm rack installation 1 U
Dimensions:
Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm
Weight:
2,20 kg
