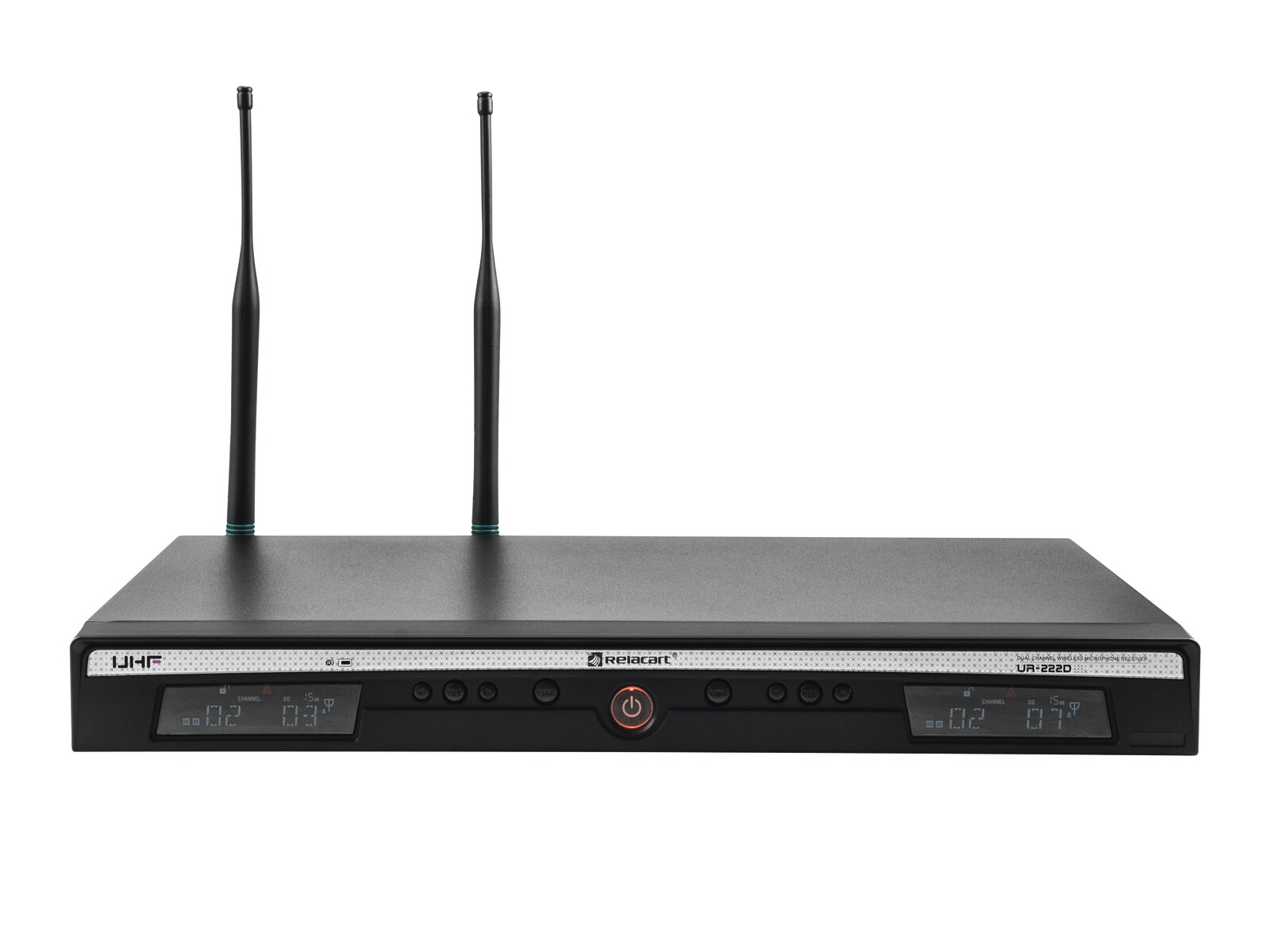

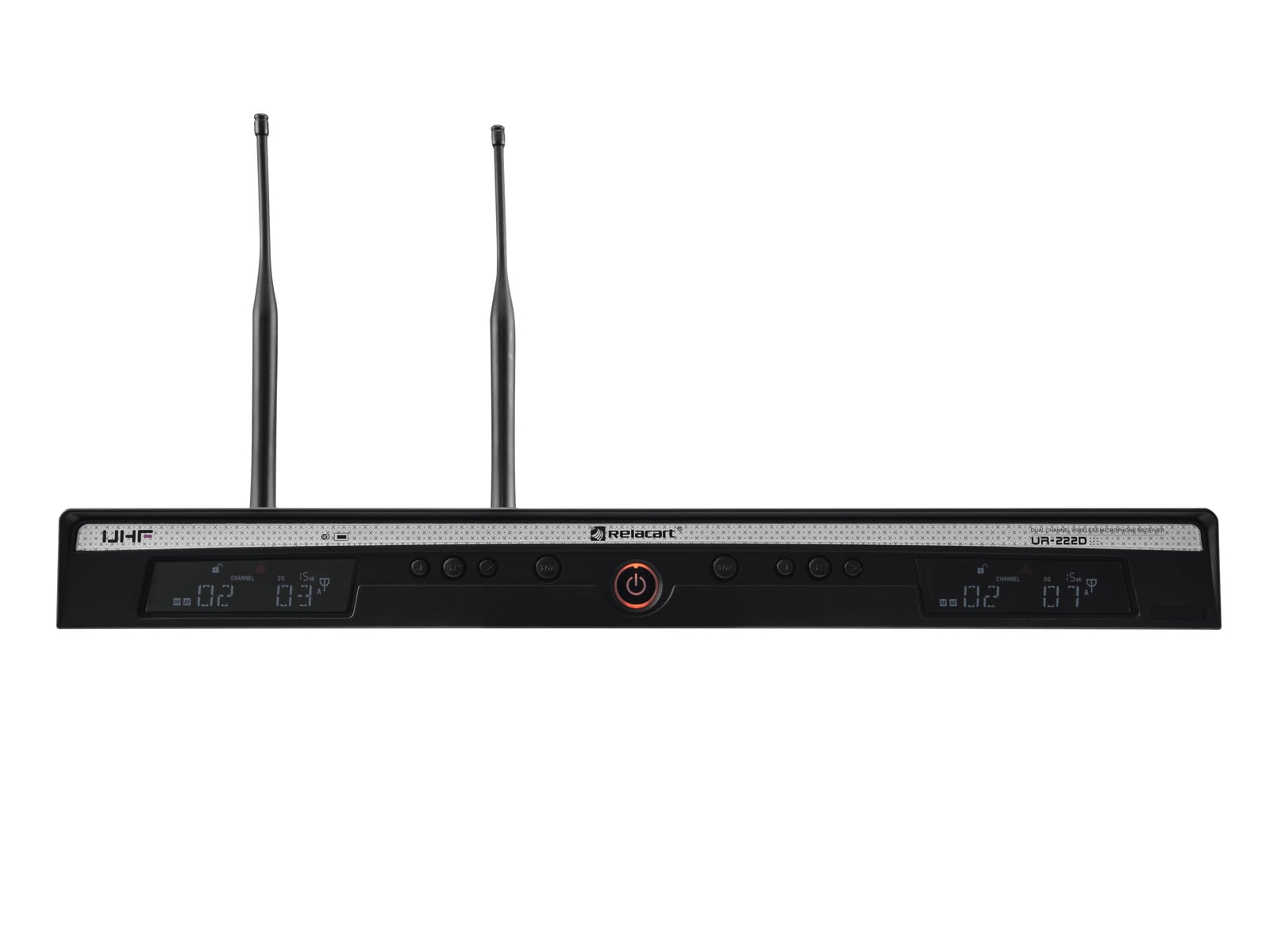

The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.
Scope of delivery
2-channel multifrequency wireless receiver with high-quality diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- (19") 48.3 cm rack installation possible 1 U
- Operating range up to 80m with line-of-sight
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be operated in parallel without interference
- Multicolor LCD display
- Charge status indicator
- Desktop console housing

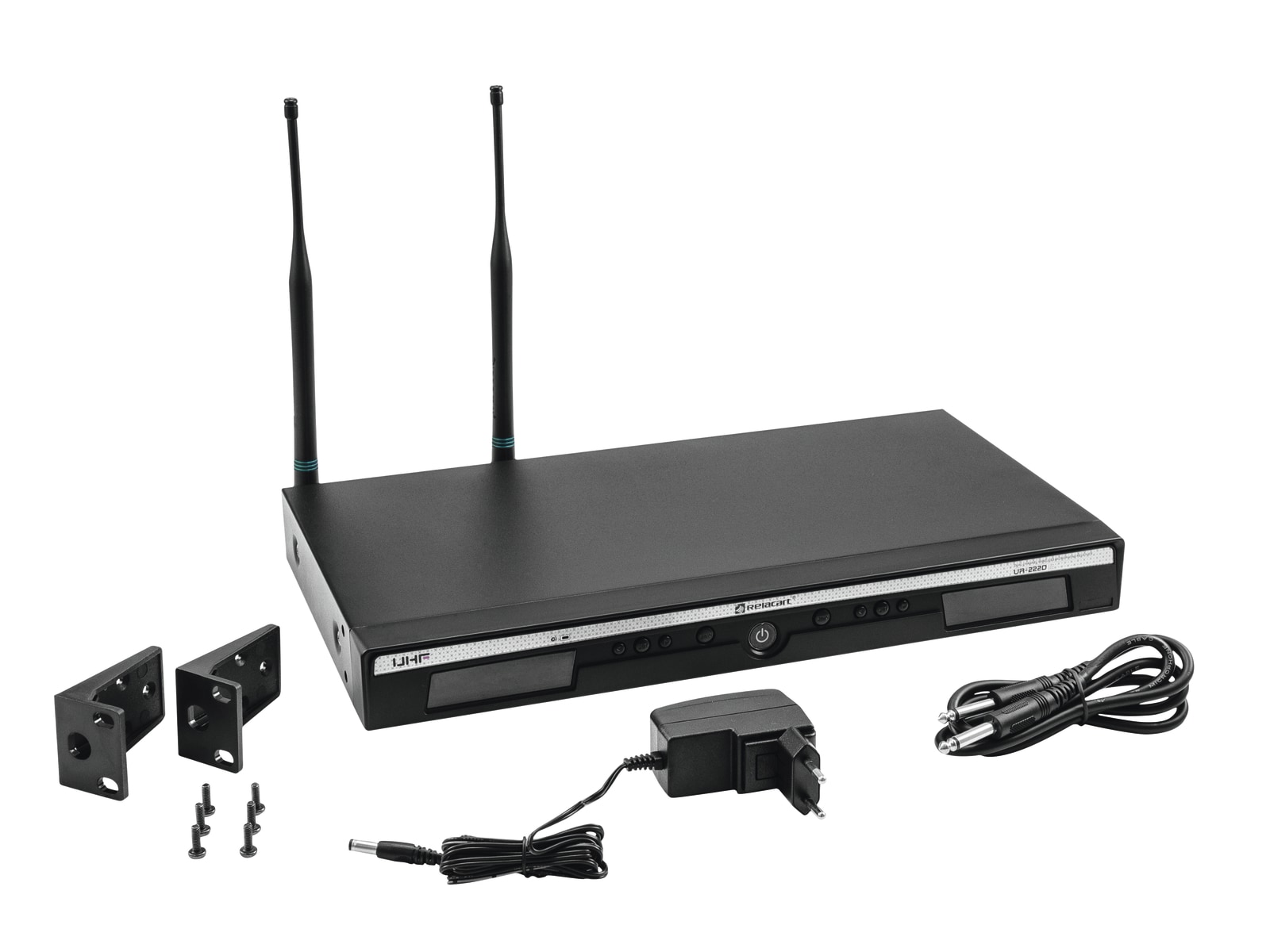

Scope of delivery
- 1 x receiver
- 1 x external mains adapter
- 2 x antenna
- 2 x mounting bracket
- 6 x screw
- 2 x jack cable
- 1 x user manual
- 1 x declaration of conformity
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 5 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Range: | Range up to 80m with line-of-sight |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Diversity: | Antenna diversity |
| Switching bandwidth: | 11 MHz |
| Frequency stability: | ± 0.0005 % |
| Parallel mode: | Max. 9 transmitter |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | Multicolor LCD display |
| Display: | Channel , frequency , goup , RF signal level; AF audio level , antenna A/B , charge status indicator |
| Control elements: | Navigation keys, menu, groundlift selector |
| Connections: | Output: line via 2 x 3-pin XLR Output: line via 2 x 6.3 mm plug (unbal.) Antenna via 2 x BNC (F) 8 V |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 41 cm Depth: 26 cm Height: 4.6 cm |
| Weight: | 2.32 kg |
