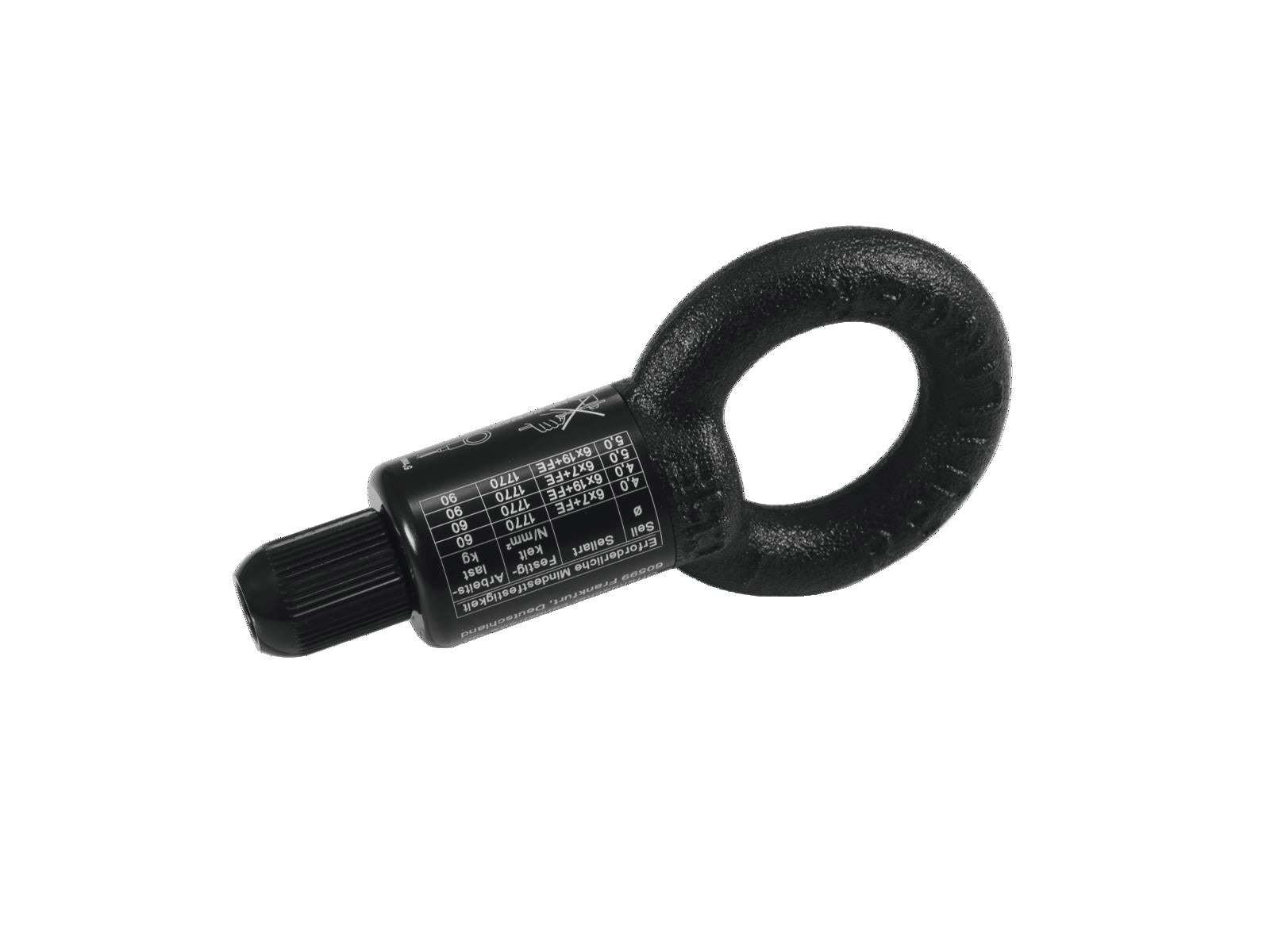

Cable glider, up to 90 kg work load

• For rope diameters 4.0 to 5.0 mm
• 6-ball mechanism
• With eyering DIN 582 M12 black zinc plated C15E
• Please note: Cable gliders must not be used for dynamic loads. Always use at least 2 cable gliders for every suspended object.
• M12 thread
• Made in Germany
• BG certified
• TÜV/GS certified
• For further information about this product, please refer to the Data Sheet under "Downloads"

For rope diameter:
4 mm - 5 mm
Work load:
5 mm: 90 kg
4 mm: 60 kg
Color:
Black
Ring diameter:
Outside: 54 mm
Inside: 30 mm
Thread:
M12 thread x 17 mm
Dimensions:
Length: 12,60 cm
Diameter: Ø 2,50 cm
Weight:
250 g
