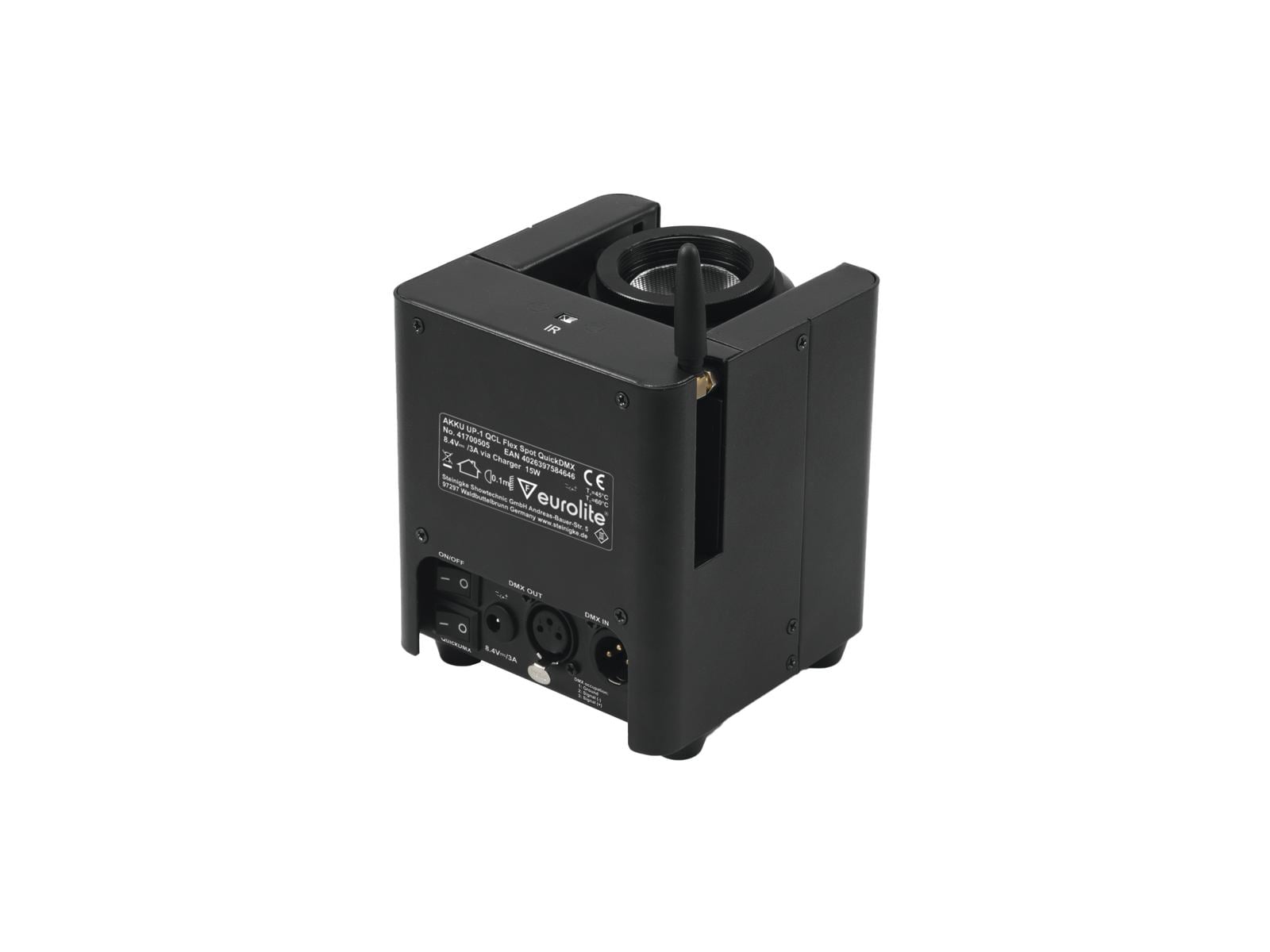

LED uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
- Integrated QuickDMX transceiver for wireless DMX control
- Inclination angle of the LED head manually adjustable
- Interchangeable front lens for 9° or 15° beam angle
- Cordless, flexible and versatile
- Battery operation up to 18h depending on program used
- Integrated automatic charging of the battery and status indicator
- 1 powerful LED 15 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
- Dimmer speed (step response) adjustable; colors preset; color blend stepless; color change adjustable; Dimmer electronic
- Strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; sound to light via microphone; IR remote control
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
- Flicker-free
- With a beam angle of 9°
- For application areas such as: Decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental; advertisement/Shop window
- Silent operation
- Application possibility: Standing
Scope of delivery
- 1 x spotlight
- 1 x external mains adapter
- 1 x remote control
- 2 x battery
- 1 x lens
- 1 x omega bracket
- 1 x user manual
- 1 x power cord
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Battery/battery pack Mains input via coaxial power connector (M) mounting version power supply cord with Euro plug (provided) |
| Battery pack type: | 1 x lithium ion 7.4 V, 8800 mAh, 65.12 Wh |
| Battery pack: | Battery operation up to 18h depending on program used Recharging time 6h |
| Lamp type: | LED lamp |
| LED type: | 1 x 15 W SMD 9080 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 3; 4; 6; 8; 10 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; stand-alone; QuickDMX; sound to light via microphone; IR remote control |
| Preprogrammed in: | Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| Carrier frequency: | 2.4 GHz |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9° 15° |
| Beam angle (1/10 peak): | 18° 30° |
| Housing color: | Black |
| Dimensions: | Width: 12 cm Depth: 12 cm Height: 14.2 cm |
| Weight: | 2.21 kg |
| Noise classification: | Class 0 (no noise at all) |
| External mains adapter | |
| Power supply: | 100-240 V AC, 50/60 Hz 8.4V 3000 mA |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
