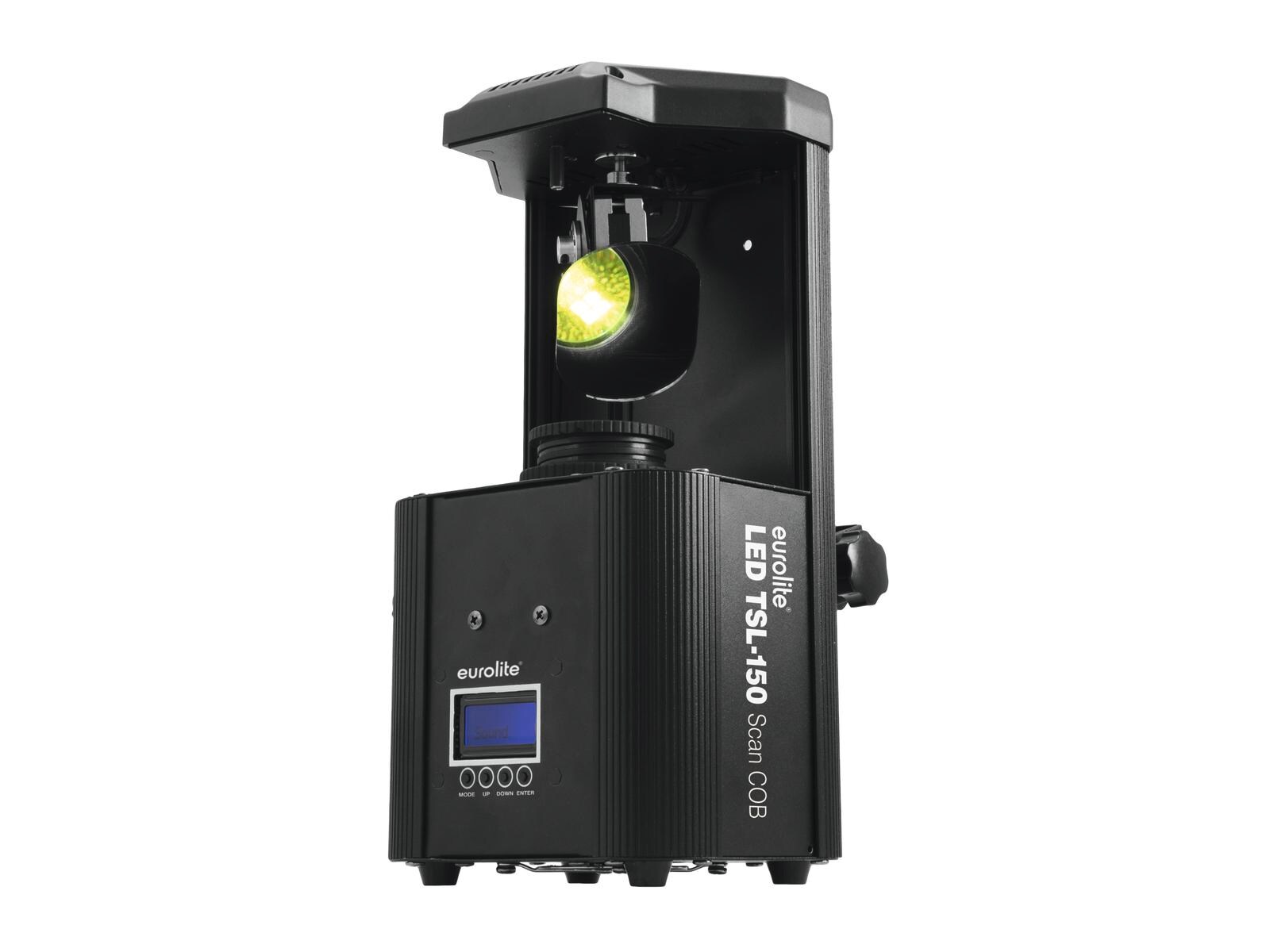

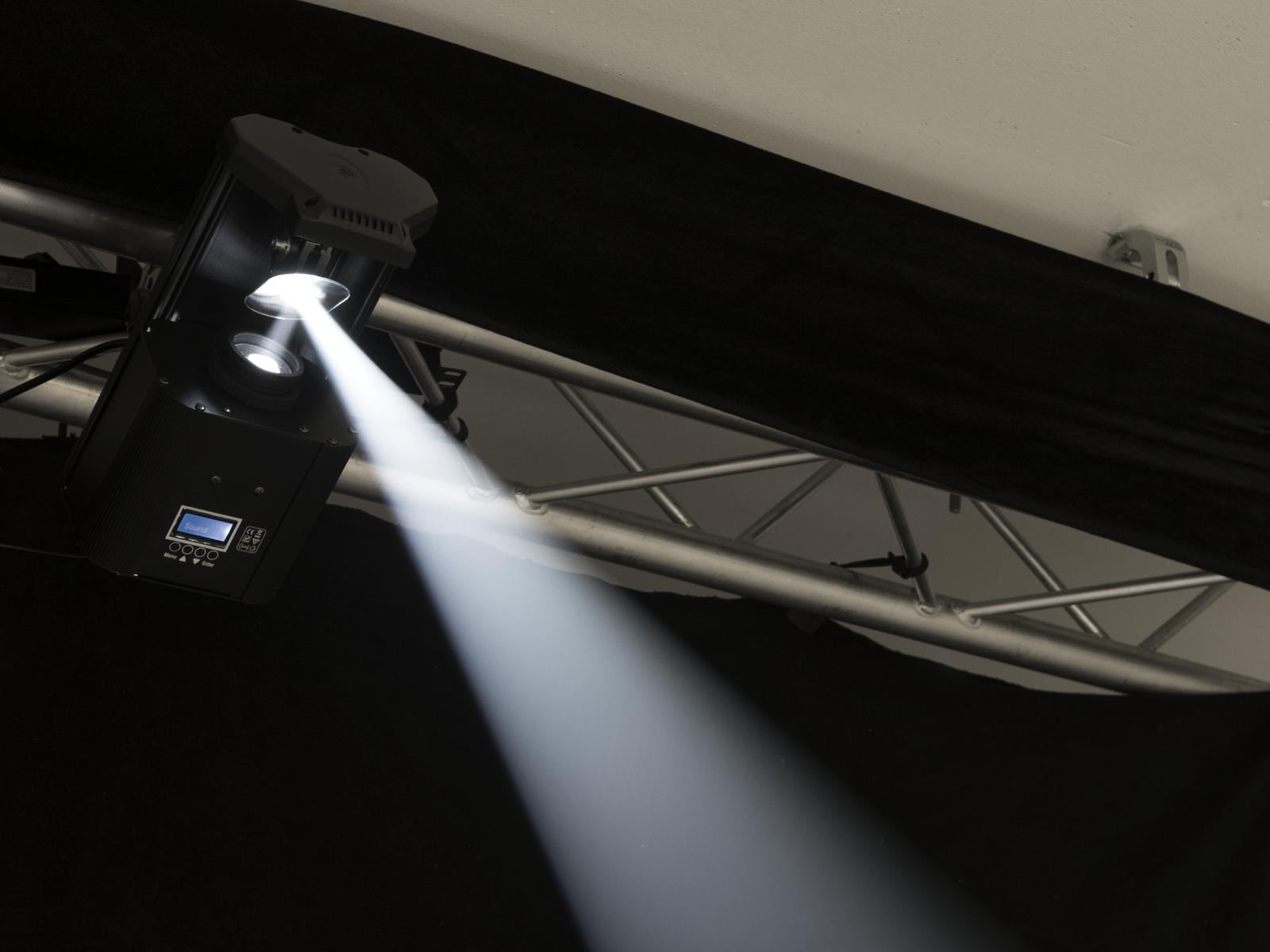

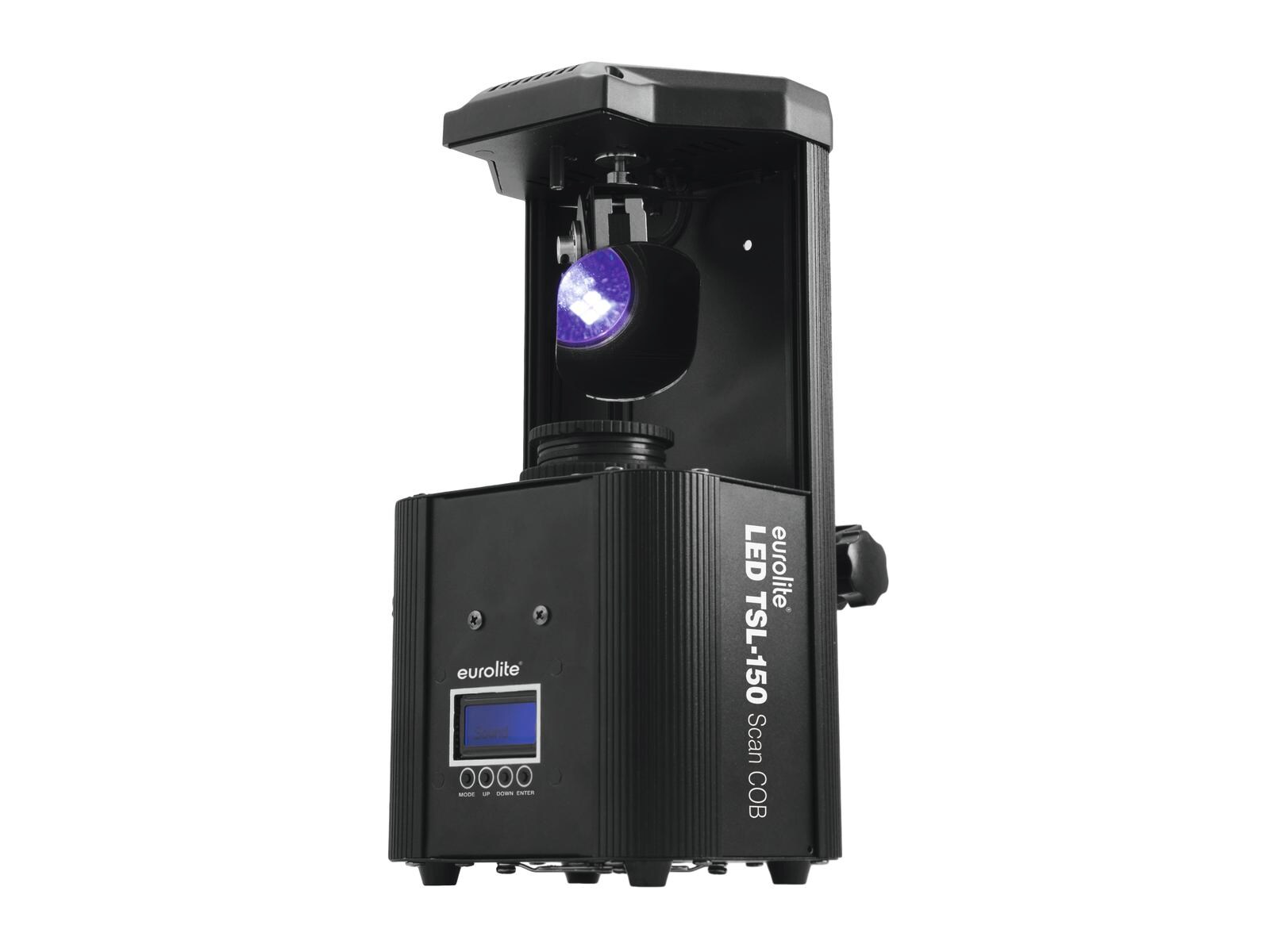

Handy scanner with 30 W COB LED, gobo and color wheel
- Compact design
- Fuzzy sound control: program continues automatically during periods without music or bass-beat
- 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
- Positioning within
- Gobo wheel with static gobos; focus manual
- Dimmer electronic

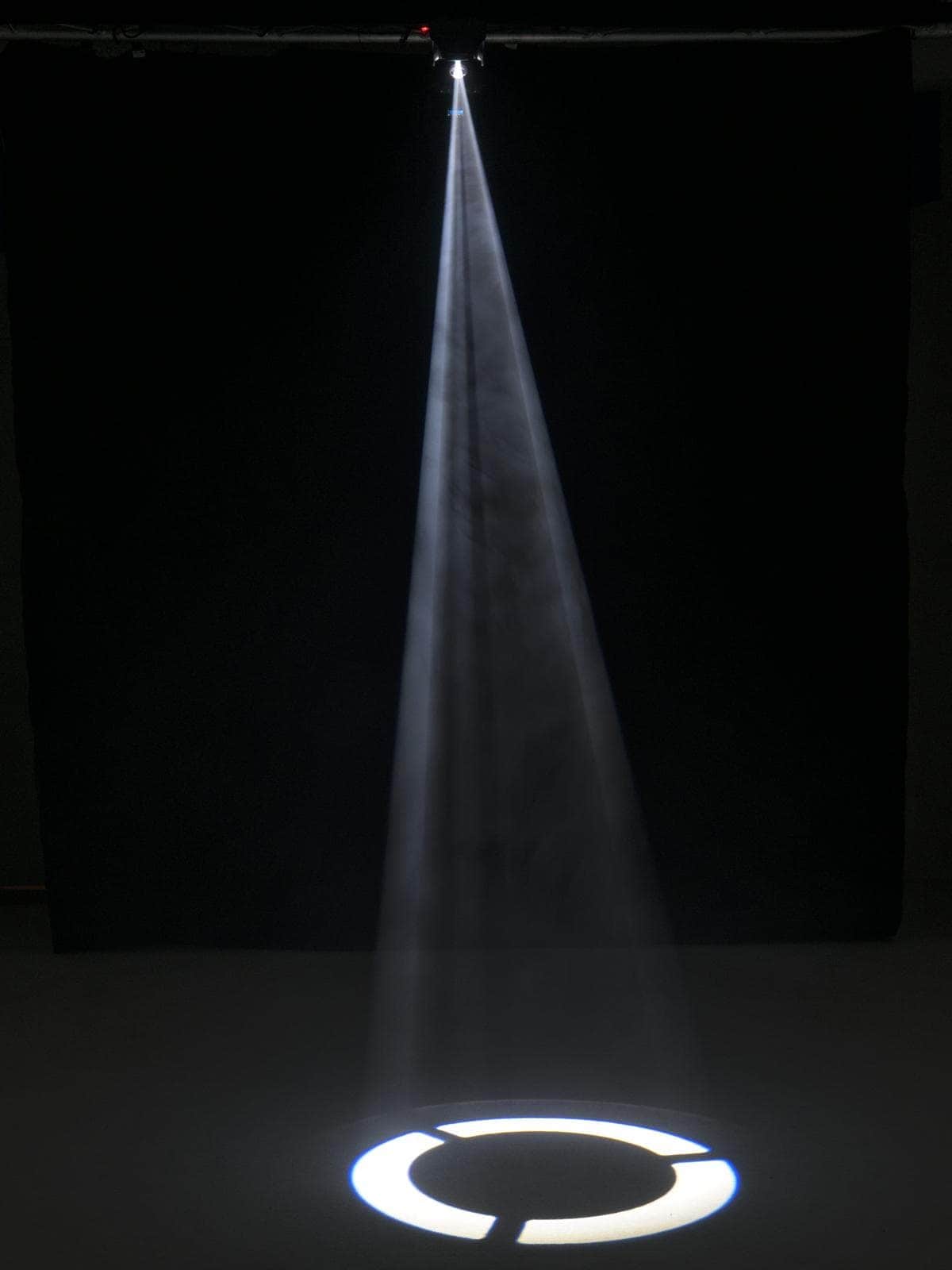

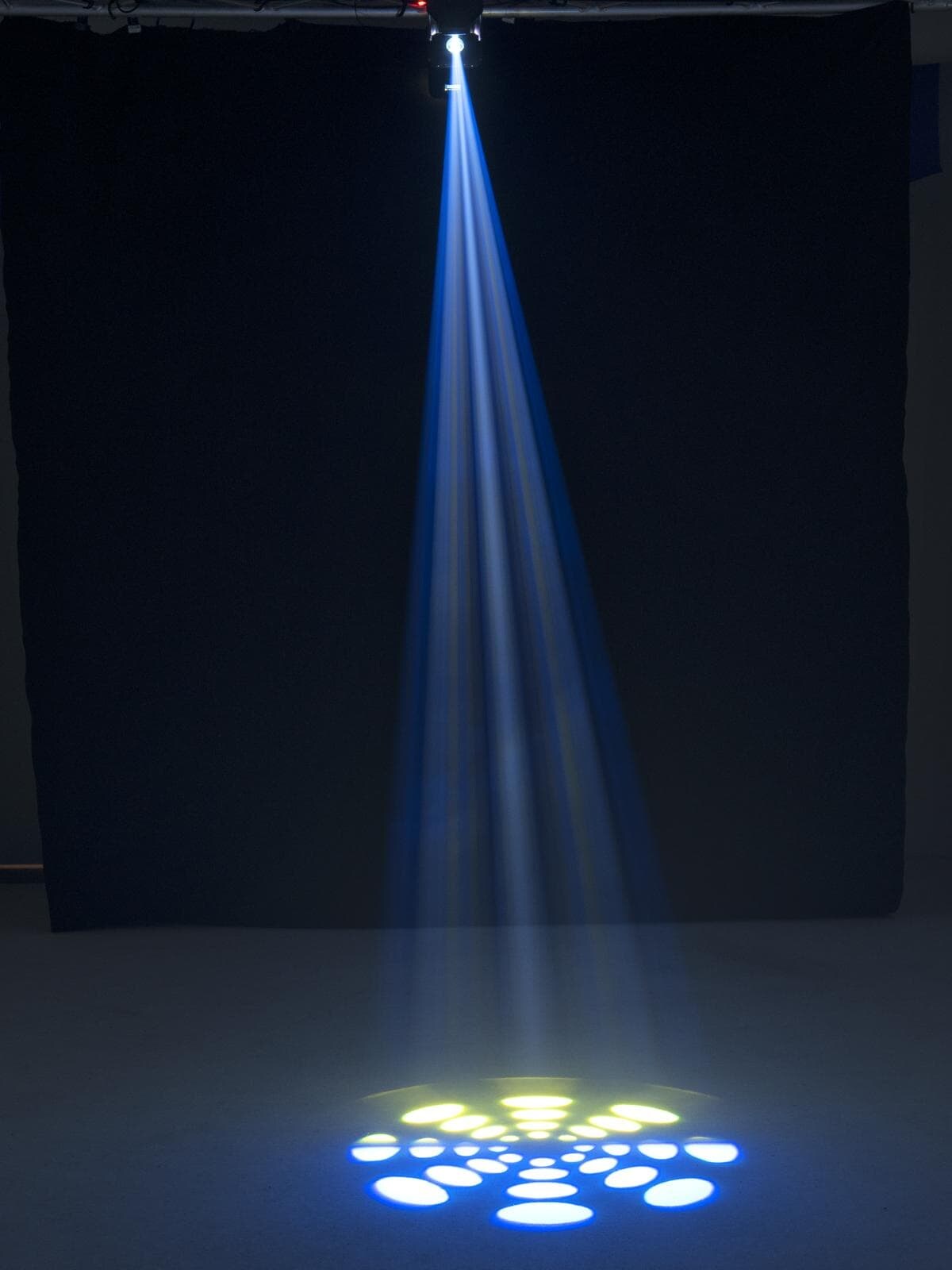

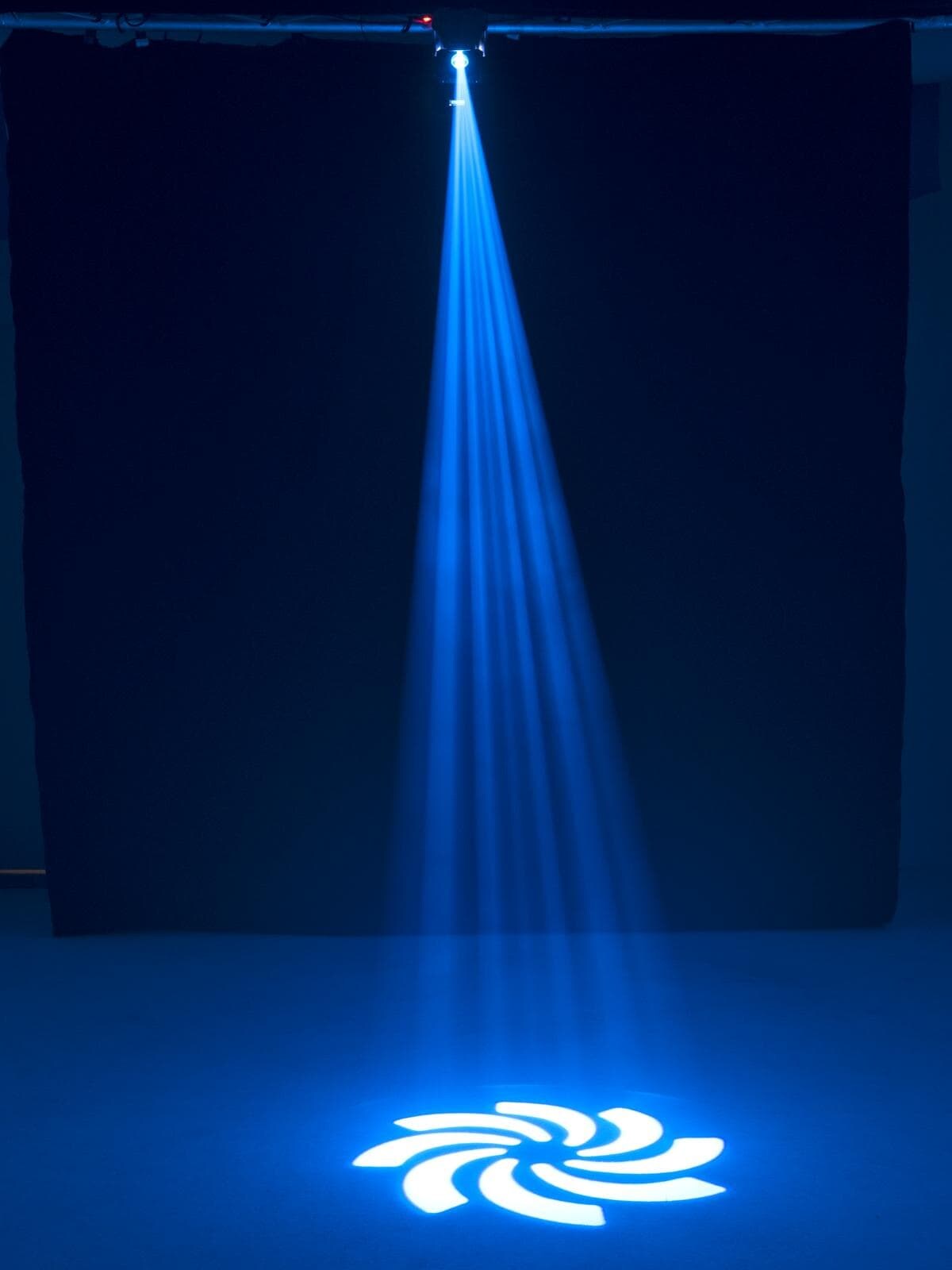

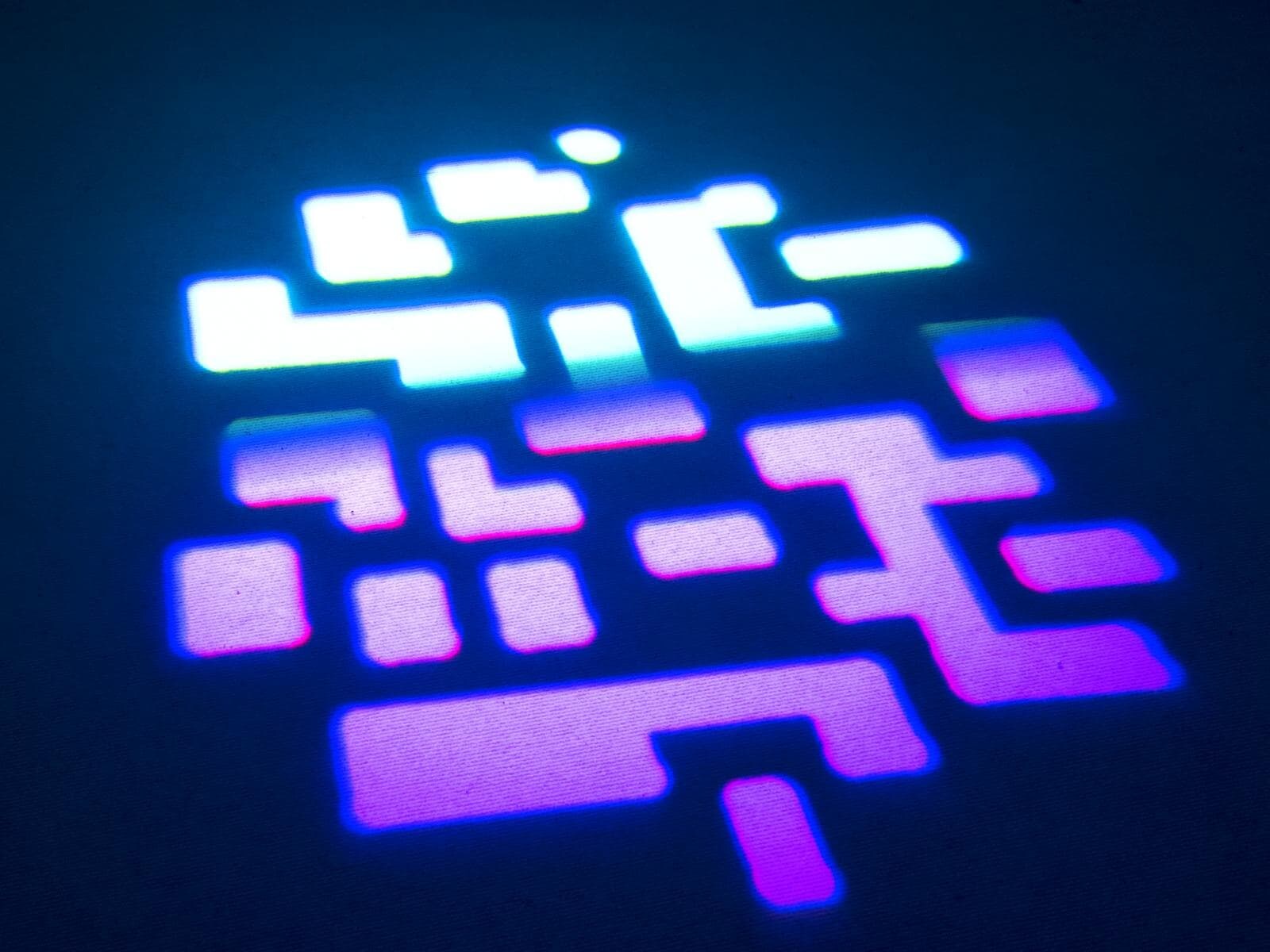

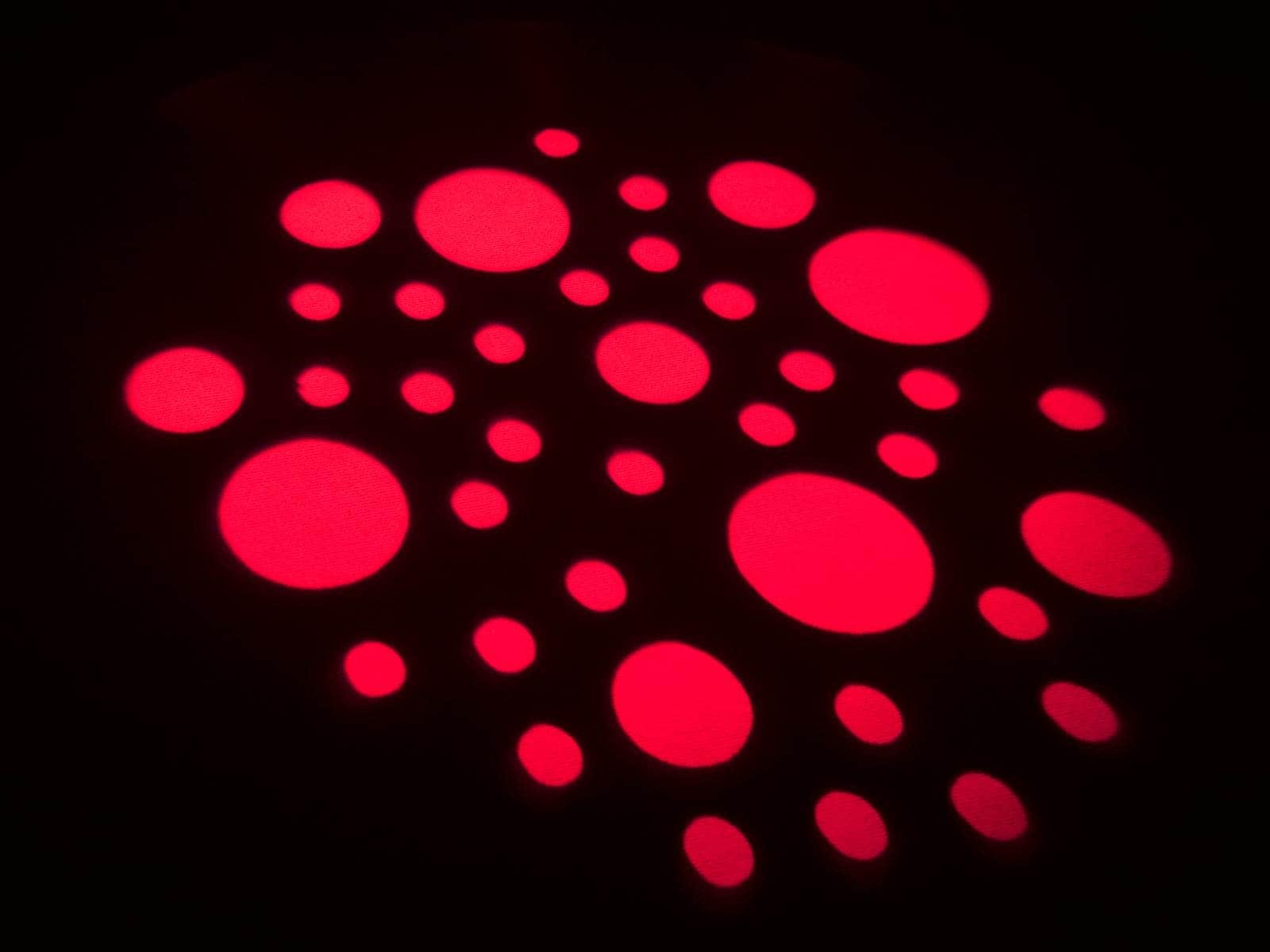

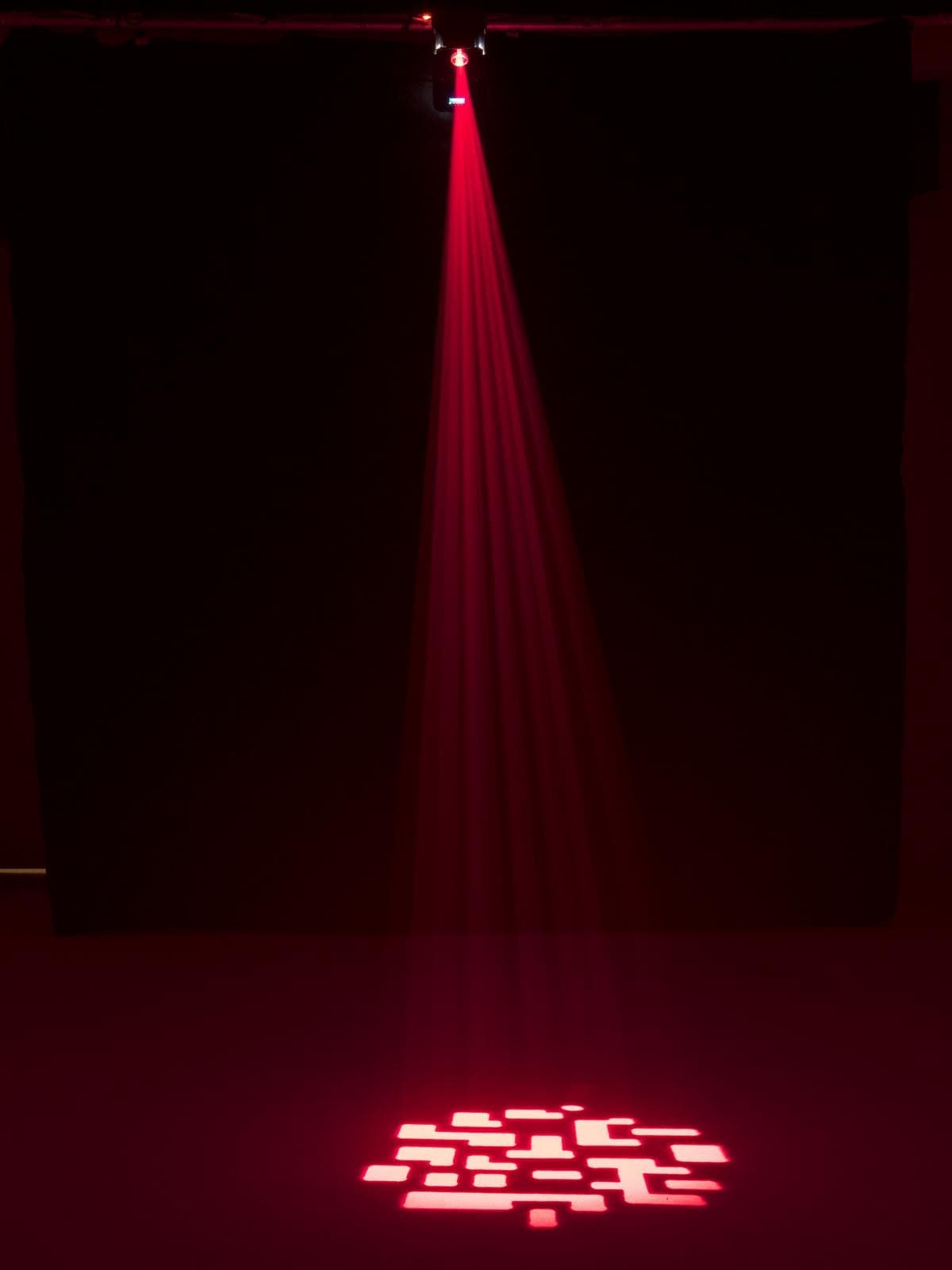

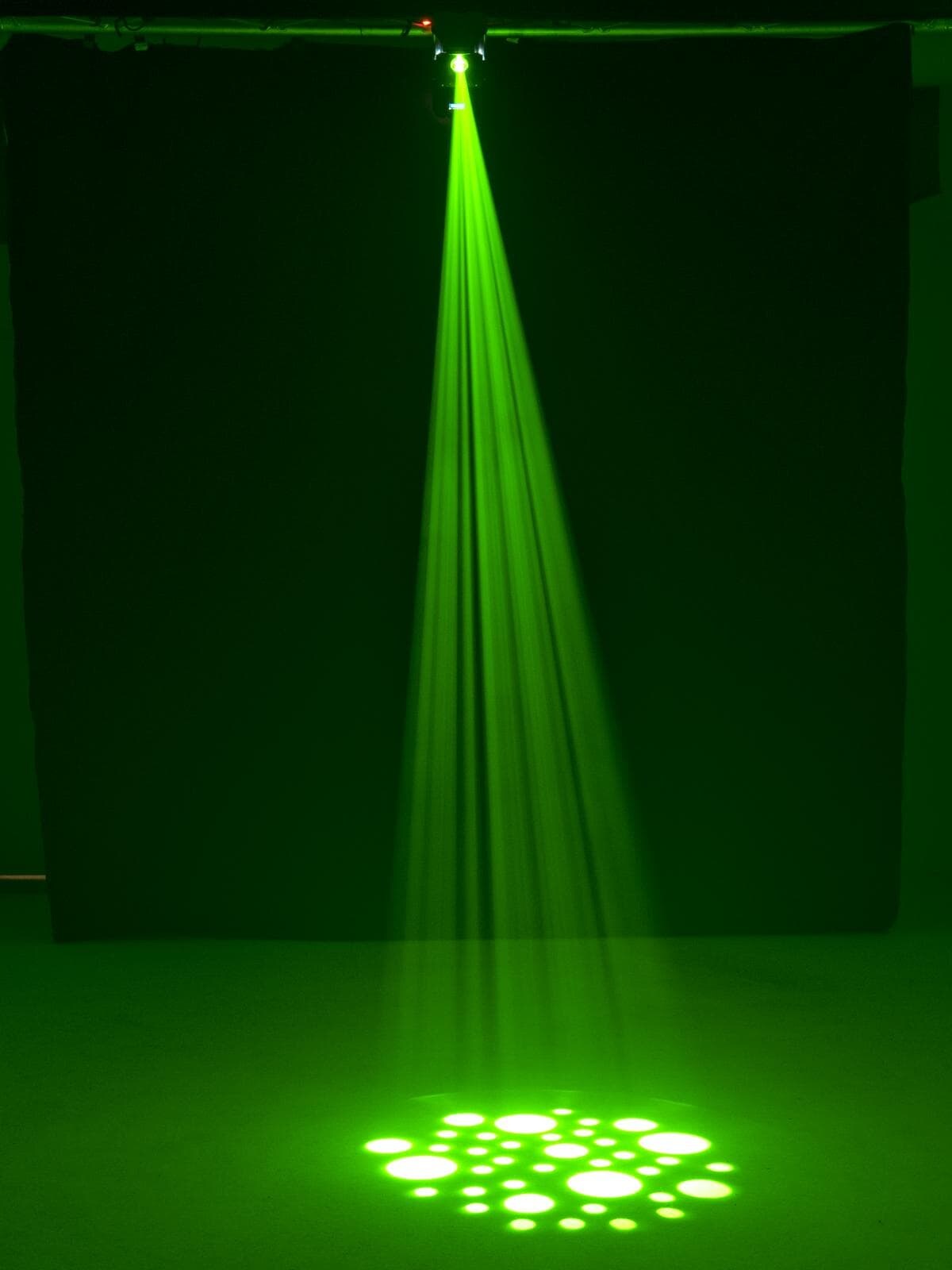

- Gobo effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; sound to light via microphone
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3

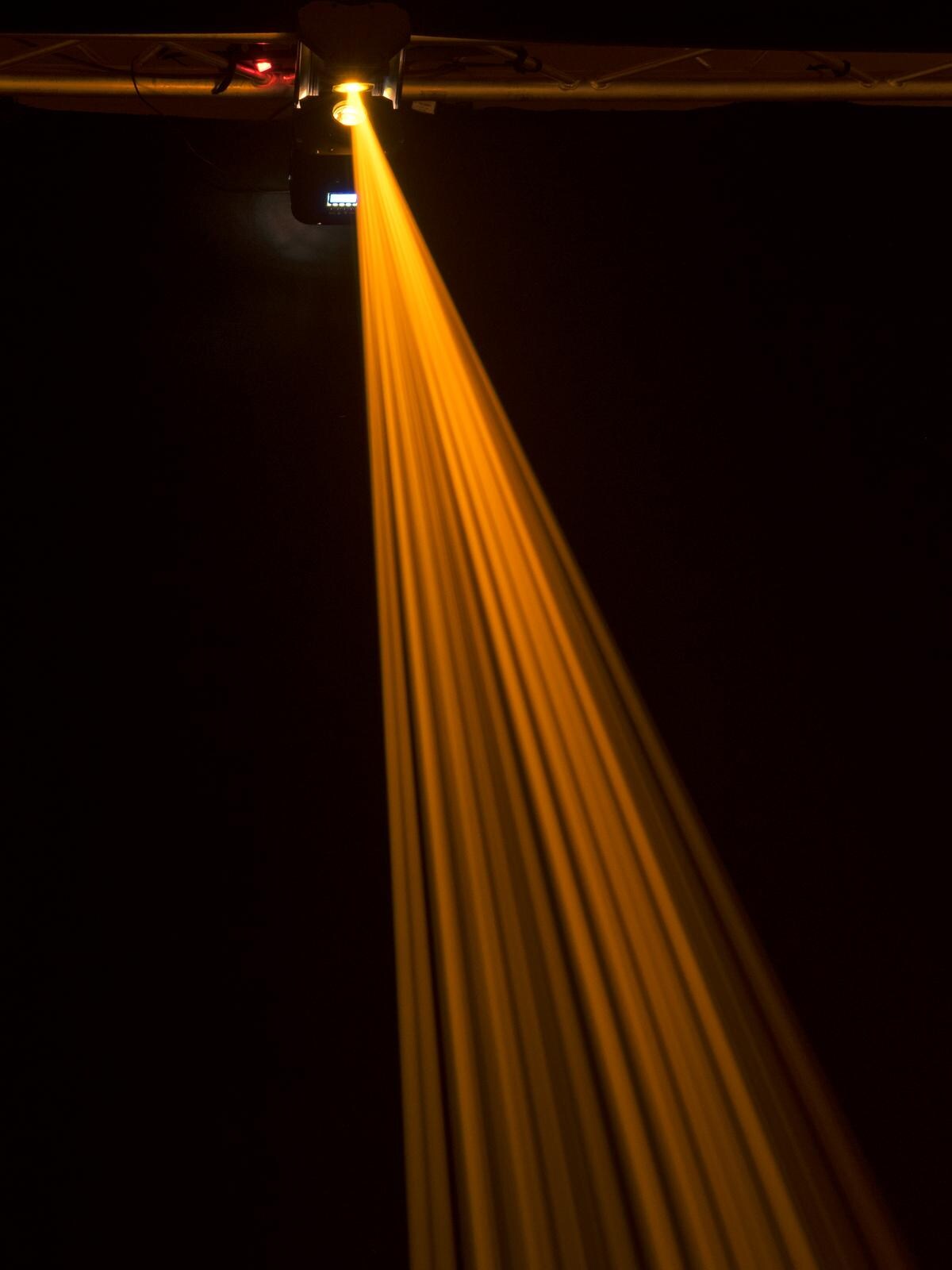

- With a beam angle of 12°
- LCD display
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
- Application possibility: Standing; on stand
Scope of delivery
- 1 x light effect
- 1 x user manual
- 1 x power cord
- 1 x mounting bracket
- 2 x screw
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED type: | 1 x 30 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 2 - 29 Hz |
| Equipment: | Gobo wheel with static gobos; focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |

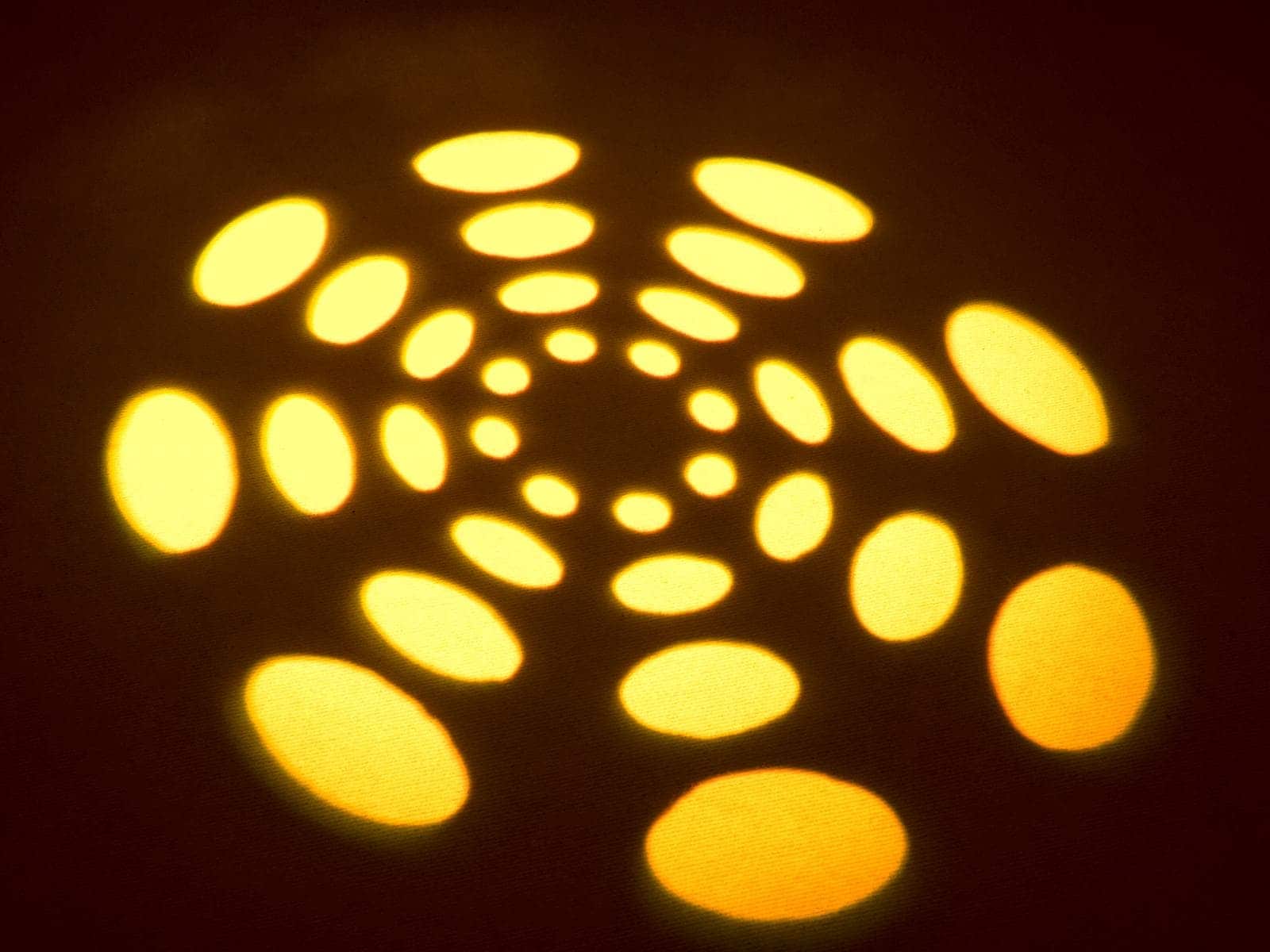

| Gobos: | Gobo wheel with static gobos, 7 gobos and open Shake effect |
| DMX channels: | 9 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 1212 lx, 6m: 309 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 16.5 cm Depth: 33 cm Height: 19.5 cm |
| Weight: | 2.88 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
