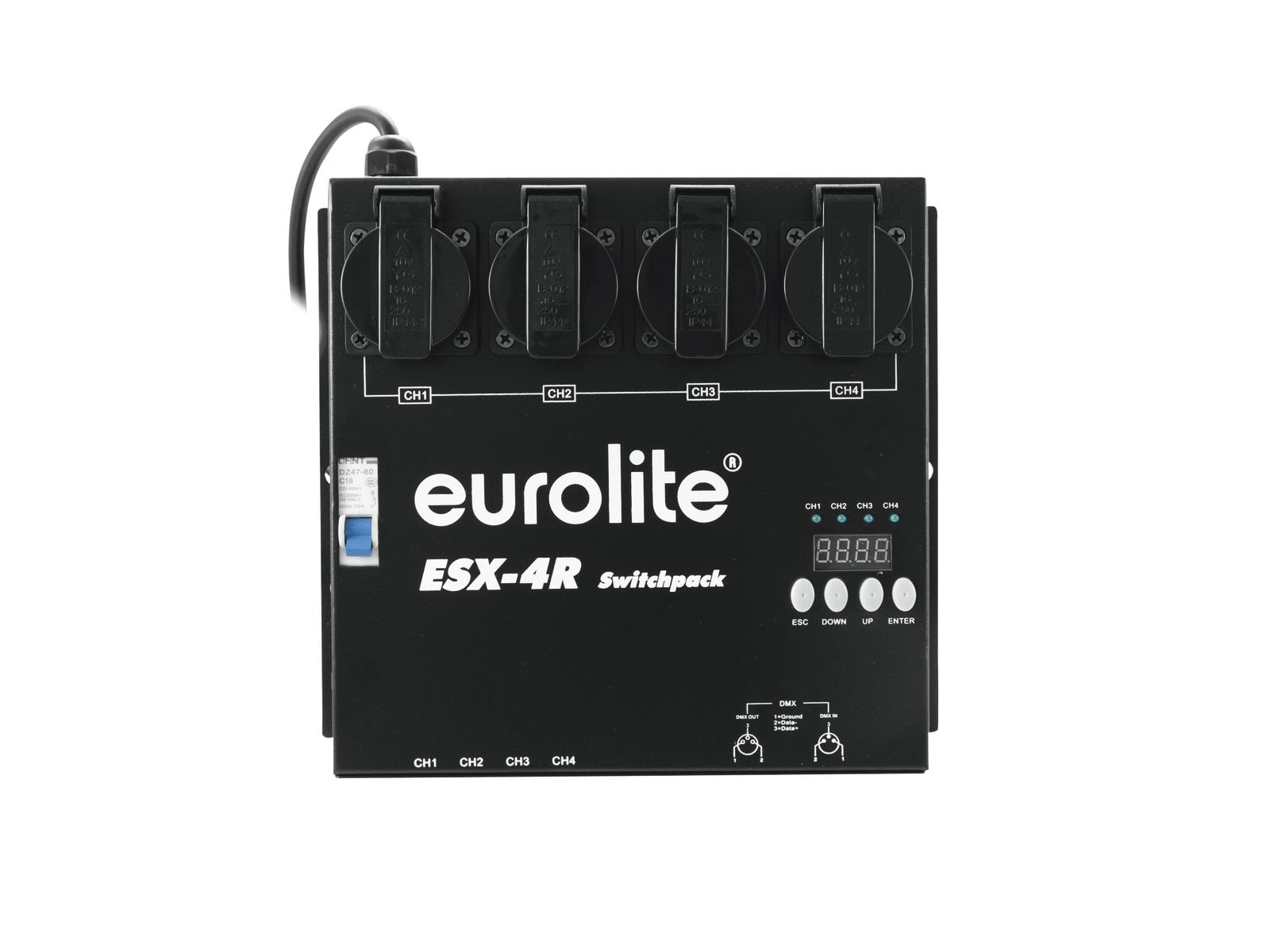

4-channel DMX switch pack, up to 5 A load per channel, control per Triac

• 4 controllable channels
• 5 A load per channel
• LED display of all channels
• With Control Board for programming scenes and chasers
• Rugged metal housing
• Control via stand-alone; DMX; RDM
• 4 digit 7-segment LED display

Package contents

• 1 x device, 1 x user manual

Power supply:
230 V AC, 50 Hz
Output power:
Max. 3680 W
Max. 1150 W per channal
Output current:
Max. 16 A
Power connection:
Fixed power supply cord with safety plug
Power output:
4 x Safety contact (F), mounting version
DMX channels:
4
DMX input:
3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
Stand-alone; DMX; RDM
Control channels:
4
Display type:
4 digit 7-segment LED display
Color:
Black
Dimensions:
Width: 27 cm
Depth: 26 cm
Height: 9,5 cm
Weight:
2,53 kg
