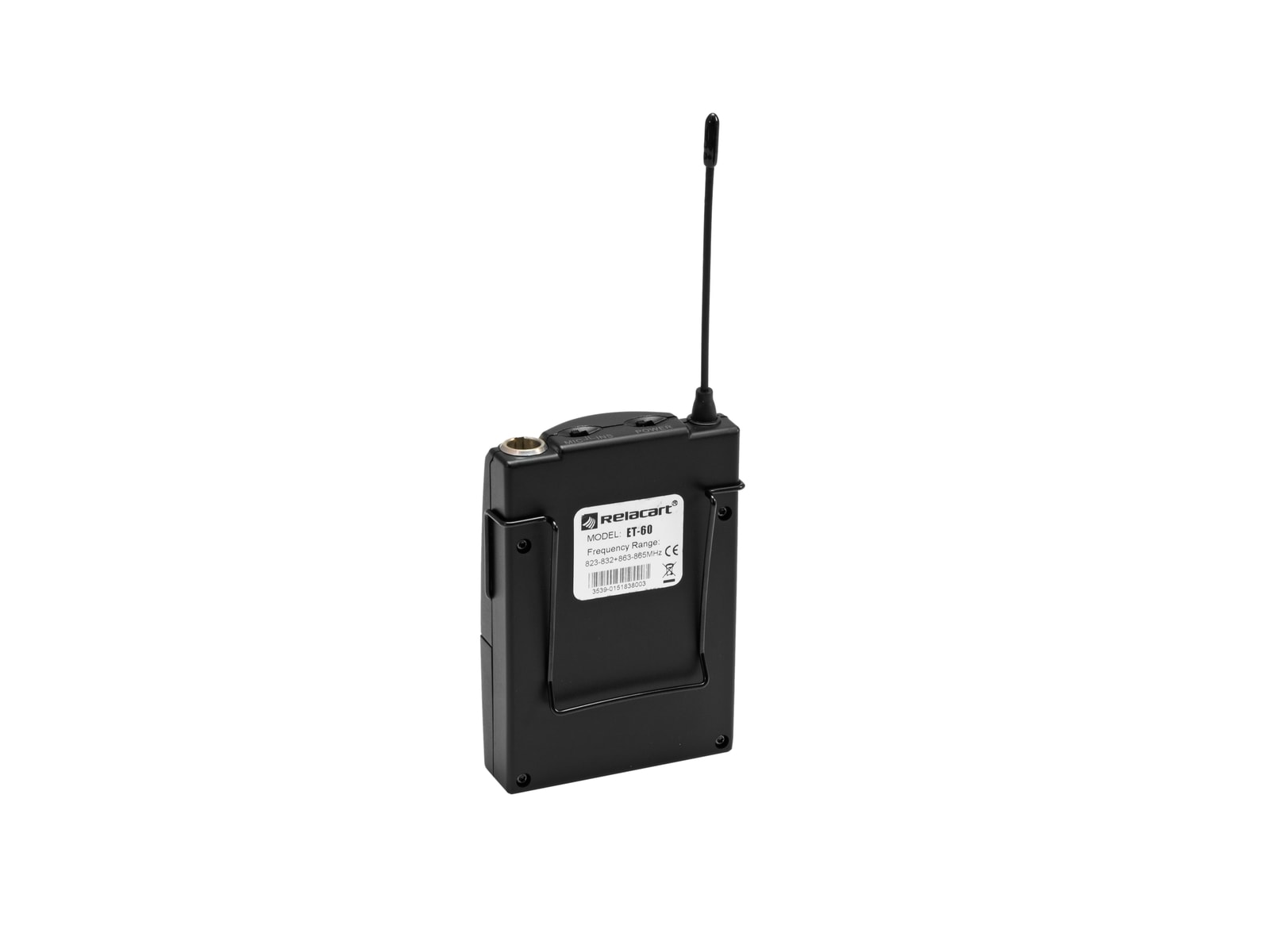

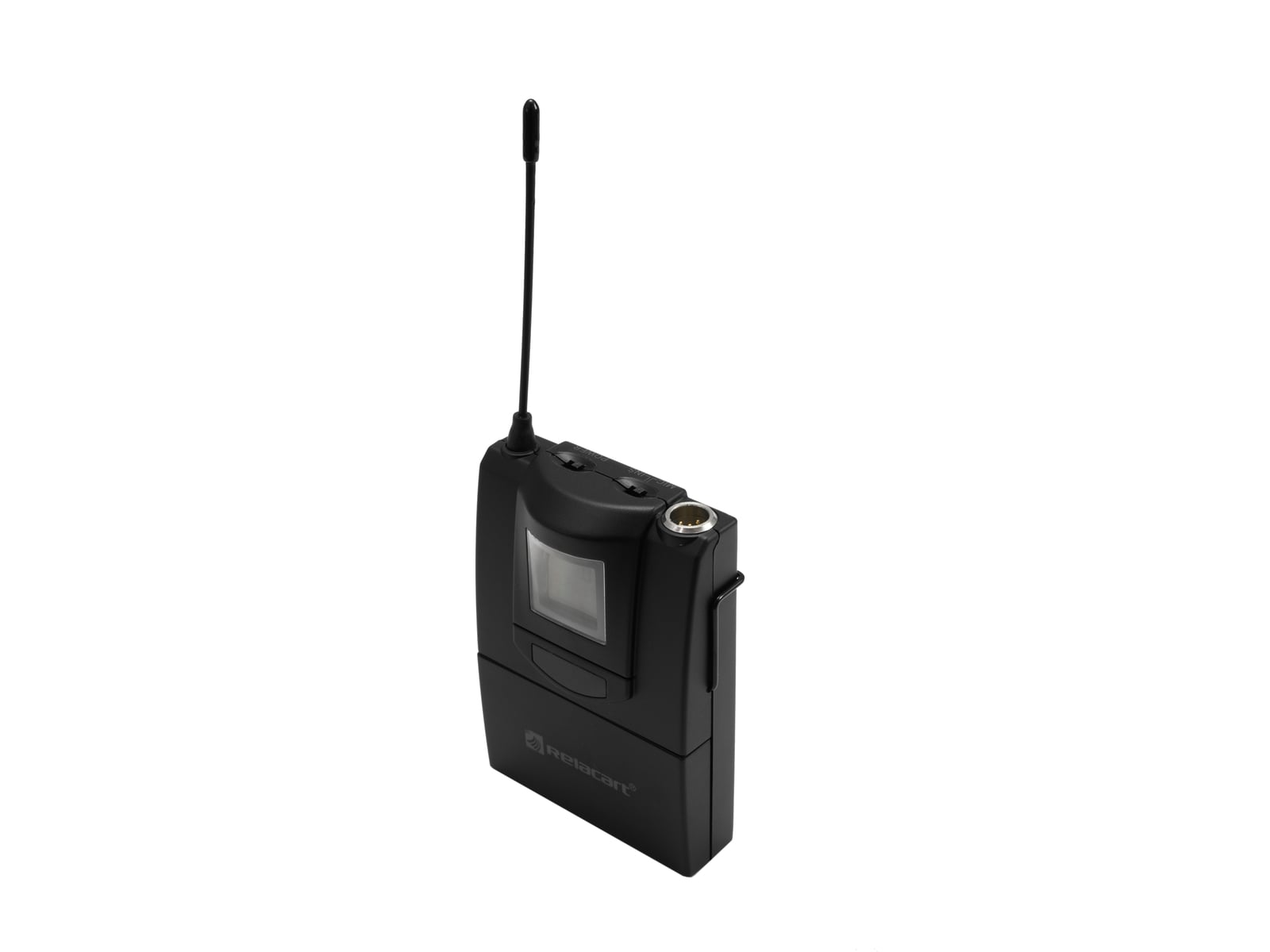

UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHz

• Pilot frequency squelch technology delete wireless RF interference
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 8 systems is possible without any interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LED for battery status, frequency, channel and group
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe

transmitter

• Operating range up to 80m

Microphone

• Polar pattern: Cardioid

Package contents

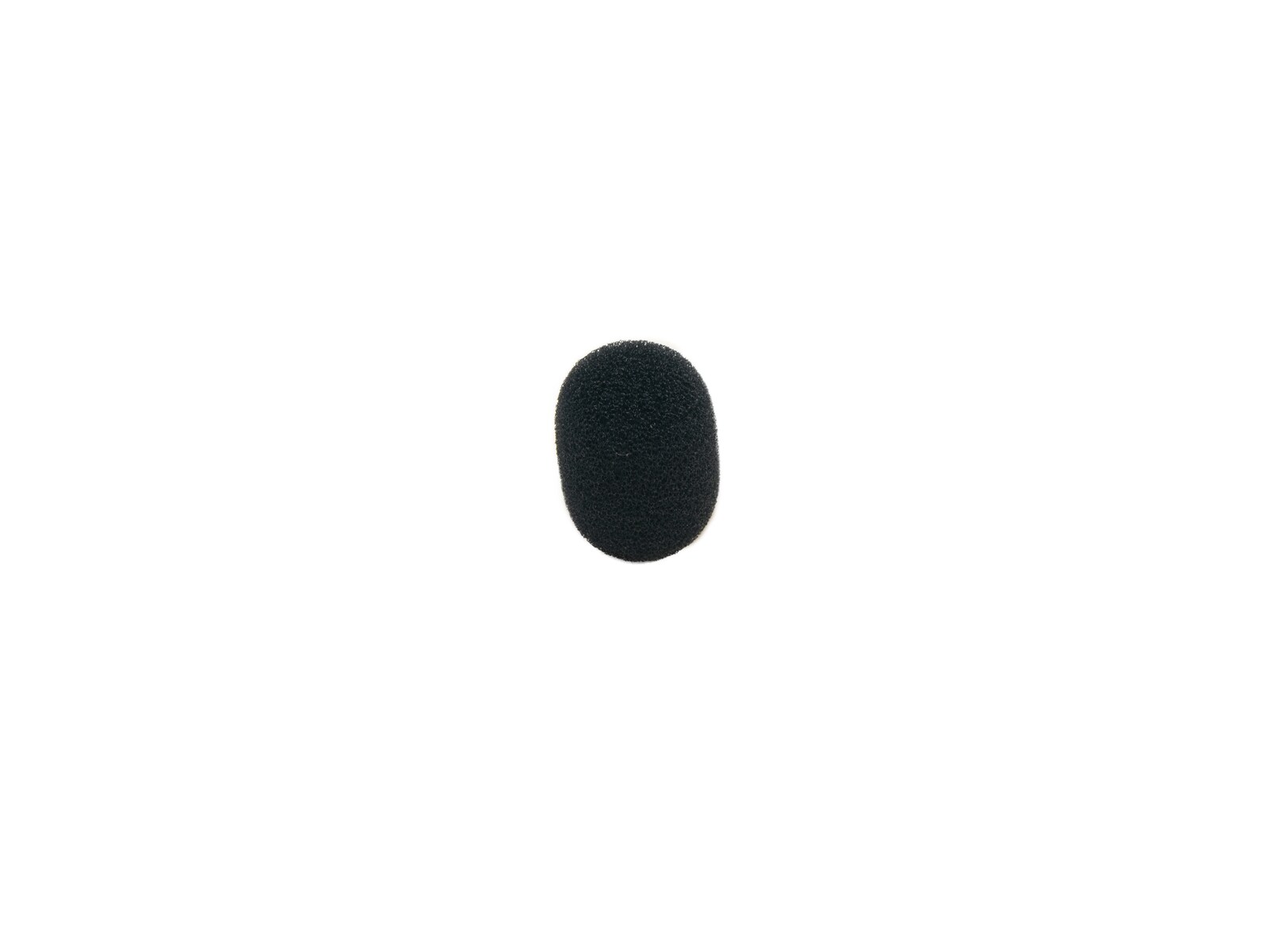

• 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Type:
Bodypack with microphone
Power consumption:
0,42 W
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each
Modulation:
FM
RF power output:
10 mW
Switching bandwidth:
11 MHz
Weight:
110 g
Transmitter
Power supply:
3 V DC
Power connection:
Battery/battery pack
Battery:
2 x Mignon (AA) (not included)
Control elements:
Transmitter power switch (high-low)
Range:
Range up to 80m
Switch:
On/off switch; Mic/Ins switch
Material:
Plastic
Color:
Black
Dimensions:
Width: 6,5 cm
Depth: 2,5 cm
Height: 9,5 cm
Weight:
86 g

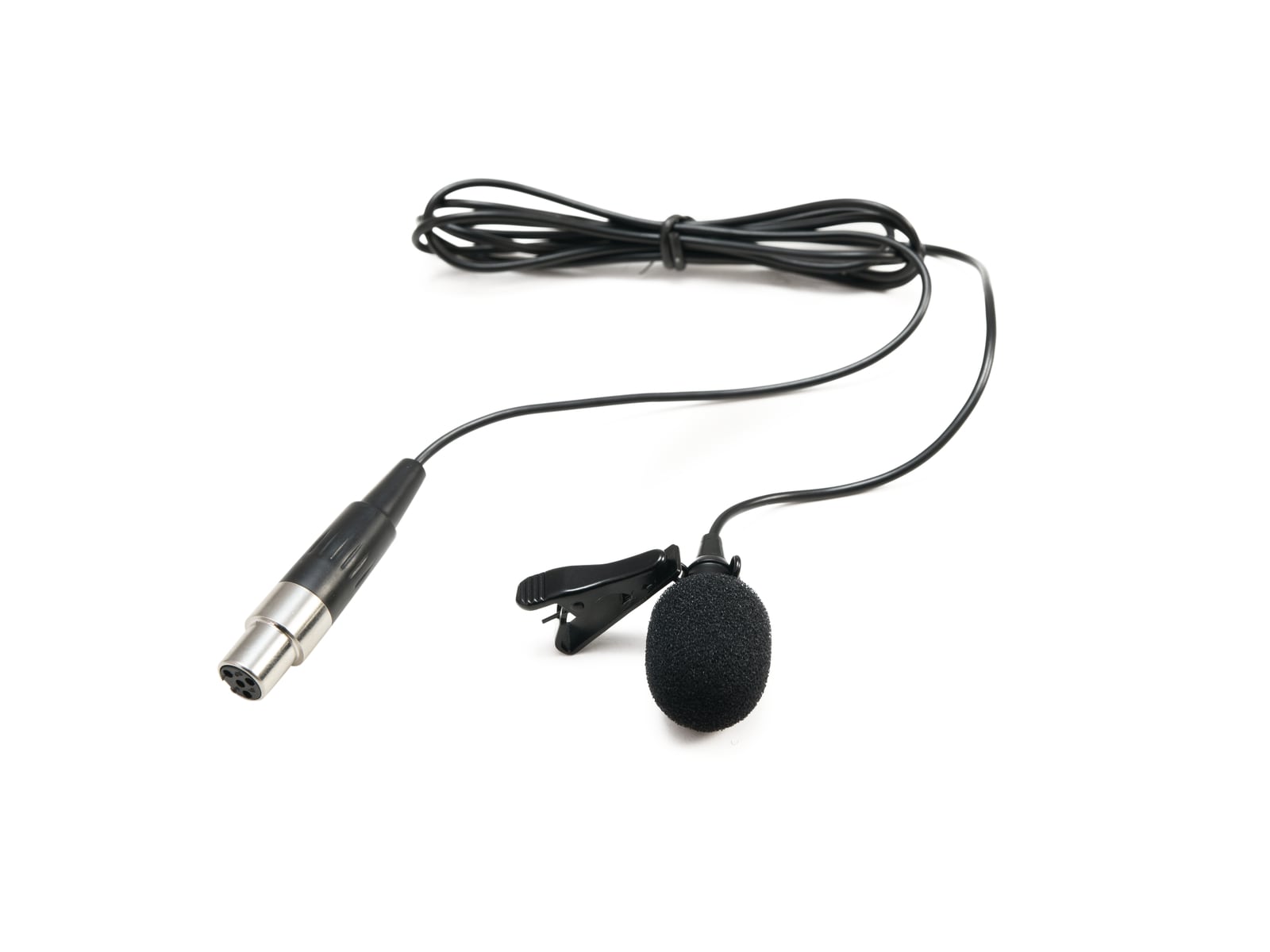

Microphone
Type:
Lavalier microphone
Cable length:
1,20 m
Capsule type:
Electret
Polar pattern:
Cardioid
Frequency range:
60 - 12000 Hz
Sensitivity:
-42 dB
Connector type:
Mini XLR (F) 4-pin
Material:
Metal
Color:
Black
Weight:
20 g
