VHF wireless microphone system
- Receiver unit and hand-held microphone with PLL technology
- Operation with fixed VHF frequency
- Microphone with mute function and color indication
- Polar pattern: Cardioid
- Operating range up to 30m with line-of-sight
- License free in germany
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer
Scope of delivery

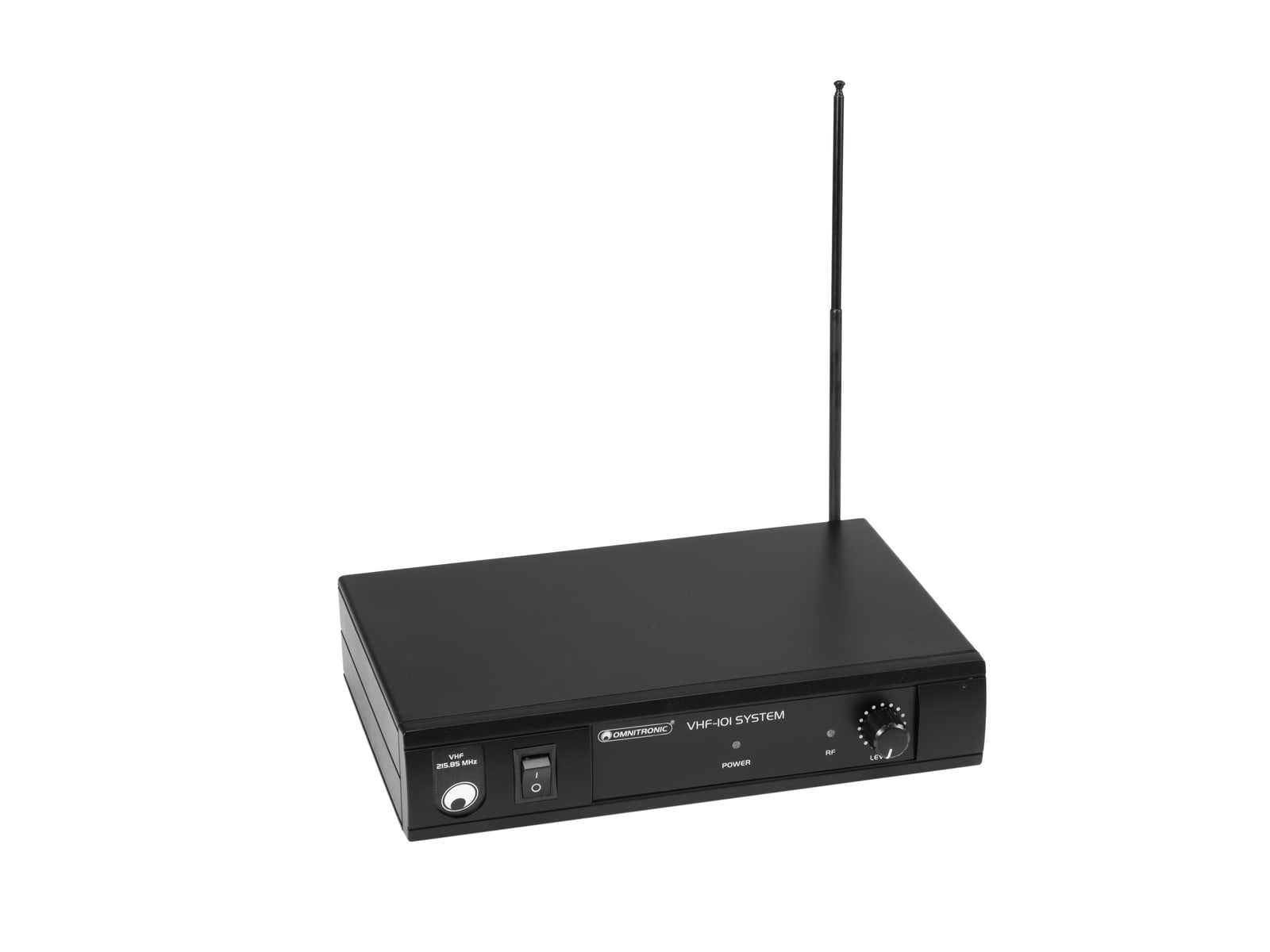

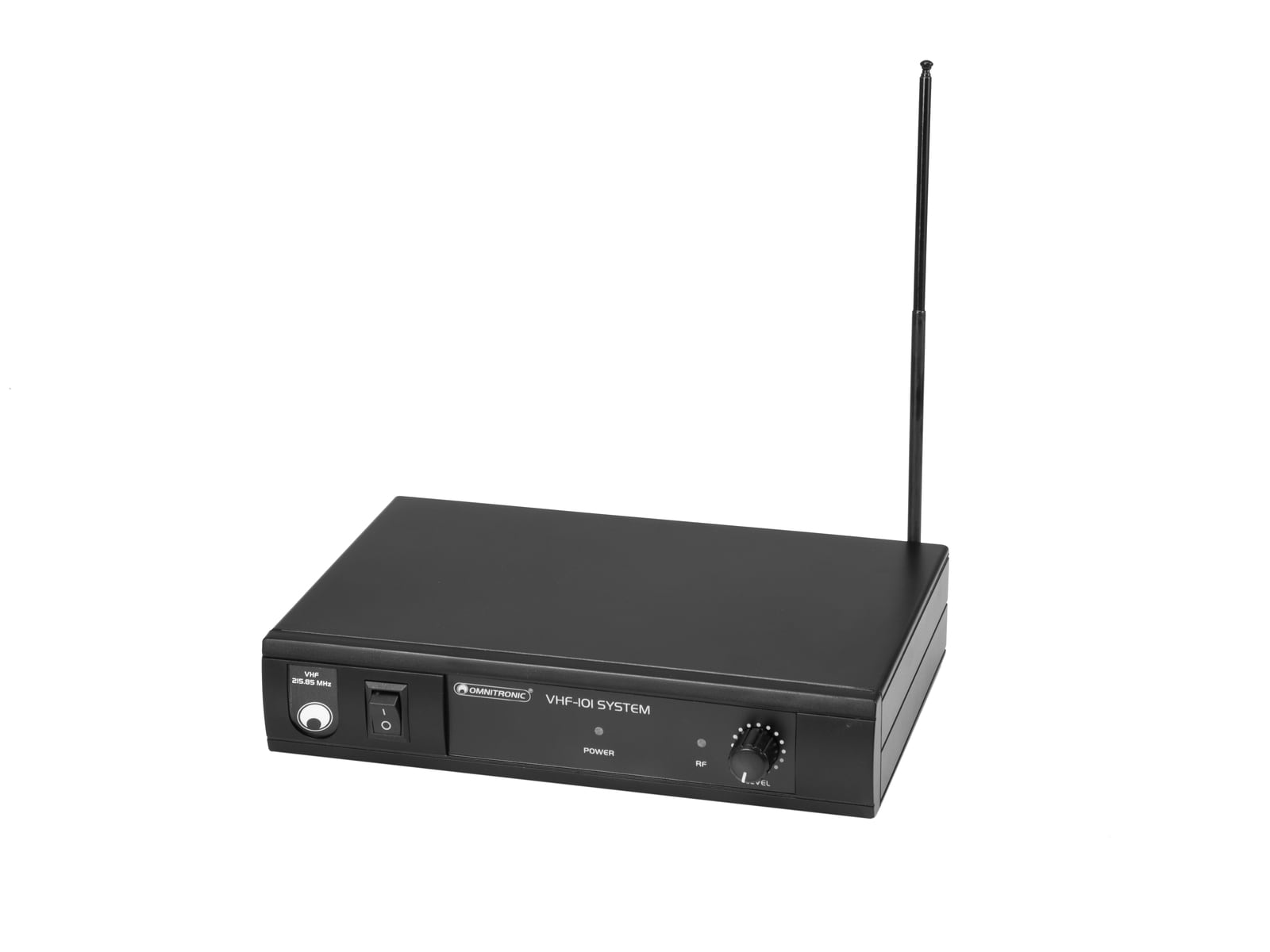

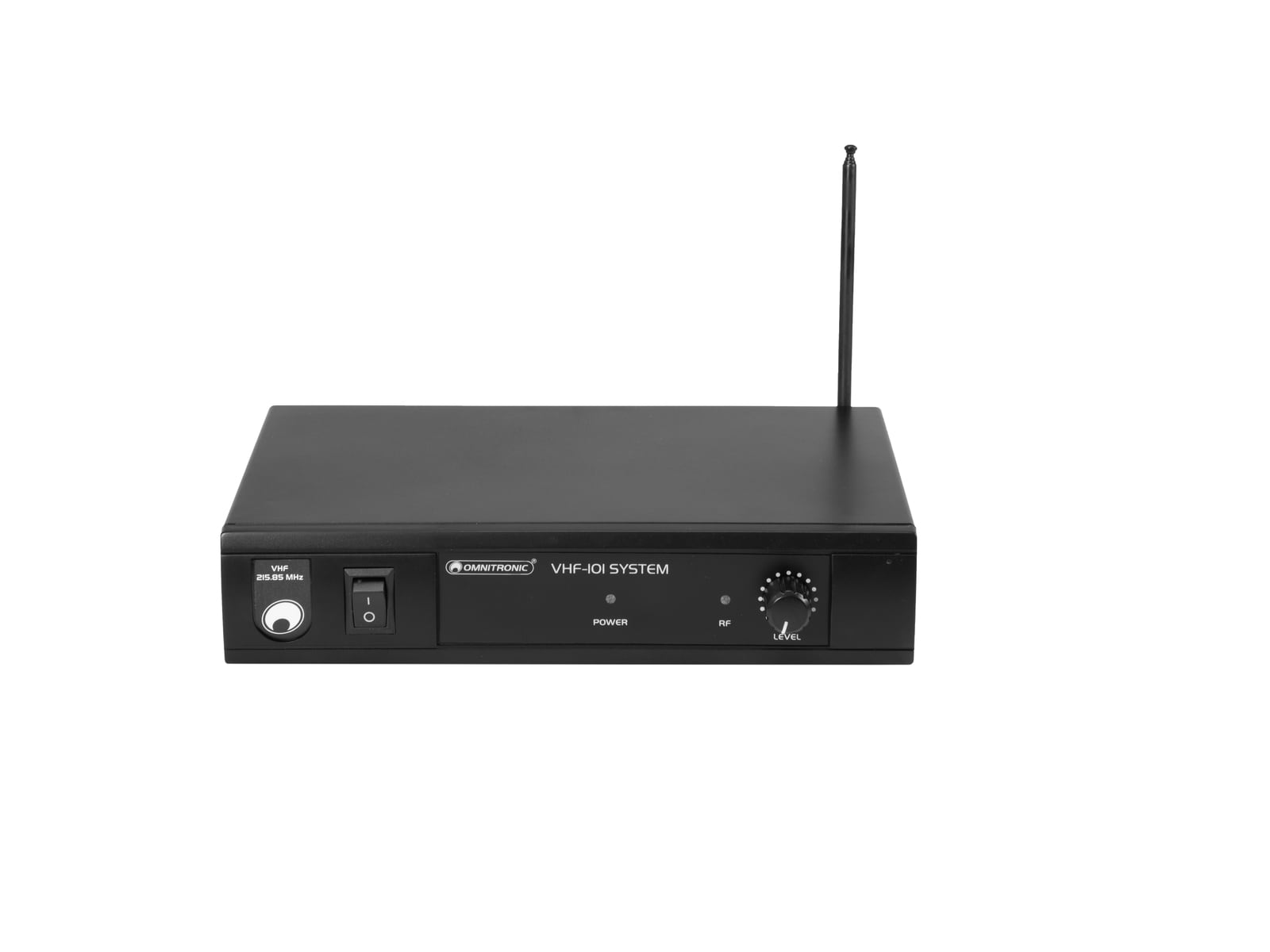

- 1 x receiver
- 1 x microphone
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC |
| Power consumption: | Max. 5 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Frequency range: | 80 - 12000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | VHF |
| Carrier frequency: | 212.350 MHz |
| RF power output: | 10 mW |
| Control elements: | Level control |

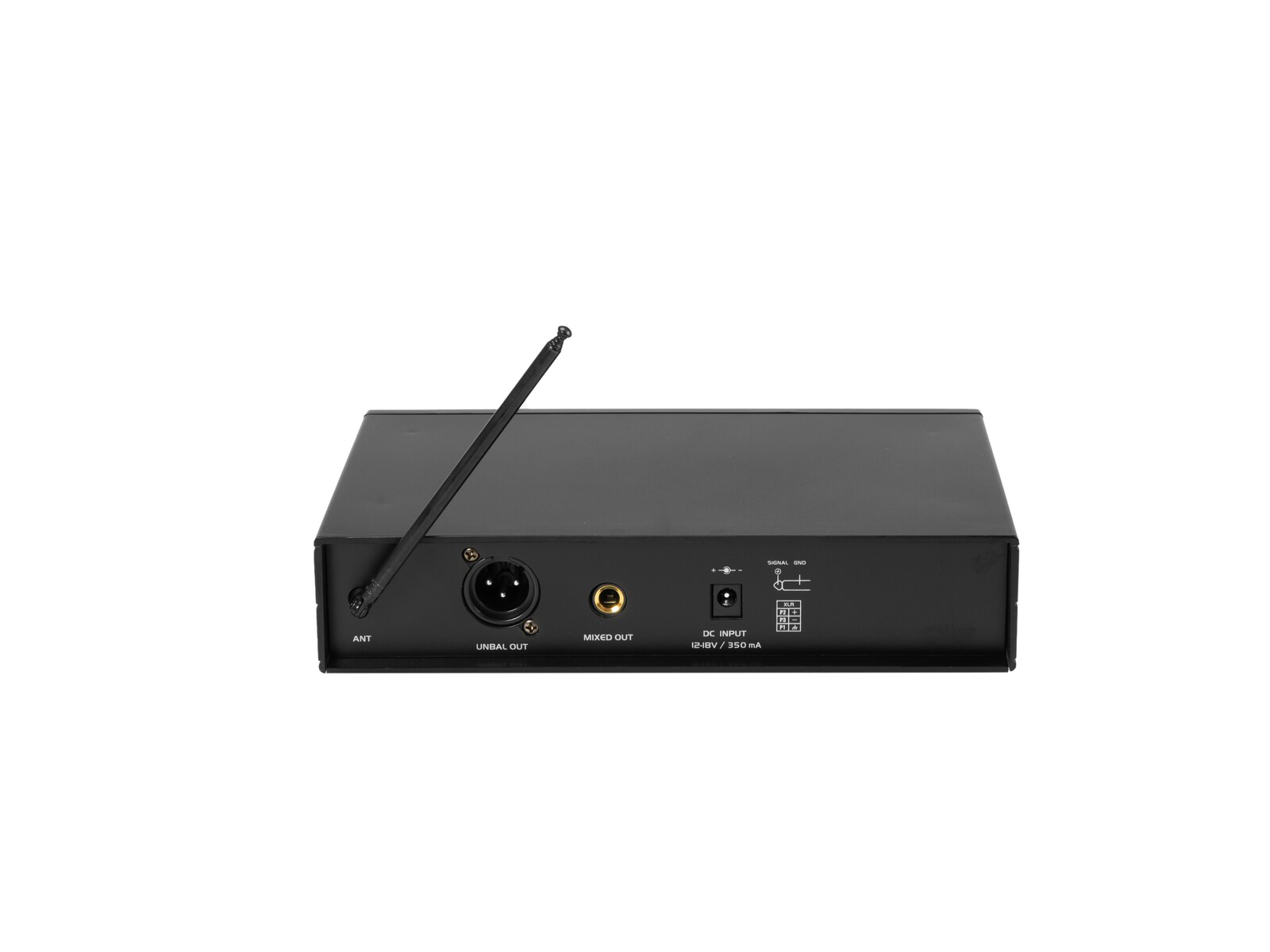

| Connections: | Output: microphone via 1 x 6.3 mm plug (unbal.) Output: microphone via 1 x 3-pin XLR |
| Switch: | On/off switch; mute control |
| Material: | Plastic |
| Weight: | 0.60 kg |
| Receiver | |
| Weight: | 0.3 kg |
| Microphone | |
| Battery: | 2 x Mignon (AA) (not included) |
| Dimensions: | Length: 24 cm Diameter: Ø 5 cm |
| Weight: | 0.17 kg |
