Active speaker with 12" woofer, 1.35" driver, LF: 300 W RMS, HF: 60 W RMS

• Active 12/2 full range system for mobile live and DJ applications
• DSP-controlled biamp amplifier (LF class D, HF class A/B)
• 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
• Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
• 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver

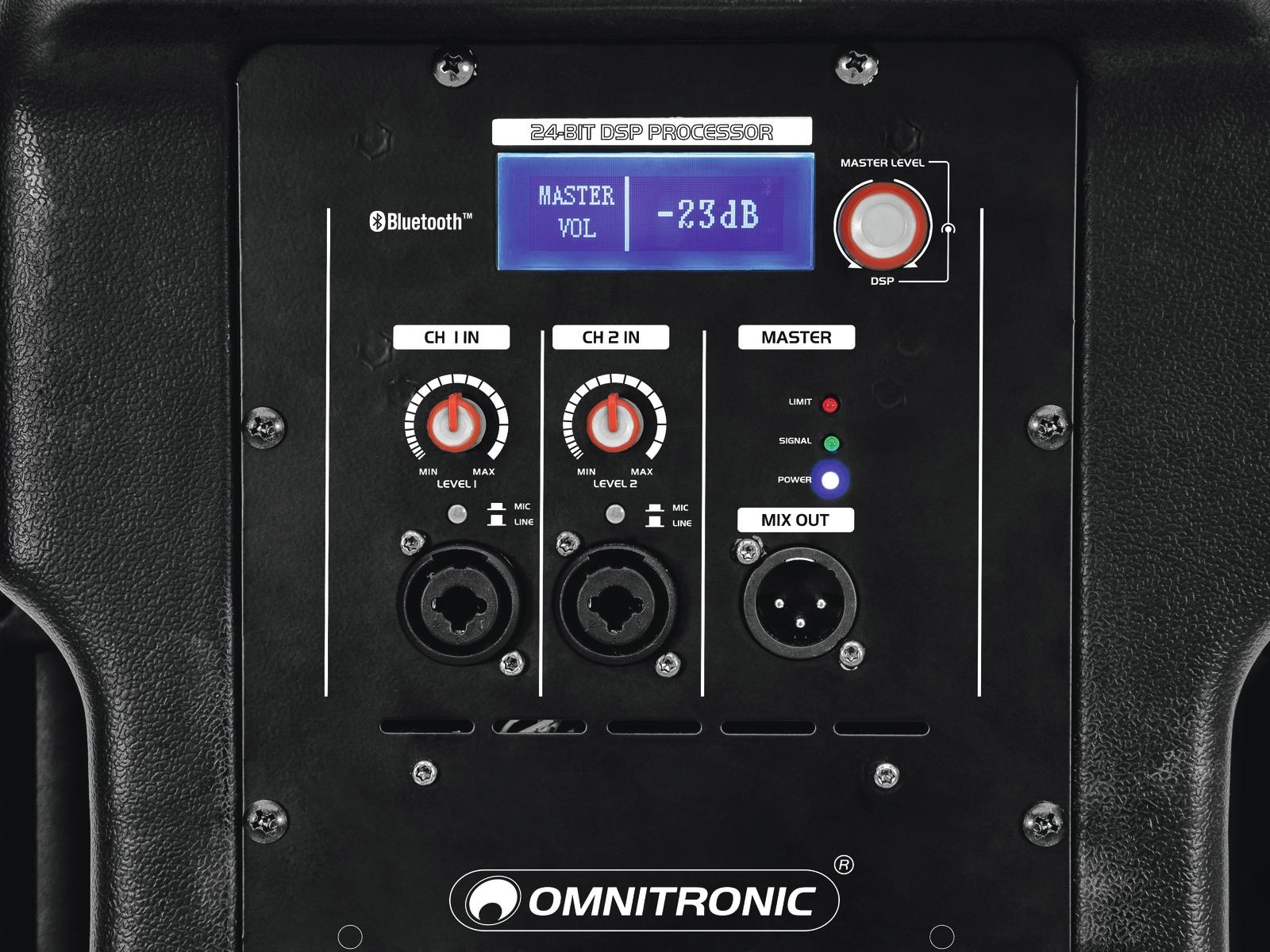

• 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
• Control via Bluetooth
• LCD display
• Digital signal processor

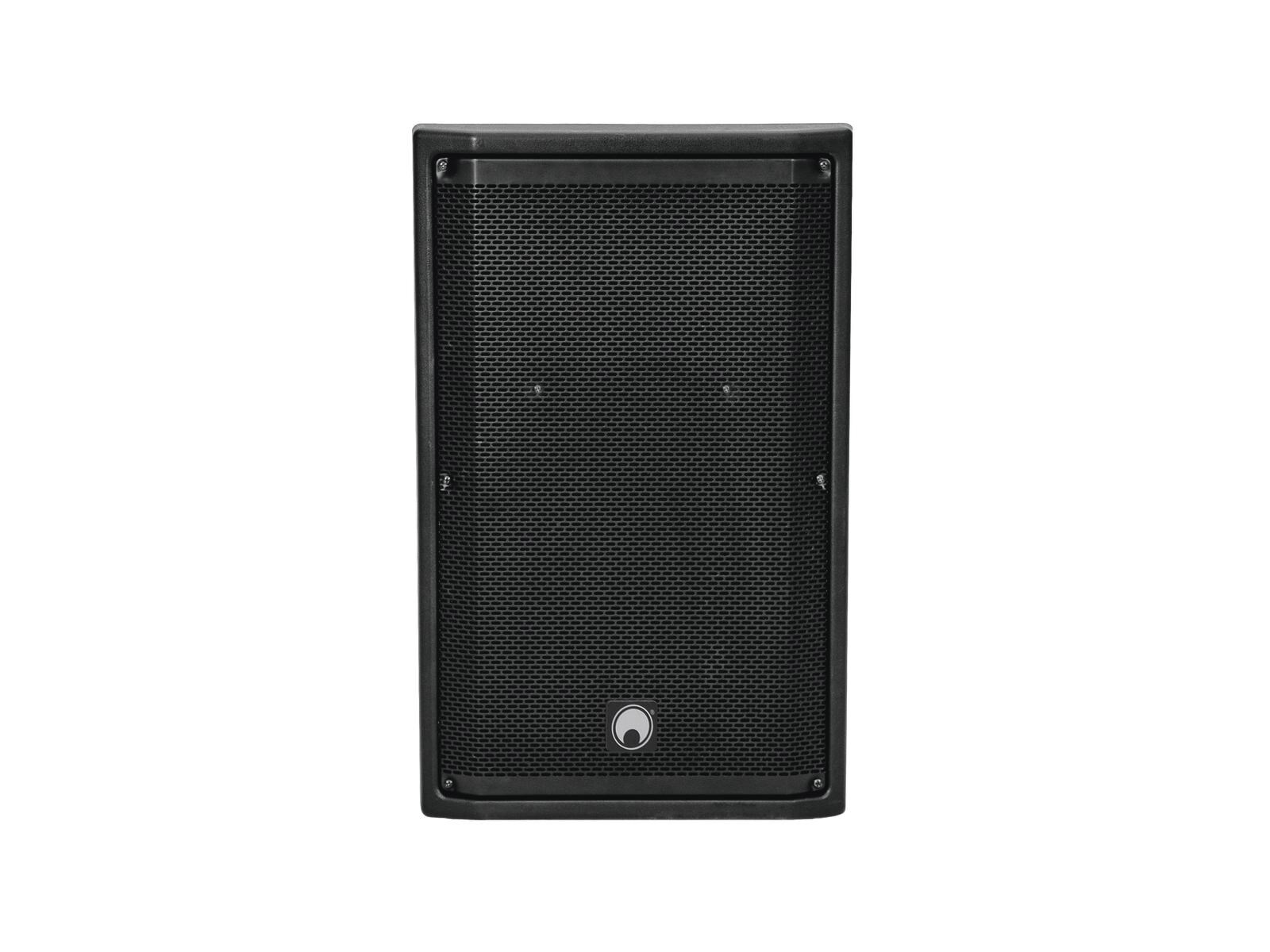

• Black metal grille with acoustic foam
• 3 Rugged carrying handles
• Application possibility: Standing; monitoring; on tripod
• DSP presets: LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL

Package contents

• 1 x compact cabinet speaker, 1 x user manual, 1 x power cord, 1 x declaration of conformity

Power supply:
100-240 V AC, 50/60 Hz
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:
Program: 600W
Rated: 60W RMS HF
Rated: 300W RMS LF
Frequency range:
55 - 20000 Hz
Sensitivity:
95 dB
DSP:
Digital signal processor
DSP presets:
LIVE; MUSIC; SPEECH; DJ; TRIPOD; MONITOR; WALL
Control:
Bluetooth
Attachment system:
Flange: Ø 36 mm
Circuitry:
Class D Biamp
Display type:
LCD display
Control elements:
Master control, encoder
Controls:
Limiter
Status LED:
Power, signal, limit
Connections:
Output: line via 1 x 3-pin XLR
Input channels:
2 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial
Equalizer:
Master: 1 x 3-band tone control
Speaker:
1 x woofer (12") approx. 30 cm
Voice coil lows (2.4") approx. 6.10 cm with ferrit magnet
Voice coil compression tweeter highs (1.35") approx. 3.5 cm
Type of speaker:
Compact cabinet speaker
Type of construction:
Vented
Carrying handle:
3 pc/pcs
Material:
Plastic
Dimensions:
Width: 38 cm
Depth: 35 cm
Height: 61 cm
Weight:
15,45 kg
