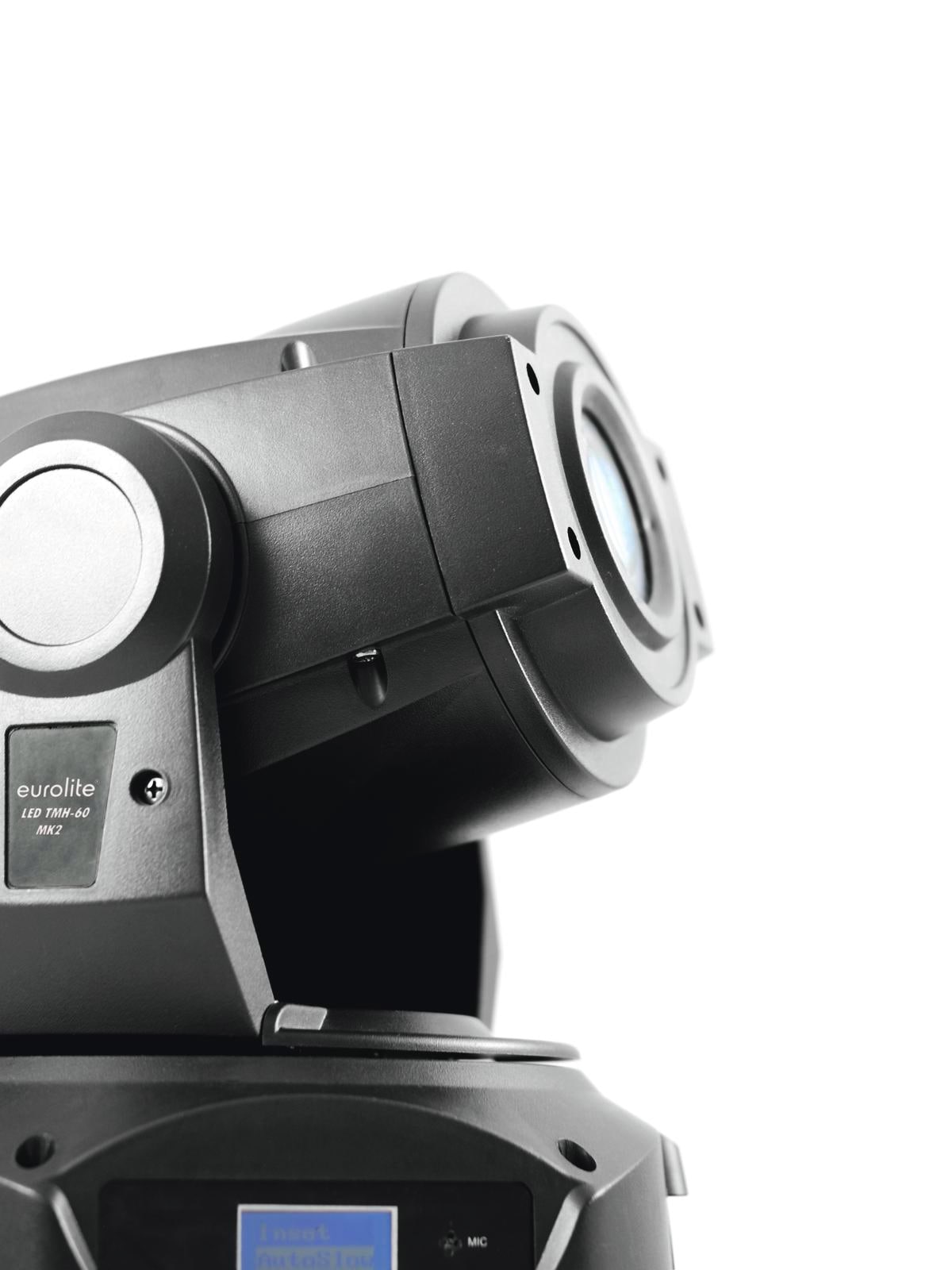

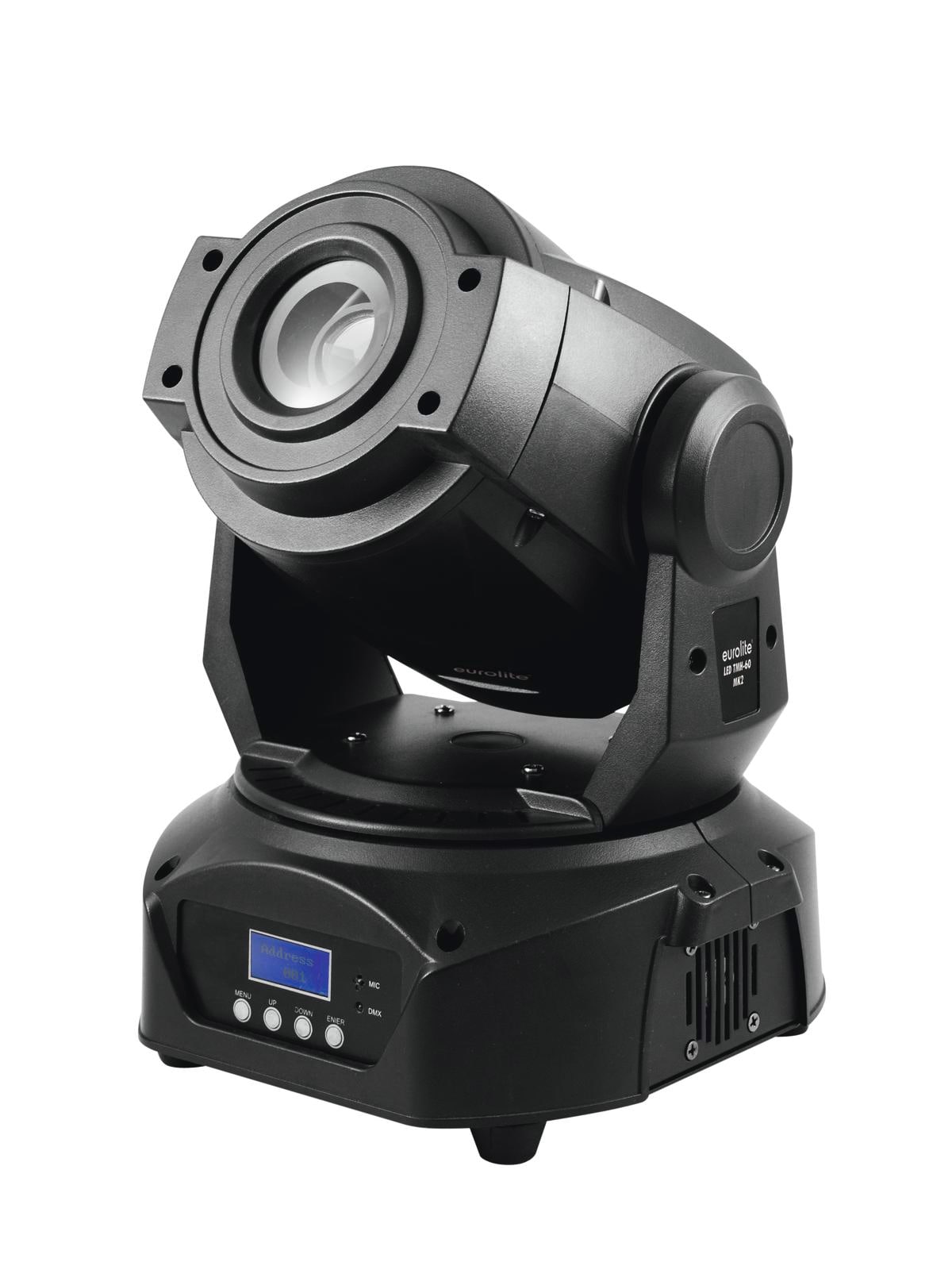

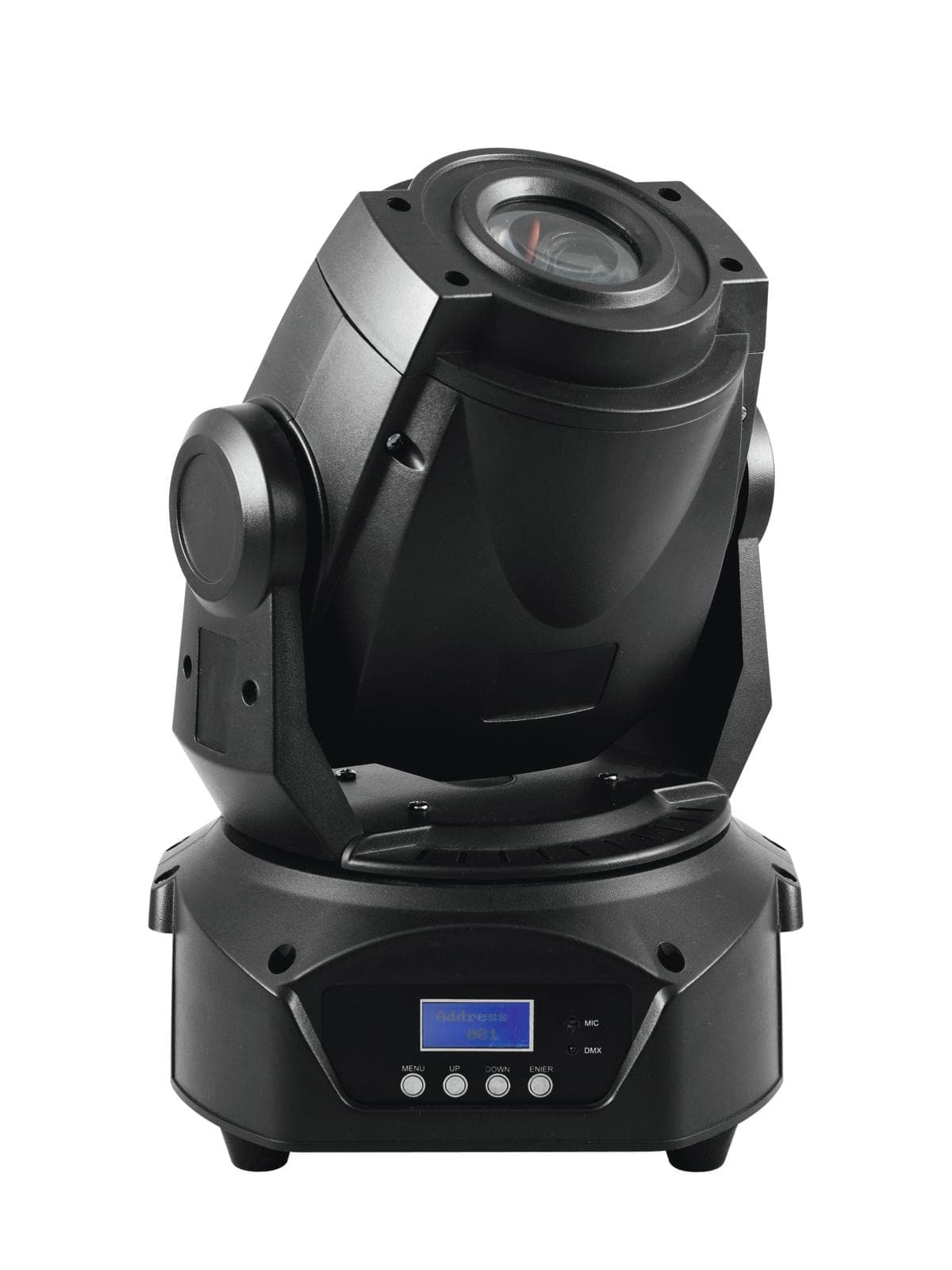

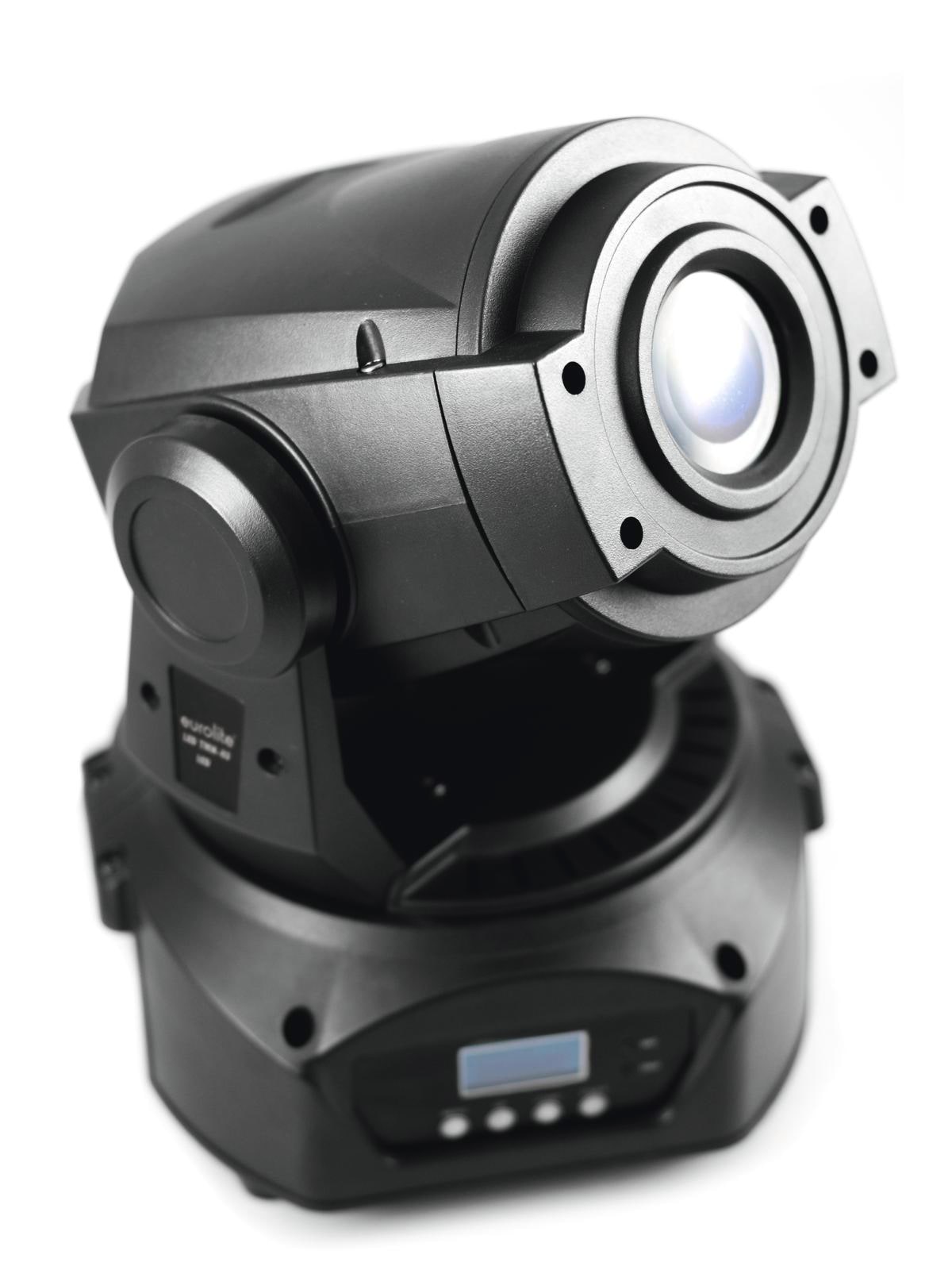

Bright spot with 60 W LED, 2 gobo wheels, color wheel and prism

• Compact lightweight
• 14, 11 or 2 DMX channels selectable
• Equipped with a 60 W COB LED
• 7 brilliant, dichroic colors plus white
• Rainbow effect with adjustable speed in both directions
• Gobo-wheel 1 with 6 rotating gobos plus open
• With gobo-shake function
• Gobo-wheel 2 with 8 static metal gobos plus open
• 3-facet prism (rotating)
• Preprogrammed scenes in Program Run for stand-alone operation
• Electronic dimmer
• Motorized focus
• Programmable color-change speed and strobe effect
• Sound-controlled via built-in microphone
• Fan-cooled
• Exact positioning via 16 bit PAN/TILT movement resolution
• PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
• TILT-angle switchable between 270°, 180° and 90° (in sound and auto mode)
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Control board with LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
• Switch-mode power supply for operation between 100 and 240 Volts
• DMX control via every standard DMX controller
• Effect: gobo effect; Single Beam
• Equipment: Gobos rotating; Gobos static; Prisma 3-fold; Focus motor-driven
• Color rendering index (CRI) more than:
• Power supply: Mains Input Socket (M) fehlt provided
• Control: Stand-alone; DMX
• LED: 1 x COB chip-on-board 60 W Colour wheel

Power supply:
100-240 V AC, 50/60 Hz
DMX channels:
2/11/14

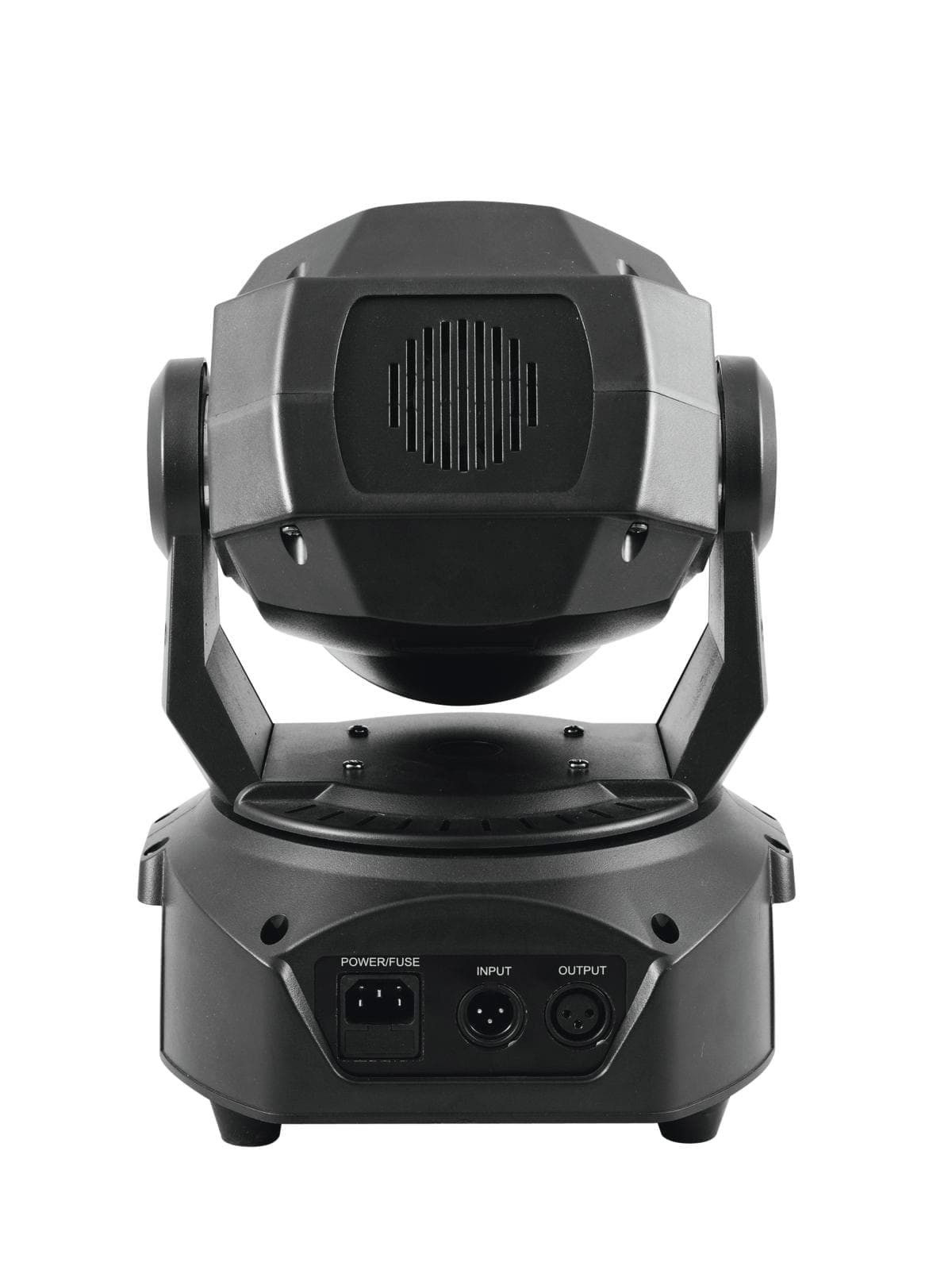

DMX connection:
3-pin XLR
Sound-control:
via built-in microphone
Color-wheel:
7 colors and open
Rotating gobo-wheel:
6 gobos and open
Static gobo-wheel:
8 gobos and open
LED number:
1
LED type:
60 W
Beam angle:
14°
Maximum PAN-movement:
540°
Maximum TILT-movement:
270°
Dimensions (L x W x H):
250 x 245 x 315 mm
Weight:
7,40 kg
Lamp type:
LED lamp
Cooling fan:
Yes
IP classification:
IP20
Power consumption:
135 W
Beam angle:
14°
Height:
31,5 cm
Depth:
24,5 cm
Width:
25 cm
Max. PAN movement:
Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180° Pan tilt feedback
Max. TILT movement:
Exact positioning (16 bit resolution) 270° Positioning switchable to 180° and 90° Pan tilt feedback
DMX channels:
2; 11; 14
Ecodesign regulation:
Yes
Special product:
Not designed for household room illumination
Purpose:
Show effect lighting
