2-channel UHF PLL microphone system

• 2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
• Operation in the license-free Duplex Gap 823-832 MHz
• 100 fixed frequencies selectable per channel
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Operation range with line of sight approx. 50 meters
• Automatic frequency scan (AFS) finds interface-free channels
• Easy and error-free synchronization between receiver and transmitters via infrared signal

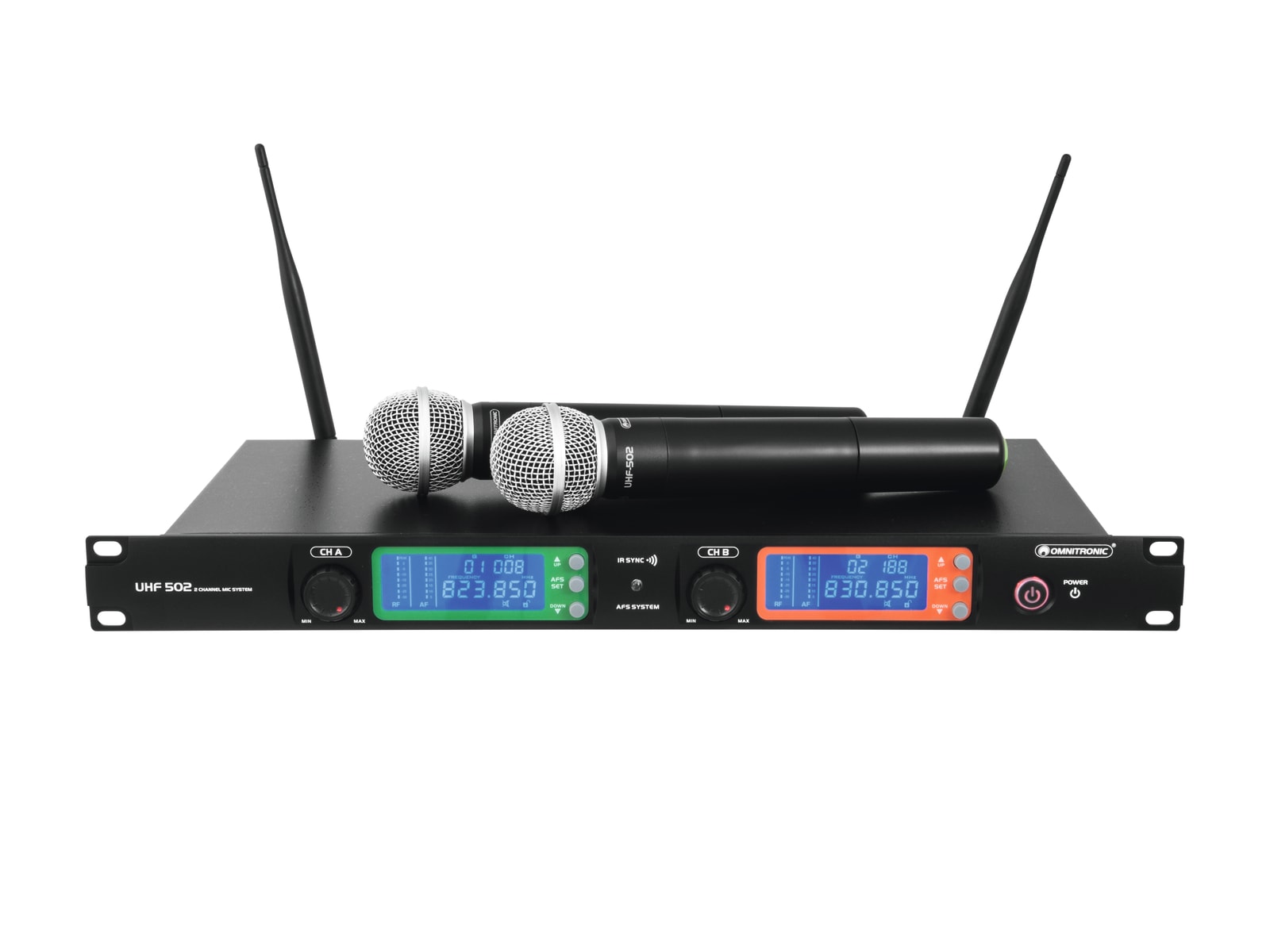

• LCDs for RF reception level, AF audio level, frequency and channel
• Parallel operation of up to 8 transmission channels is possible without any interference
• Lock function avoids accidental changing of the transmission channel
• 2 separate channels with volume controls
• Balanced XLR output per channel
• 6.3 mm jack for mixed signal output, switchable mic/line
• Jack cable included

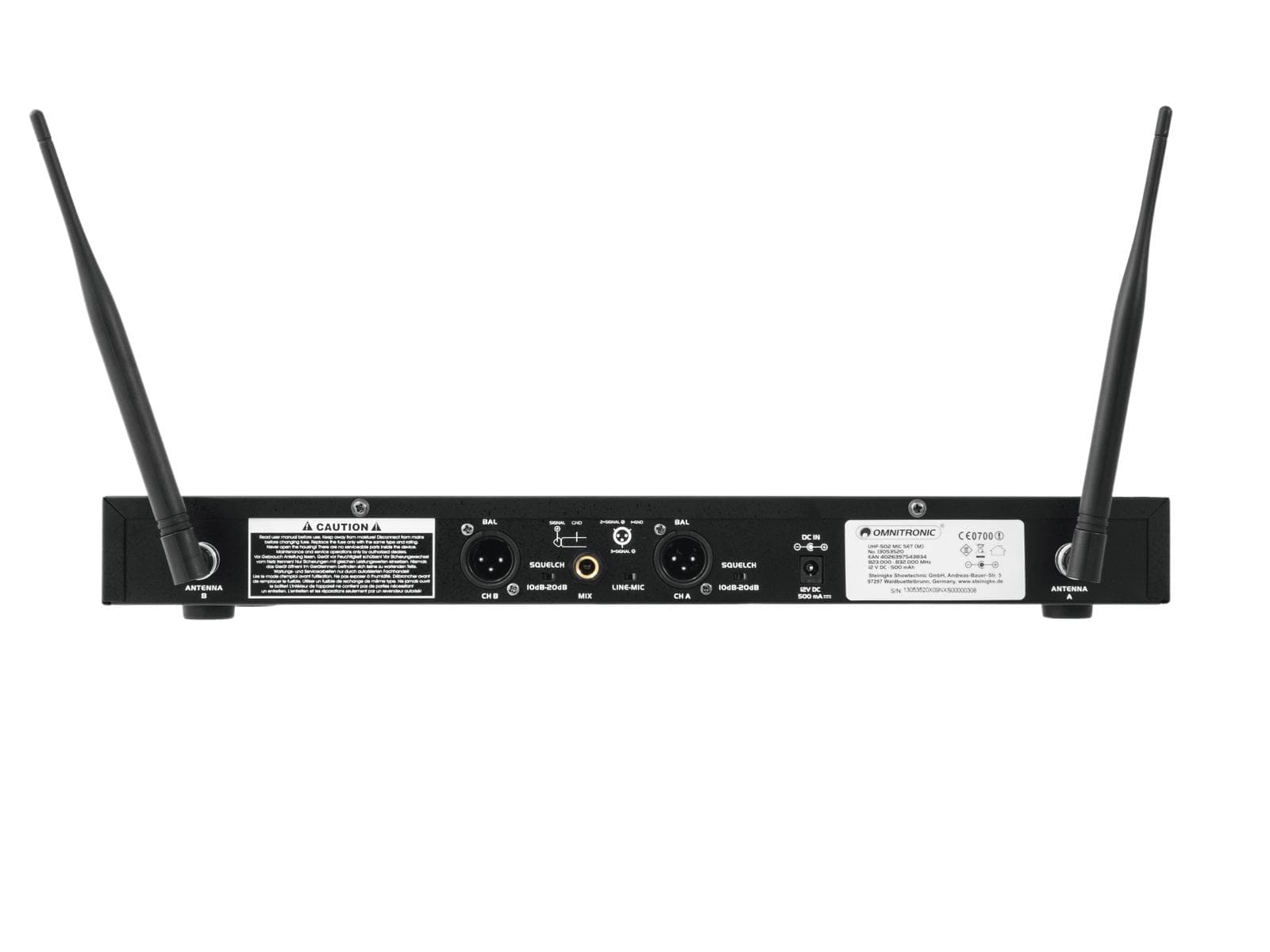

• Non-diversity system with two removable antennas (BNC connection)

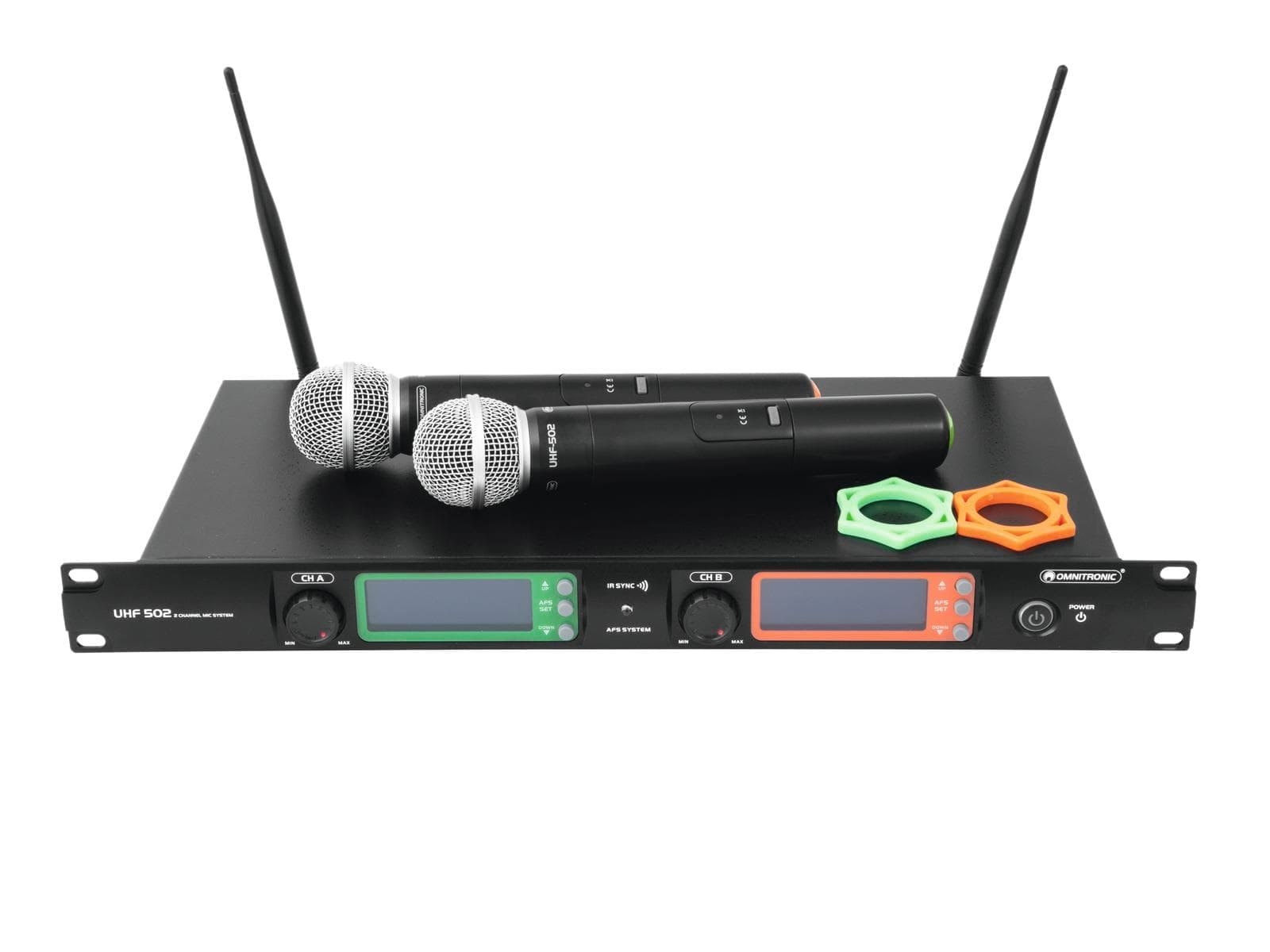

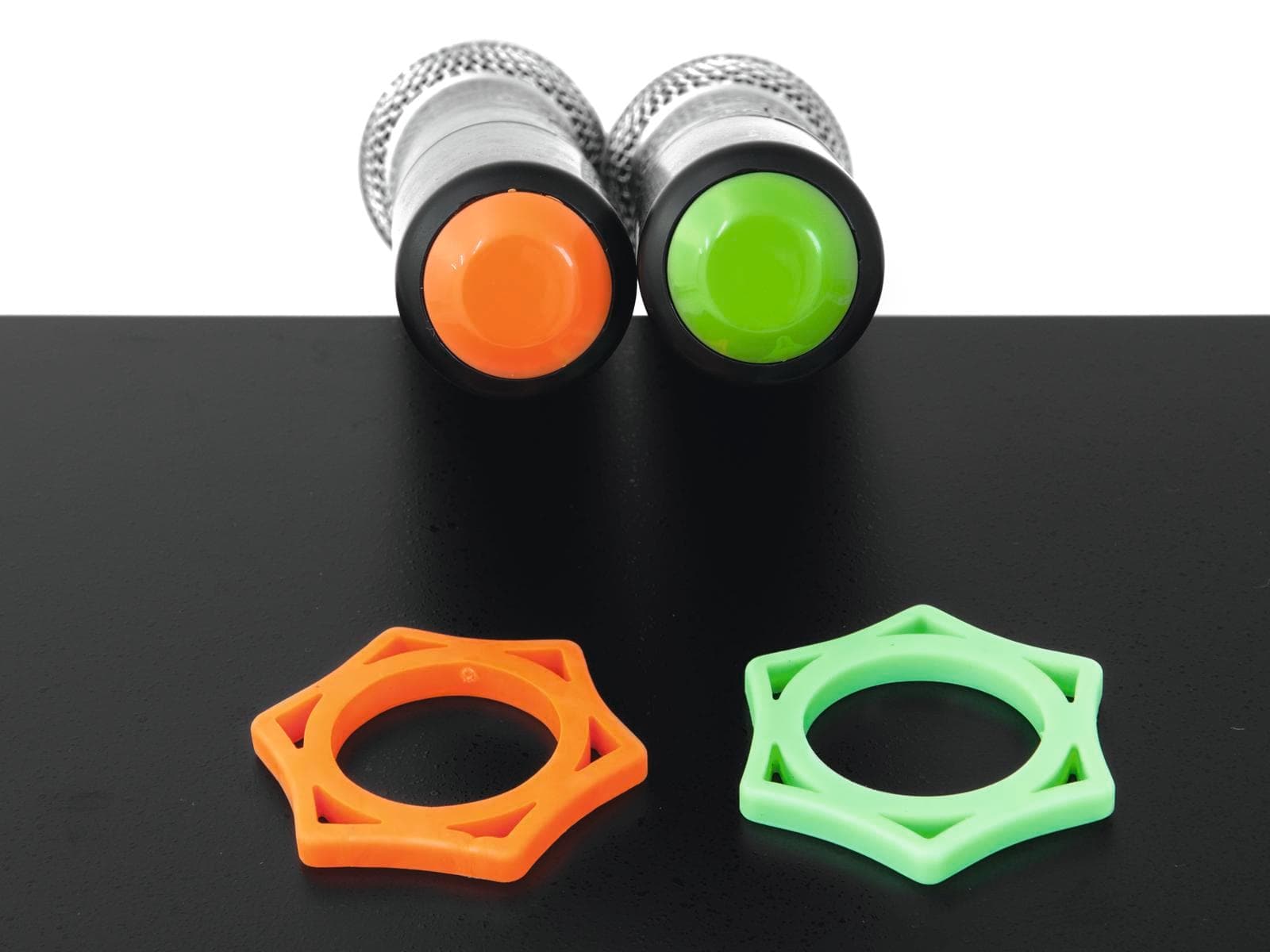

• Microphones with mute switch and color caps for distinction on stage
• Operation of the receiver unit via supplied power unit
• Operation of the microphones via 2 x 1.5 V batteries (type AA), not included

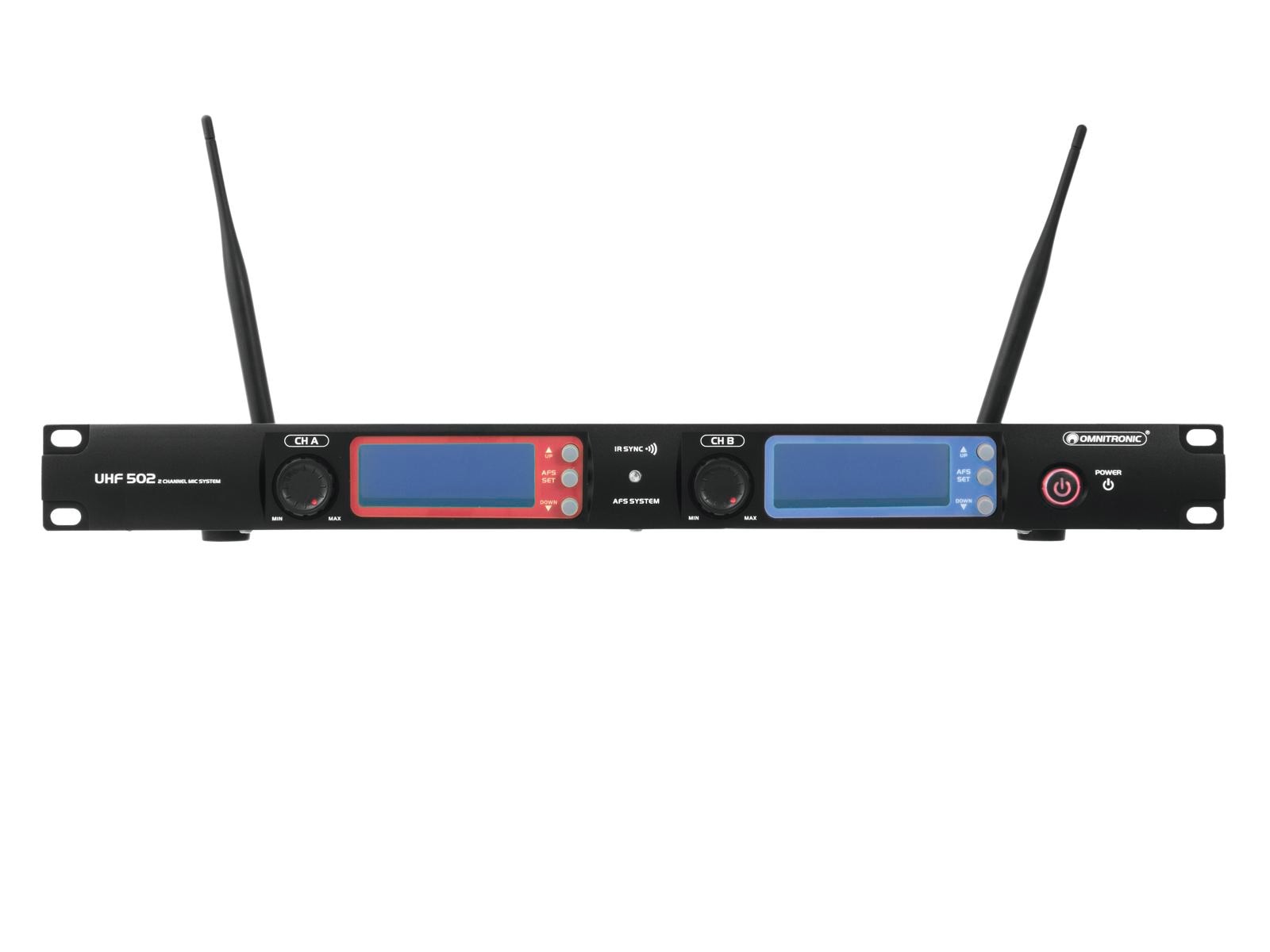

• Receiver unit with aluminum front panel and dimensions for 483 mm rack installation (1U)
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Polar pattern: Unidirectional
• Height unit: 1 HE
• Housing design: (19") 48,3 cm rack installation
• Power supply: Mains Input Socket (M) fehlt provided
• Mute function (Microphone): On/off/mute switch

System:
Non-diversity, 2 channels
Carrier frequency:
UHF 823-832 MHz
Color code:
CH A = green, CH B = orange
Receiving frequencies:
100
Coverage:
50 m (with line-of-sight)
RF power output:
10 mW
Modulation method:
FM
Frequency stability:
10 ppm
Sensitivity:
-95 dB
S/N ratio:
>80 dB
Selectivity:
>80 dB
T.H.D.:
<0.1 %
Audio outputs:
Mic:
2 x XLR, bal.
Mix:
6.3 mm jack, unbal.
Power supply:
Receiver:
12 V DC via supplied power unit (100-240 V AC, 50/60 Hz)
Microphones:
2 x 1.5 V battery, type AA
Dimensions, weight:
Receiver:
253 x 482 x 51 mm (L x W x H), 1.9 kg
Microphones:
50 x 240 mm (D x L), 230 g (w/o batteries)
Frequency band:
UHF 823 - 832 MHz
Power consumption:
5 W
Polar pattern:
Unidirectional
Frequency range:
40 - 18000 Hz
Weight:
2,5 kg
Height:
4,45 cm
Depth:
25,3 cm
Width:
48,3 cm
Material:
Metal
