EUROLITE LED Space Ball 20
Modern LED ambient light with DMX control
- Particularly impressive when used in larger quantities
- 6 powerful LEDs 7 W high-power 3in1 TCL RGB (homogenous color mix)
- Color blend stepless; Dimmer electronic; effect speed adjustable
- The device is cooled by passive convection cooling
- Control via system controller
- For application areas such as: Wedding/gala/events; Clubs/dancing school; restaurants, bars and hotels
Package contents
- 1 x device

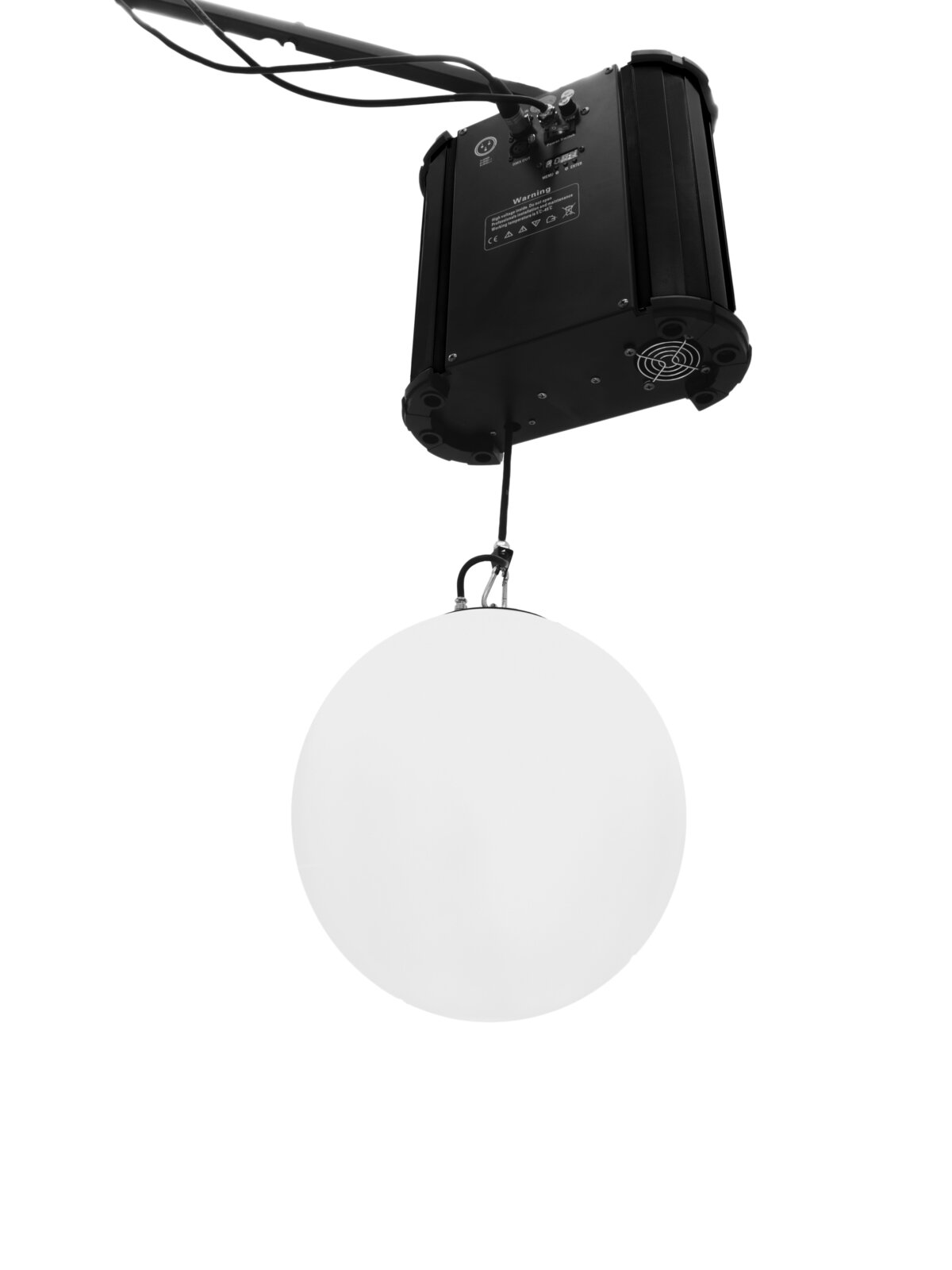

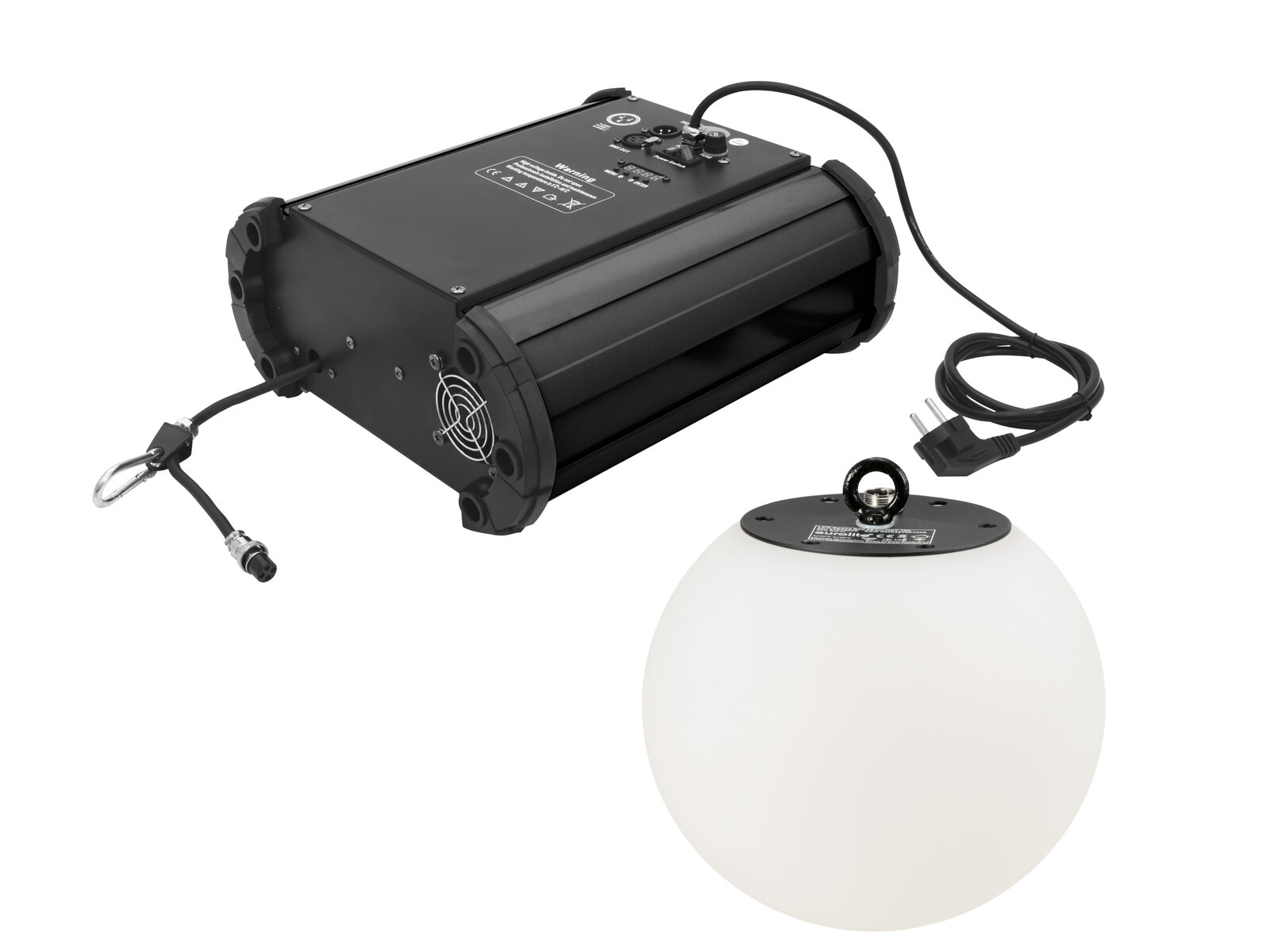

EUROLITE HST-200 Hoist
Hoist for LED Space Balls 20, 35 and LED Space Tube 100
- Control via DMX
- Preprogrammed in LED PC-Control 512
- With Omega bracket
- 3 digit 7-segment LED display
- Lifting height: 2 m
Package contents
- 1 x device, 1 x user manual
Weight:
6,87 kg
EUROLITE LED Space Ball 20
Power supply:
24 V
Power consumption:
7,2 W
IP classification:
IP20
Protection class:
Protection class III
Power connection:
Via 4-pin screw plug connector (M) mounting version
LED:
6 x 7 W high-power 3in1 TCL RGB (homogenous color mix)
Cooling:
Passive convection cooling
Control:
System controller
Housing color:
White
Dimensions:
Diameter: Ø 20 cm
Weight:
620 g
EUROLITE HST-200 Hoist
Power supply:
230 V AC, 50 Hz
Power consumption:
50 W
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Fuse:
T 1,5 A
DMX channels:
8
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Control:
DMX
Preprogrammed in:
LED PC-Control 512
Attachment system:
Omega bracket
Display type:
3 digit 7-segment LED display
Lifting height:
2 m
Dimensions:
Width: 23,5 cm
Depth: 11 cm
Height: 21 cm
Weight:
6,25 kg
