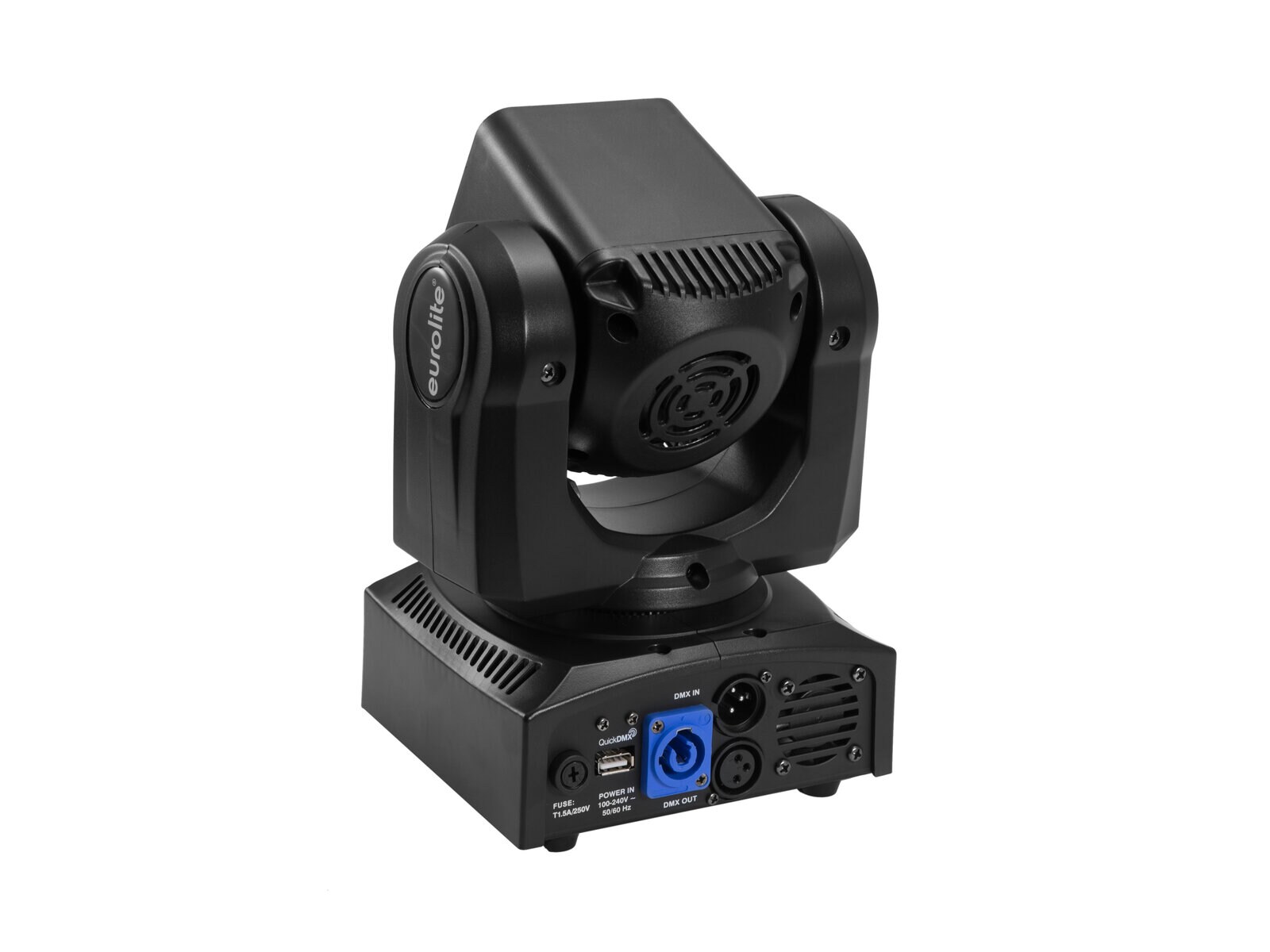

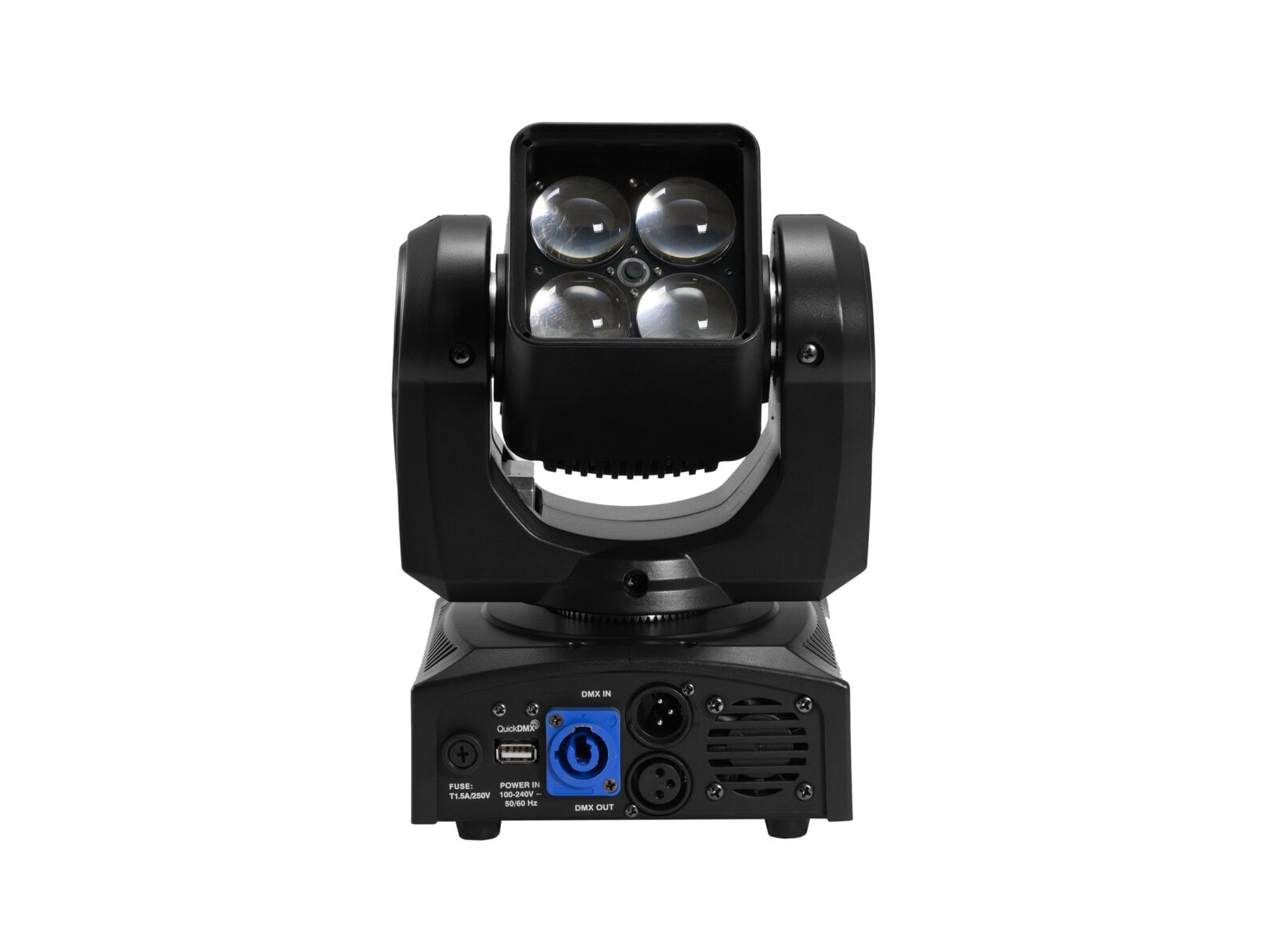

Washlight with 4 intense 9 W LEDs (4in1) and motorized zoom

• 4 powerful LEDs 9 W high-power 4in1 QCL RGBW (homogenous color mix)
• Positioning within 540° PAN and 220° TILT
• Exact positioning (16 bit resolution)
• Zoom motor-driven
• Integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 6° - 40°
• 4 digit 7-segment LED display
• Motion macros adjustable; Dimmer electronic; color blend stepless
• Strobe effect
• Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
• Rubber feet

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
65 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, T 1,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
4 x 9 W high-power 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:
220° Exact positioning (16 bit resolution)
Max. PAN movement:
540° Exact positioning (16 bit resolution)
Equipment:
Zoom motor-driven
DMX channels:
15
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
Beam angle:
6° - 40°
Beam angle (1/2 peak):
6 - 25°
Beam angle (1/10 peak):
10 - 40°
Illuminance in Lux (lx):
Narrow red (R) 1m: 6781 lx, 3m: 747 lx, 6m: 192 lx
Narrow green (G) 1m: 12971 lx, 3m: 1381 lx, 6m: 348 lx
Narrow blue (B) 1m: 2238 lx, 3m: 290 lx, 6m: 73 lx
Narrow cold white (CW) 1m: 16580 lx, 3m: 1864 lx, 6m: 456 lx
Narrow all 1m: 36301 lx, 3m: 4064 lx, 6m: 1011 lx
Wide red (R) 1m: 746 lx, 3m: 85 lx, 6m: 24 lx
Wide green (G) 1m: 1343 lx, 3m: 164 lx, 6m: 44 lx
Wide blue (B) 1m: 291 lx, 3m: 35 lx, 6m: 10 lx
Wide cold white (CW) 1m: 1852 lx, 3m: 214 lx, 6m: 58 lx
Wide all 1m: 4023 lx, 3m: 471 lx, 6m: 127 lx
Housing color:
Black
Display type:
4 digit 7-segment LED display
Transport aid:
Rubber feet
Dimensions:
Width: 15,5 cm
Depth: 14,5 cm
Height: 25,5 cm
Weight:
2,95 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
