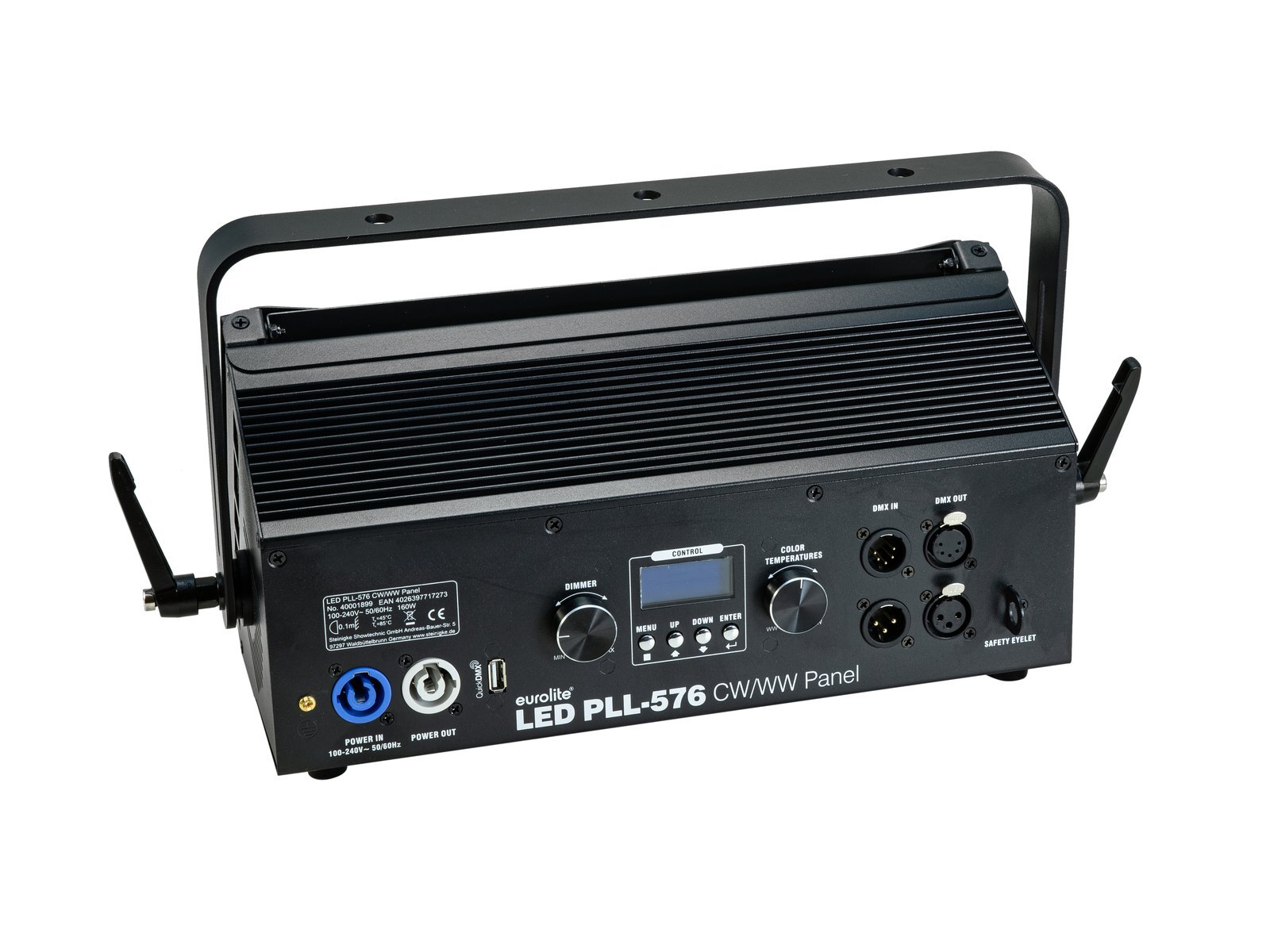

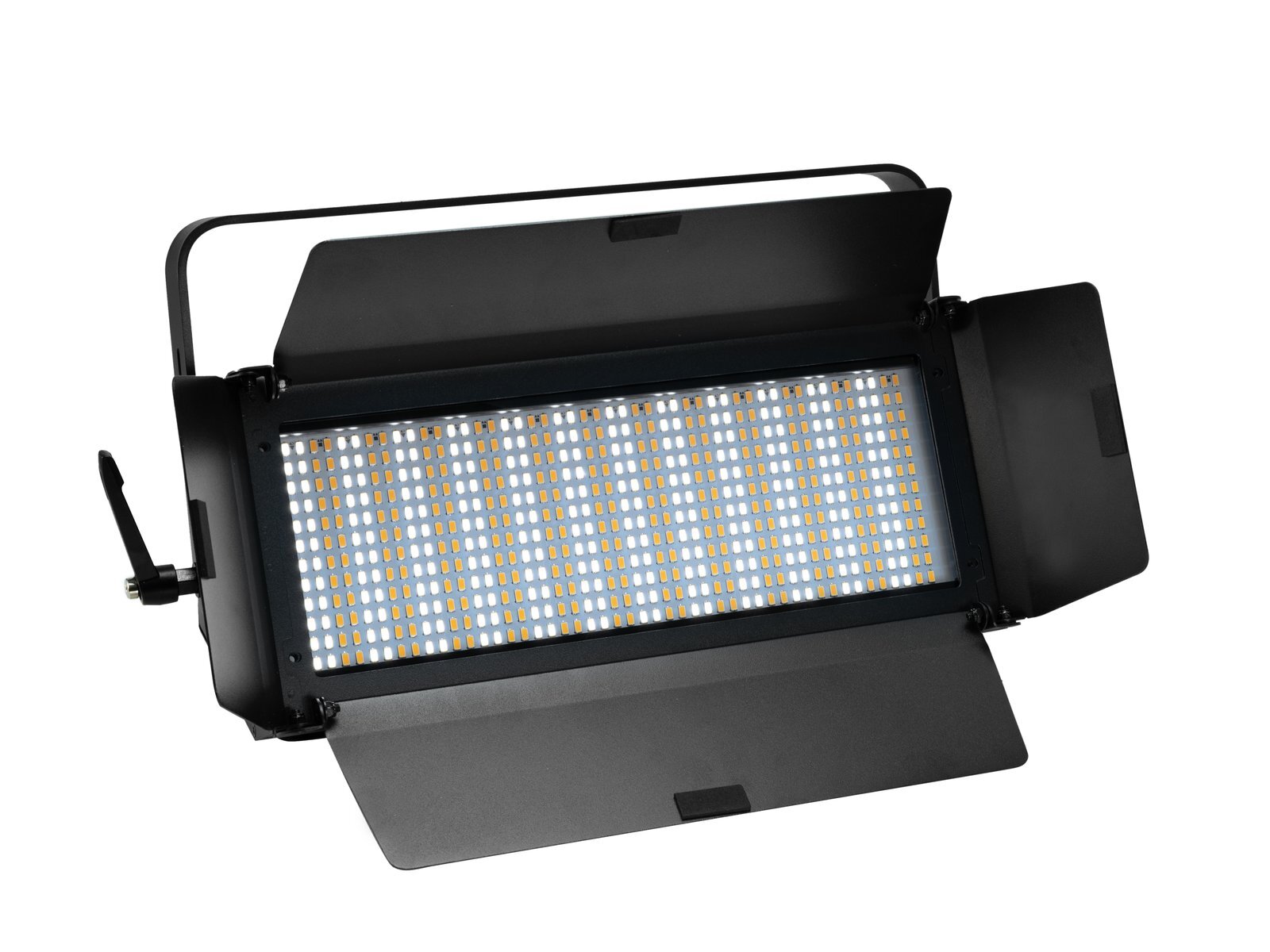

DMX-controlled surface light with 576 dual white LEDs, QuickDMX port, diffuser and barn doors

• 288 powerful LEDs 0,5 W SMD 5730 warm white (WW)
• 288 powerful LEDs 0,5 W SMD 5730 cold white (CW)
• Variable color temperature 3000 K - 6000 K

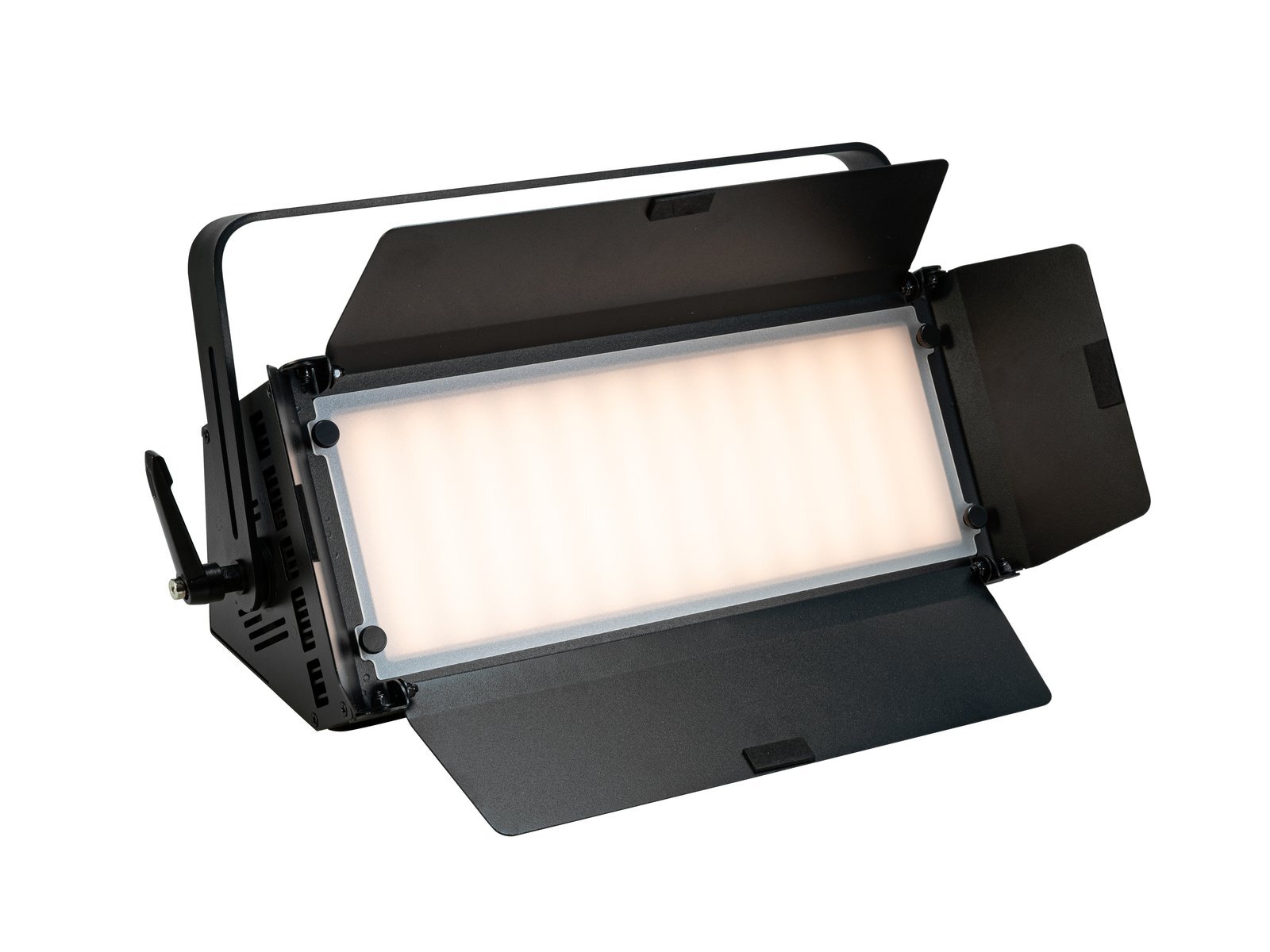

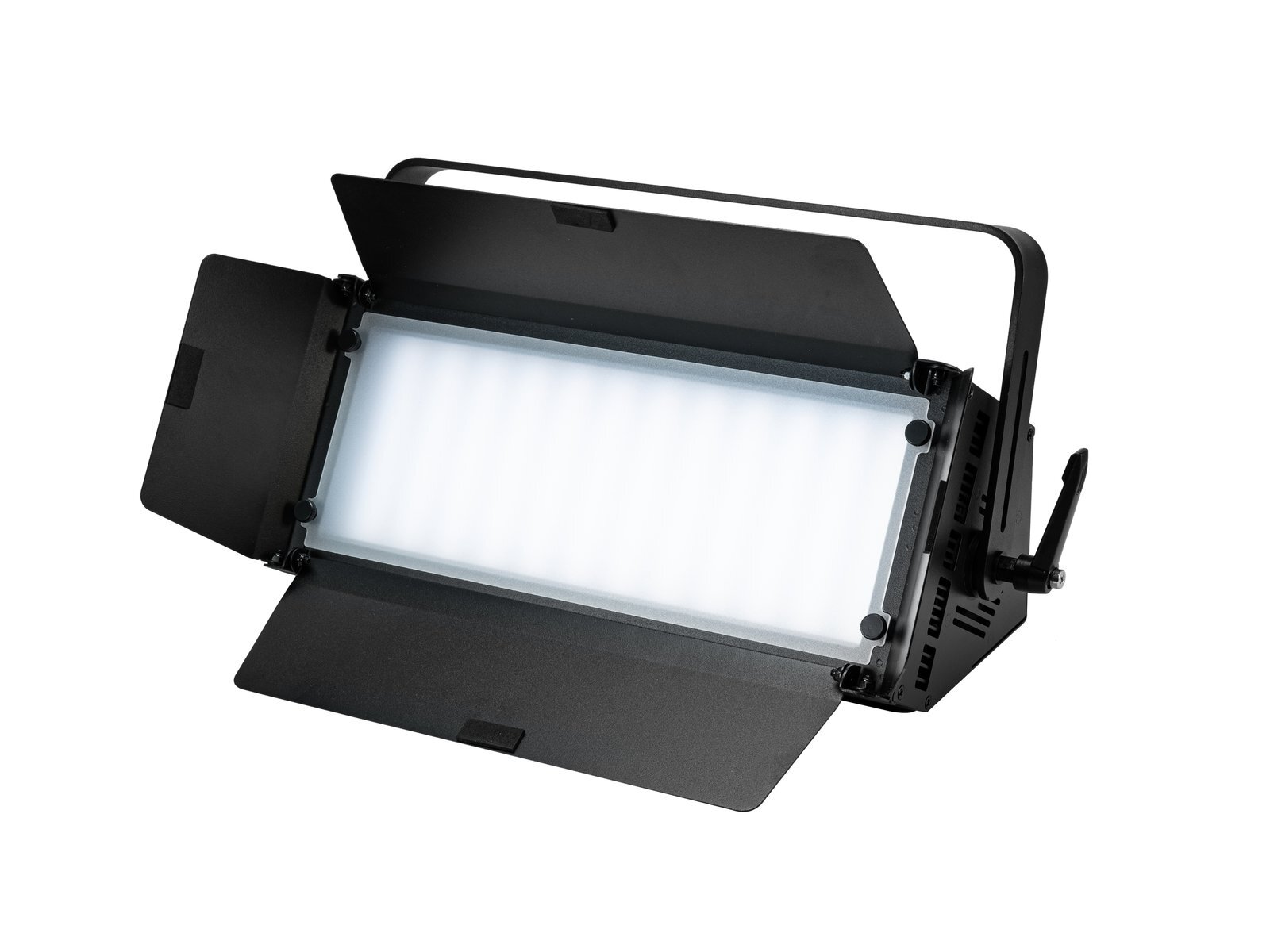

• Additional frost filter provides a wide, soft and homogeneous light
• 4 barn doors to avoid blinding the audience and for protection during transport
• Direct color temperature selection for 69 preset values
• Dimmer electronic
• Flicker-free
• With a beam angle of 120°
• The device is cooled by temperature-controlled fan
• Very high color rendering index (CRI)
• LCD display
• Rubber feet
• Control via DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
• With Mounting bracket
• For application areas such as: Video and photography; Stage
• Mains input and output for power linking up to 8 units
• Preprogrammed in Light Captain

Package contents

• 1 x spotlight, 1 x user manual, 1 x power cord, 1 x diffusor cover, 4 x knurled screw

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
160 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
1 x P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
288 x 0,5 W SMD 5730 cold white (CW)
288 x 0,5 W SMD 5730 warm white (WW)
Color temperature:
3000K - 6000K adjustable
DMX channels:
2-1; 2-2; 3-1; 3-2; 4
DMX input:
3-pin XLR (M) mounting version
5-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:
Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
93 Ra
Illuminance in Lux (lx):
Cold white (CW) 1m: 3752 lx, 3m: 453 lx, 6m: 134 lx
Warm white (WW) 1m: 3664 lx, 3m: 445 lx, 6m: 132 lx
All 1m: 5667 lx, 3m: 690 lx, 6m: 204 lx
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Transport aid:
Rubber feet
Dimensions:
Length: 44 cm
Width: 19,8 cm
Height: 22,3 cm
Weight:
6,00 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
