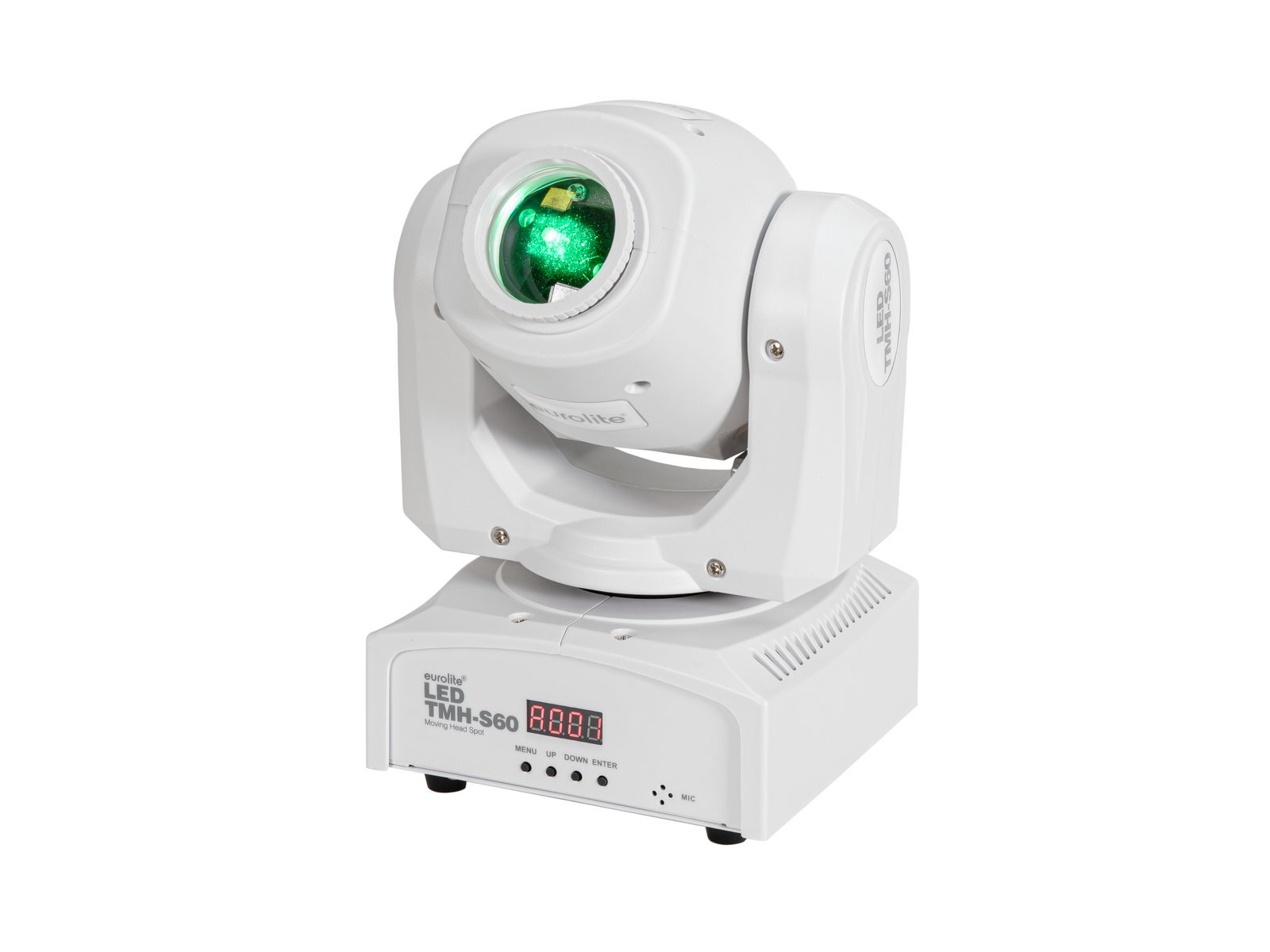

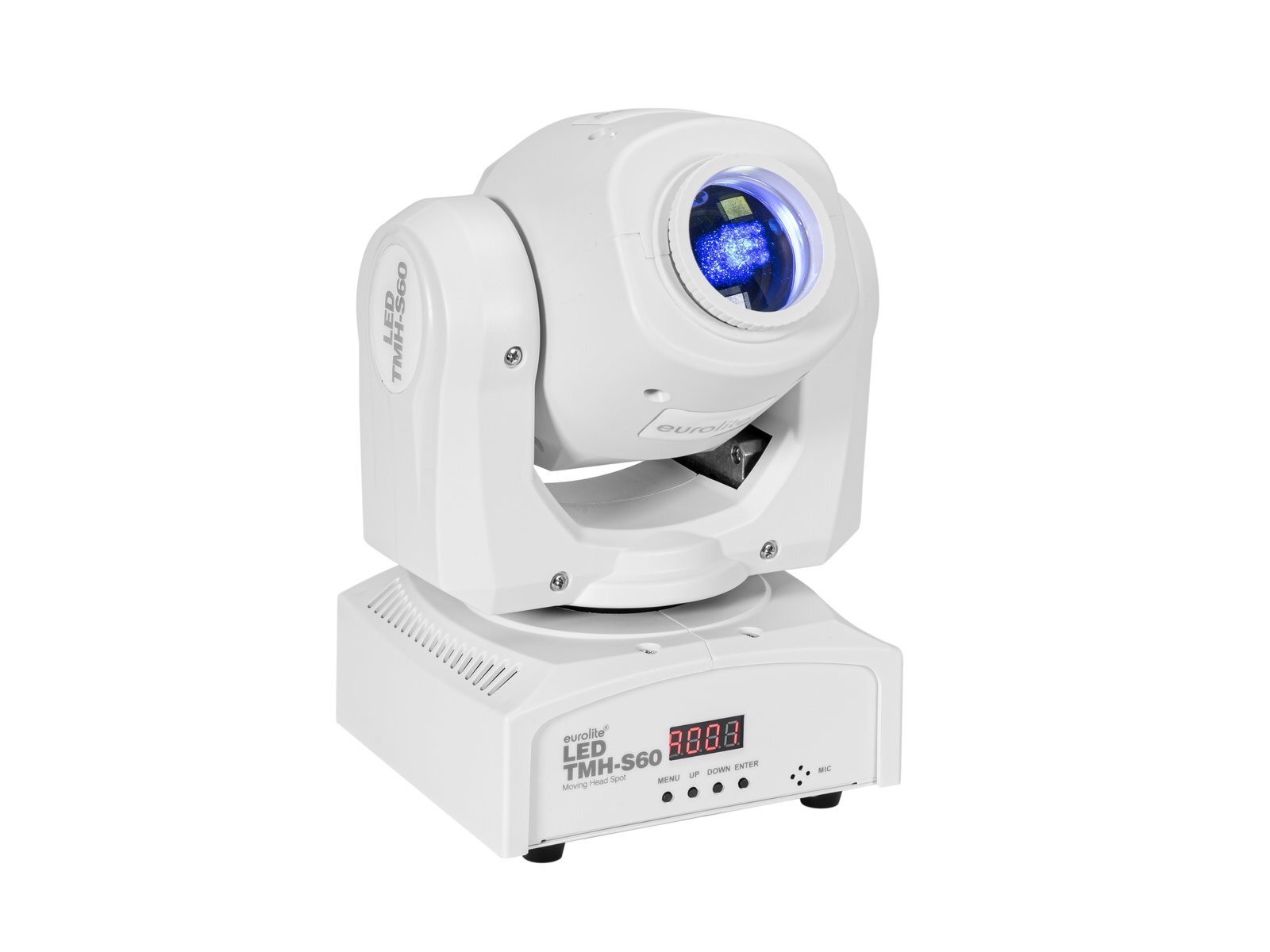

Compact Moving Head Spot with 60 W LED, gobos, color wheel and white housing

• 3 gobos with heart patterns for exchange included
• 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
• Positioning within 540° PAN and 180° TILT
• Gobo wheel with rotating gobos; Focus manual; color wheel
• Beam effect; Strobe effect
• Color wheel with 7 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with rotating gobos, 7 gobos and open
  Slot-in gobo system for easy gobo replacement
• Shake effect
• 4 integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
• Flicker-free
• With a beam angle of 12°
• 4 digit 7-segment LED display
• Dimmer electronic
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain; Light´J
• Rubber feet

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 3 x gobos

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
95 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, T 1,5 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 60 W COB (chip-on-board) cold white (CW)
Color temperature:
7700K
Max. TILT movement:
180° Positioning
Max. PAN movement:
540° Positioning
Equipment:
Gobo wheel with rotating gobos; Focus manual; color wheel
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 13,8mm
Image diameter 11mm
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels:
10; 12
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; Light Captain; Light´J
Beam angle:
12°
Beam angle (1/2 peak):
12°
Illuminance in Lux (lx):
Cold white (CW) 1m: 15205 lx, 3m: 1764 lx, 6m: 445 lx
Housing color:
White
Display type:
4 digit 7-segment LED display
Transport aid:
Rubber feet
Dimensions:
Width: 17,0 cm
Depth: 15,0 cm
Height: 24,0 cm
Weight:
3,15 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
