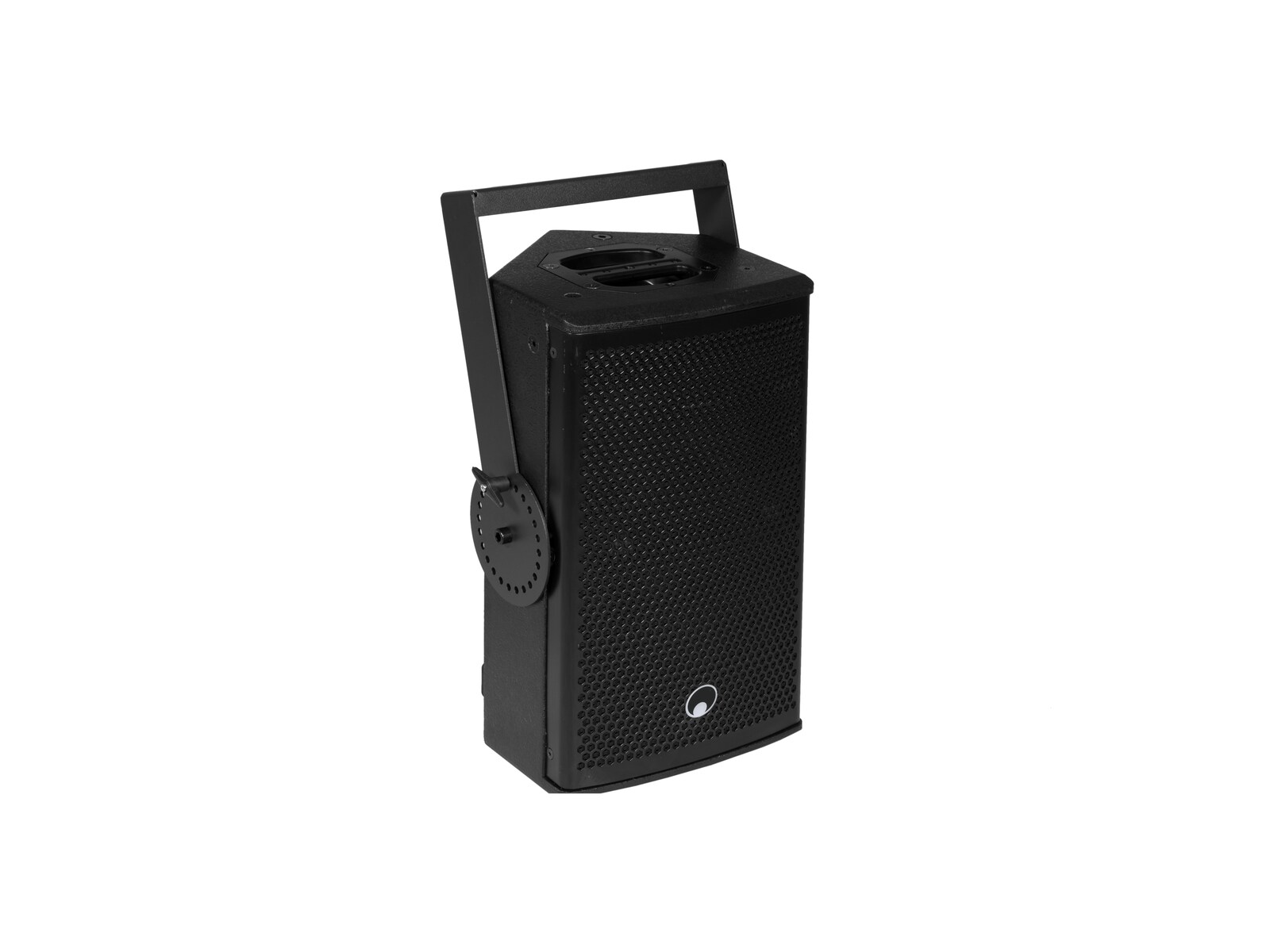

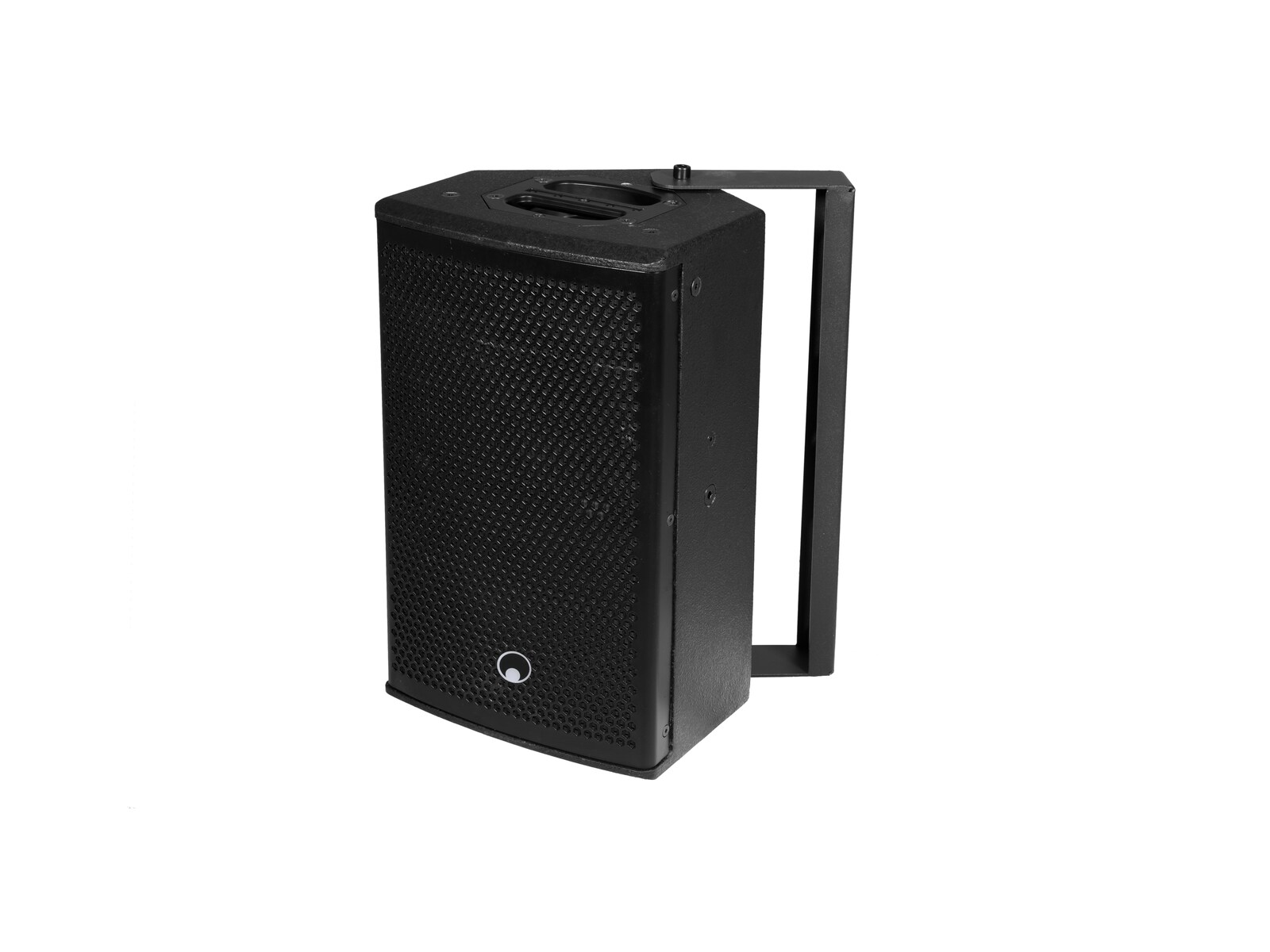

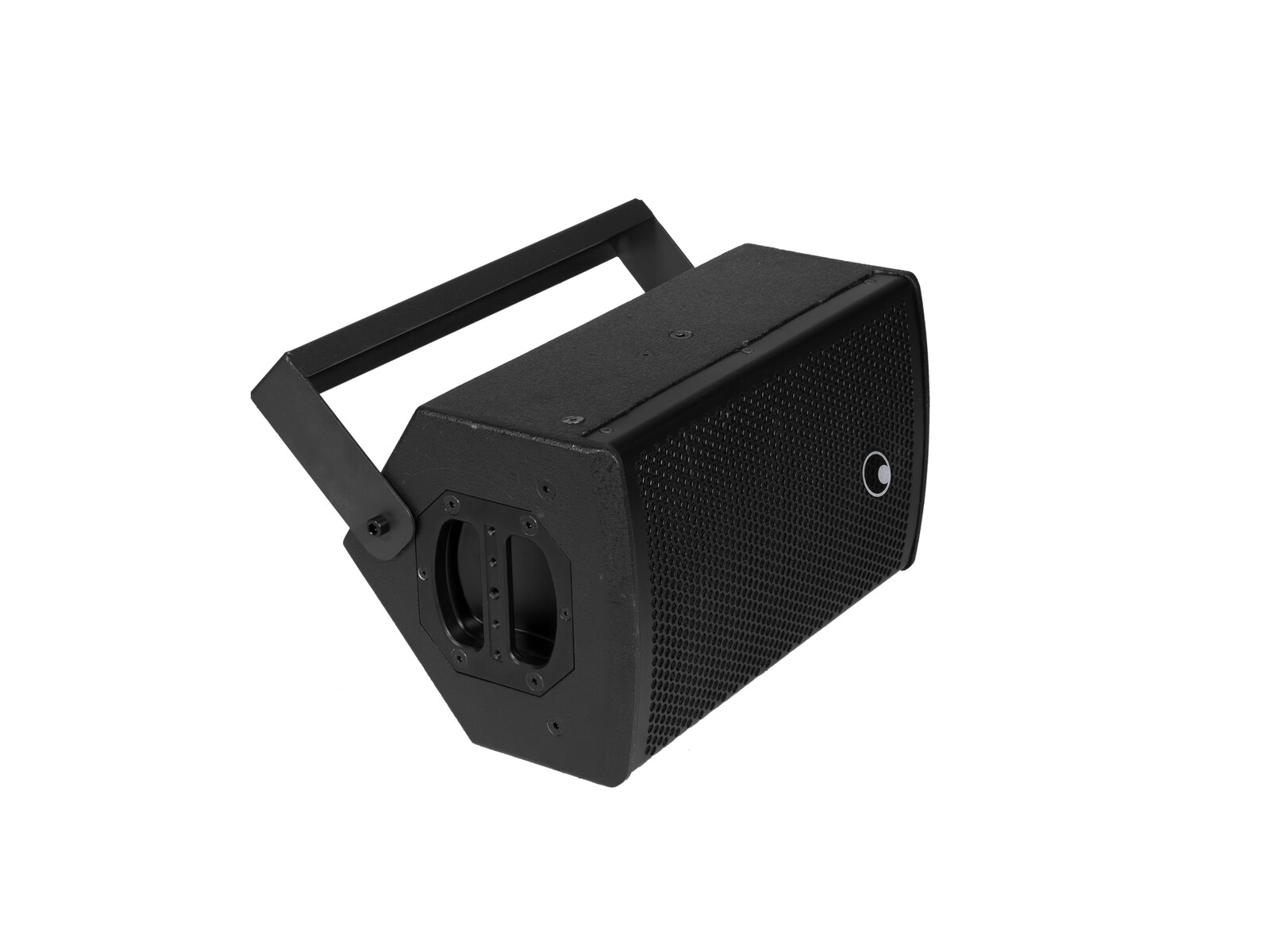

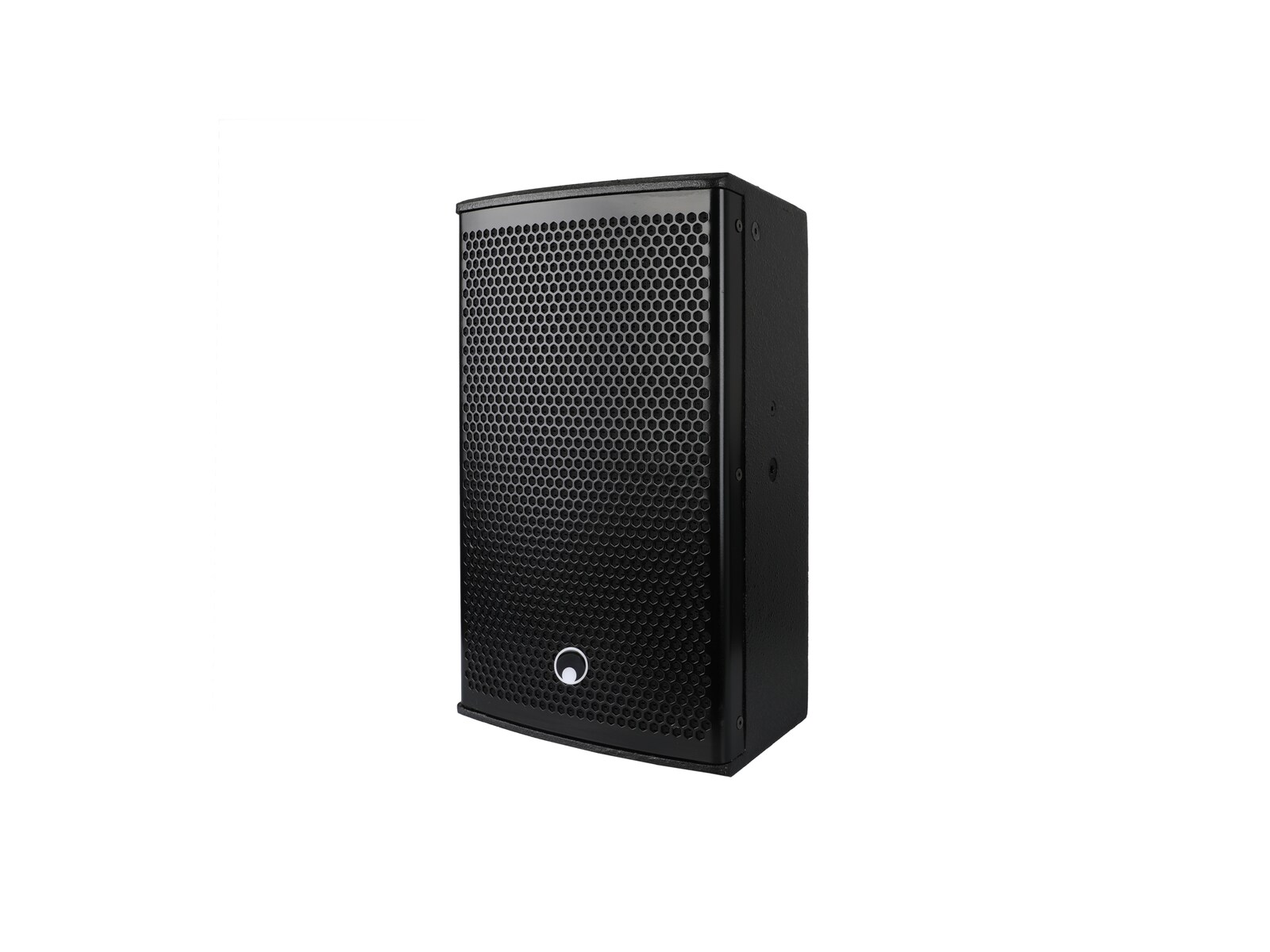

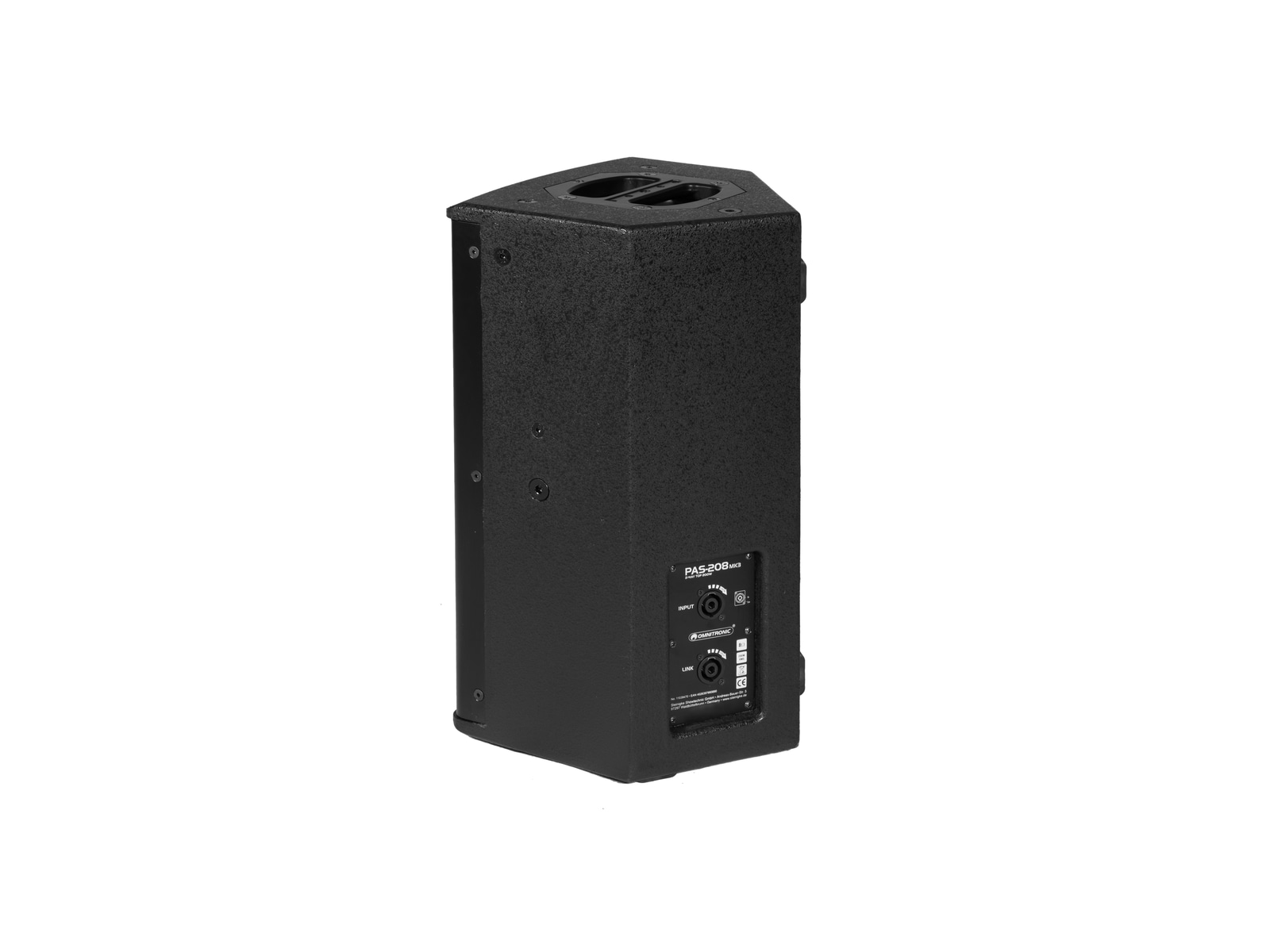

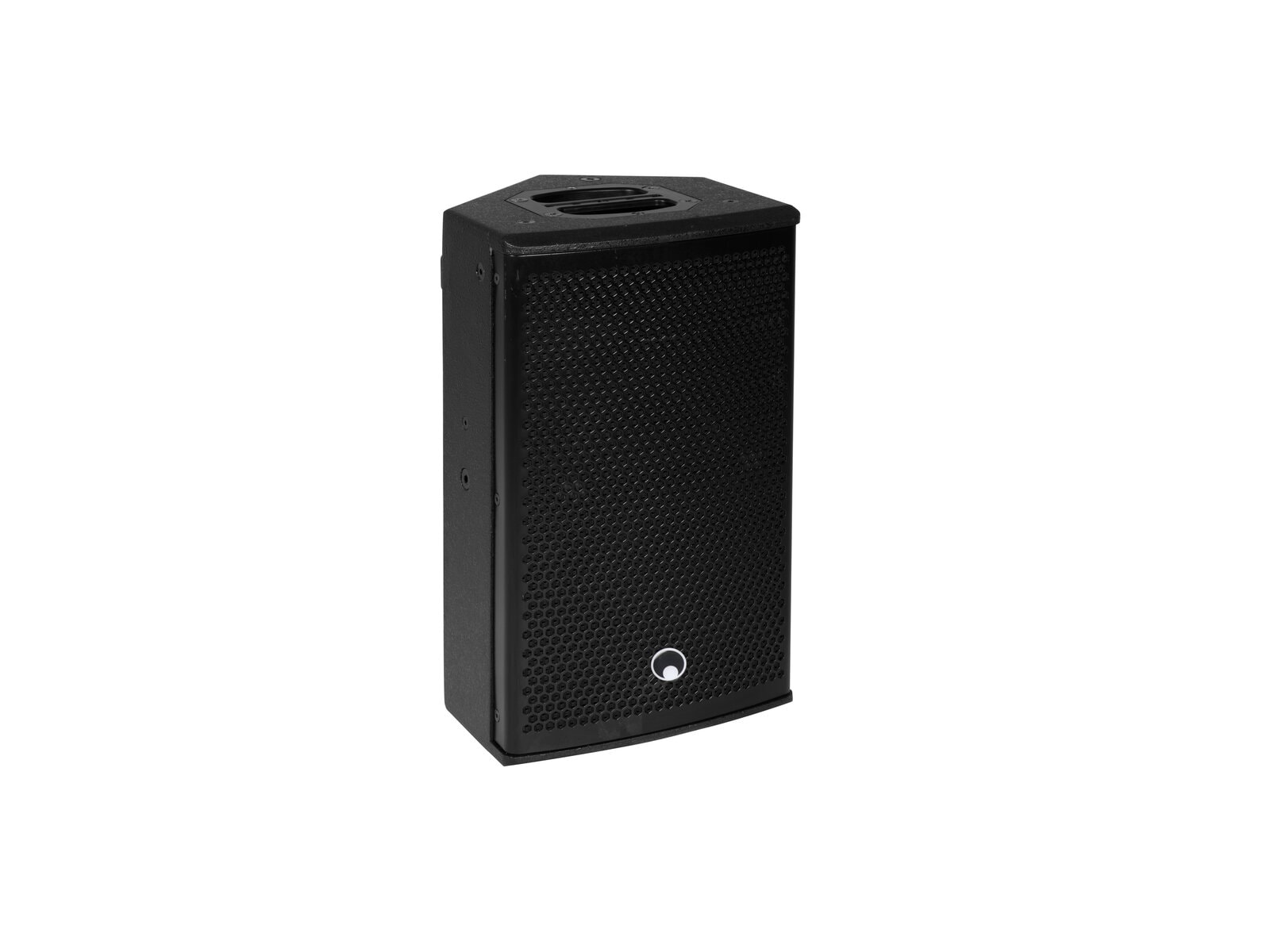

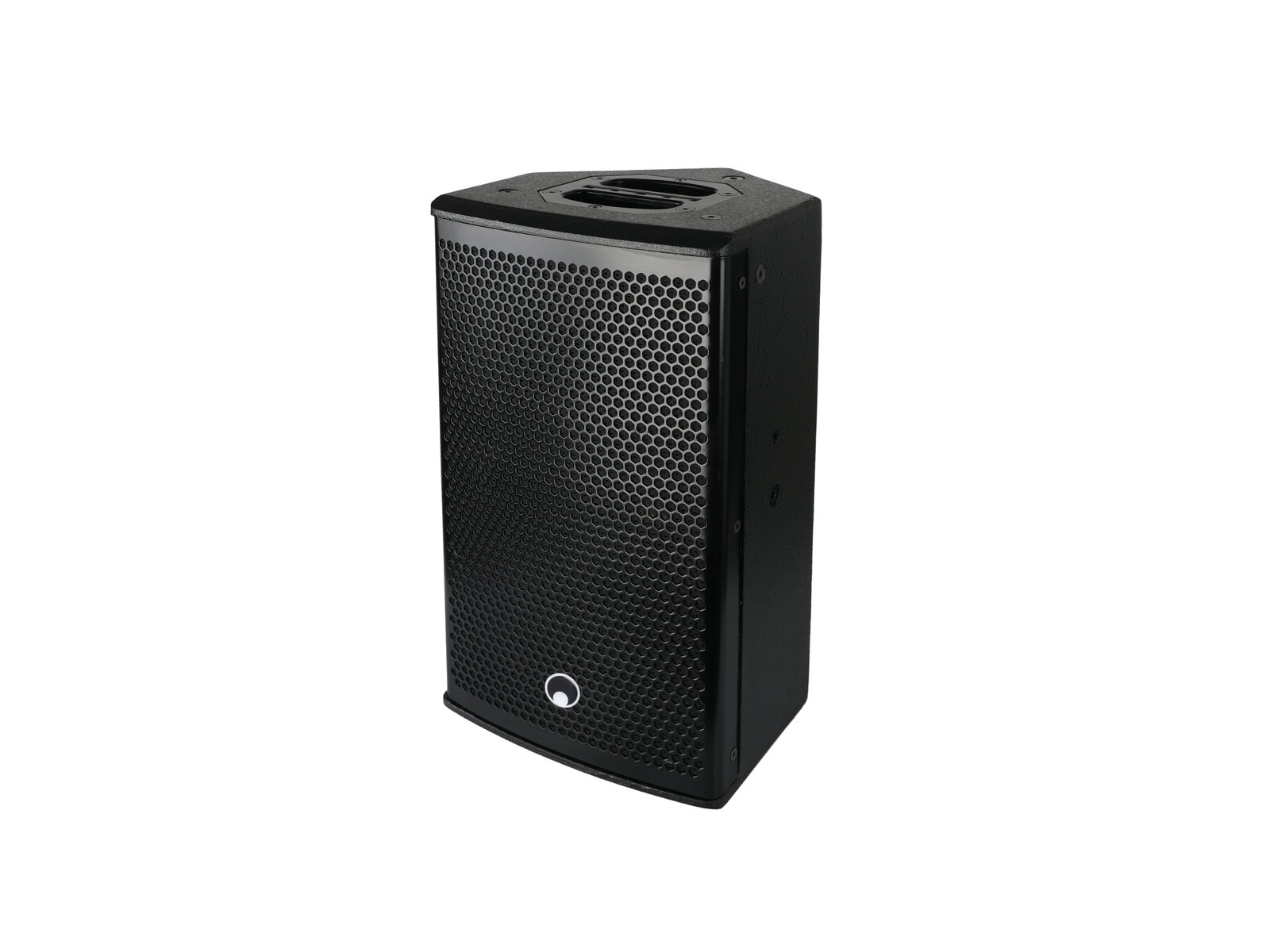

OMNITRONIC PAS-208 MK3 2-Way Top

Passiv 8" 2-vägs högtalare

Art nr:11039470
3 244 kr

I lager / Leveranstid ca. 4-8 vardagar

  • ✓ Trygga betalsätt
  • ✓ 30 dagar ångerrätt

Produktbeskrivning

Passive speaker with 8" woofer, 1" driver and 200 W RMS

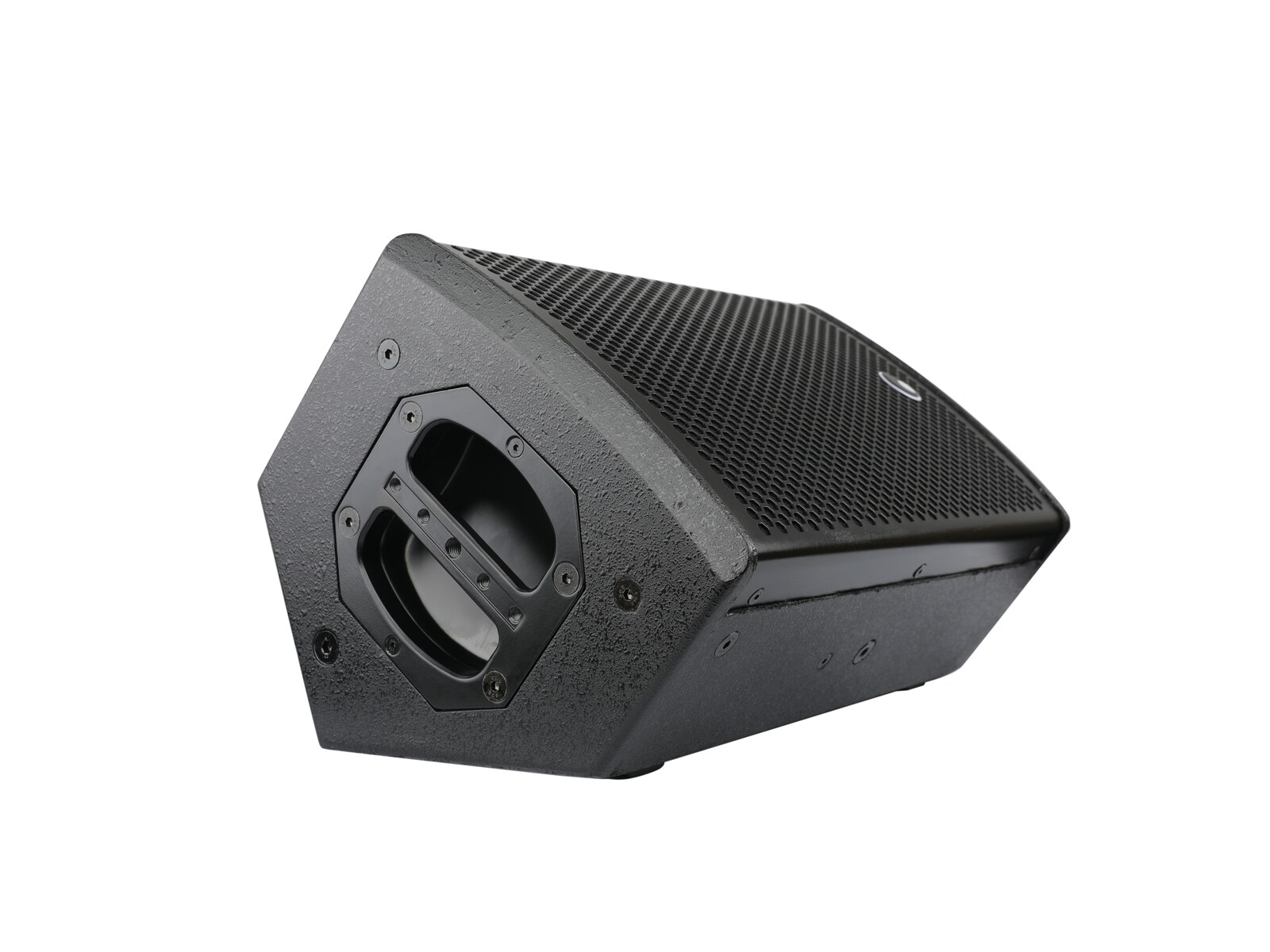

  • Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
  • 2-way bass-reflex system with 20 cm woofer and 2.5 cm compression driver
  • Optimized for combination with PAS subwoofers

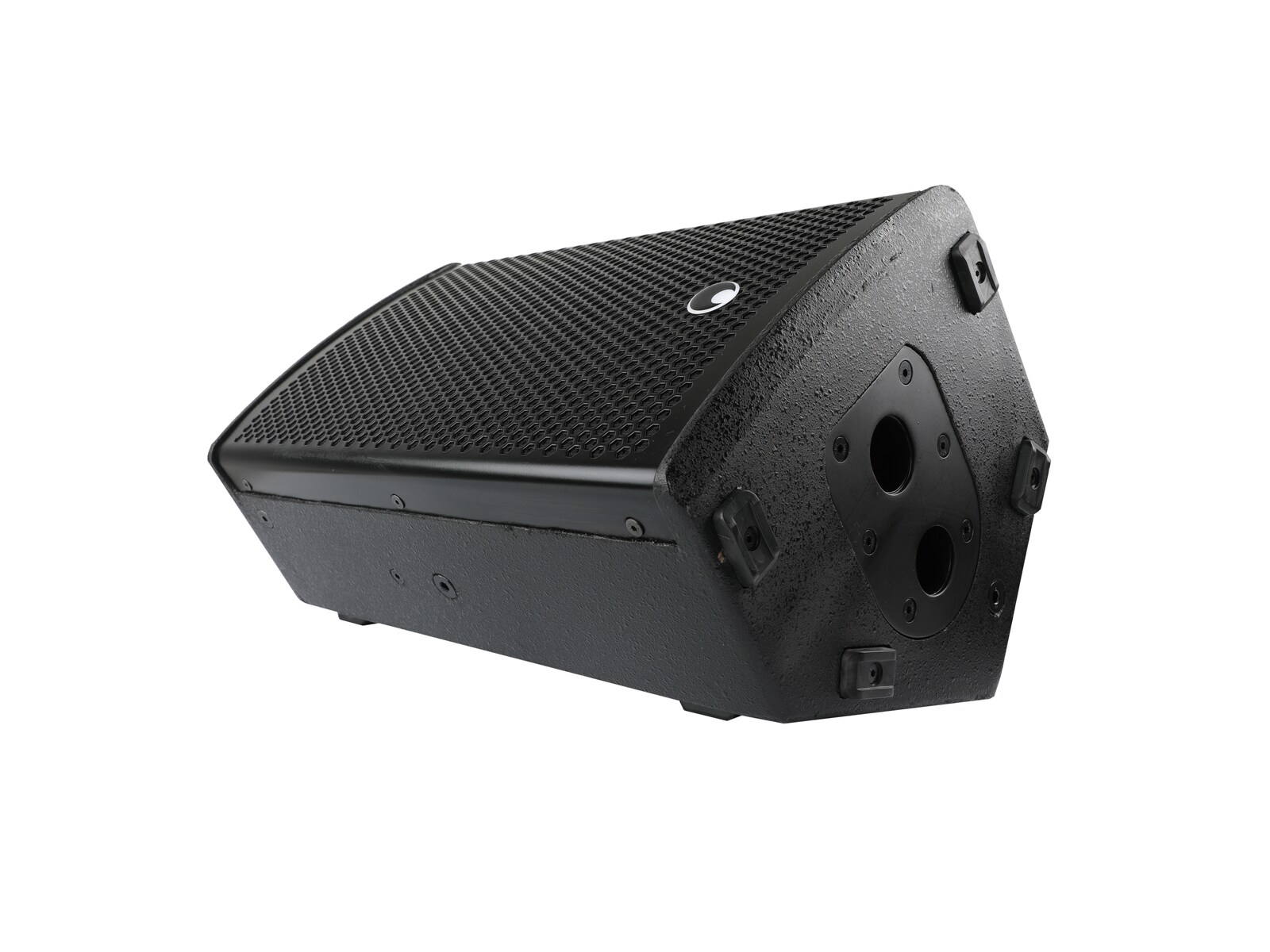

  • Application possibility: Standing; suspended; monitoring; on tripod

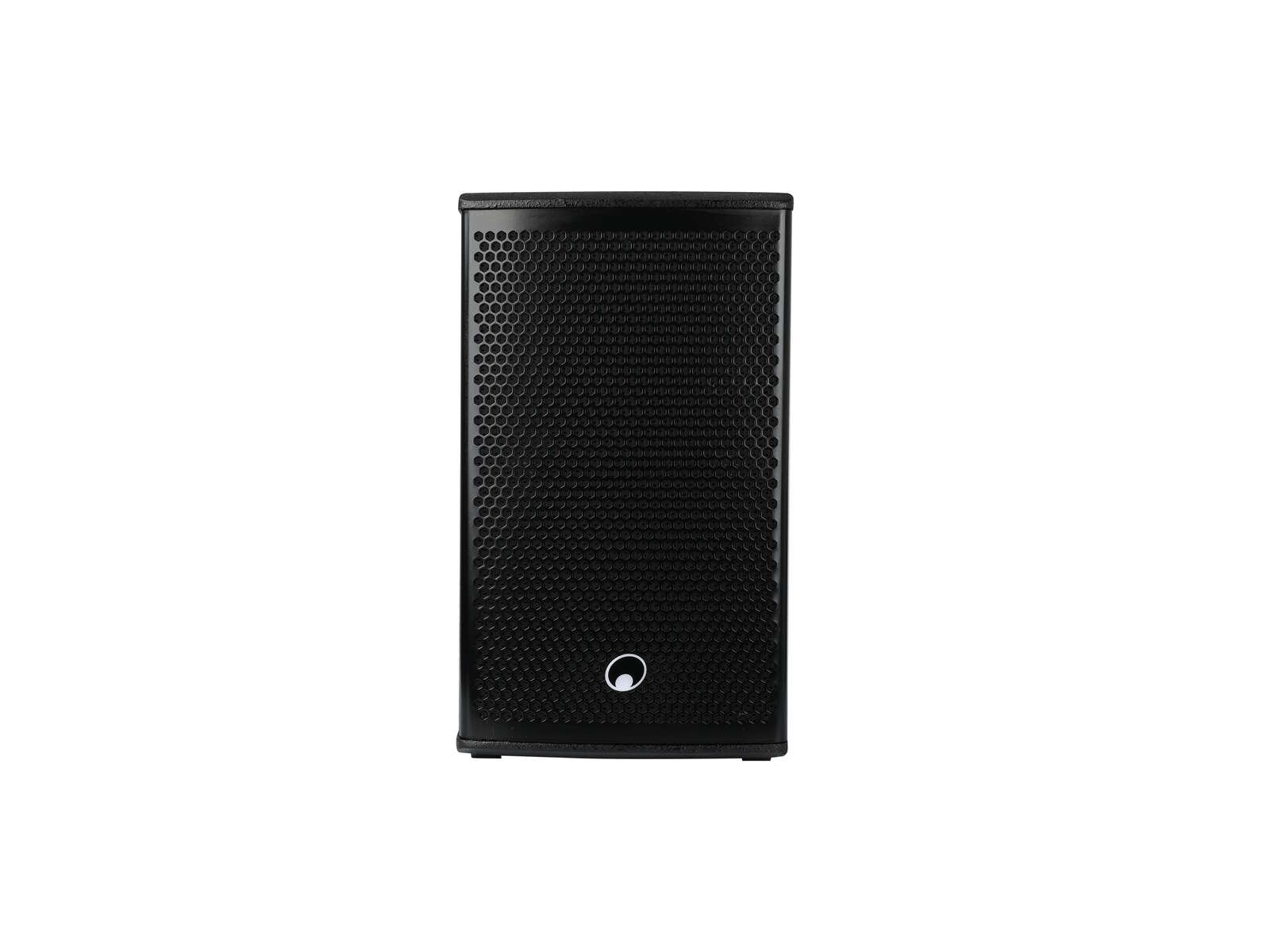

  • Black metal grille with acoustic foam
  • Rugged carrying handle
  • With rigging points

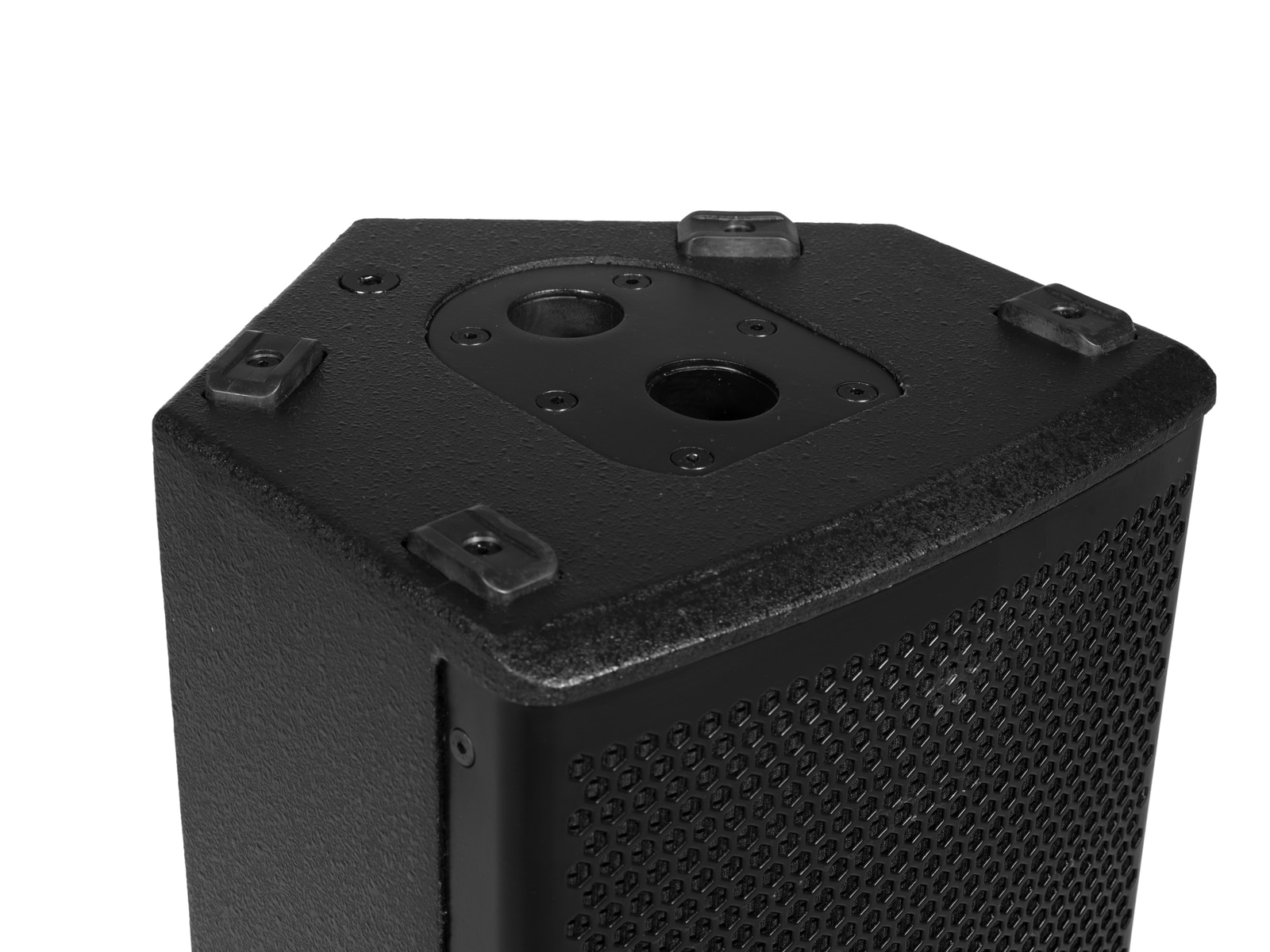

  • Dual flange

Package contents

  • 1 x user manual, 1 x compact cabinet speaker


Power:
Program: 400W
Rated: 200W RMS
Frequency range:
75 - 20000 Hz
Sensitivity:
95 dB (1W/1m)
Max. SPL:
121 dB
Dispersion angle:
90° x 60°
Impedance:
8 ohms
Attachment system:
Dual flange: Ø 35mm (0°/5°)

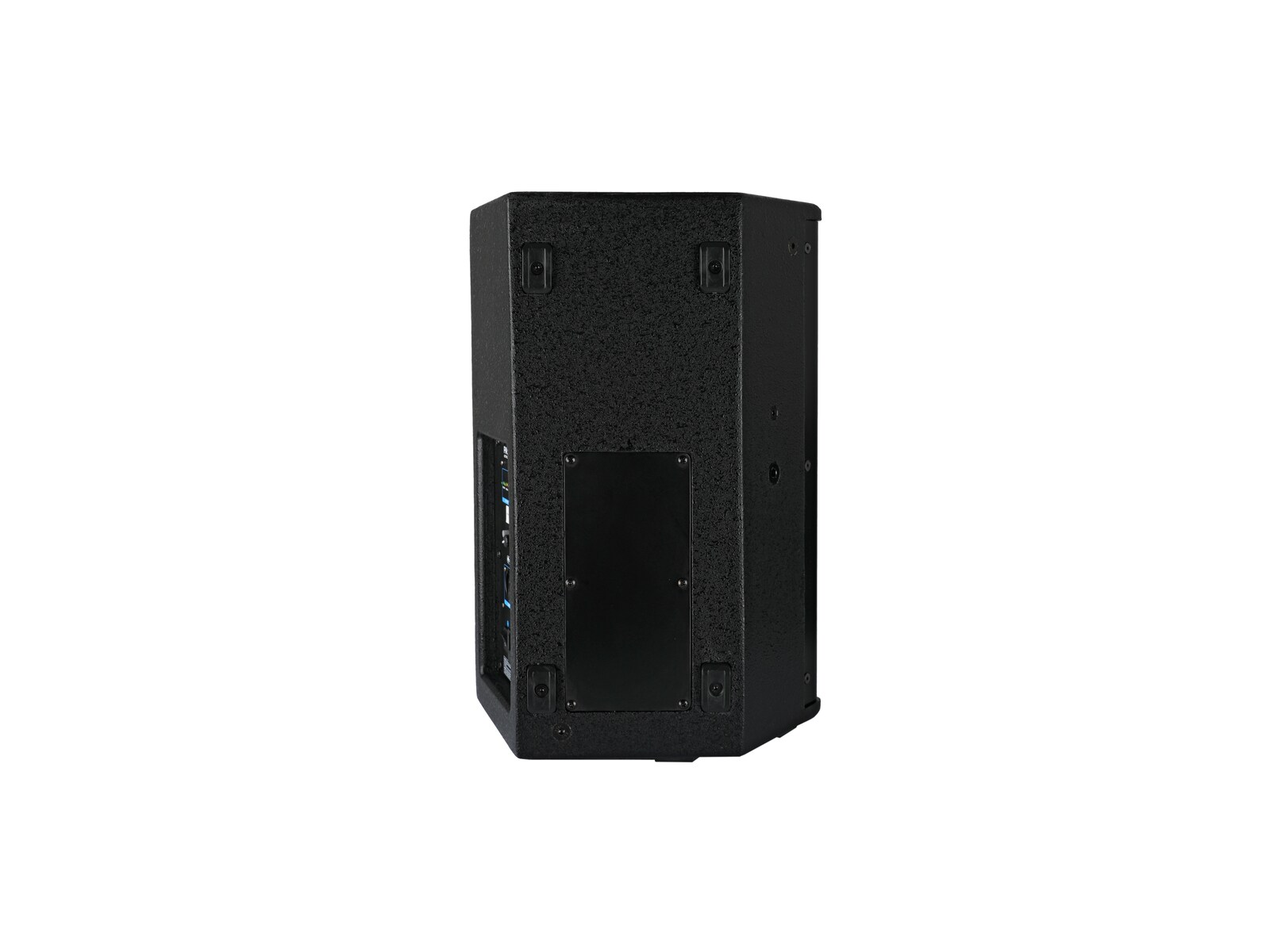

Flying points:
5 x M8 thread; 4 x M10 thread

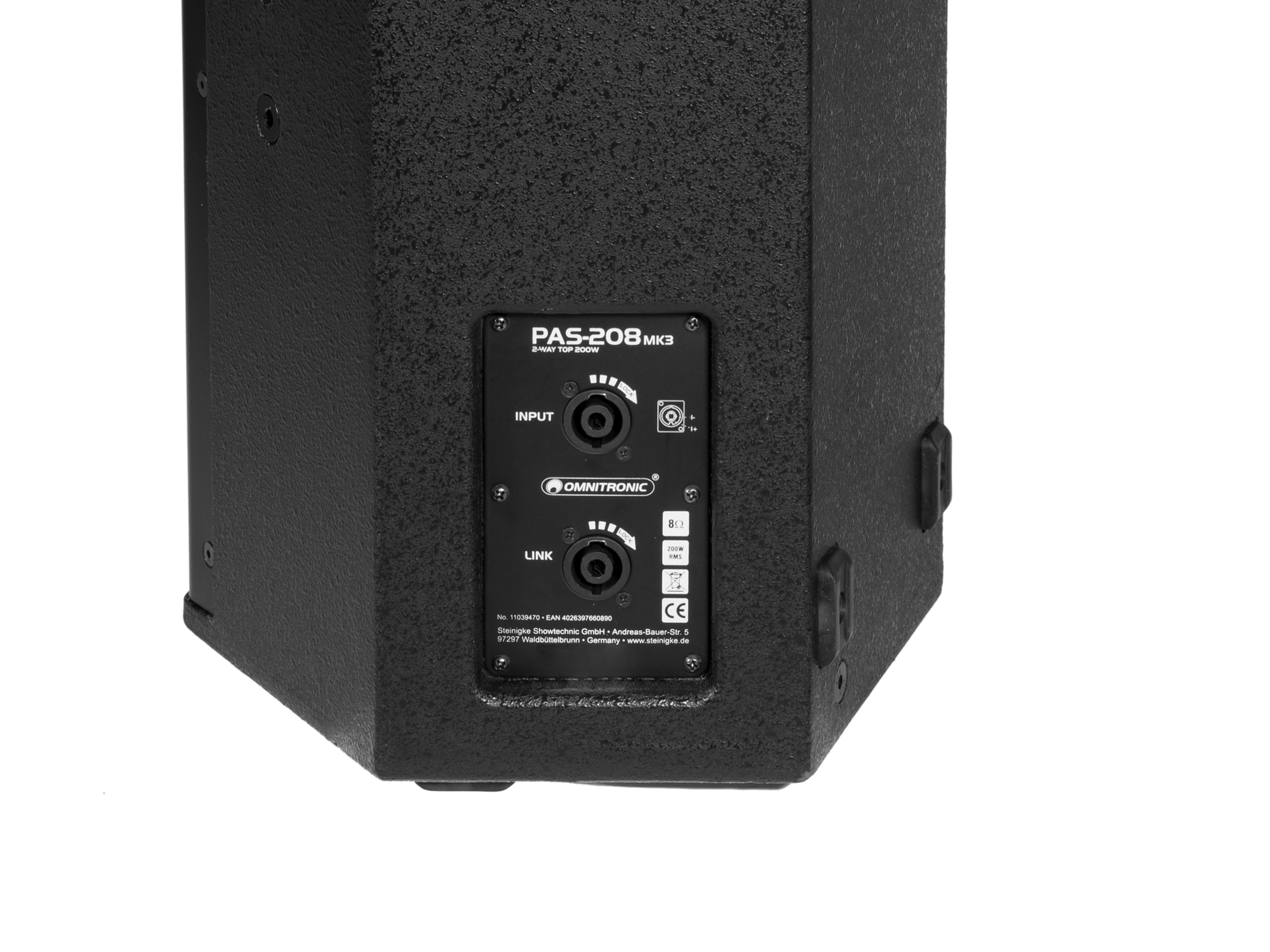

Connections:
Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:
3500 Hz
Speaker:
1 x woofer (8") approx. 20 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (2") approx. 5 cm
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
Type of speaker:
Compact cabinet speaker
Carrying handle:
1 pc/pcs
Material:
Birch multiplex
Color:
Black, painted
Dimensions:
Width: 27 cm
Depth: 46 cm
Height: 26,8 cm
Weight:
11,30 kg
