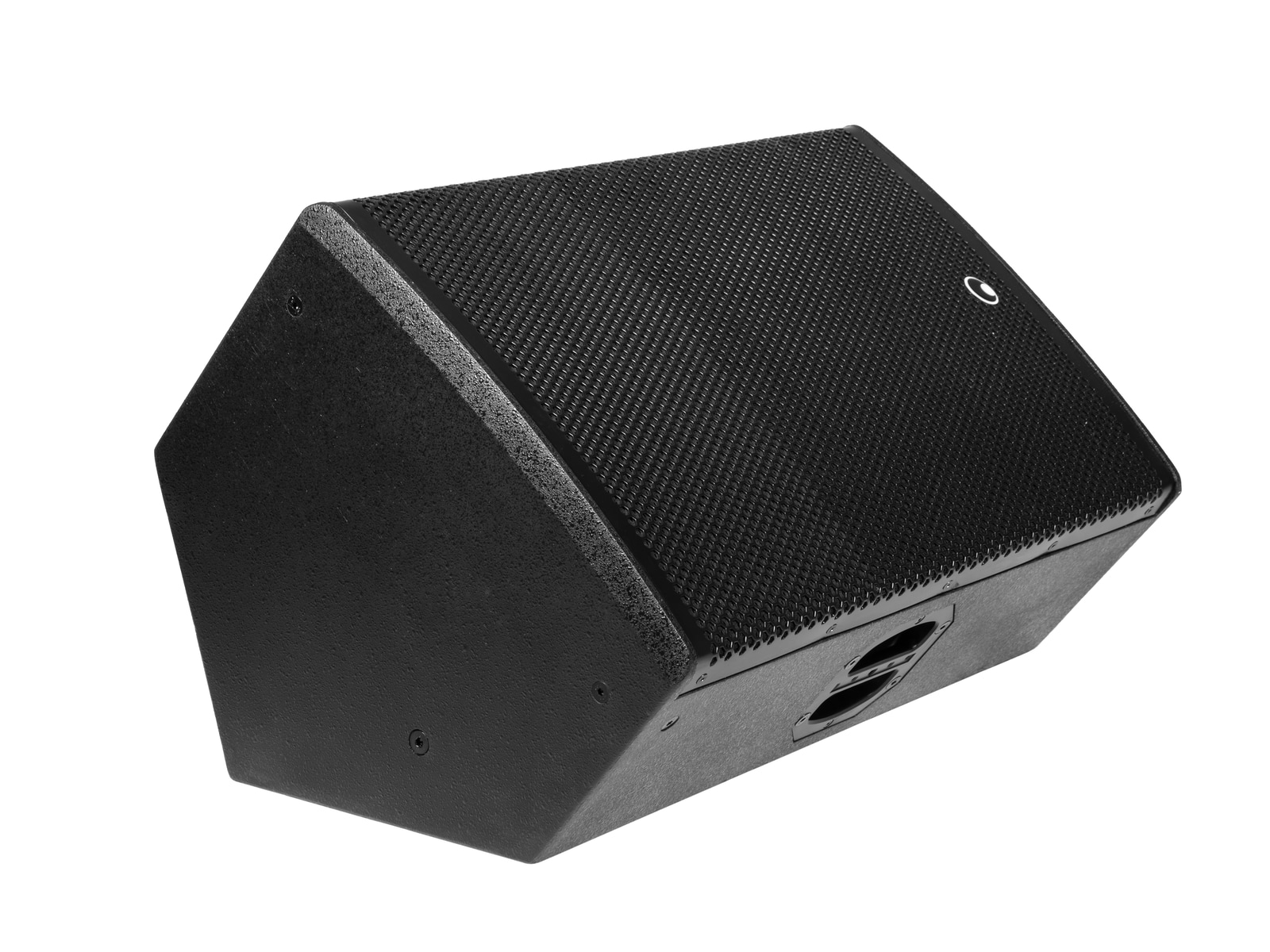

Passive speaker with 15" woofer, 1" driver and 400 W RMS

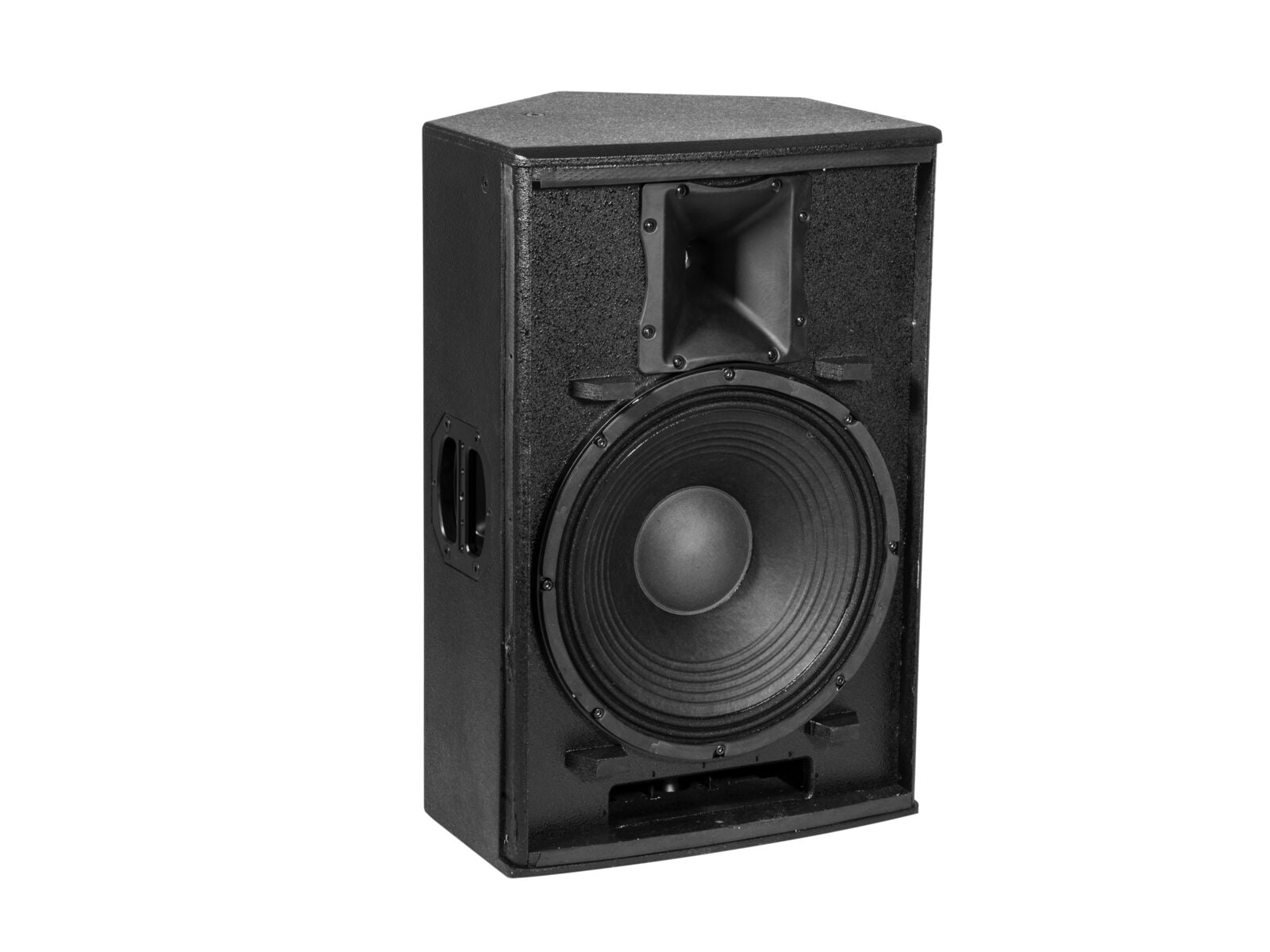

• 2-way bass-reflex system with 38 cm woofer (8 cm voice coil)
• 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
• Optimized for combination with PAS subwoofers
• With rigging points
• Black metal grille with acoustic foam
• 2 mould carrying handles
• Dual flange

Package contents

• 1 x user manual, 1 x compact cabinet speaker

Power:
Program: 800W
Rated: 400W RMS
Frequency range:
50 - 20000 Hz
Sensitivity:
99 dB (1W/1m)
Max. SPL:
127 dB
Dispersion angle:
90° x 60°
Impedance:
8 ohms
Attachment system:
Dual flange: Ø 35mm (0°/5°)
Flying points:
4 x M10 thread; 6 x M8 thread

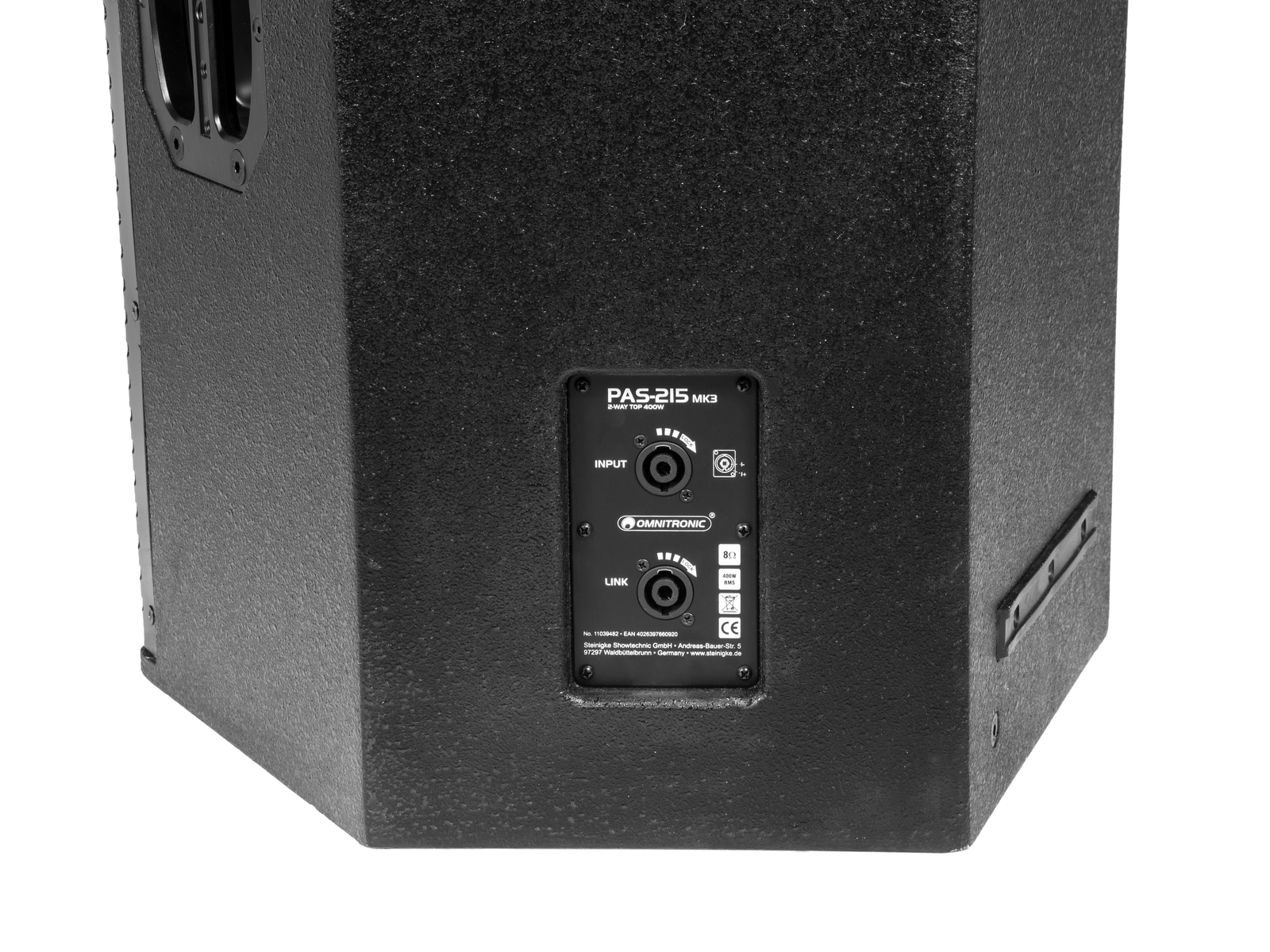

Connections:
Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:
3000 Hz
Speaker:
1 x compression tweeter highs (1") approx. 2.5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (15") approx. 38 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Type of speaker:
Compact cabinet speaker
Mould carrying handle:
2 pc/pcs
Material:
Birch multiplex
Color:
Black, textured coating, painted
Dimensions:
Width: 45 cm
Depth: 69,5 cm
Height: 43,5 cm
Weight:
24,20 kg
