Wireless DMX system 2.4 GHz

• Auto-switching transceiver
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Control via DMX; QuickDMX; plug and play
• Operating range up to 400m

Package contents

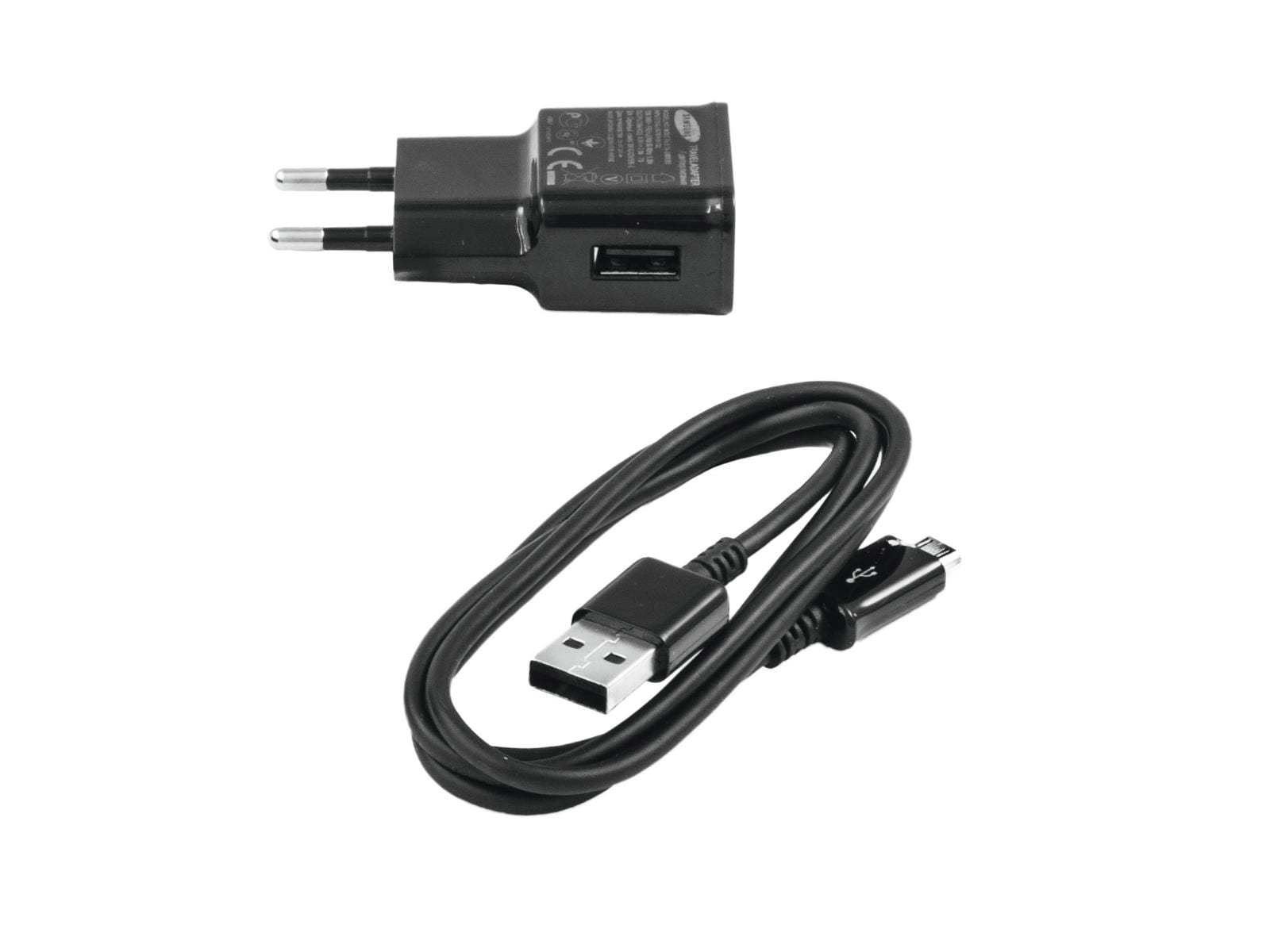

• 1 x device, 1 x user manual, 1 x external mains adapter, 1 x uSB cable, 1 x antenna, 1 x declaration of conformity

Power supply:
100-240 V AC, 50/60 Hz
5 V DC 500 mA
IP classification:
IP20
Power connection:
Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
DMX channels:
Input 512
Output 512
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
DMX; QuickDMX; plug and play
Carrier frequency:
2,4 GHz
Modulation:
GFSK
Parallel mode:
Max. 6 transmitter
Range:
Range up to 400m
Color:
Black
Dimensions:
Width: 21,2 cm
Depth: 10 cm
Height: 7,5 cm
Weight:
290 g
