Weather-proof (IP54), simple logo projector with 6 patterns
- Logo projector in small design for projecting the desired motifs or advertising logos

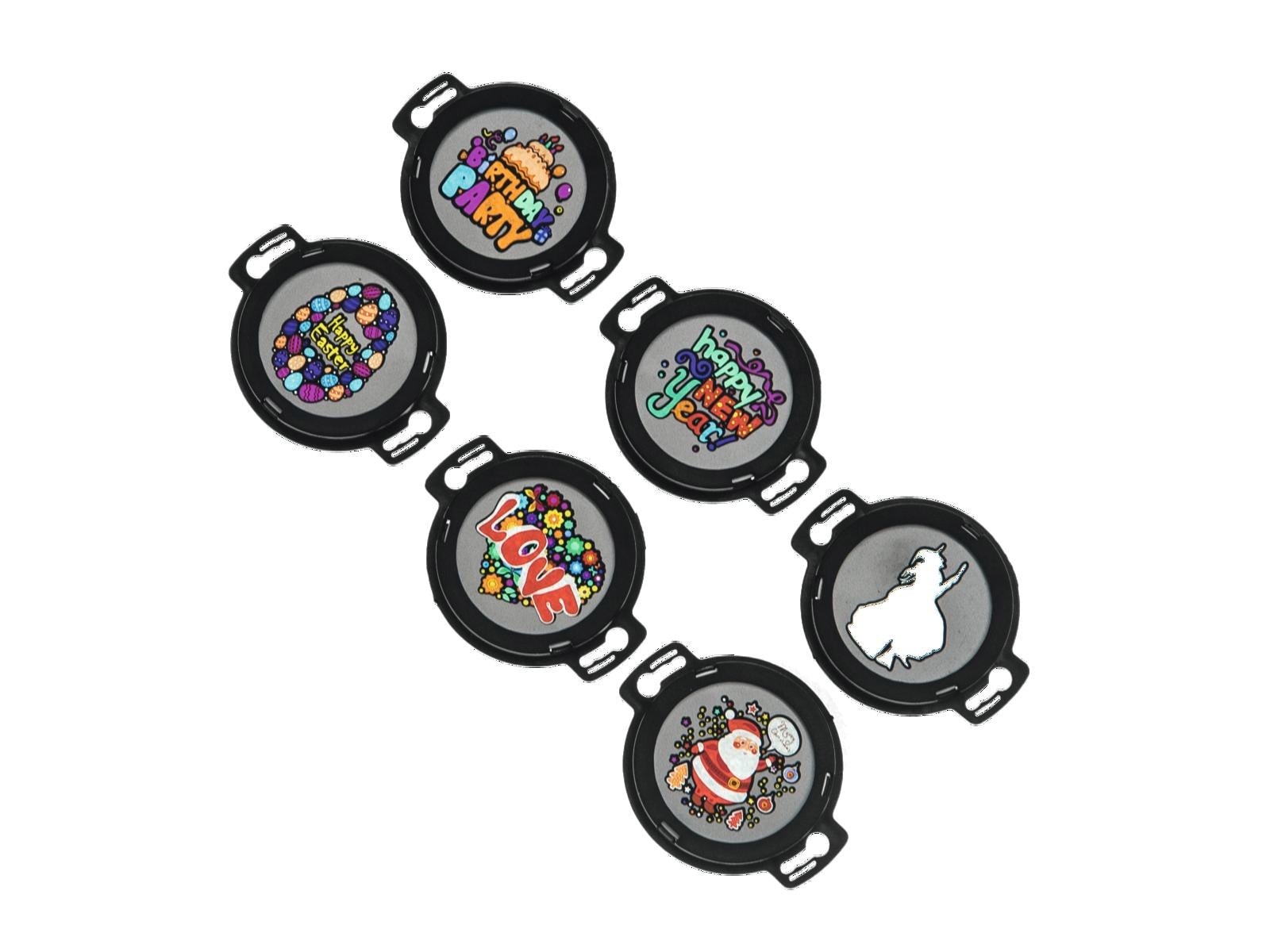

- Delivery includes 6 gobos with designs for Easter, Christmas, Halloween, New Year, wedding and birthday
- Easy changing of the gobo foil
- Gobos can be produced by one's own hand (for example with a foil)
- 6-hour or 12-hour timer with automatic daily repetition
- Rugged plastic housing
- 1 powerful LED 7 W high-power cold white (CW) (homogenous color mix)
- Gobo wheel with rotating gobos; focus manual
- Rotation speed adjustable
- Gobo effect
- The device is cooled by passive convection cooling
- Control via timer; stand-alone
- With a beam angle of 19°
- With mounting bracket
- Suitable for outdoor use
- For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; party room; restaurants, bars and hotels
- Very quiet working noise; Silent operation
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x device
- 1 x external mains adapter
- 6 x gobos
- 3 x knurled screw
- 1 x stake
- 1 x holder
- 1 x user manual
| Power supply: | 12V DC |
| Power consumption: | 10 W |
| IP classification: | IP54 |
| Power connection: | Mains input power supply cord with AC adapter |
| Cable length: | Approx. 2.8 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 7 W high-power cold white (CW) (homogenous color mix) |
| Speed: | 0 RPM - 2 RPM , 360 ° forward |
| Equipment: | Gobo wheel with rotating gobos; focus manual |
| Gobos: | Outside diameter 35mm Image diameter 26mm |
| Cooling: | Passive convection cooling |
| Control: | Timer; stand-alone |
| Beam angle: | 19° |
| Beam angle (1/2 peak): | 19° |
| Color temperature: | 6500K |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Dimensions: | Width: 13.6 cm Depth: 17.1 cm Height: 17.7 cm |
| Weight: | 0.80 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments); Class 0 (no noise at all) |
| External mains adapter | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP44 |
| Output: | 12 V DC; 1 A; 12 W |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø6mm |
| Material: | Metal, 1.5 mm |
| Stake | |
| Material: | Plastic |
| Color: | Black |
| Holder | |
| Material: | Plastic |
| Color: | Black |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
