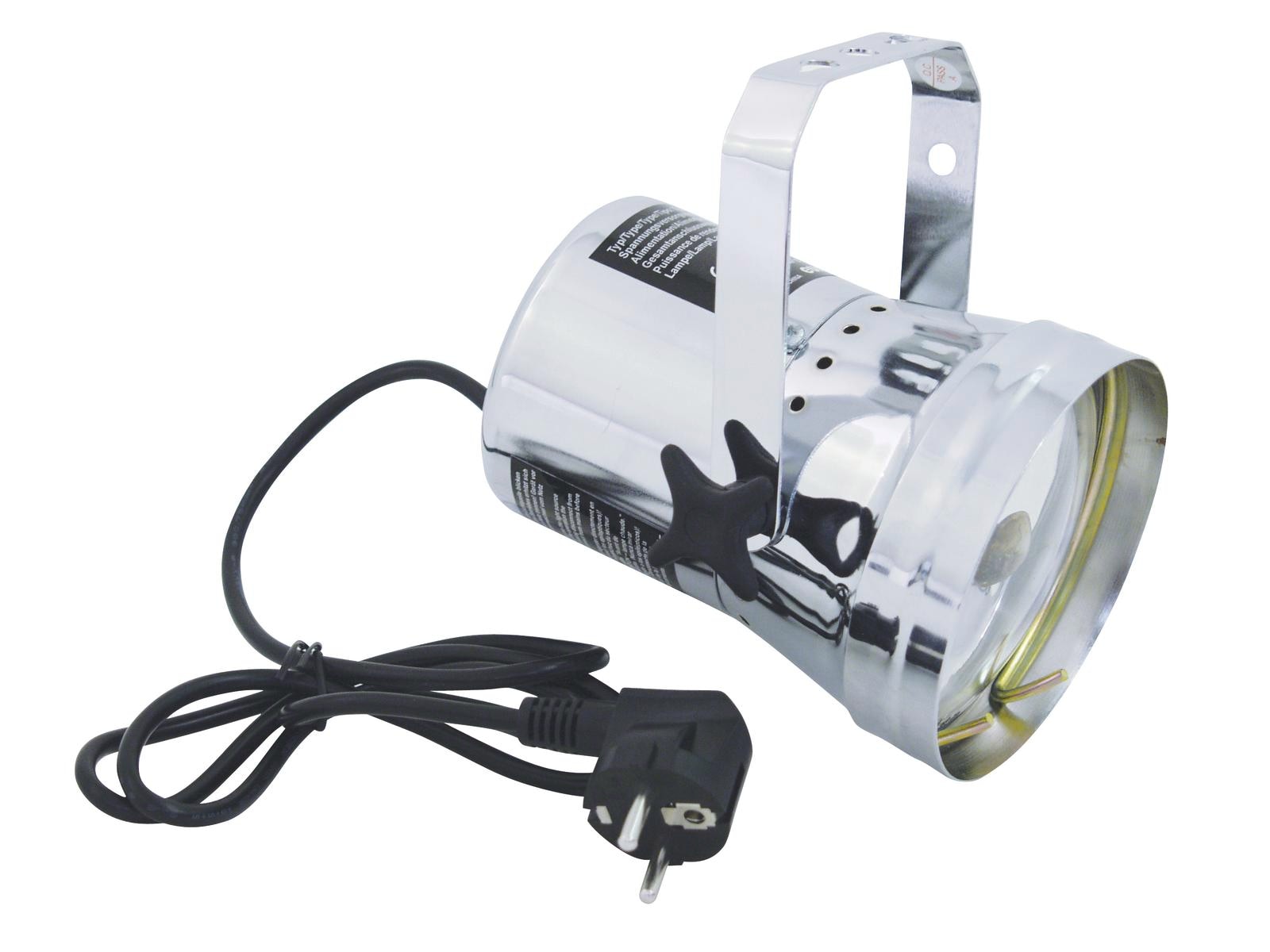

Pinspot with PAR-36 6V/30W lamp
- Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
- Color caps or color foils can be attached in front of the lens
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- Low power consumption
- Diverse beam angles are possible when using alternative illuminants
- Control via plug and play
- Very high color rendering index (CRI)
- With mounting bracket
- Available in various colors
- For application areas such as: Clubs/dancing school; decoration; party room; restaurants, bars and hotels
- Silent operation
illuminant
- Dimmable
Scope of delivery
- 1 x spotlight
- 1 x illuminant
- 1 x lamp clamping ring
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Suitable lamp: | PAR-36 G-53 STC |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 0.9 m |
| Base: | Wires |
| Control: | Plug and play |
| Color rendering index (CRI): | 99 Ra |
| Housing color: | Silver |
| Attachment system: | Mounting bracket |
| Material: | Metal |
| Dimensions: | Length: 16 cm Width: 15.5 cm Height: 17 cm |
| Weight: | 1.22 kg |
| Noise classification: | Class 0 (no noise at all) |
| Illuminant | |
| Voltage (lamps): | 6.4 V |
| Nominal wattage: | 30 W |
| Base: | G-53 STC |
| Lamp type: | Halogen lamp; clear lamp |
| Lamp specification: | Dimmable |
| Beam angle: | 6° |
| Color temperature: | 3000K |
| Construction: | PAR-36 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø10mm; 1 x Ø8mm |
| Material: | Metal, 2 mm |
| Lamp clamping ring | |
| Material: | Metal |
| Color: | Silver |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
