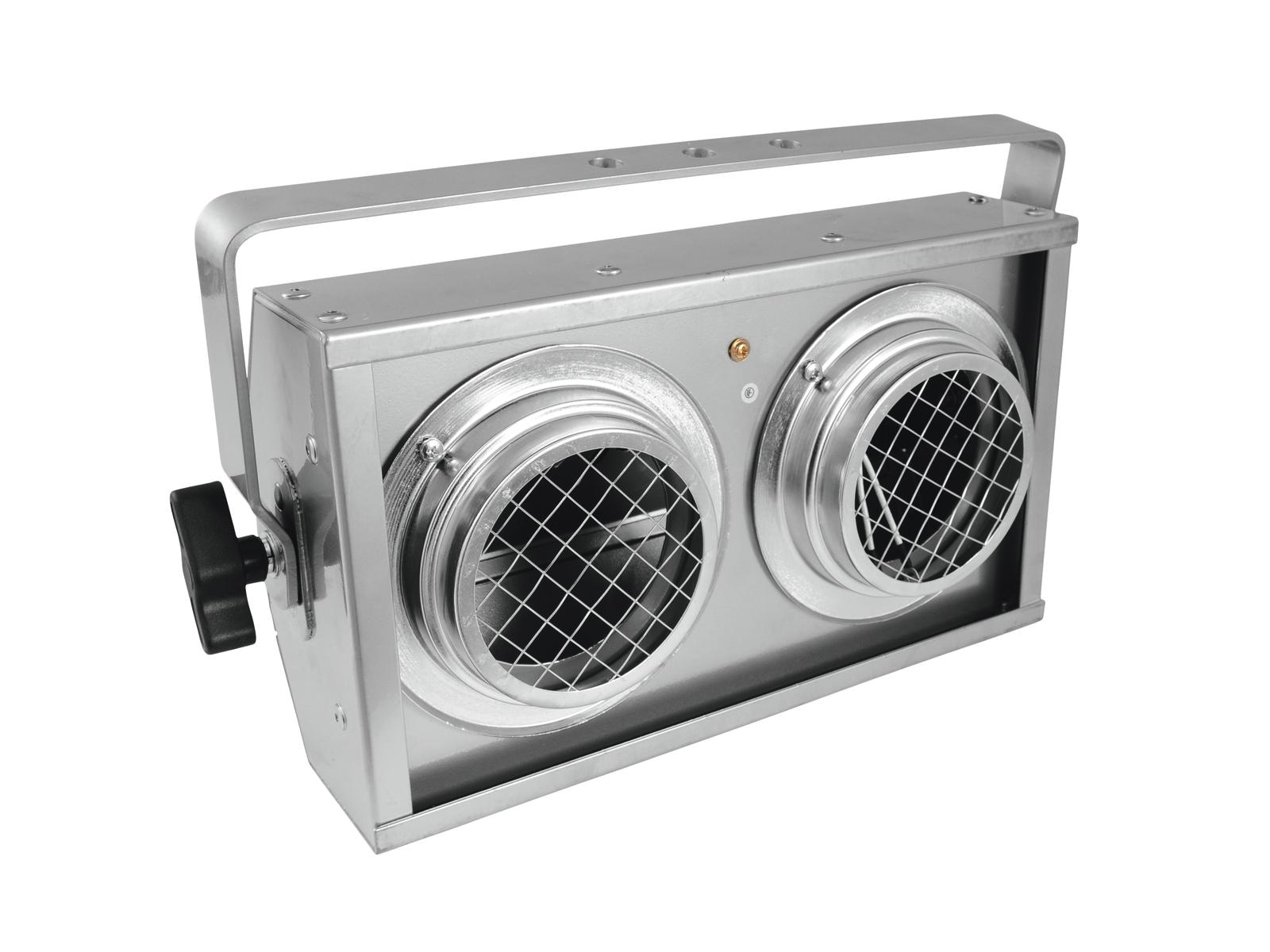

Audience blinder for 2 PAR 36 120V/650W lamps (with dimmer)

• Manual dimming via DIP switches
• Each lamp is individually connected to an internal lustre terminal, so that any lamp of your choice can easily be wired
• Extreme and lightning-fast light displays
• Robust version
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX
• With Mounting bracket

Package contents

• 1 x spotlight, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 1300 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
120 V/650 W PAR-36 G-53 STC
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05SS-F
Cable length:
Approx. 0,8 m
Base:
Wires
Lamp type:
Halogen lamp
Operating time:
Max. 1 min.
DMX channels:
1
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX
Construction:
PAR-36
Housing color:
Silver
Attachment system:
Mounting bracket
Material:
Metal
Dimensions:
Width: 40 cm
Depth: 18 cm
Height: 24 cm
Weight:
2,42 kg
Mounting bracket
Diameter mounting holes:
3 x Ø12mm
Material:
Metal, 4 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
