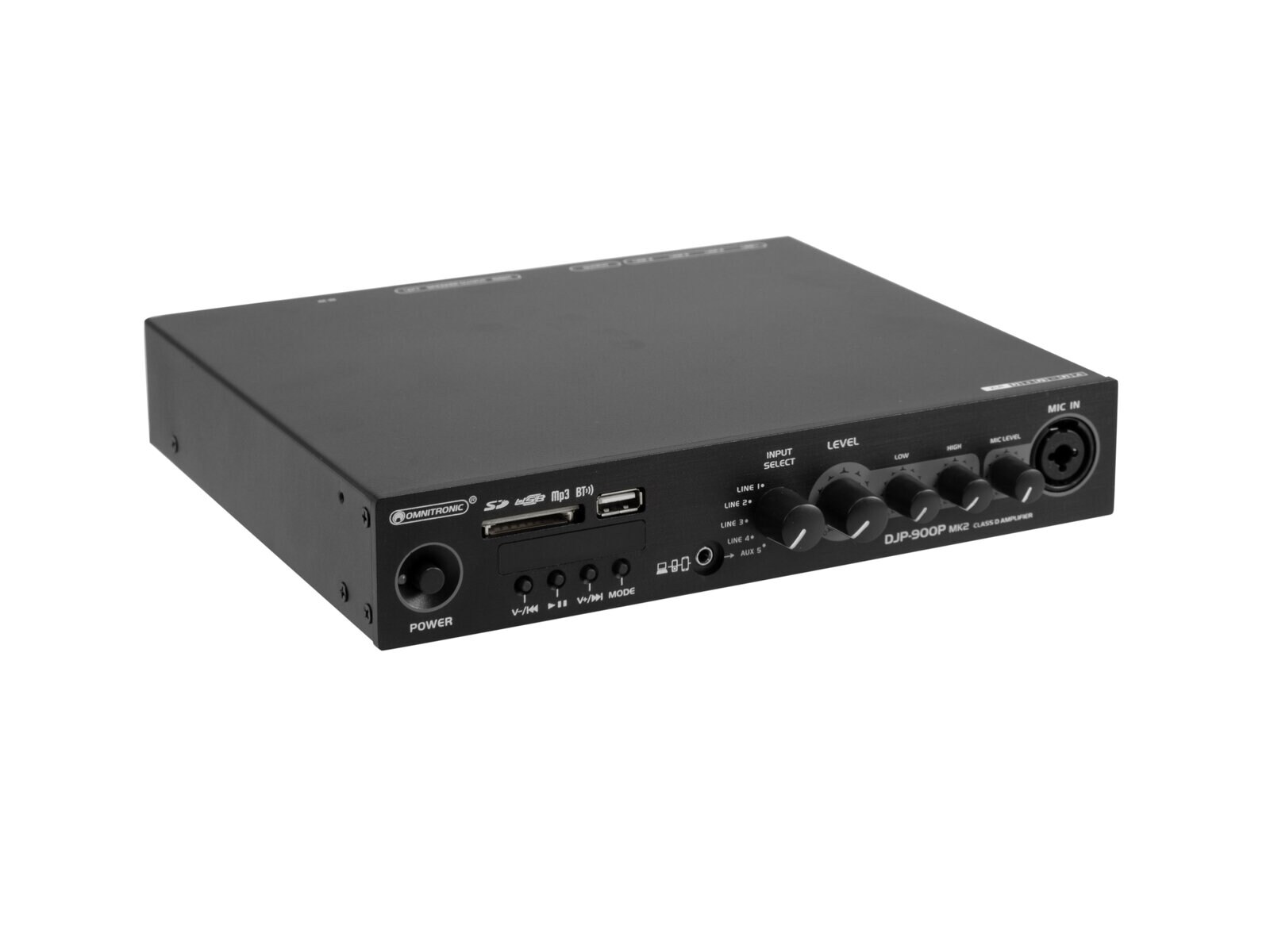

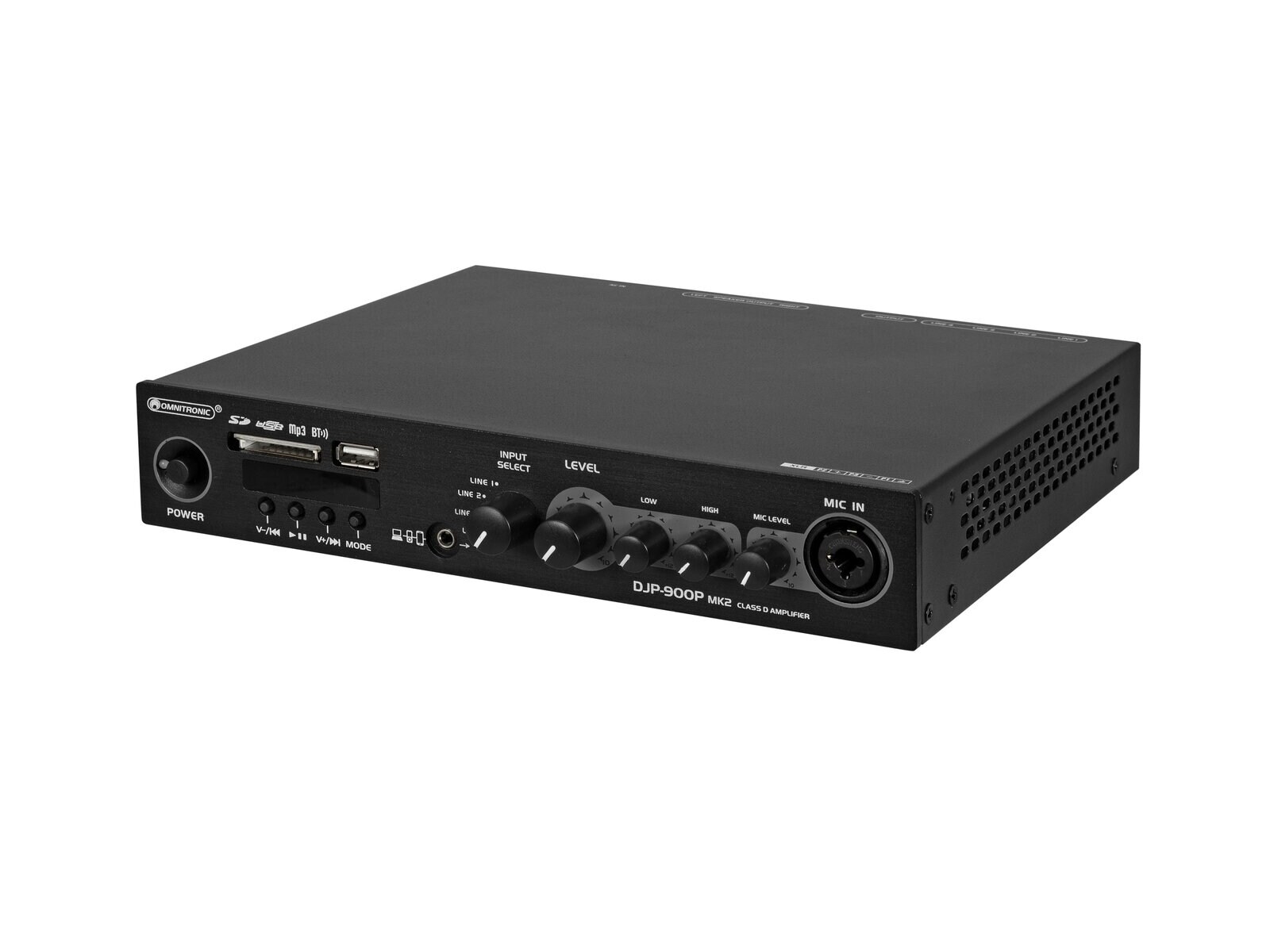

Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms

• Built-in audio player with Bluetooth receiver
• Extremely low weight and height due to integrated switch mode power supply
• 2 operating modes can be selected (stereo or bridge/100V)
• 1 mono microphone input with volume control on the front panel
• Audio source selector
• Rugged steel chassis with aluminum front panel
• The device is cooled by cooling fan
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U
• For application areas such as: Sports centres/gyms; restaurants, bars and hotels
• Monochrome 4 digit 7-segment LED display

Audio player

• Control via Bluetooth
• 2.4 GHz license-free worldwide
• Bluetooth: Operating range up to 10m

Package contents

• 1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 2 x mounting bracket

Power supply:
230 V AC, 50 Hz
Power consumption:
140 W 1/8 power
Output power:
2 x 460 W RMS (4 ohms)
2 x 240 W RMS (8 ohms)
Max. 260 W bridged (100 V)
Max. 900 W bridged (8 ohms)
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20,000 Hz
S/N ratio:
>100 dB
THD:
14 V/µs
Damping factor:
>300
Display type:
Monochrome 4 digit 7-segment LED display

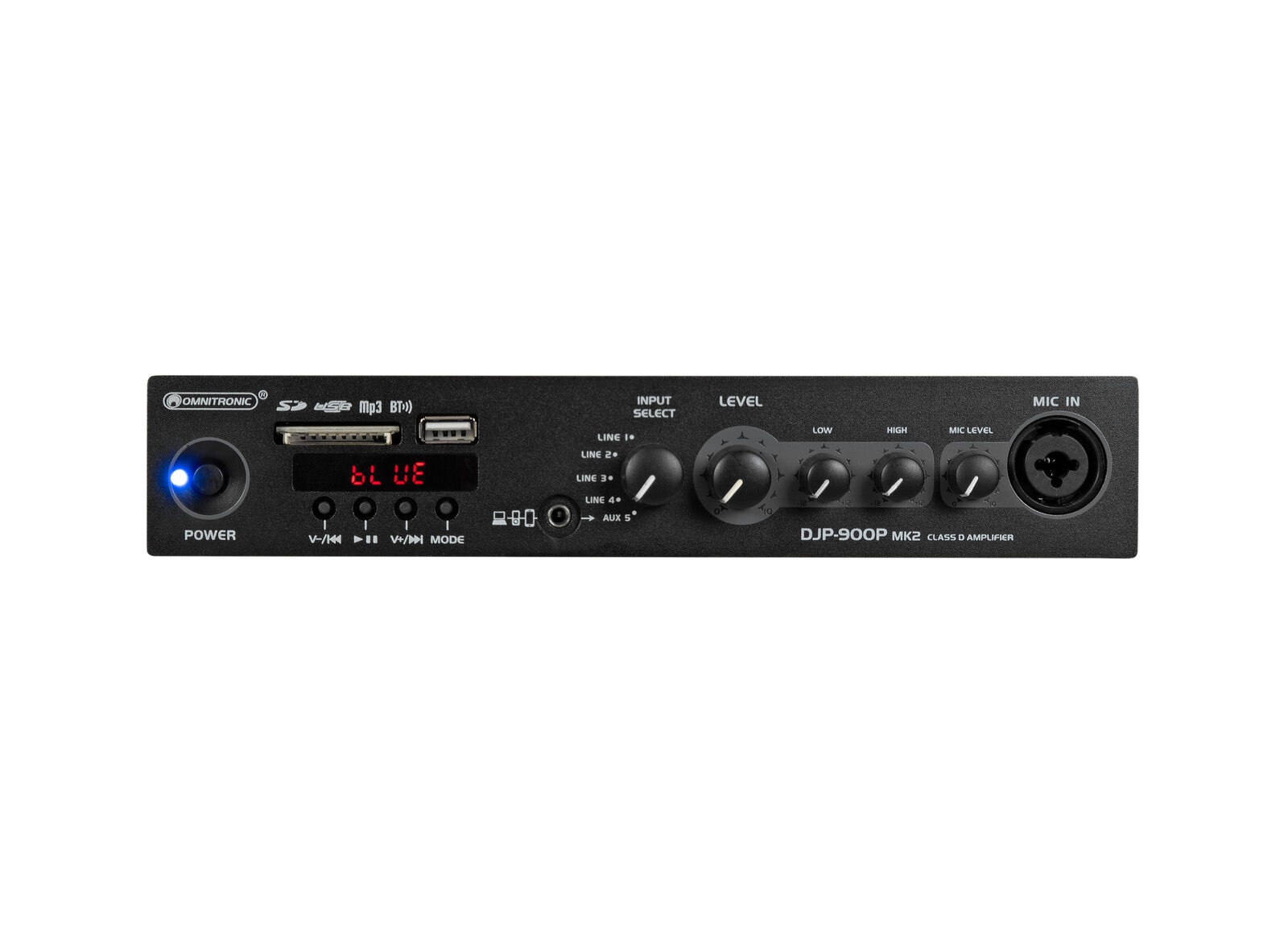

Control elements:
Power switch, source selector, tone control, level control, mode switch (stereo / bridged/100V)
Controls:
Softstart; short-circuit; overheat; overload; DC voltage; VHF
Status LED:
Power
Connections:
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 4 x stereo RCA
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Output: speaker via 1 x screw terminal
Output: rec. via 1 x stereo RCA
Equalizer:
Master: 1 x 2-band tone control stereo
Input sensitivity:
1 V
Material:
Metal
Housing design:
Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions:
Width: 24,1 cm
Depth: 25,6 cm
Height: 4,45 cm
Weight:
2,46 kg
Audio player
Control:
Bluetooth
Audio player:
USB + SD + Bluetooth,
Music format:
MP3, WMA; WAV
Frequency band:
2.4 GHz
Available storage media:
USB devices/SD cards max. 32GB (FAT 16/32)
Range:
Bluetooth: range up to 10m
