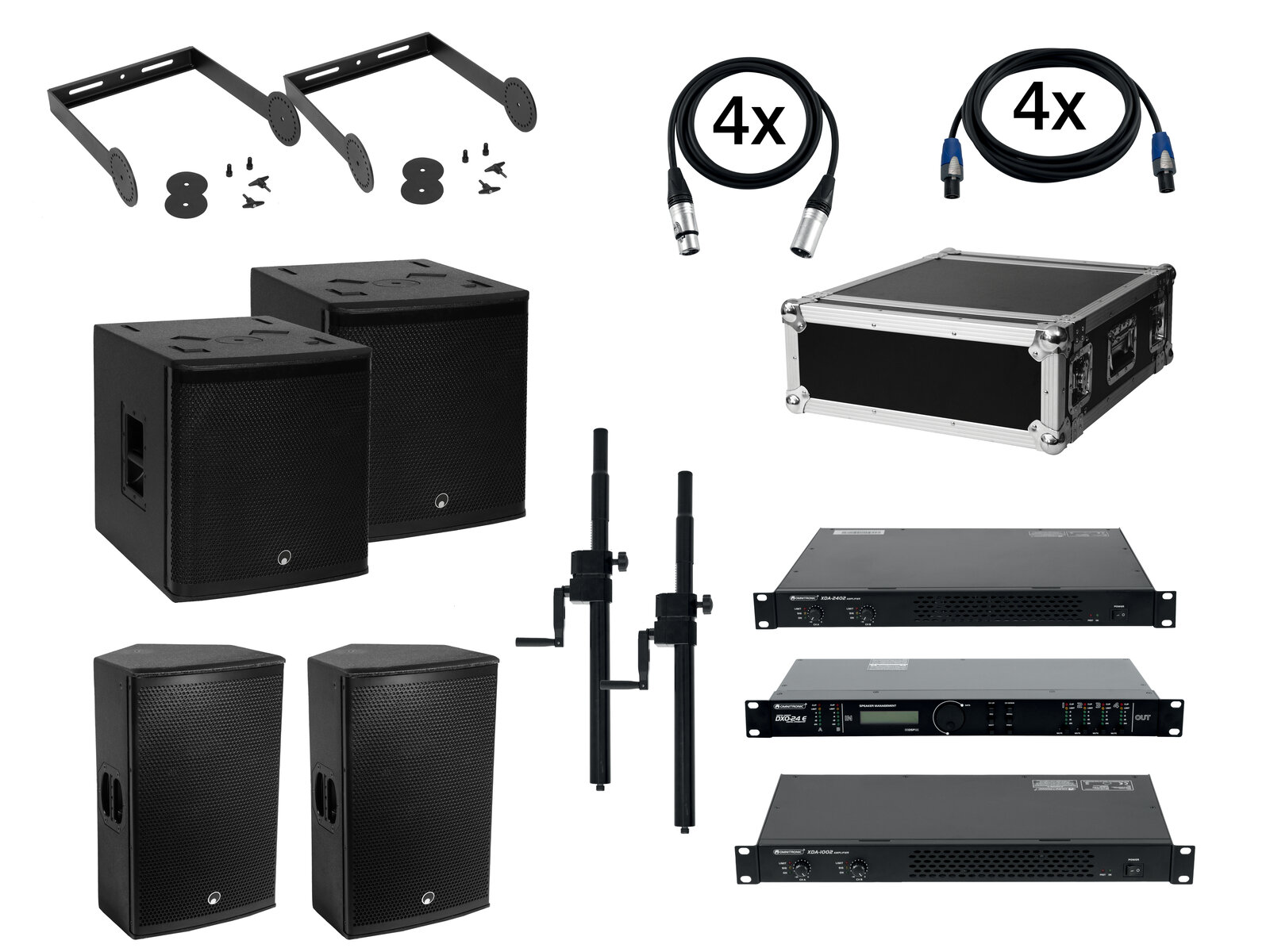

2x subwoofer, 2x 2-way top, 2x distance tube, 2x power amp, flightcase and 8x connection cables

OMNITRONIC PAS-151 MK3 Subwoofer

Passive 15" bassreflex subwoofer with 700 W RMS, 8 ohms

• Rugged Pro PA subwoofer
• Wheels optional
• Black metal grille with acoustic foam
• 2 mould carrying handles
• Application possibility: Standing

Package contents

• 1 x user manual, 1 x bass

OMNITRONIC PAS-212 MK3 2-Way Top

Passive speaker with 12" woofer, 1" driver and 300 W RMS

• 2-way bass-reflex system with 30 cm woofer (8 cm voice coil)
• 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
• Optimized for combination with PAS subwoofers
• With rigging points
• Dual flange
• Black metal grille with acoustic foam
• 2 mould carrying handles
• Application possibility: Standing; suspended; monitoring; on tripod

Package contents

• 1 x user manual, 1 x compact cabinet speaker

OMNITRONIC Distance Tube Subwoofer/Satellite with Crank

Variable distance tube (M20 thread), height adjustable via crank 80-110 cm

• Connecting tube for satellite systems
• Powder-coated steel version
• Adjustable height
• M20 thread

Package contents

• 1 x distance tube, 1 x user manual

OMNITRONIC Swing Bracket for PAS-212 MK3

Package contents

• 1 x mounting bracket, 2 x washer, 2 x screw, 2 x knurled screw, 1 x user manual

OMNITRONIC XDA-1002 Class D Amplifier

Class D stereo PA amplifier with SMPS, 2 x 510 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)

• Stereo PA amplifier with class D circuitry
• Low weight and height due to integrated switch mode power supply
• 2 operating modes can be selected (stereo or bridged)
• 2 level controls
• Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
• Speaker outputs via lockable Speaker plugs
• The device is cooled by cooling fan
• (19") 48.3 cm rack installation 1 U

Package contents

• 1 x amplifier, 1 x user manual, 1 x power cord

OMNITRONIC XDA-2402 Class D Amplifier

Class D stereo PA amplifier with SMPS, 2 x 1200 W RMS (4 ohms), 2 x 880 W RMS (8 ohms)

• Stereo PA amplifier with class D circuitry
• Low weight and height due to integrated switch mode power supply
• 2 level controls
• Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
• Speaker outputs via lockable Speaker plugs
• The device is cooled by cooling fan
• (19") 48.3 cm rack installation 1 U

Package contents

• 1 x amplifier, 1 x user manual, 1 x power cord

OMNITRONIC DXO-24E Digital Controller

Digital Speaker Management System with 2 inputs and 4 outputs, incl. software

• Flexible routing configurations for all standard mono and stereo output operating modes
• 2 analog inputs and 4 analog outputs (XLR)
• Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
• Up to 30 user presets storable in the device via software
• Input sensitivity digitally adjustable
• Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
• Mute switch with LED indicator per output
• 7-band parametric EQ per output
• Up to 7 ms signal delay adjustable for the outputs
• Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
• Switchable phase
• Lock function for prevents undesired changes to settings
• Digital signal processor
• Sample rate: 67 kHz
• The device can be connected via USB to the PC in connection with DXO Software
  firmware can be updated
• (19") 48.3 cm rack installation 1 U
• Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter, 1 x uSB cable, 1 x cD, 4 x foot

ROADINGER Amplifier Rack PR-2, 4U, 47cm deep

Rack case

• Front and rear rack rails
• High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
• Aluminum profile frames 30mm with rounded edges
• 2 hinged, chromium plated case handles
• 4 high-quality butterfly locks
• Wooden slide rails on the bottom
• Available in different height units (1 U = 44 mm)
• With profile rails suitable for (19") approx. 48 cm units
• 4 U
• For further information about this product, please refer to the Data Sheet under "Downloads"

PSSO Speaker cable Speakon 2x2.5 10m bk

High-quality speaker cable

• Built with NEUTRIK connector
• Made in Germany

Package contents

• 1 x speaker cable

PSSO XLR cable 3pin 1m bk Neutrik

Reliable microphone cable

• High quality connection for microphones etc.
• High conductivity
• Slim and short construction
• Helukabel
• Built with NEUTRIK connector
• Made in Germany

Package contents

• 1 x xLR cable

Weight:
142,87 kg
OMNITRONIC PAS-151 MK3 Subwoofer
Power:
Program: 1400W
Rated: 700W RMS
Frequency range:
40 - 200 Hz
Sensitivity:
97 dB (1W/1m)
Max. SPL:
127 dB
Impedance:
8 ohms
Attachment system:
Flange: M20 thread
Connections:
Input: speaker via 2 x speaker built-in socket (F)
Speaker:
1 x woofer (15") approx. 38 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (4") approx. 10 cm
Type of speaker:
Subwoofer
Type of construction:
Vented
Mould carrying handle:
2 pc/pcs
Transport aid:
Wheels optional
Material:
Birch multiplex
Color:
Black, textured coating, painted
Dimensions:
Width: 46 cm
Depth: 56 cm
Height: 52 cm
Weight:
31,25 kg
OMNITRONIC PAS-212 MK3 2-Way Top
Power:
Program: 600W
Rated: 300W RMS
Frequency range:
60 - 20000 Hz
Sensitivity:
98 dB (1W/1m)
Max. SPL:
126 dB
Dispersion angle:
90° x 60°
Impedance:
8 ohms
Attachment system:
Dual flange: Ø 35mm (0°/5°)
Flying points:
4 x M10 thread; 6 x M8 thread
Connections:
Input: speaker via 2 x speaker built-in socket (F)
Crossover frequency:
3000 Hz
Speaker:
1 x compression tweeter highs (1") approx. 2.5 cm
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2.5 cm
1 x woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Type of speaker:
Compact cabinet speaker
Mould carrying handle:
2 pc/pcs
Material:
Birch multiplex
Color:
Black, textured coating, painted
Dimensions:
Width: 39 cm
Depth: 61,5 cm
Height: 38 cm
Weight:
20,60 kg
OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
Maximum carrying capacity:
35 kg
Height:
Maximum: 110 cm
Minimum: 80 cm
Attachment system:
Ø 35mm
Type (general stands):
Distance tube
Color:
Black
Thread:
M20 thread
Weight:
2,80 kg
OMNITRONIC Swing Bracket for PAS-212 MK3
Material:
Steel, 5 mm
Color:
Black
Dimensions:
Width: 40,4 cm
Depth: 6 cm
Height: 48,4 cm
Weight:
3,75 kg
OMNITRONIC XDA-1002 Class D Amplifier
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
210 W 1/8 power
Output power:
2 x 510 W RMS (4 ohms)
2 x 300 W RMS (8 ohms)
1000 W RMS bridged (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
30 - 20000 Hz
S/N ratio:
>100 dB
THD:
