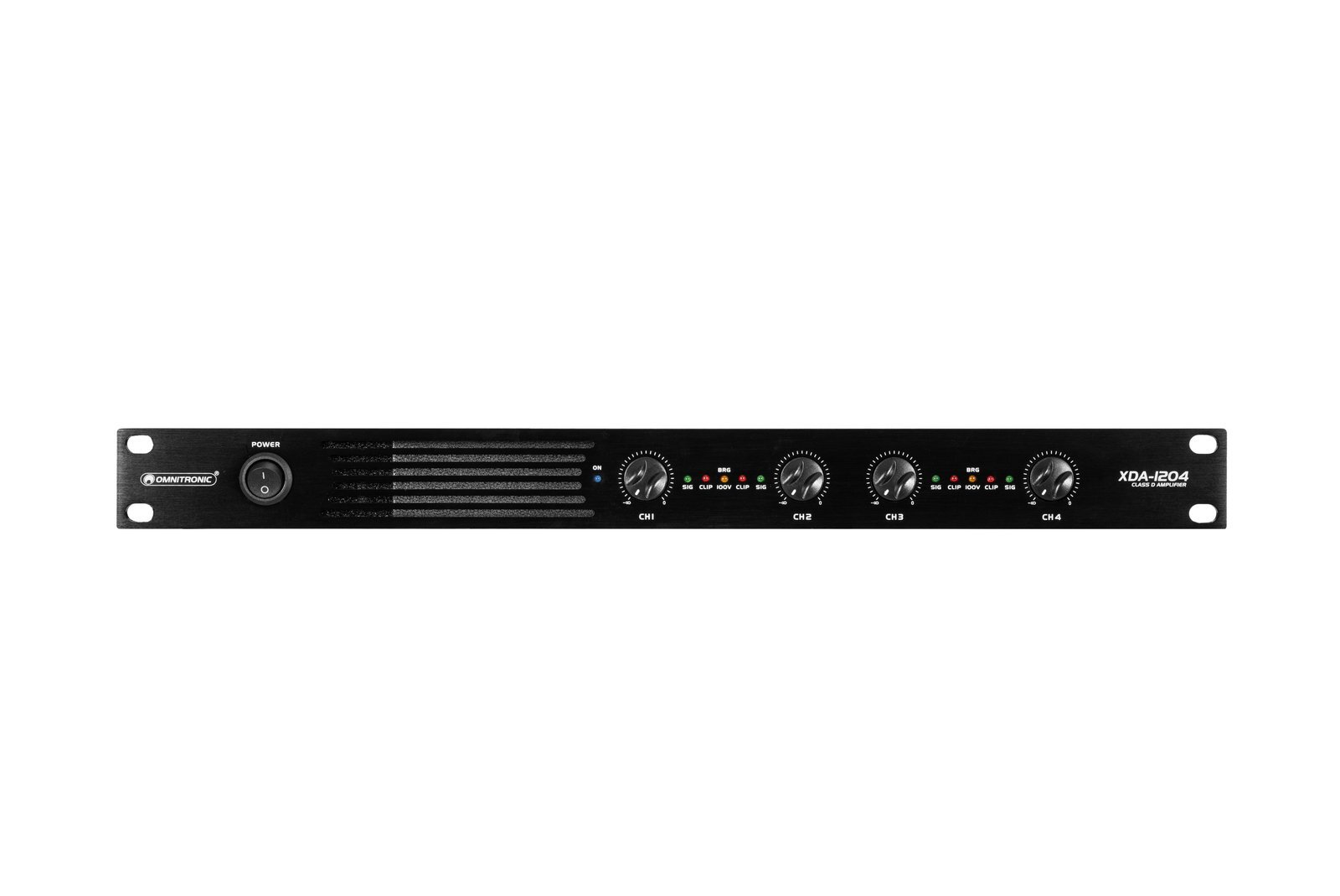

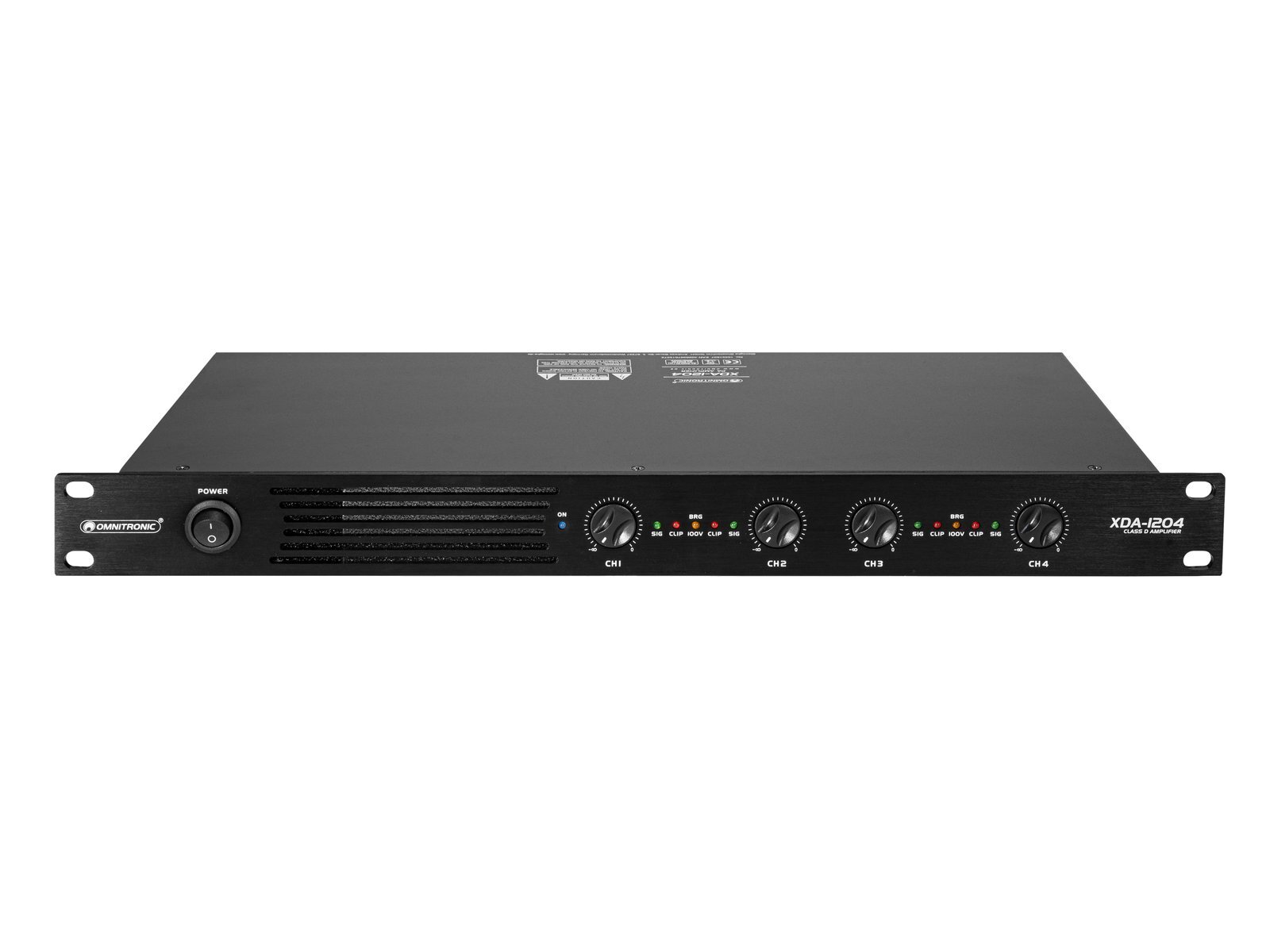

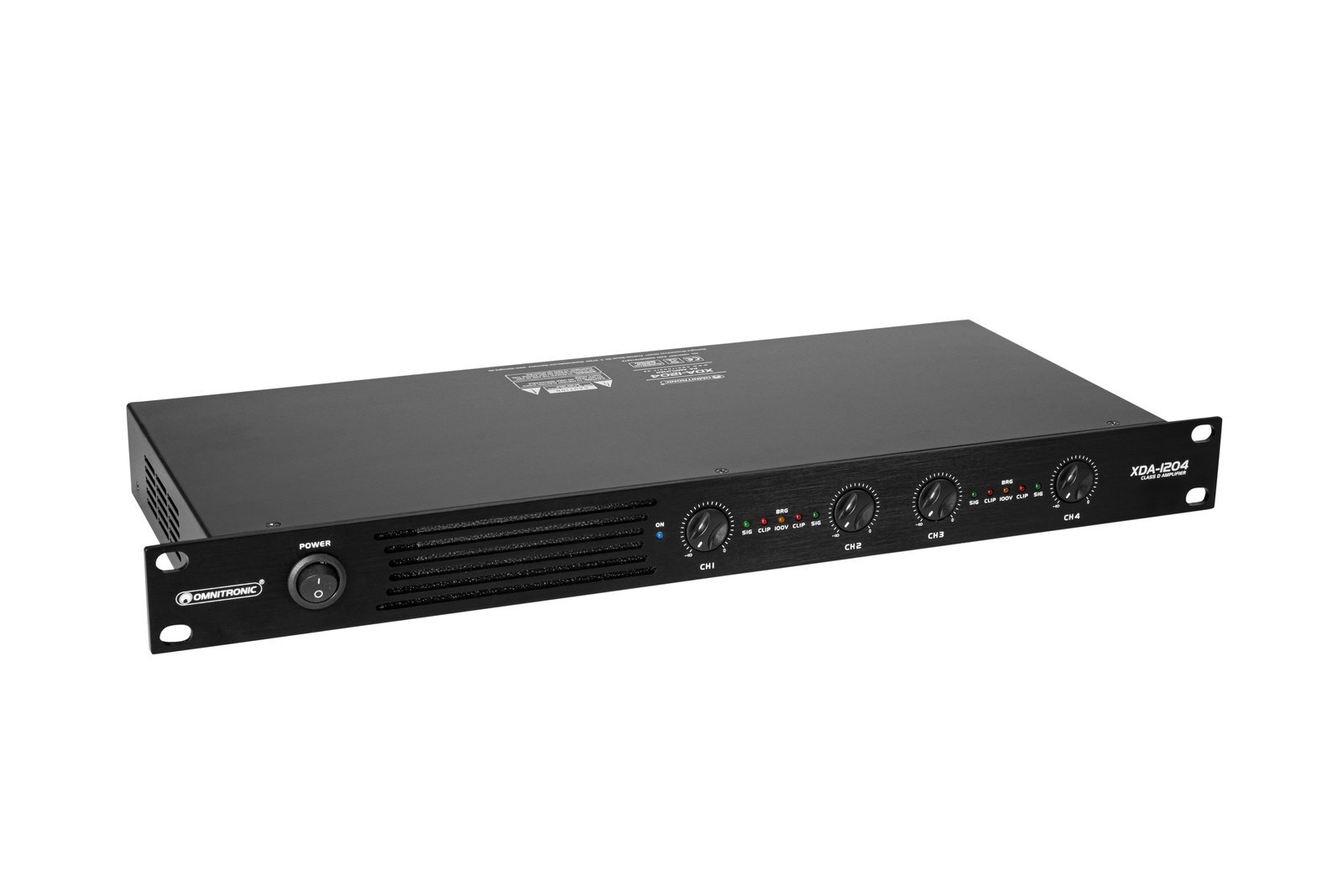

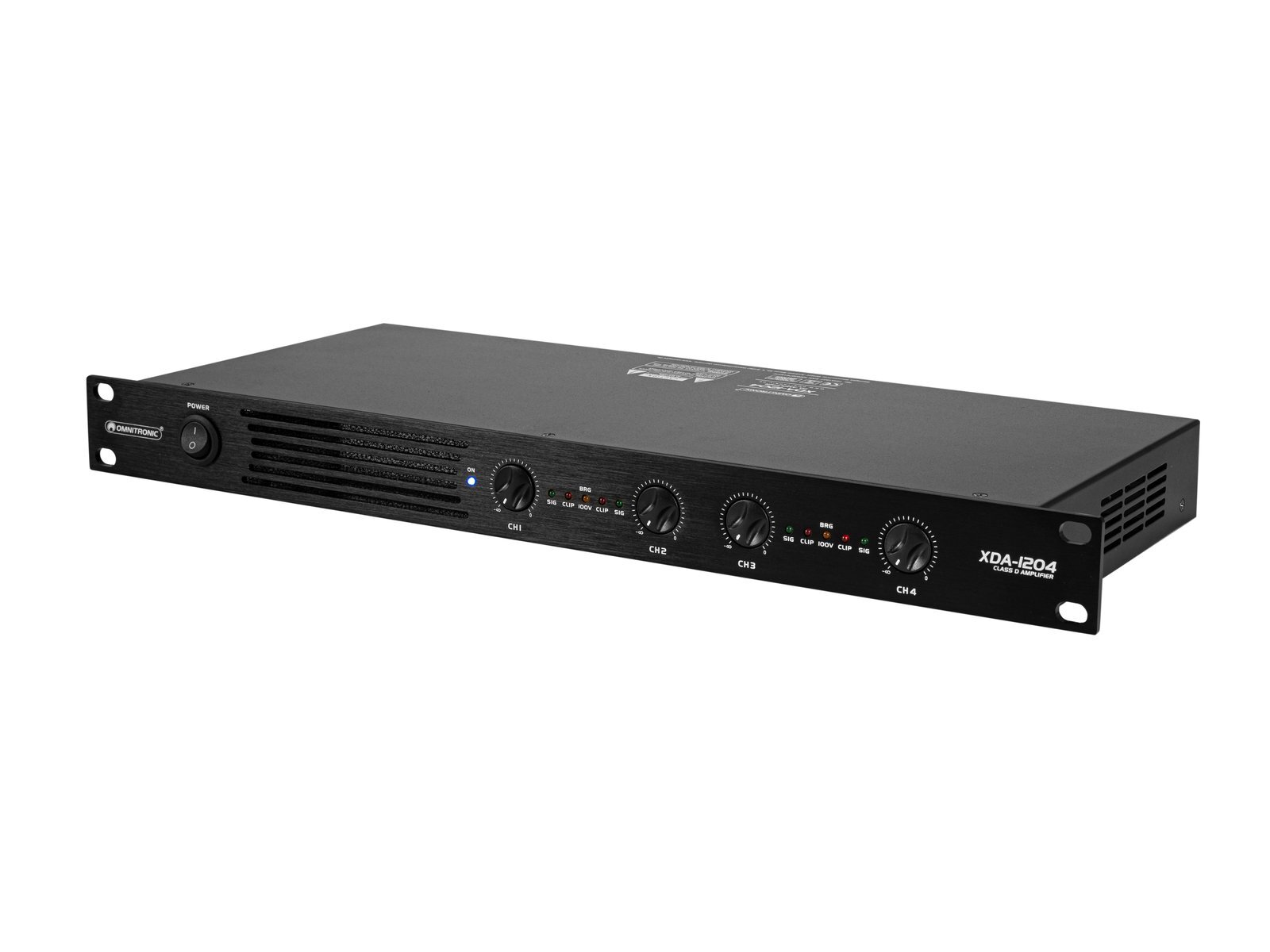

Class D multi-channel PA amplifier with SMPS, 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms)

• Extremely low weight and height due to integrated switch mode power supply
• 3 operating modes can be selected (stereo, parallel or bridged)
• Level control per channel
• (19") 48.3 cm rack installation 1 U

Package contents

• 1 x amplifier, 1 x user manual, 1 x power cord, 6 x screw plug-in terminal, 4 x foot

Power supply:
230 V AC, 50 Hz
Power consumption:
1440 W
Protection class:
Protection class I
Output power:
4 x 300 W RMS (4 ohms)
4 x 180 W RMS (8 ohms)
2 x 600 W RMS bridged (8 ohms)
2 x 600 W RMS bridged (100 V)

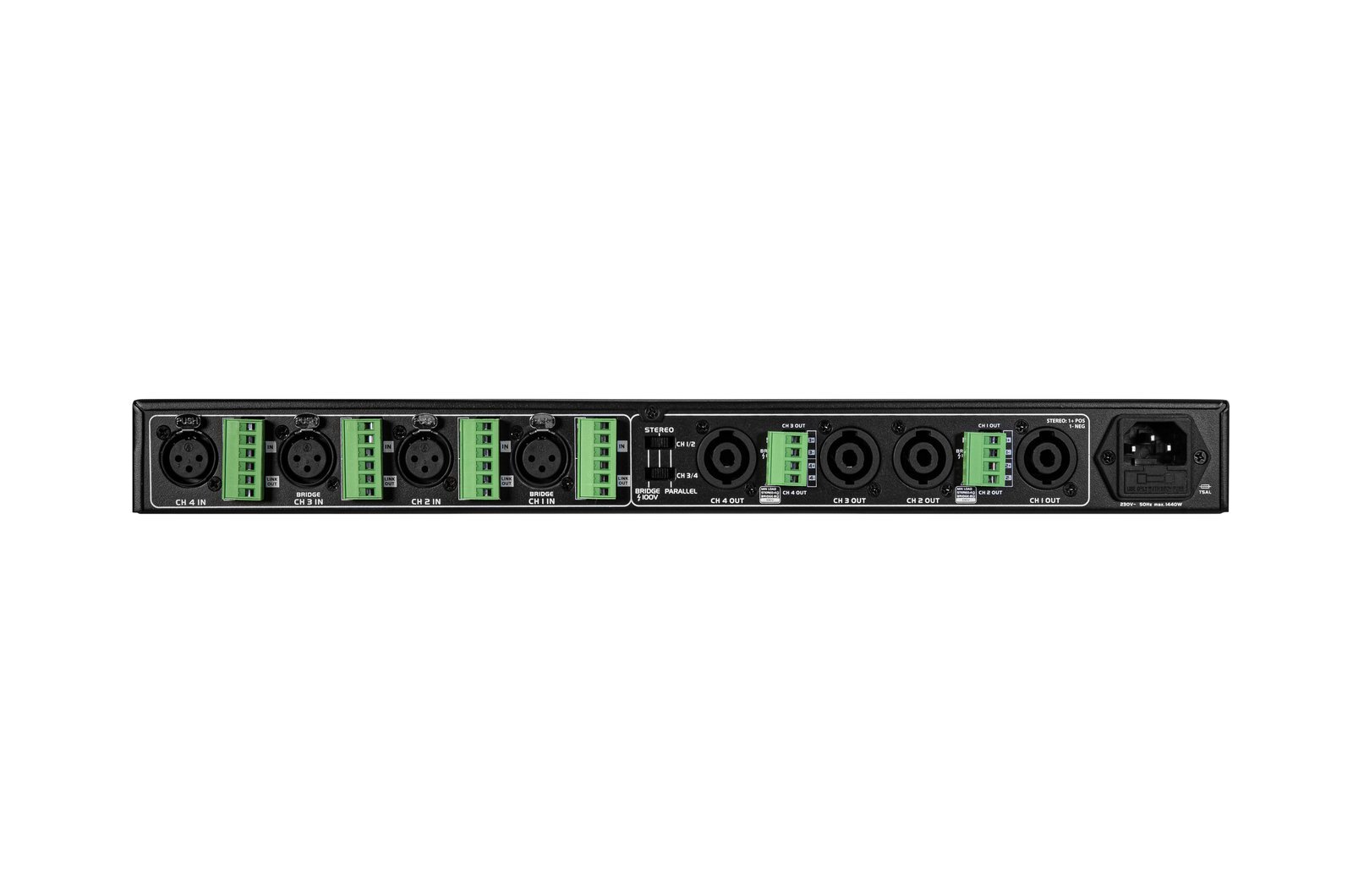

Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
