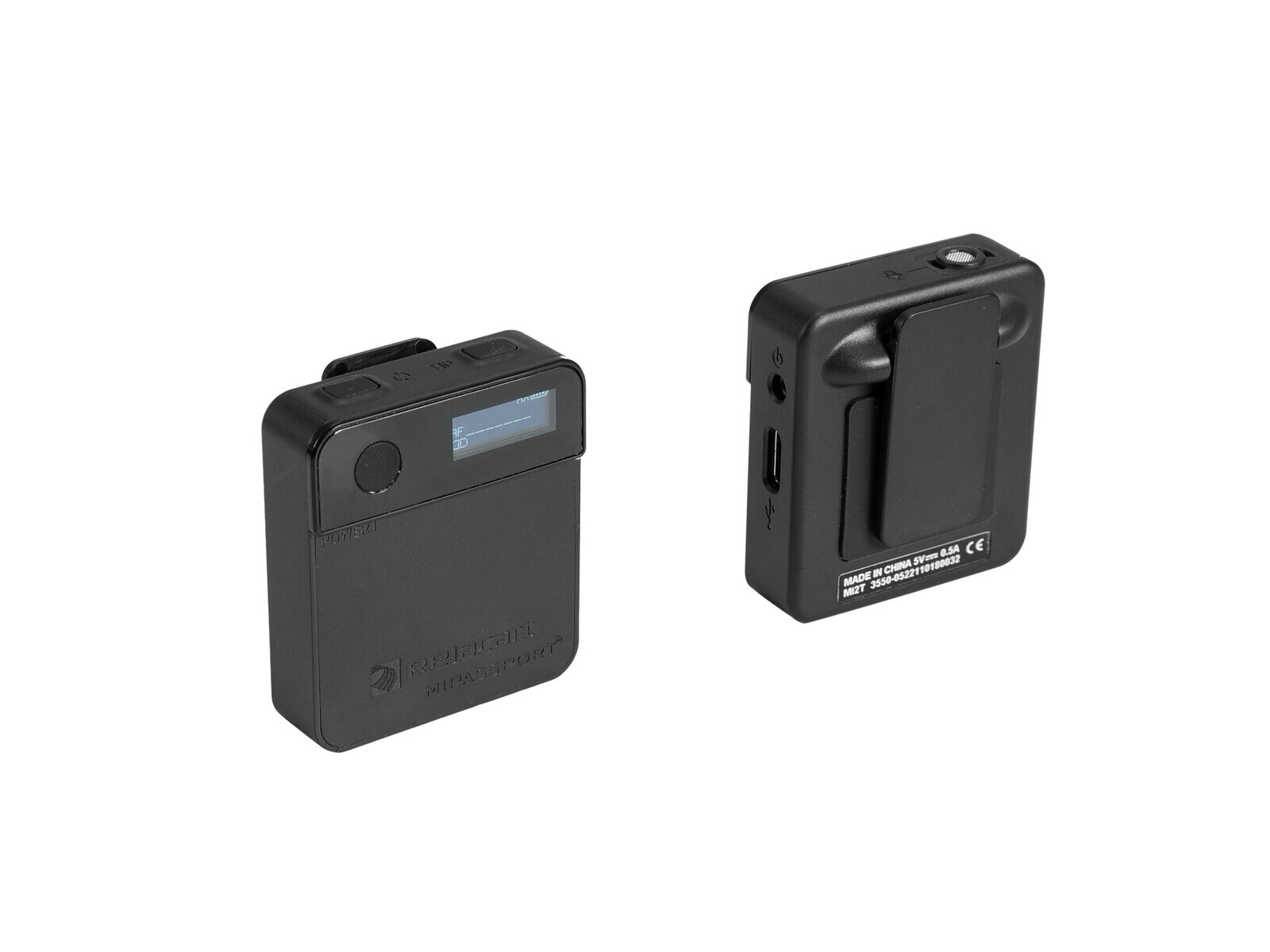

Wireless 2-channel audio transmission system for cameras

• Portable microphone system with 2 transmitters and 1 receiver
• Perfect video sound for cameras, smartphones, camcorders, etc.
• Easy attachment to clothing, the camera's hot shoe, etc.
• Ultra-compact and lightweight design
• Rechargeable lithium batteries
• Charging via USB-C socket
• Transmitter with integrated omnidirectional condenser microphone
• 3.5 mm TRS jack for an external lavalier microphone (optional)
• Receiver with 3.5 mm TRS jack for your recording device and 4-stage gain control (0 dB, -2 dB, -4 dB, -6 dB)
• Automatic pairing in 2 seconds
• Up to 6 systems can be operated simultaneously (max. range 20 m)
• Works with iOS and Android devices
• Cordless, flexible and versatile
• Battery operation up to 7h
• Monochrome OLED display
• 2.4 GHz license-free worldwide
• Operating range up to 50m with line-of-sight
• Operating range up to 50m
• For application areas such as: Trade fair and shop fitting; mobile use; mobile djs/entertainer; homerecording and studios; video and photography

transmitter

• Polar pattern: Omnidirectional

Package contents

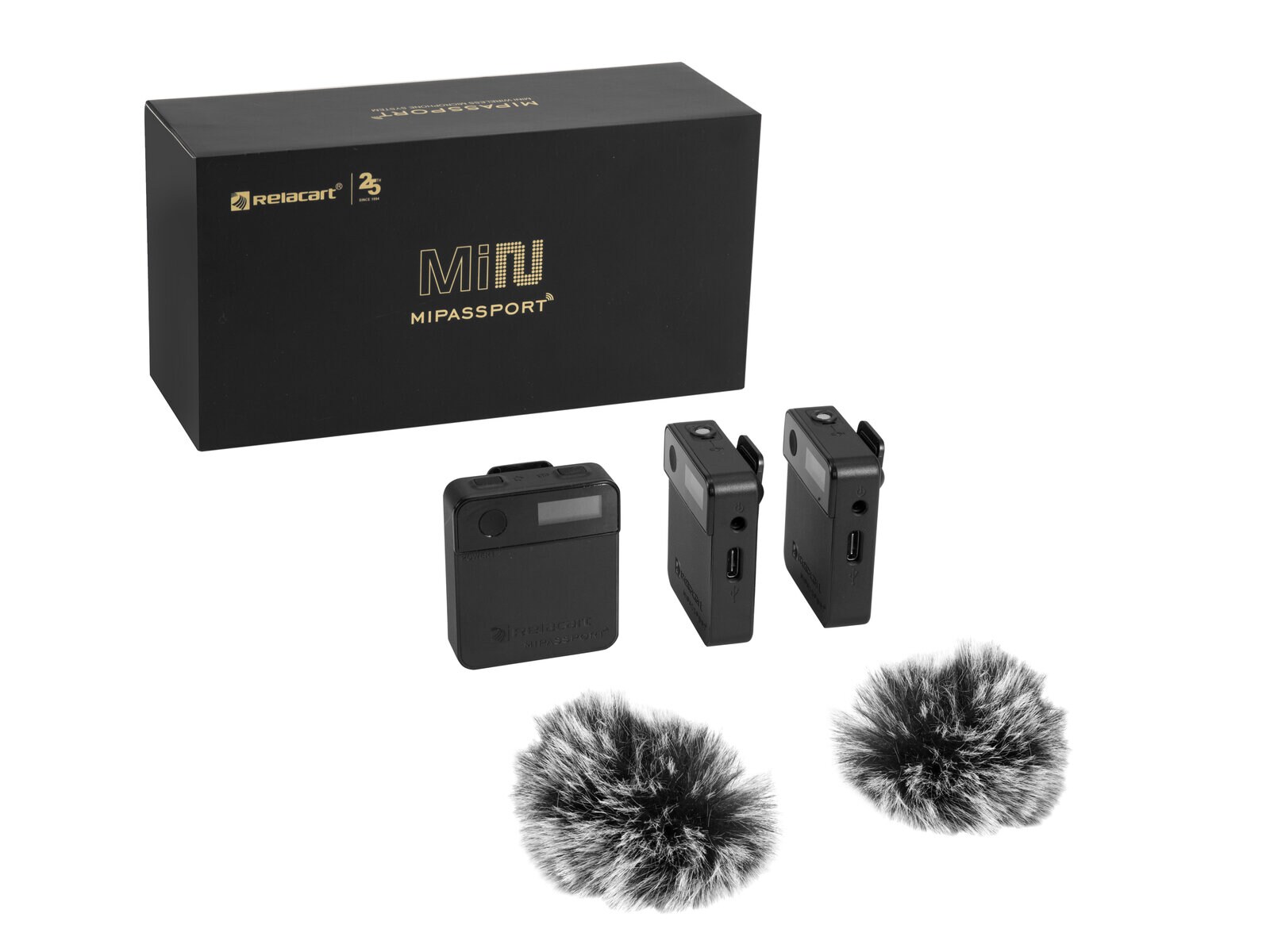

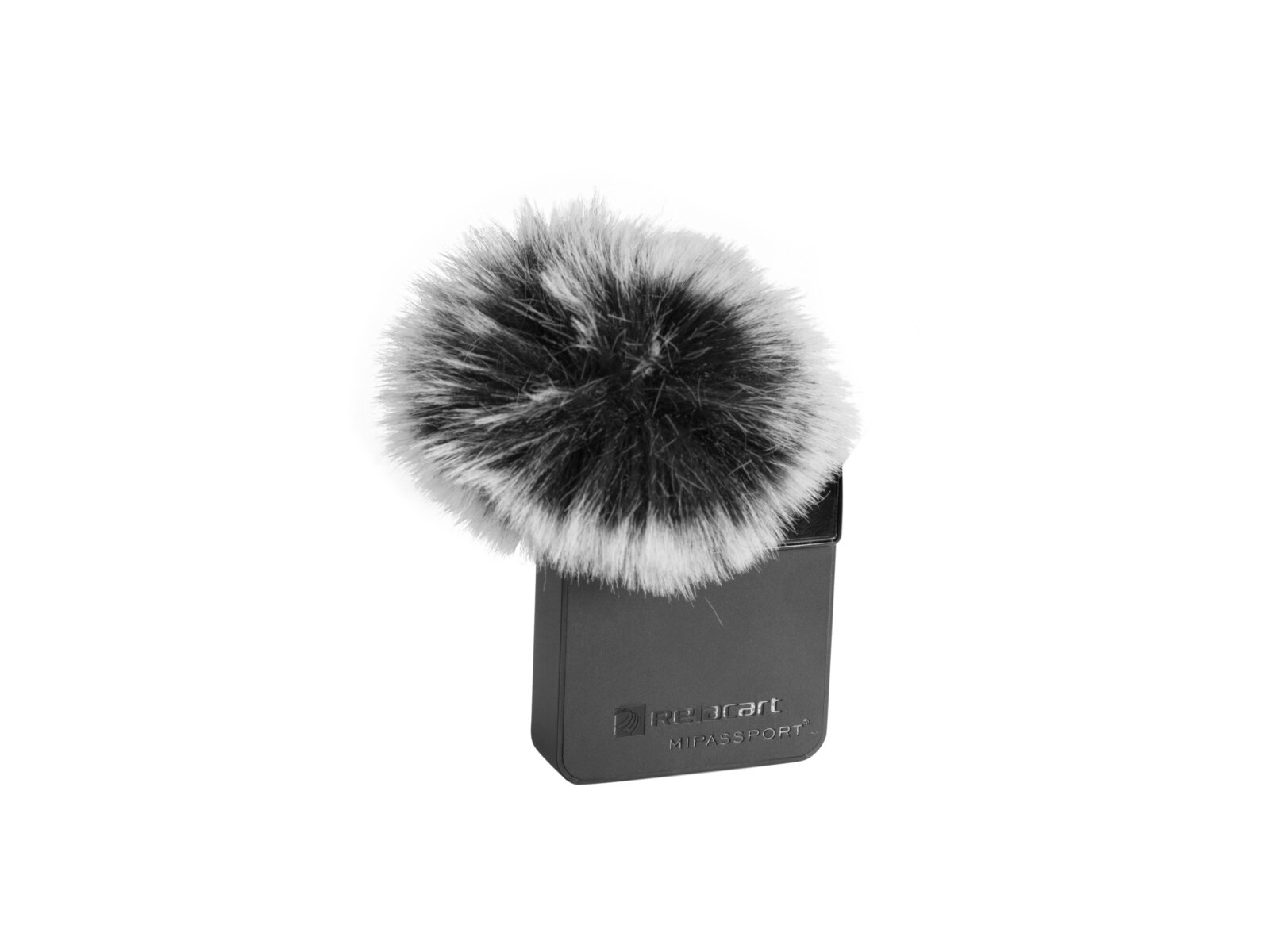

• 2 x transmitter, 1 x receiver, 2 x jack cable, 1 x uSB cable, 2 x windshield, 1 x user manual, 1 x declaration of conformity

Type:
Wireless set
Power supply:
5 V DC 500 mA
Power connection:
Battery/battery pack
Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
Battery pack type:
1 x lithium ion 3,7 V, 450 mAh, 1,665 Wh
Battery pack:
Battery operation up to 7h
Frequency range:
100 - 20000 Hz
S/N ratio:
>93 dB
Display type:
Monochrome OLED display
Frequency band:
2.4 GHz
Range:
Range up to 50m with line-of-sight
Range up to 50m
Switch:
On/off switch
Material:
Plastic
Color:
Black
Dimensions:
Width: 4,4 cm
Depth: 1,9 cm
Height: 5 cm
Weight:
180 g
Transmitter
Capsule type:
Electret
Polar pattern:
Omnidirectional
Number of channels:
1
Max. SPL:
97 dB
Connections:
Input: Microphone via 3.5 mm jack (mono) mounting version 2,5 V
RF power output:
10 dBm
Weight:
33 g
Receiver
Number of channels:
2
Gain:
Output: -2 dB
Output: -4 dB
Output: -6 dB
Connections:
Output: Microphone via 1 x 3.5 mm jack (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Weight:
34 g
