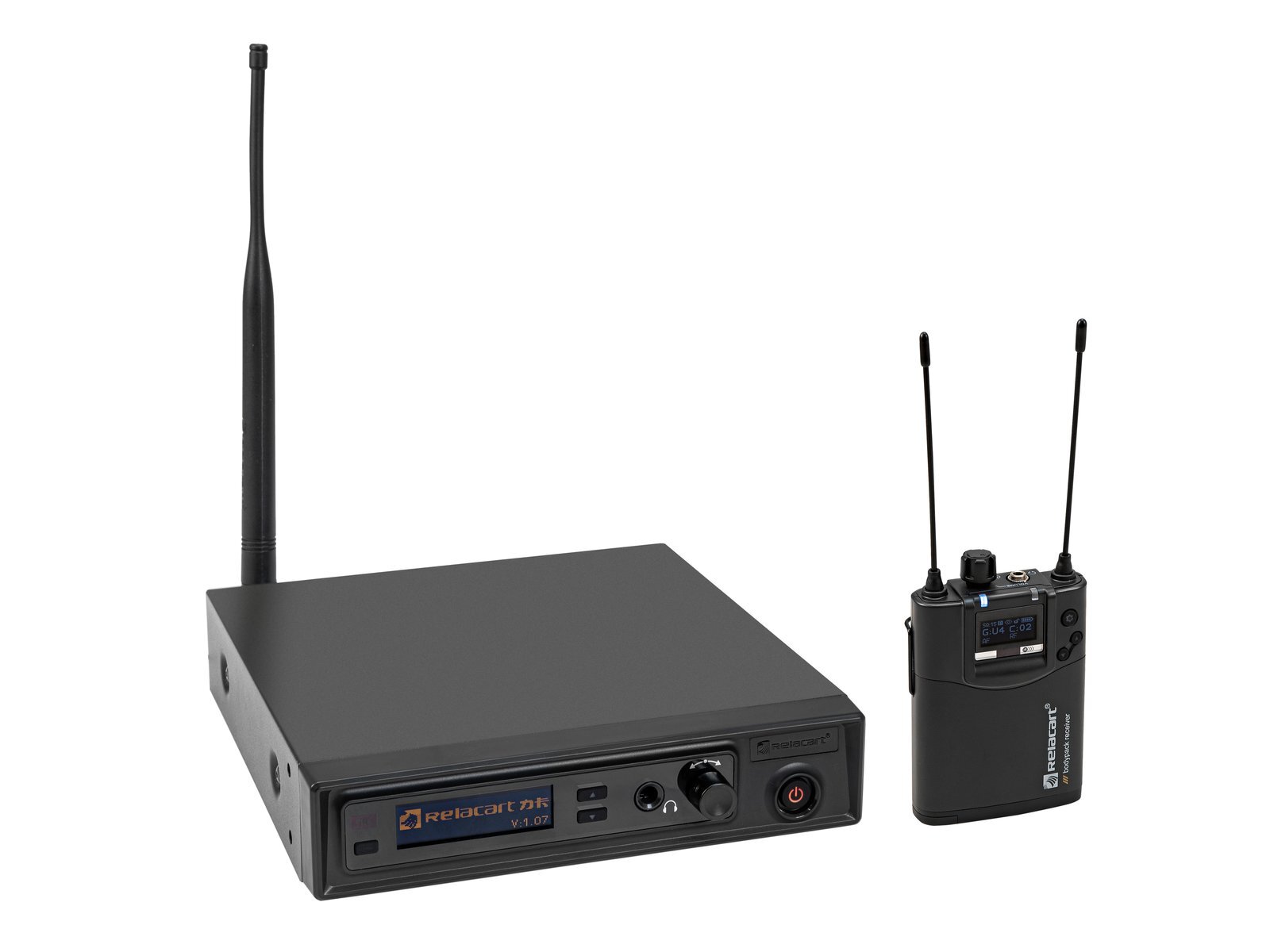

In-ear stereo system with diversity technology, 626-668 MHz

• Transmitter and receiver also available separately
• Can also be used as audio transmission system with extremely low latency

RELACART PM-320T In Ear Stereo Transmitter 626-668 MHz

In-ear stereo wireless transmitter with pilot tone technology (PLL)

• Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
• Pilot frequency squelch technology delete wireless RF interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Stereo or mono/mix mode
• Lock function for prevents undesired changes to settings
• RF output power Hi/Low adjustable
• 2 line inputs via balanced combo mounting jacks XLR/6.3 mm
• 2 feed-through outputs (loop)
• Adjustable headphones output
• OLED display
• Operating range up to 100m with line-of-sight
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U

Package contents

• 1 x transmitter, 1 x antenna, 1 x external mains adapter, 3 x mounting bracket, 8 x screw, 2 x jack cable, 3 x user manual, 1 x declaration of conformity

RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz

In-ear stereo wireless receiver with diversity technology

• Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
• Sturdy all-metal housing with soft-touch controls, applicable for touring
• Diversity technology for high reception quality
• Pilot frequency squelch technology delete wireless RF interference
• Parallel operation of up to 5 systems is possible without any interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Stereo or mono/mix mode
• Balance (left, right) adjustable
• Limiter and high frequency boost
• Lock function for prevents undesired changes to settings
• OLED display
• Operating range up to 100m with line-of-sight
• Charge status indicator

Package contents

• 1 x receiver, 1 x user manual, 1 x declaration of conformity

Weight:
1,62 kg
RELACART PM-320T In Ear Stereo Transmitter 626-668 MHz
Type:
In-ear Monitor
Power supply:
100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:
2,1 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:
25 - 15000 Hz
S/N ratio:
>100 dB
THD:
