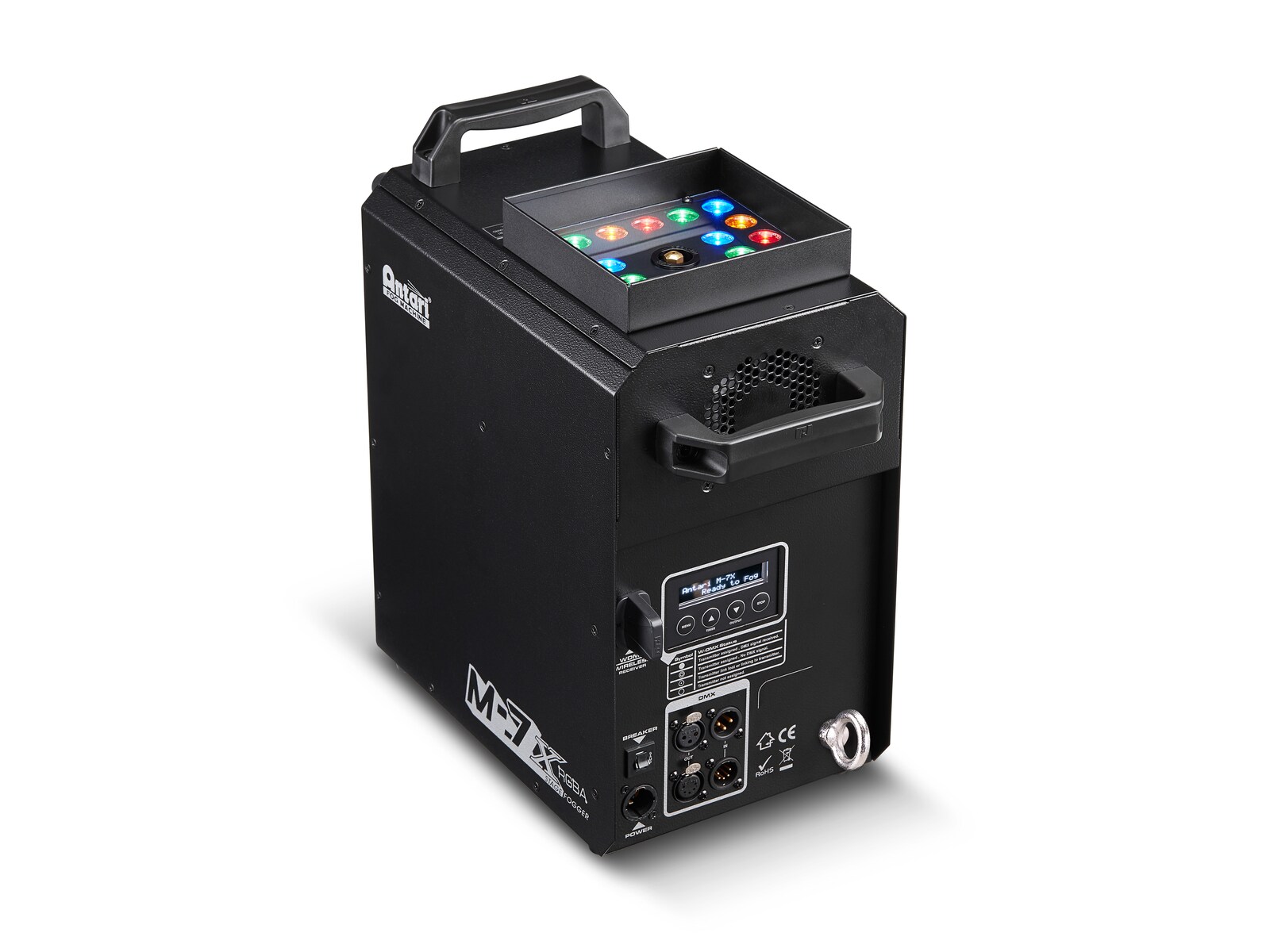

1500 W fog machine with LED illumination, vertical & horizontal operation

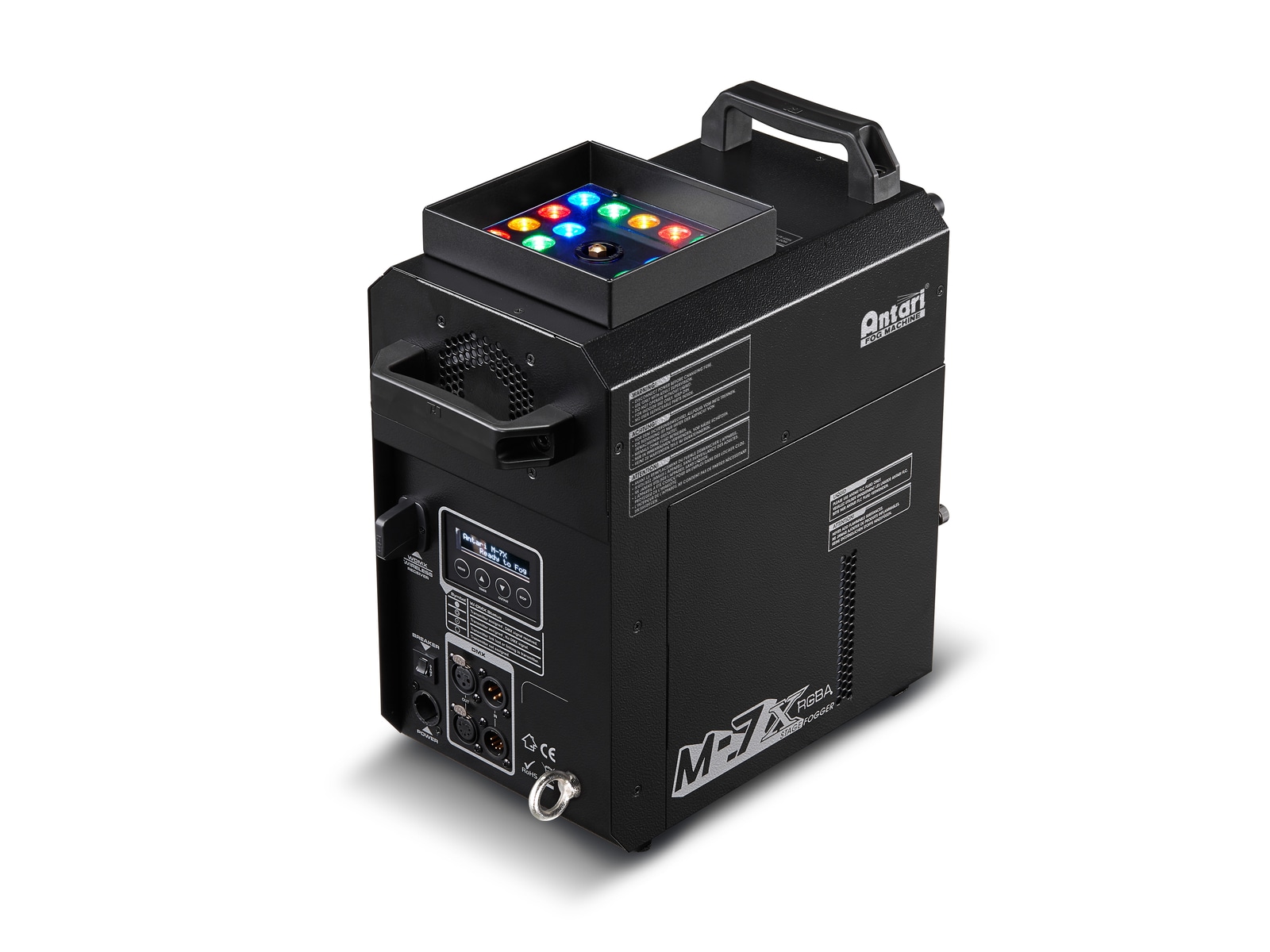

• Output nozzle with RGBA LED illumination for impressive effect presentations
• New housing design allows upward and downward fog output
• Adjustable timer with interval, duration and output volume
• Continuous output
• Rugged metal housing
• Output distance: Horizontal approx. 12 m

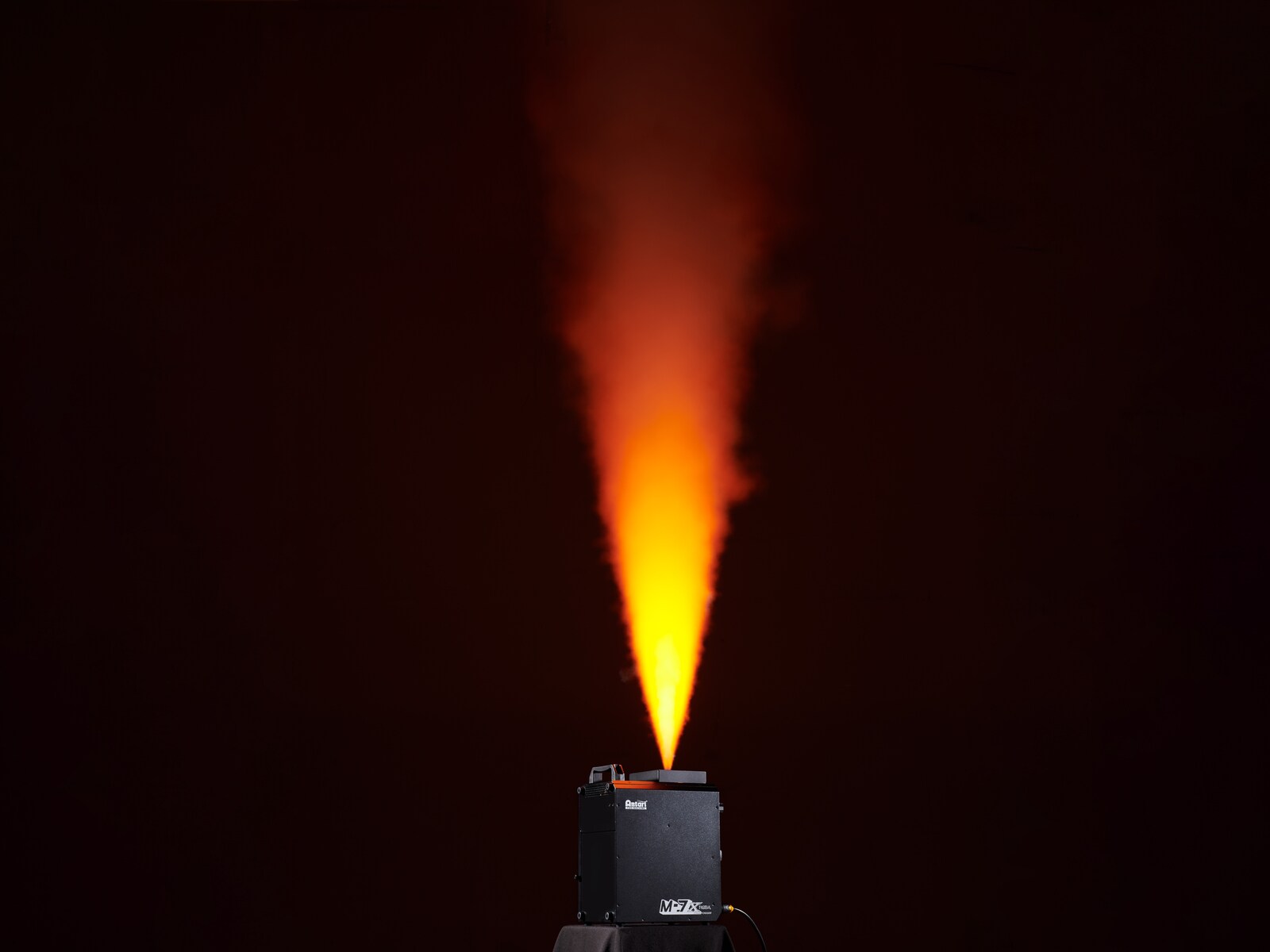

• Output distance: Vertical approx. 10 m
• 15 integrated show programs
• Direct color selection for 10 preset colors
• Control via stand-alone; Timer; DMX; Wireless remote control; W-DMX by wireless solution upgradeable
• Wireless remote control: Operating range up to 50m
• Built with NEUTRIK connector
• For application areas such as: Lender; mobile use; Stage

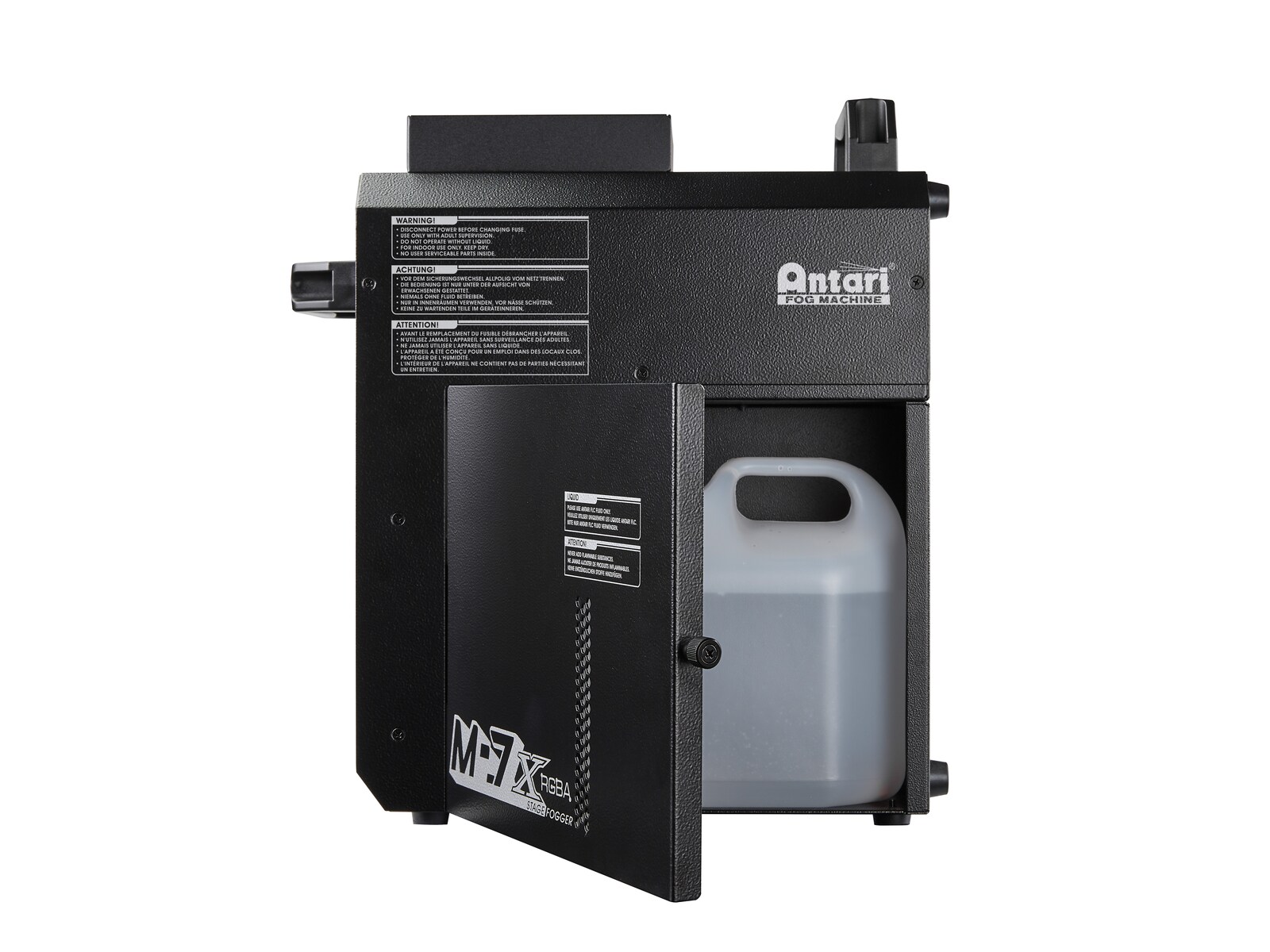

• Removable tank with level indication
• Operates on water-based fluid

Package contents

• 1 x remote control, 1 x device, 1 x power cord, 1 x declaration of conformity, 1 x container, 2 x tube, 1 x user manual, 1 x battery

Power supply:
230 V AC, 50 Hz
Power consumption:
1450 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via PowerCON TRUE (M) mounting version power supply cord with safety plug (provided)
Warm-up time:
Approx. 8 min
Output distance:
Vertical approx. 10 m
Horizontal approx. 12 m
Tank capacity:
2,4 l water-based fluid removable tank
Fluid consumption:
Approx. 130 ml/min
DMX channels:
9

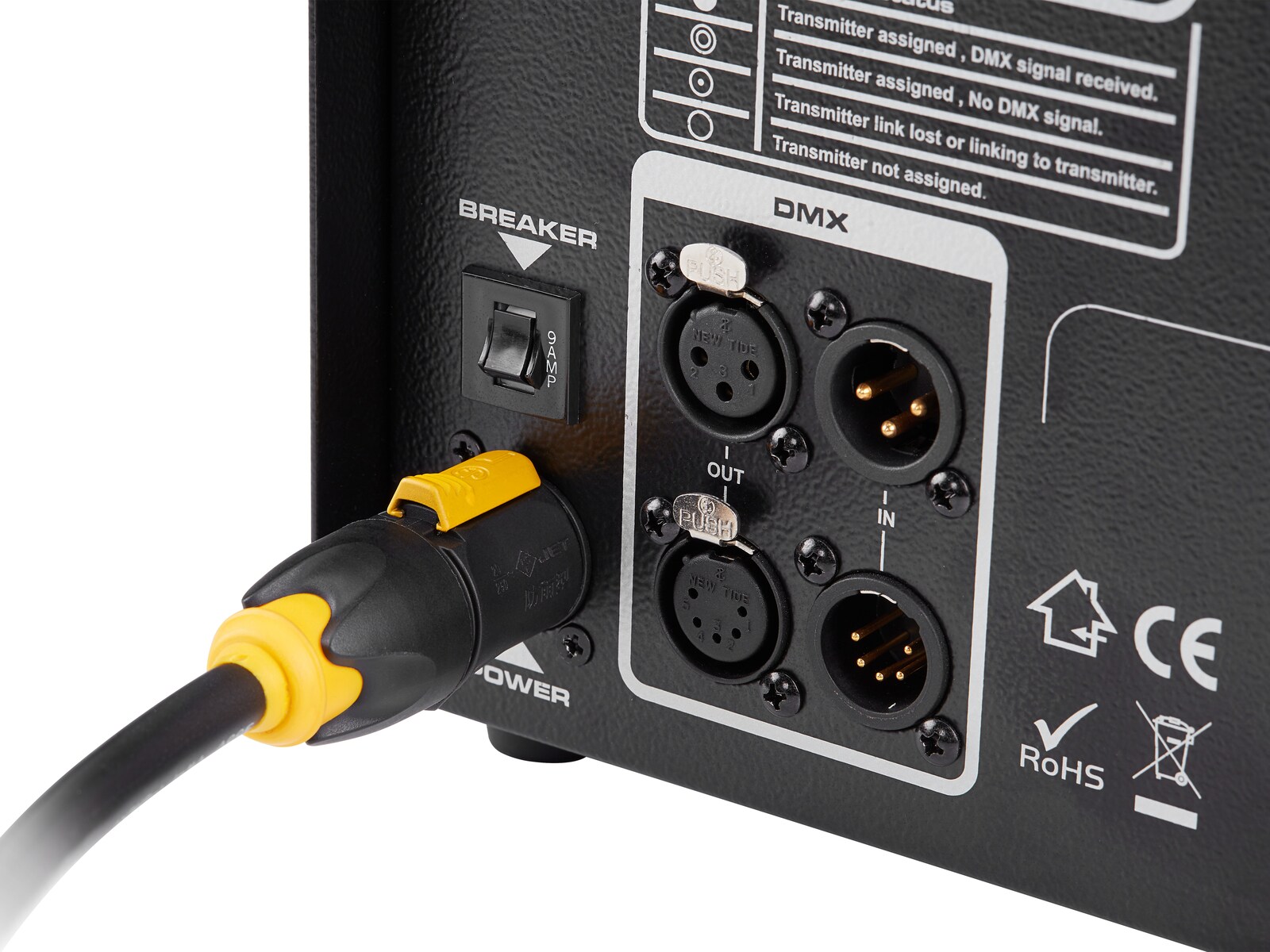

DMX input:
1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
DMX output:
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
Control:
Stand-alone; Timer; DMX; Wireless remote control; W-DMX by wireless solution upgradeable
Housing color:
Black
Carrier frequency:
433,92 MHz
Range:
Wireless remote control: range up to 50m
Use of brands:
Built with NEUTRIK connector
Color:
Black
Dimensions:
Width: 19,3 cm
Depth: 34,4 cm
Height: 38,1 cm
Weight:
14,25 kg
