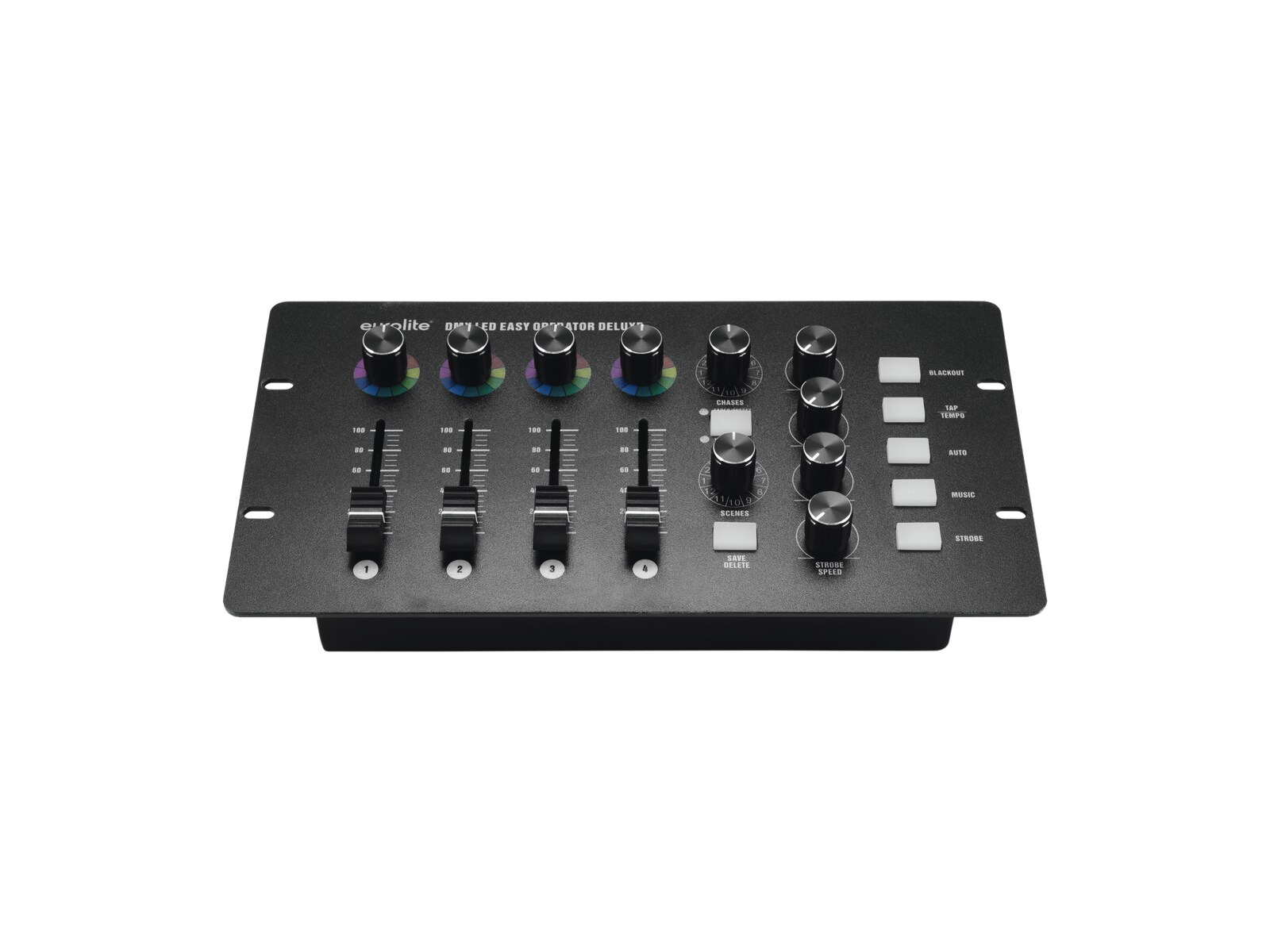

Controller for 4 colored LED spotlights or one KLS set with 4 segments

• DMX controller for standard LED spotlights
• Easy handling
• 4 LED spotlights or 1 KLS set with 4 fixtures can be controlled
• DMX channels for red, green, blue, amber, white, UV, strobe and master
• 9 different modes for the DMX channel sequence selectable
• 12 integrated preset programs and 12 user-definable programs (each with up to 12 scenes)
• 4 color controls with 12 colors each
• 4 brightness controls
• Function buttons for Blackout, TAP/Tempo, Auto, Music and Strobe
• Dimmer; program speed adjustable; color fade adjustable
• Strobe effect
• Can transmit up to 24 DMX channels
• Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone
• Desktop console housing

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter

Power supply:
100-240 V AC, 50/60 Hz
9 V DC 300 mA
Pin configuration:
Inside + outside -
Power consumption:
10 W
IP classification:
IP20
Protection class:
Protection class III
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
DMX channels:
Output 24
DMX output:
1 x 3-pin XLR (F) mounting version
Control:
DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; stand-alone
Housing color:
Black
Color:
Black
Housing design:
Desktop console housing
Dimensions:
Width: 26 cm
Depth: 14 cm
Height: 6,5 cm
Weight:
1,17 kg
