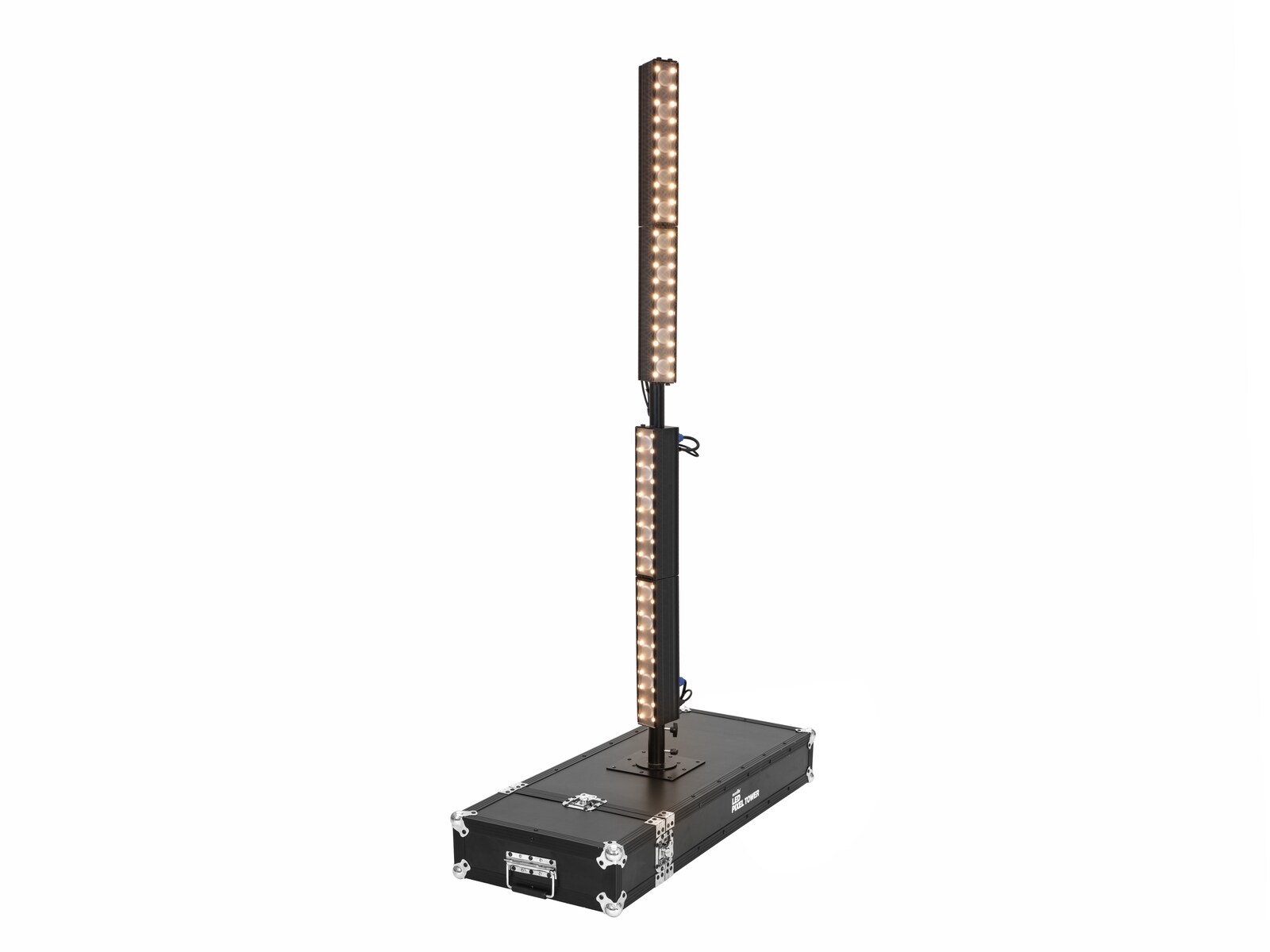

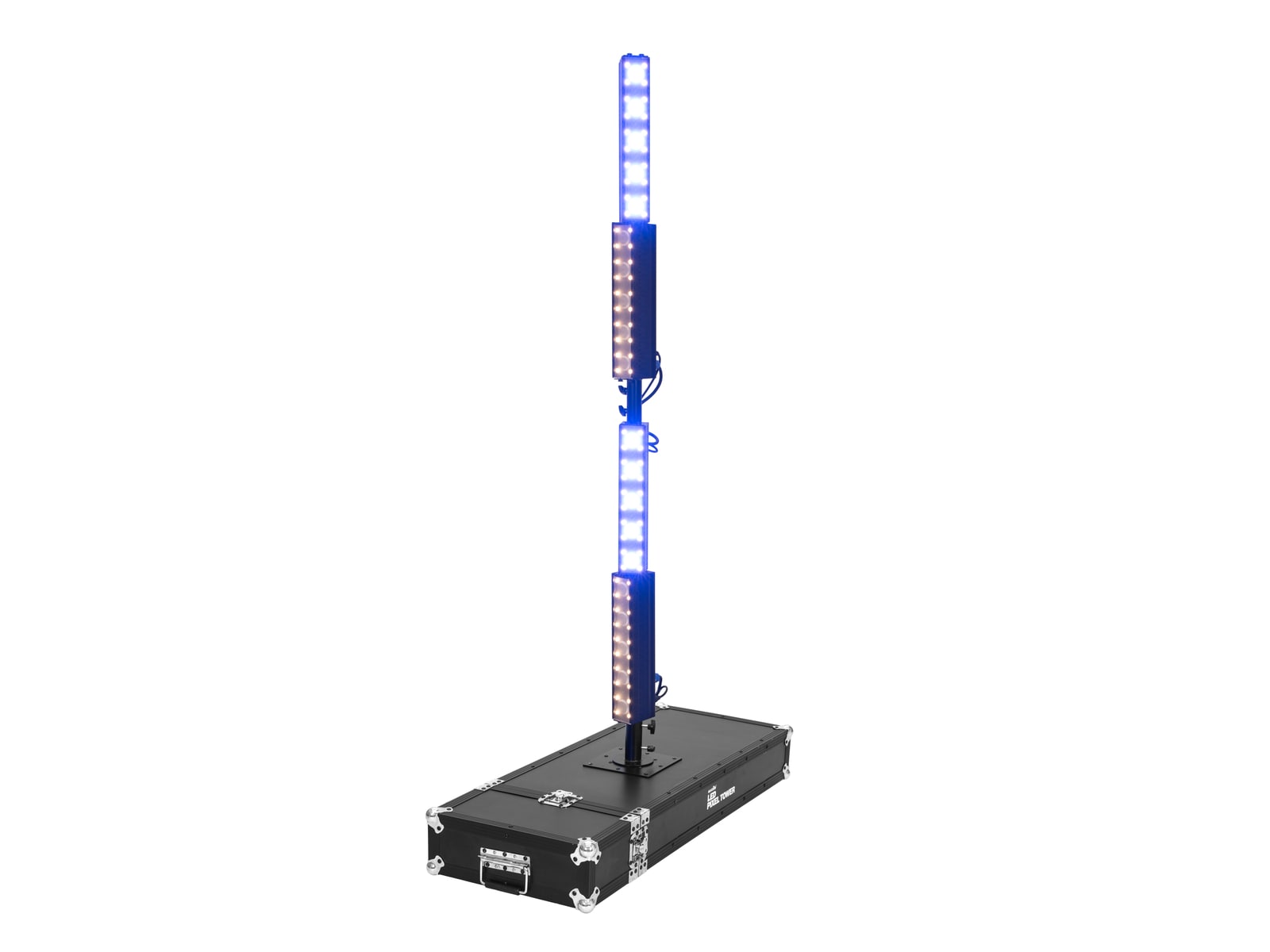

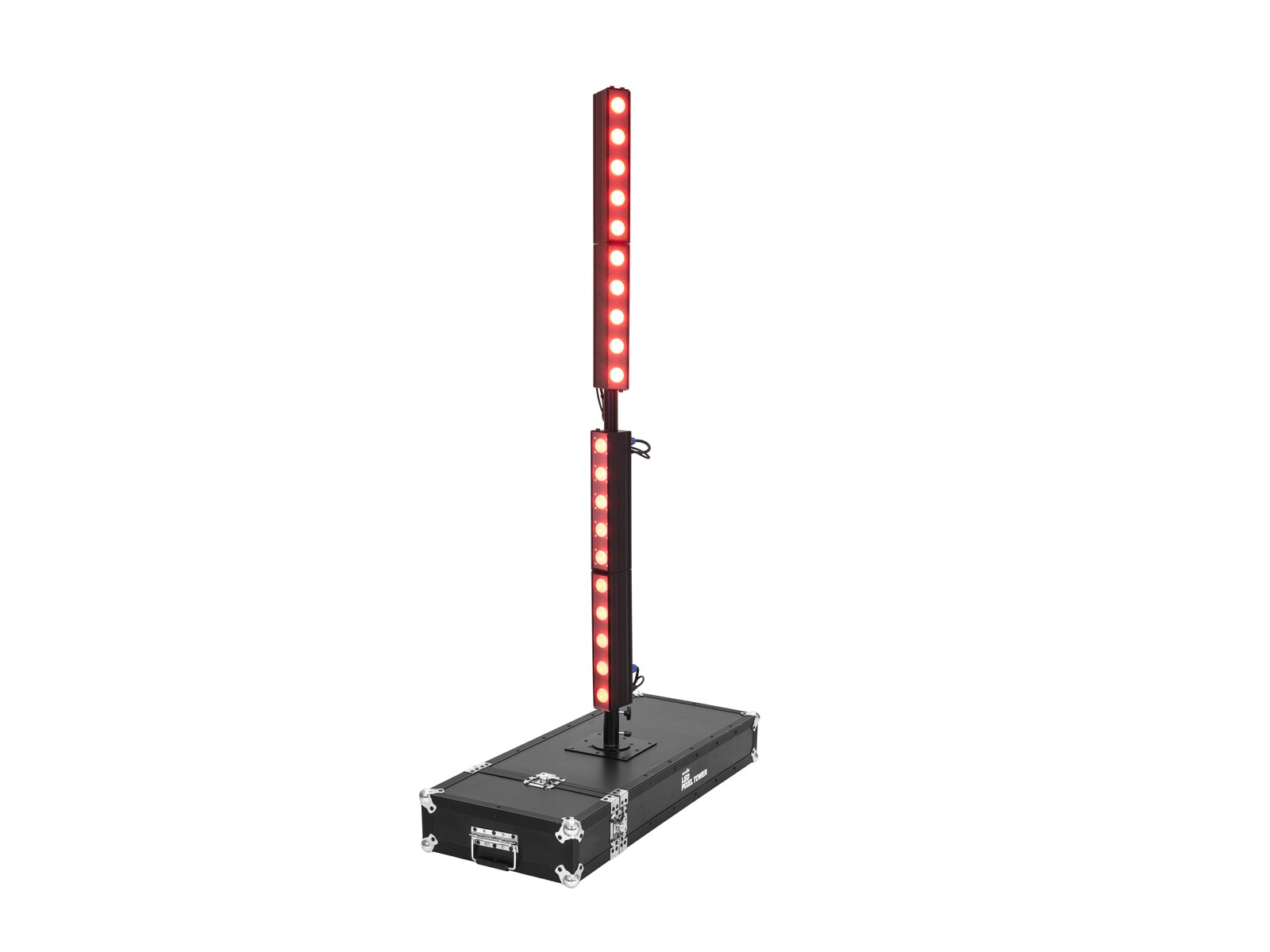

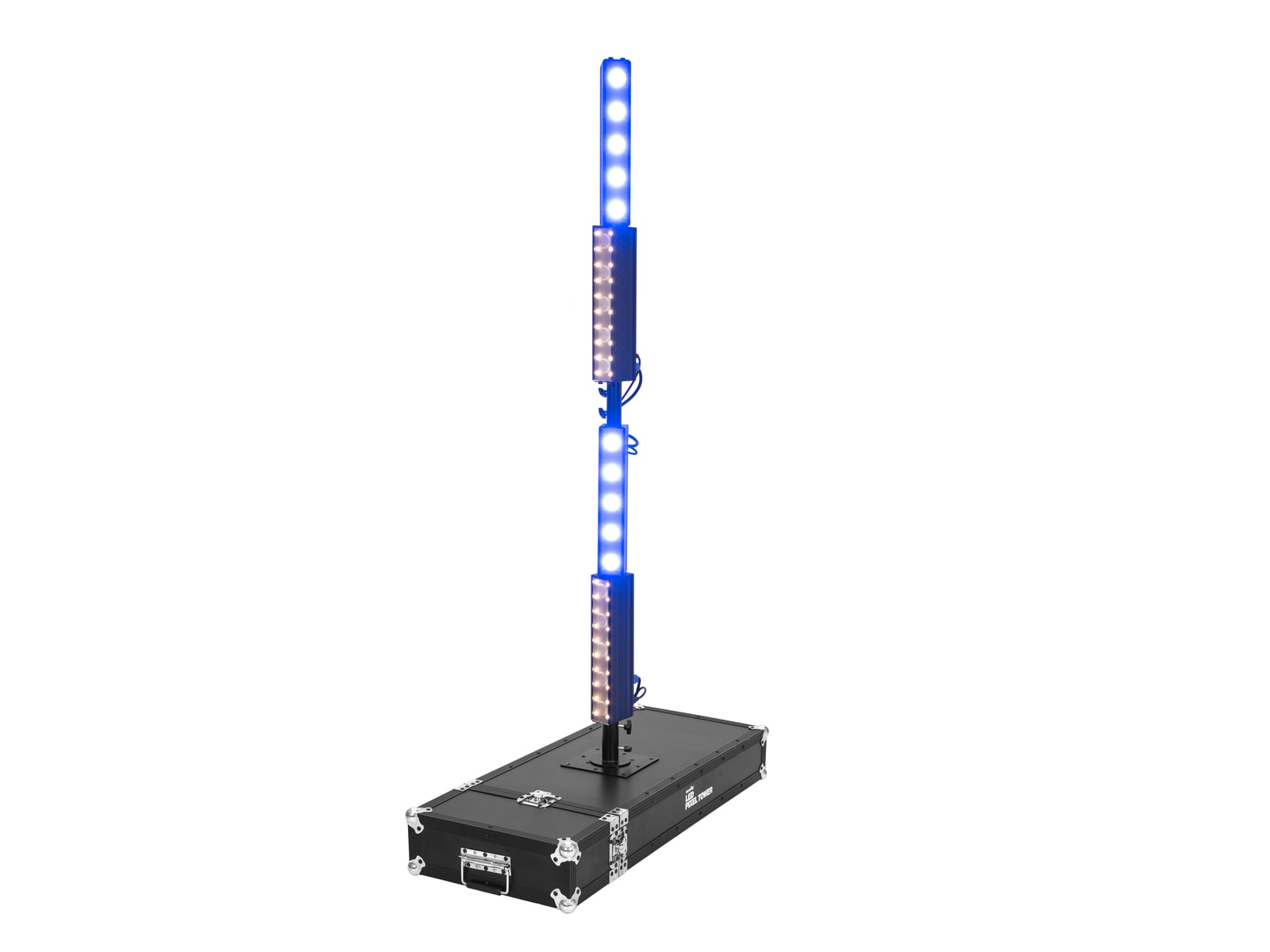

Multifunctional vertical light effect with mounting option on the supplied case

• Every LED bar can be manually rotated centrally at the joint
• Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
• 80 powerful LEDs 0,3 W SMD 5050 warm white (WW)
  4 segments separate controlling
• 20 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix)
  LEDs separate controlling
• Dimmer electronic; color blend stepless; color change adjustable; colors preset
• Strobe effect
• 96 integrated show programs
• The device is cooled by passive convection cooling
• Control via DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
• With a beam angle of 8°
• TV pin
• Silent operation
• Preprogrammed in LED PC-Control 512; Light Captain; Light´J
• With Mounting bracket

Package contents

• 2 x segment, 1 x remote control, 1 x case, 1 x user manual, 2 x power cord, 4 x angle, 1 x stand, 4 x washer, 4 x diffusor cover, 8 x knurled screw, 1 x holder, 2 x mounting bracket, 3 x xLR cable

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
250 W
IP classification:
IP20
Lamp type:
LED lamp
LED:
80 x 0,3 W SMD 5050 warm white (WW)
20 x 15 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:
12; 20; 27; 84; 5
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
Preprogrammed in:
LED PC-Control 512; Light Captain; Light´J
Beam angle:
8°
Beam angle (1/2 peak):
8°
Housing color:
Black
Attachment system:
TV spigot Ø 28mm
Mounting bracket
Weight:
12,00 kg
Noise classification:
Class 0 (no noise at all)
Device
Dimensions:
Length: 1,1 m
Width: 44 cm
Height: 2 m
Segment
Dimensions:
Length: 92 cm
Width: 10,1 cm
Height: 7 cm
Case
Dimensions:
Length: 1,1 m
Width: 44 cm
Height: 18 cm
Remote control
Battery:
Button cell 3.0 V CR2025 lithium manganese built-in
