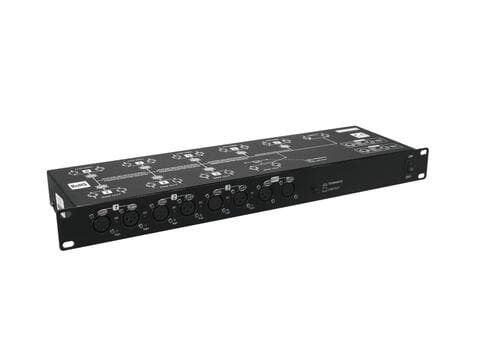

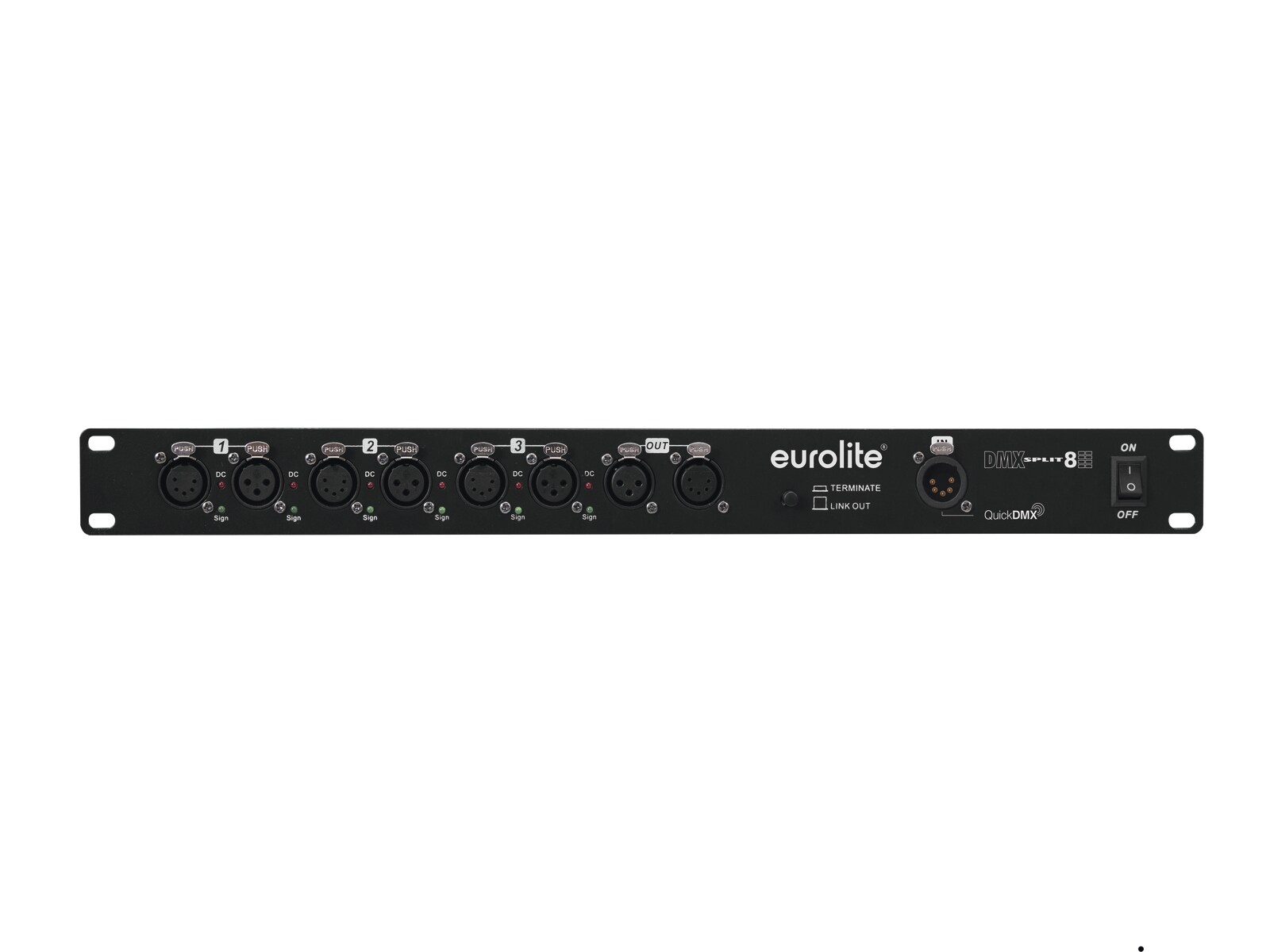

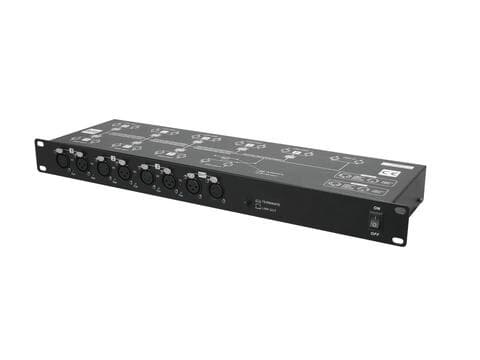

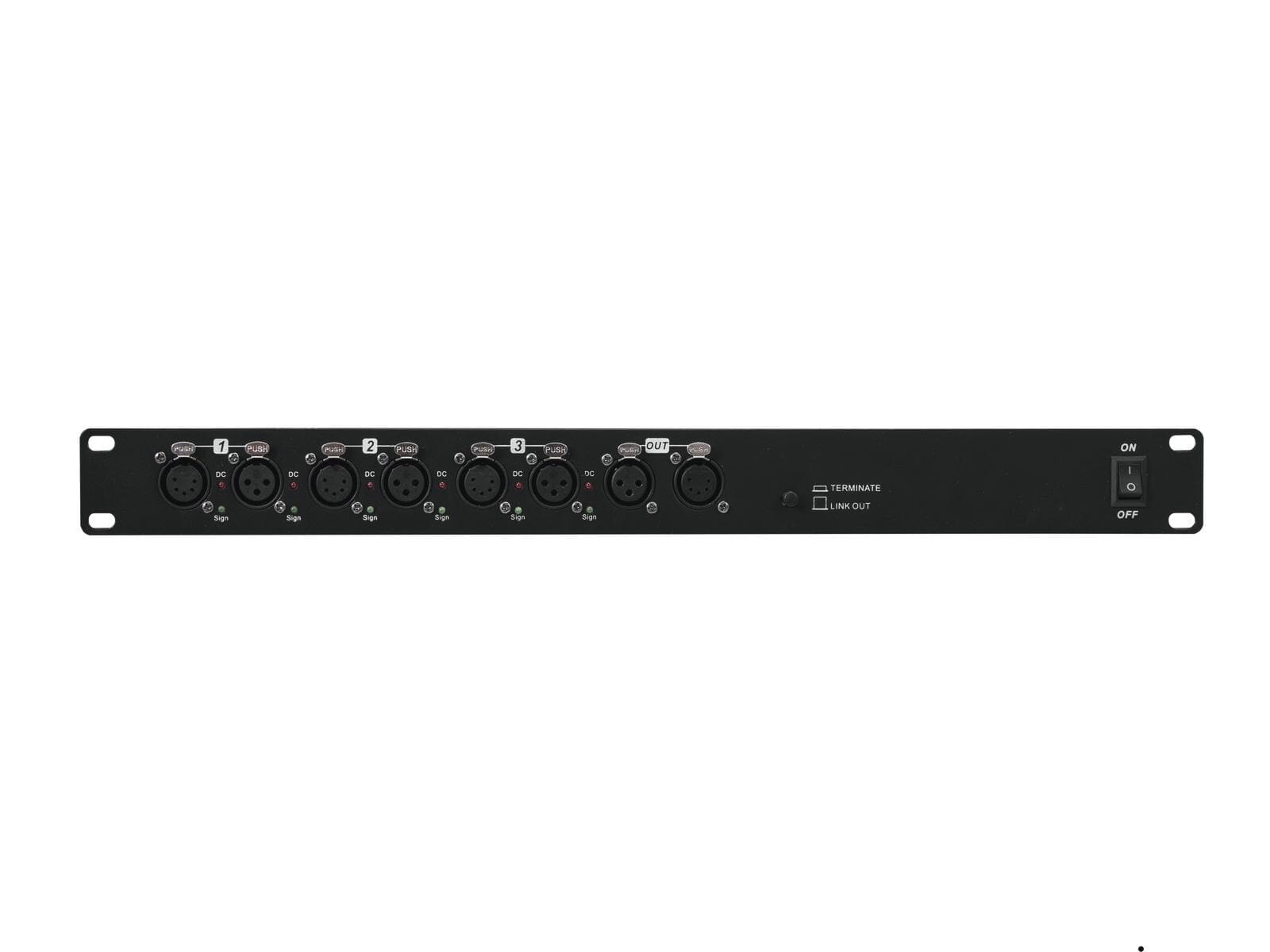

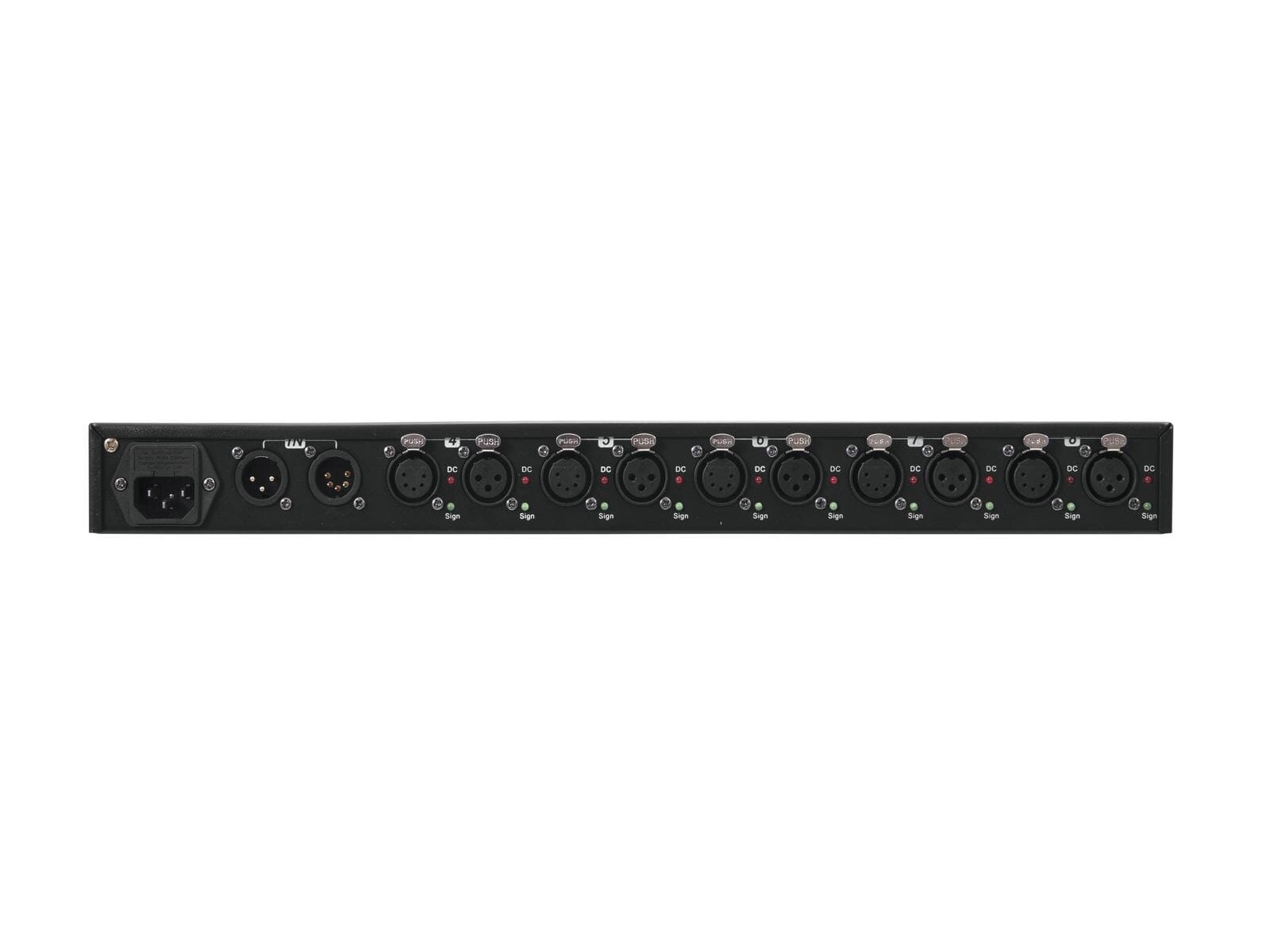

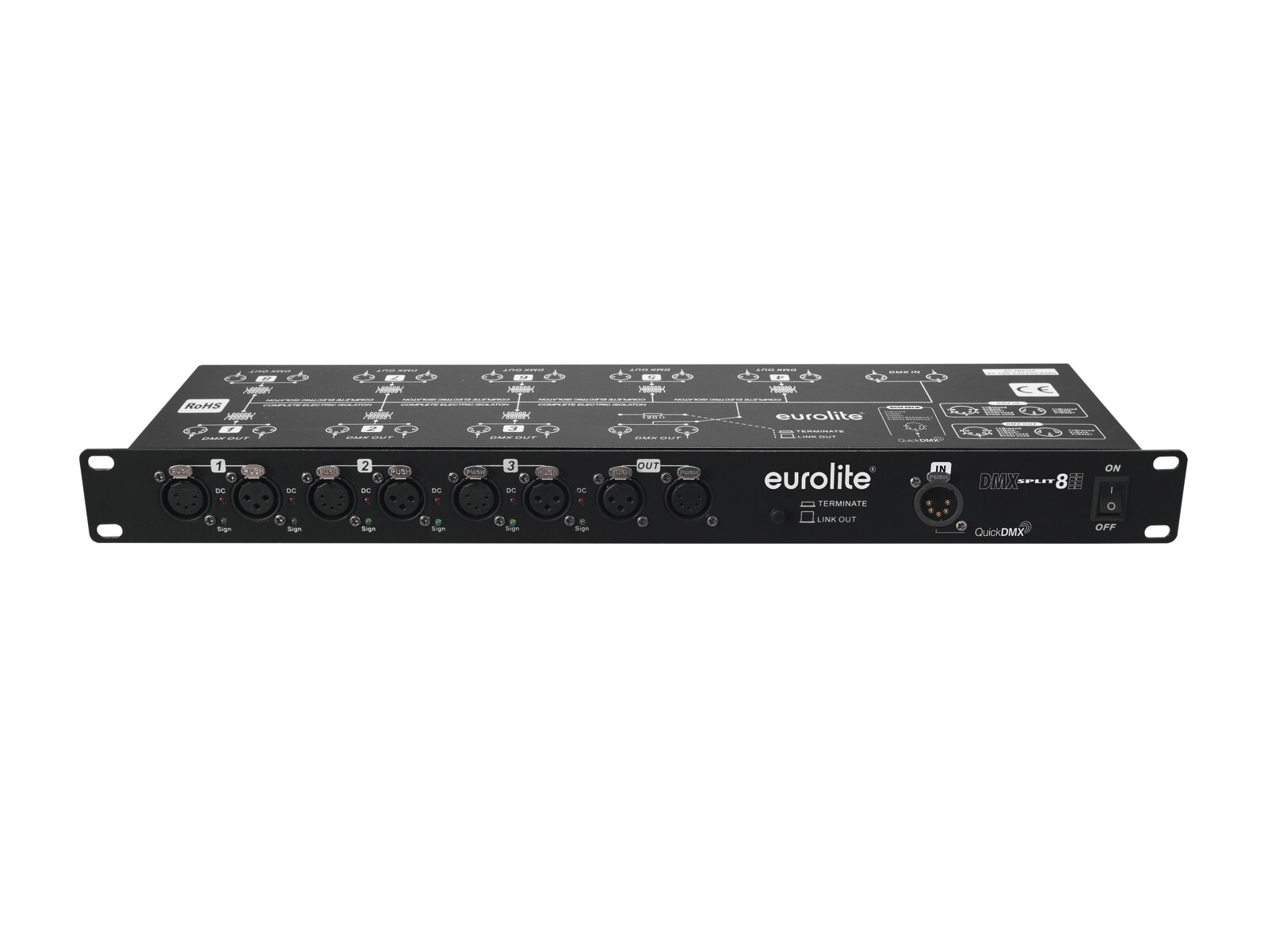

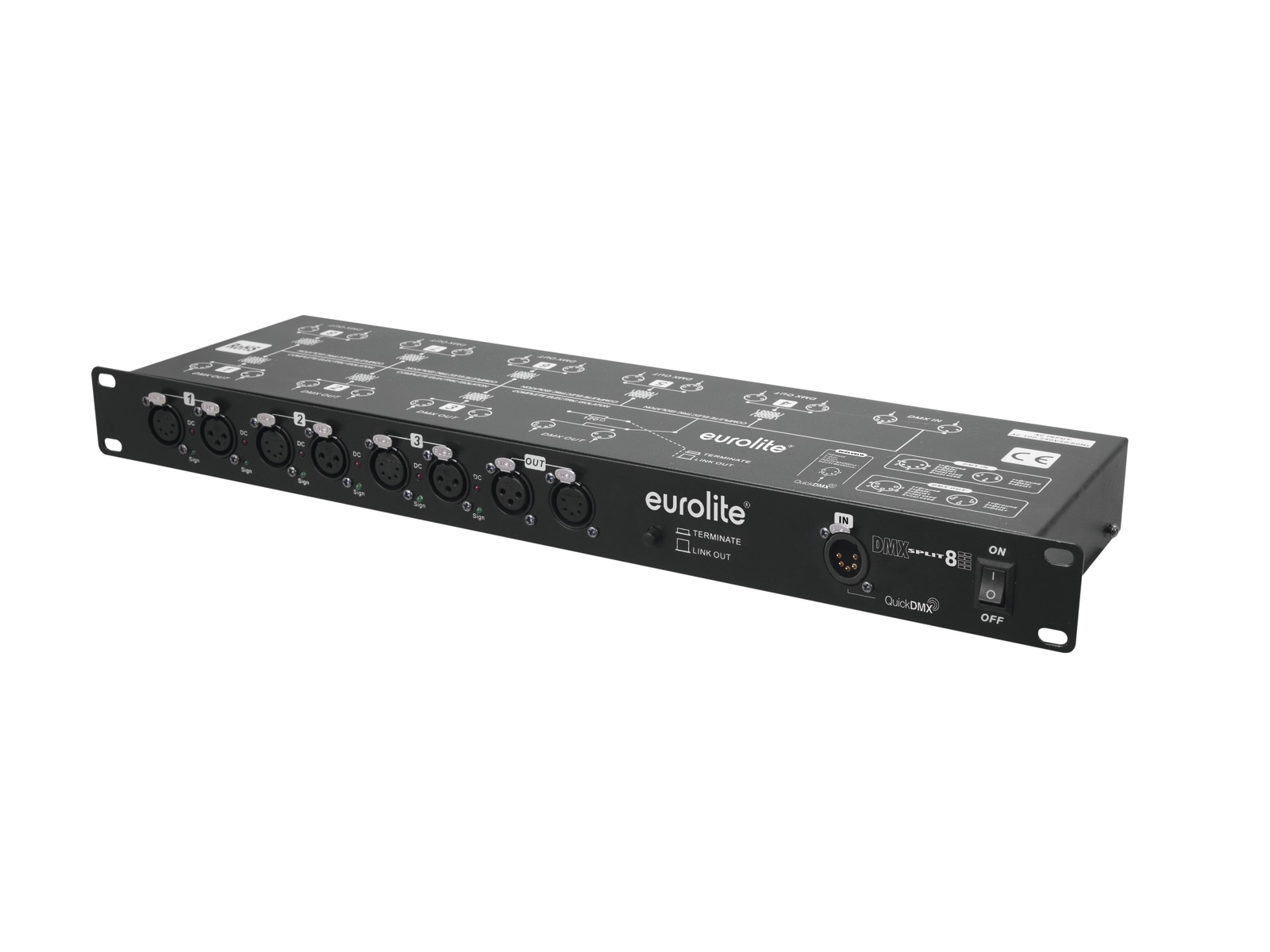

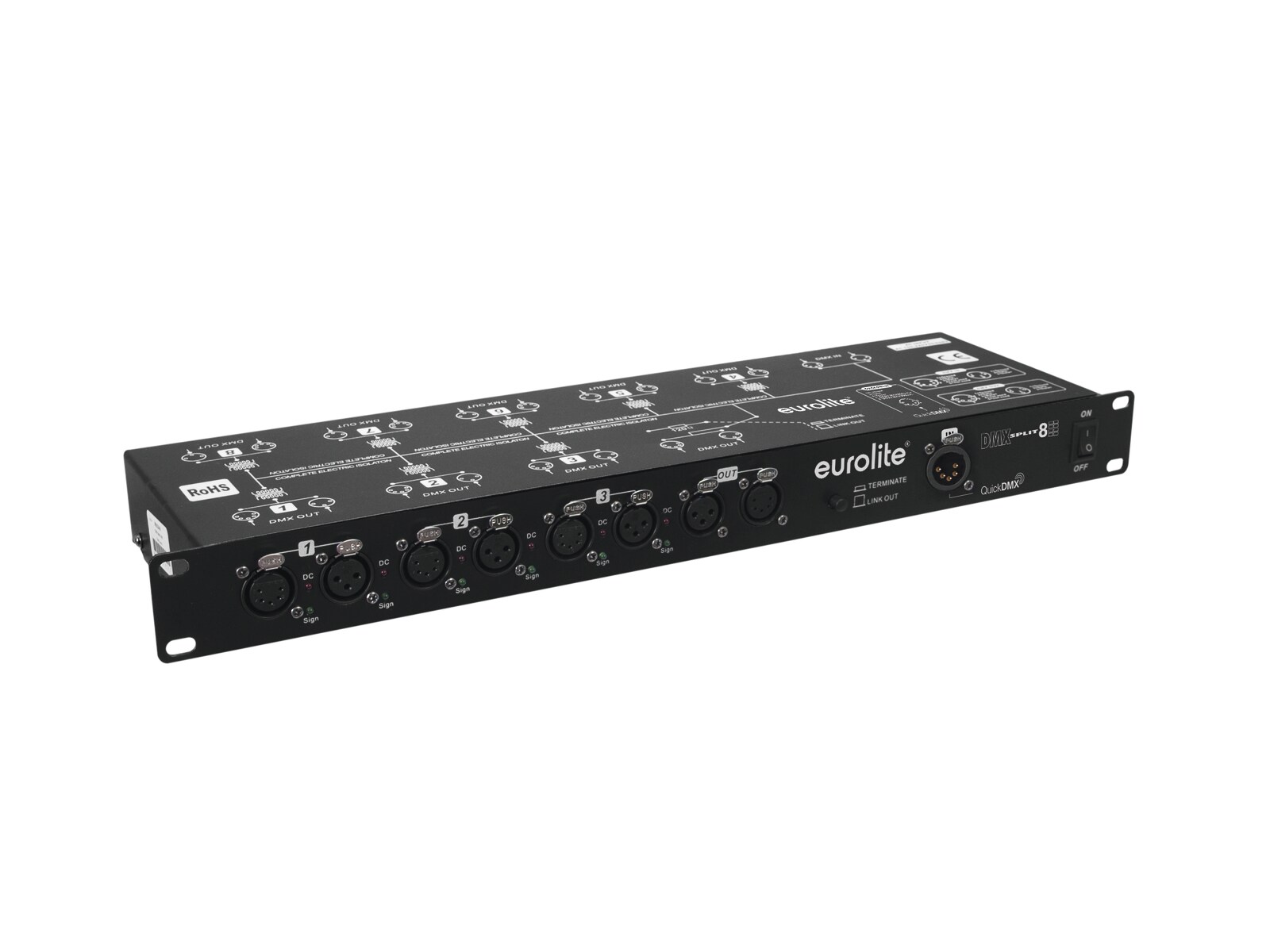

EUROLITE DMX Split 8X Splitter

Eurolite DMX Split 8X Splitter

Art nr:70064825
8 vägs DMX splitter för rackmontering
3 111 kr

Ej i lager (Över 2v lev.tid. Kan ej beställas nu)

  • ✓ Trygga betalsätt
  • ✓ 30 dagar ångerrätt

Produktbeskrivning

8 vägs DMX splitter för rackmontering

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

  • DMX splitter for splitting one DMX input signal to 8 DMX outputs
  • Input and outputs XLR 3-pin and 5-pin each
  • Each DMX output with independent driver and status indicator
  • Input and outputs galvanically isolated
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor
  • Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
  • (19") 48.3 cm rack installation 1 U

Package contents

  • 1 x device, 1 x user manual, 1 x power cord


Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
5 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
DMX input:
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:
8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass
Control:
DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
Control elements:
Bypass/terminating resistor switch, power switch
Housing design:
(19") 48.3 cm rack installation 1 U
Dimensions:
Width: 48,3 cm
Depth: 14,5 cm
Height: 4,45 cm
Weight:
2,22 kg
