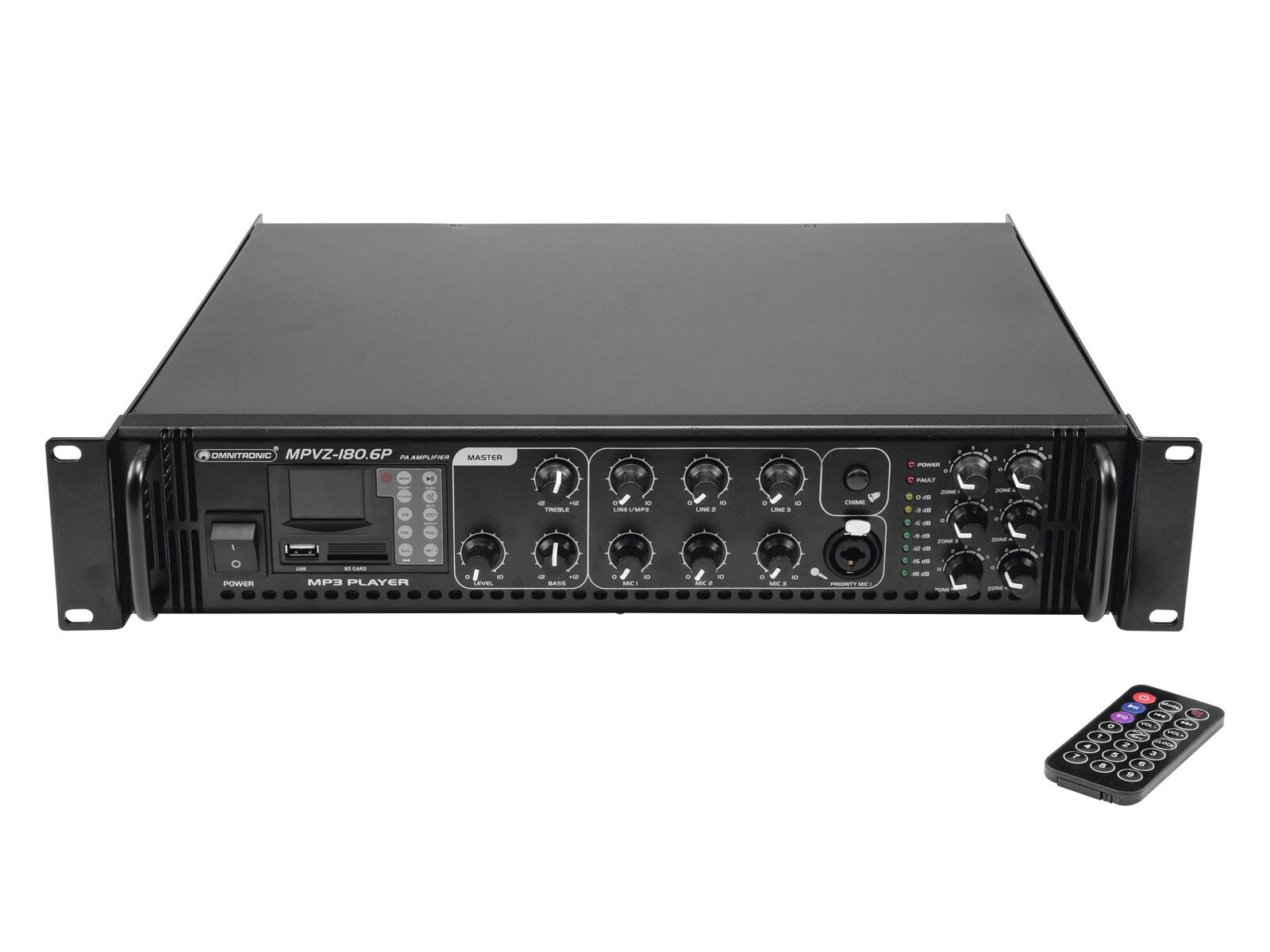

6-zone PA mono mixing amp, MP3 player & IR remote, zones switchabel, 180 watts

• Comfortable control of PA speakers via 6-zone technology
• 6 PA zone outputs with separate 5-step level controls
• Master PA output (70 V and 100 V)
• Output for low-impedance speakers (4-16 ohms)
• MP3 player with IR remote control and LCD with blue backlight
• SD card slot and USB input
• Folder navigation and repeat functions (1, All)
• 2 rear microphone inputs (6.3 mm jack, unbal.)
• 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
• All microphone inputs with separate level controls
• 3 line inputs (stereo RCA) with separate level controls
• 1 line output (stereo RCA)
• Chime, switchable
• Treble and bass control for the output signal
• 7-fold LED level display
• Master control for the output signal
• Fan-cooled
• Protection circuits with LED indication: over current, short circuit, turn-on delay
• Rack installation
• Master equalizer: 1 x 2 band tone control Mono
• Housing design: (19") 48,3 cm rack installation
• Power supply: Fix fehlt
• Height unit: 2 HE
• Control: IR remote control provided

Power supply:
230 V AC, 50 Hz
Output power:
180 W RMS
Output type:
70 V, 100 V or 4-16 ohms
Output current:
2.5 A (70 V), 1.8 A (100 V)
Mic inputs:
5 mV, 600 ohms
Line inputs:
300 mV, 10 kohms
Speaker connectors:
Screw connectors, terminal block
Distortion:
0.5 % (1 kHz)
S/N ratio:
85 dB (line), 75 dB (mic)
Playback format audio player:
MP3
Available storage media:
USB devices and SD(HC) cards up to 32 GB
File system:
FAT32
Number of files:
max. 999
Dimensions:
483 x 385 x 92 mm
Impedance:
100 V ELA
Power consumption:
360,00 W
Weight:
12 kg
Audio player:
USB + SD
Output power:
180 W RMS
Frequency range:
80 - 16000 Hz
Height:
8,9 cm
Depth:
38,5 cm
Width:
48,3 cm
