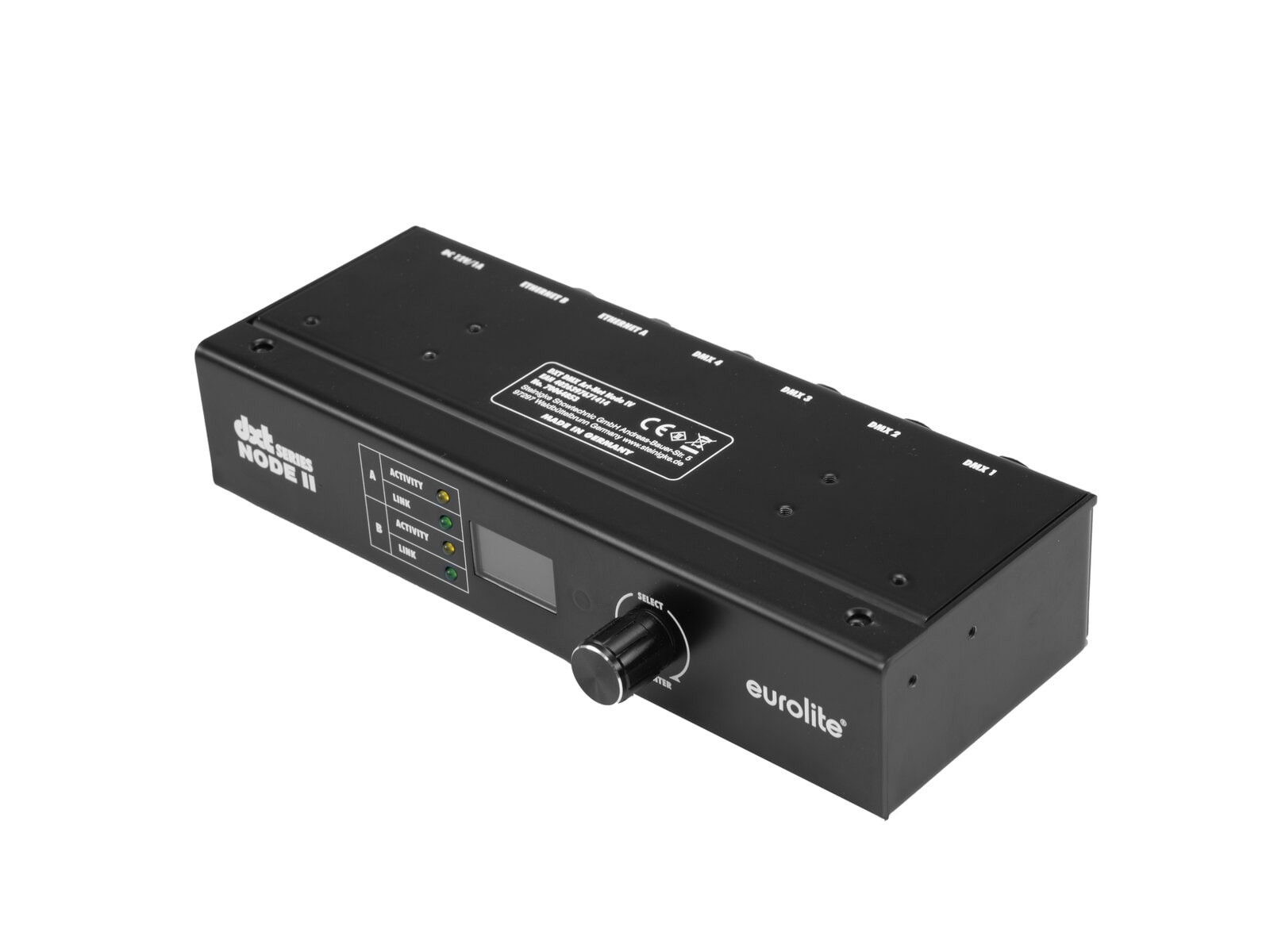

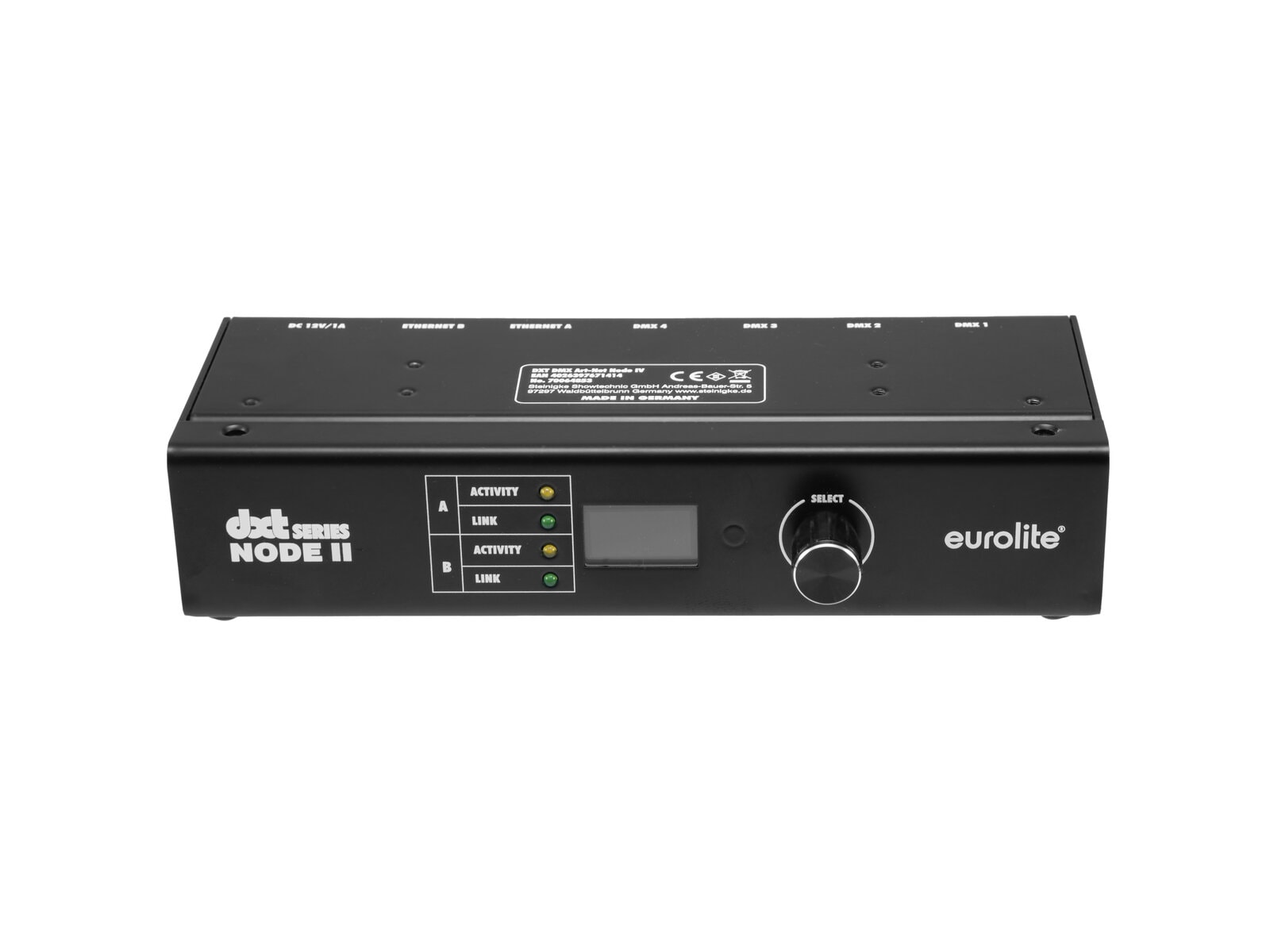

Art-Net interface for control of 1024 digital LED channels or DMX channels

• 2 x 3-pin output for digital LED strips
• Link and activity LED for each network port
• Supported by all applications with Art-Net output
• ArtDMX reception via Broadcast or Unicast
• Configuration with OLED display, website or Art-Net
• Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
• DMX refresh rate: 40 Hz or 20 Hz
• LED types: WS2801, WS2811, WS2812,...(all common 800 kHz types)
• Can transmit up to 1024 DMX channels
• Control via ArtNet
• OLED display
• Built with NEUTRIK connector
• Desktop console housing 1 U
• (19") 48.3 cm rack installation (optional)
• Made in Germany

Power supply:
100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:
3 W
IP classification:
IP20
Power connection:
Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter
DMX channels:
Output 1024
DMX output:
2 x 3-pin XLR (F) mounting version
Network connection:
Protocol: Ethernet TCP/IP via 2x RJ-45 etherCON (F) mounting version, 10/100 Mbit/s
Standard: IEEE 802.3u
Control:
ArtNet
Display type:
OLED display
Control elements:
Encoder
Status LED:
Signal, link
Connections:
Output: 2 x screw plug-in terminal
2 x RJ-45 etherCON (F) mounting version
Use of brands:
Built with NEUTRIK connector
Color:
Black
Housing design:
Desktop console housing 1 U
(19") 48.3 cm rack installation (optional)
Dimensions:
Width: 20 cm
Depth: 9,8 cm
Height: 4,1 cm
Weight:
850 g
