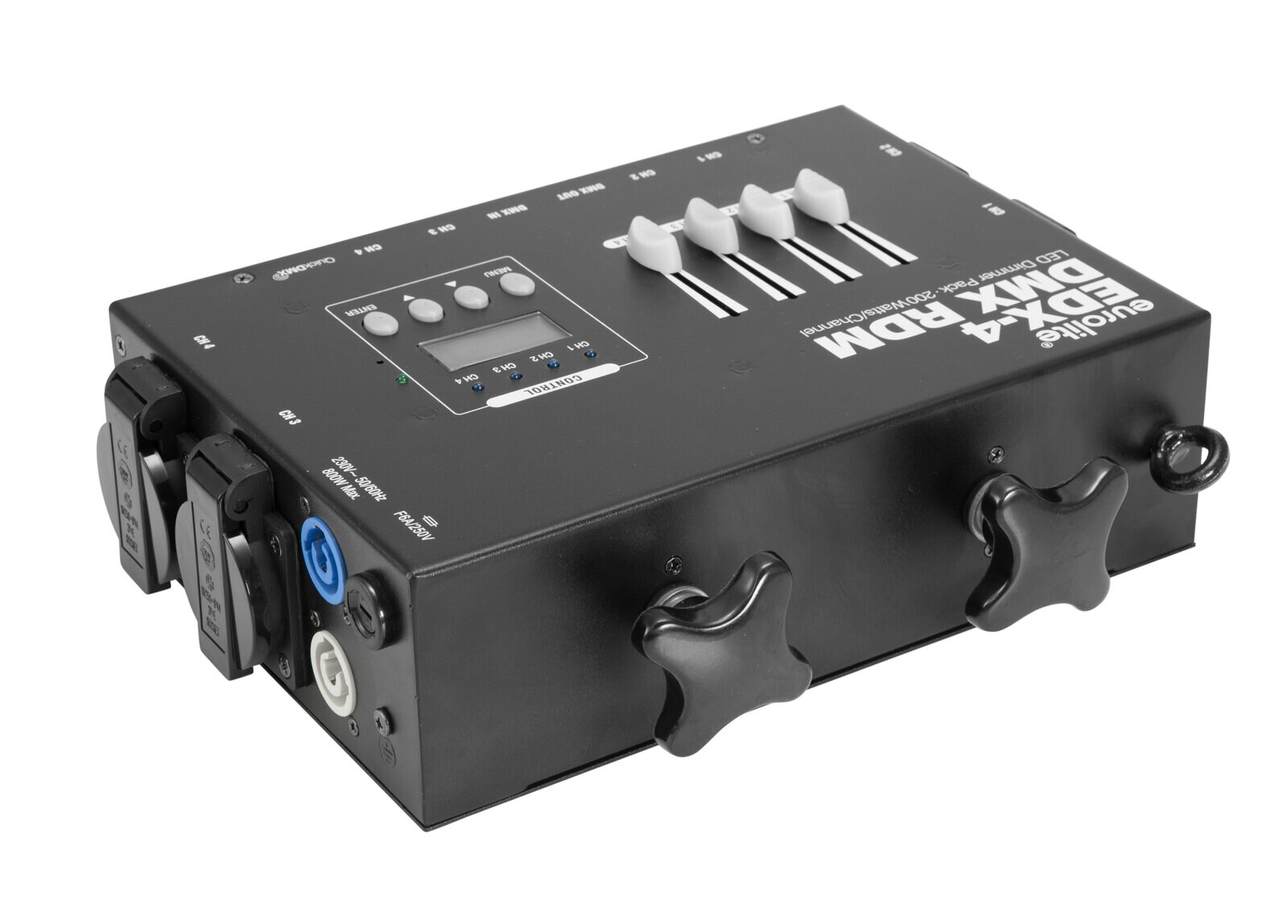

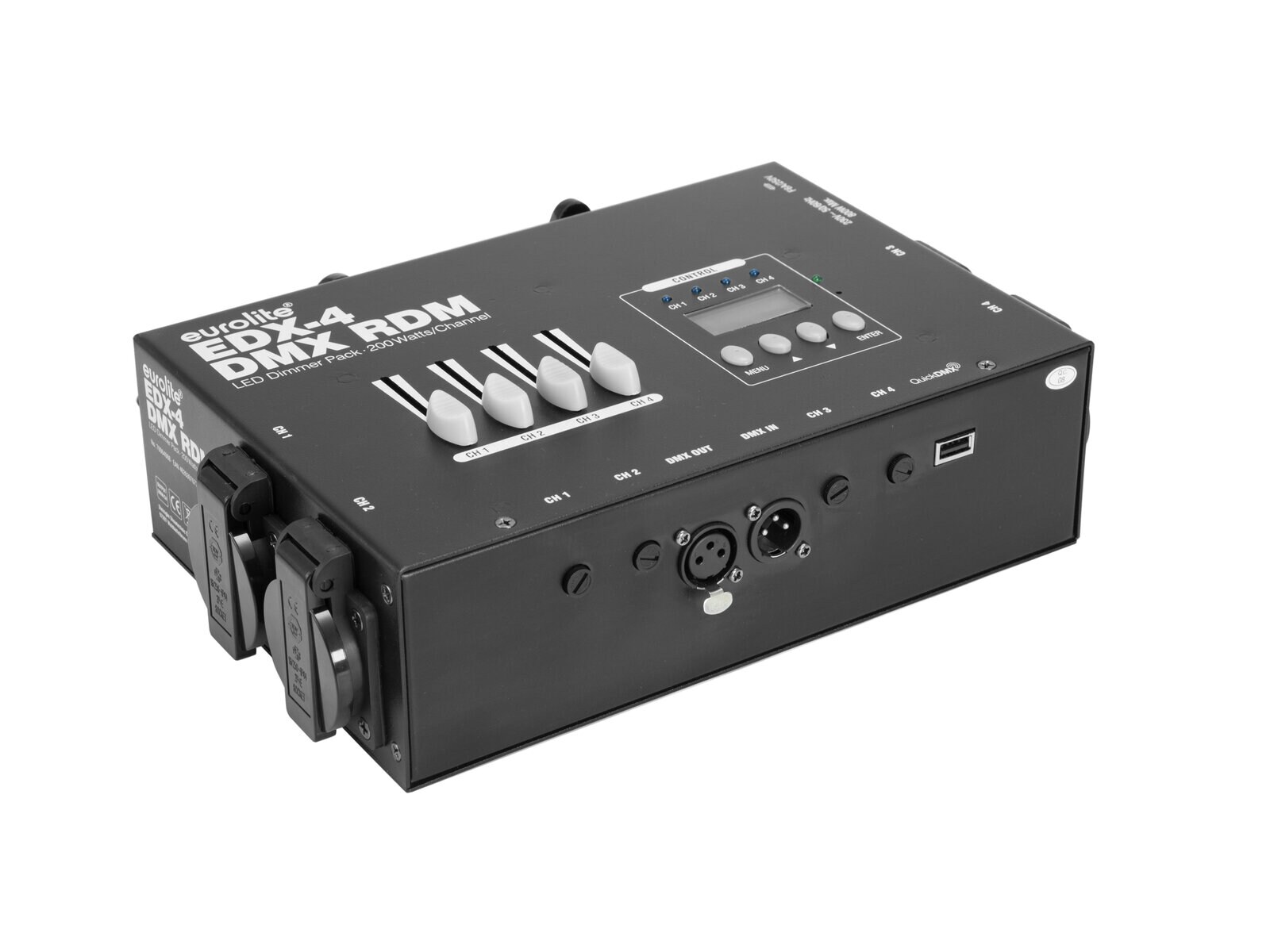

4-channel dimmer for LED lights with 230 V operation
- Trailing edge dimmer with 4 channels
- Max. channel load 200 watts
- Independent DMX addressing per channel possible
- Dimmer or switch operation
- 4 channel faders for control on the device
- Note: Only suitable for LED - not for conventional light bulbs
- 16 integrated show programs
- Control via RDM; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With rigging points
- LCD display
- For application areas such as: Trade fair and shop fitting; theater; rental; video and photography; restaurants, bars and hotels
- Silent operation
- Application possibility: Wall mounting
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
| Power supply: | 230 V AC, 50 Hz |
| Output power: | Max. 200 W Max. 800 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 4 x safety contact (F), hinged lid mounting version fused 1 x P-Con (gray), mounting version Bypass |
| Device fuse: | 5 x 20 mm, F 6 A fuse replaceable |
| Power output fuse per channel: | 5 x 20 mm, T 1 A fuse replaceable |
| DMX channels: | 1; 4; 6 |
| DMX input: | 3-pin XLR (M) |
| DMX output: | 3-pin XLR (F) |
| Control: | RDM; stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Control channels: | 4 |
| Flying points: | 2 x M10 thread |
| Display type: | LCD display |
| Status LED: | Chanal level meter |
| Color: | Black |
| Dimensions: | Width: 21 cm Depth: 29 cm Height: 9 cm |
| Weight: | 2.53 kg |
| Noise classification: | Class 0 (no noise at all) |
