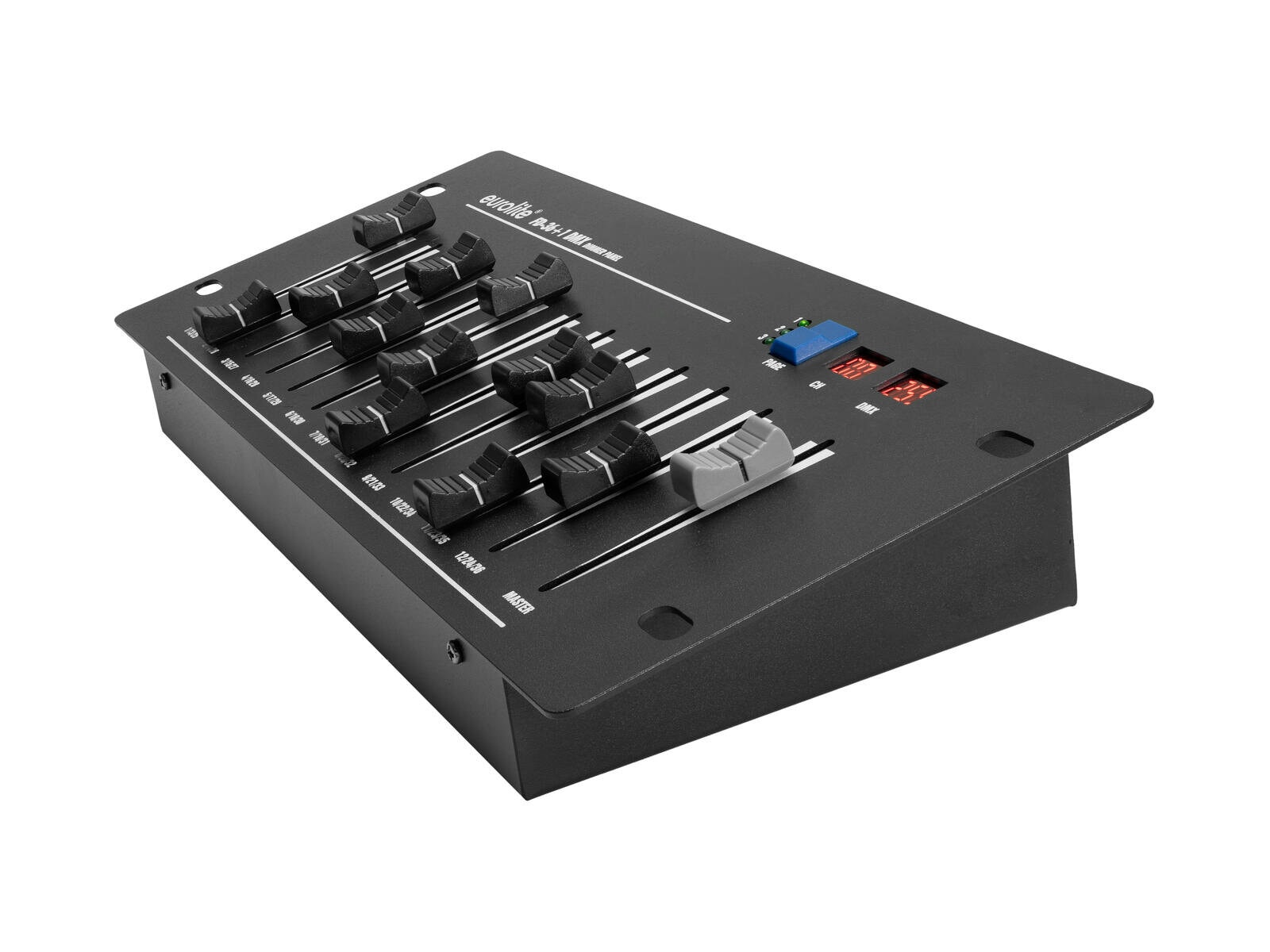

Basic DMX controller for 36 channels with master fader
- Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
- Simply connect and operate, requires no extensive programming
- 12 channel faders for adjusting the DMX values in 3 groups
- 1 master fader
- Compact design
- Can transmit up to 36 DMX channels
- Desktop console housing
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
- 1 x USB cable
| Power supply: | 100-240 V AC, 50/60 Hz 5V DC 75 mA Or 9V DC 75 mA |
| Power consumption: | < 1 W |
| IP classification: | IP20 |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection included |
| Battery: | 1 x 9.0 V E block 6LR61 alkaline manganese (not included) |
| DMX channels: | Output 36 |

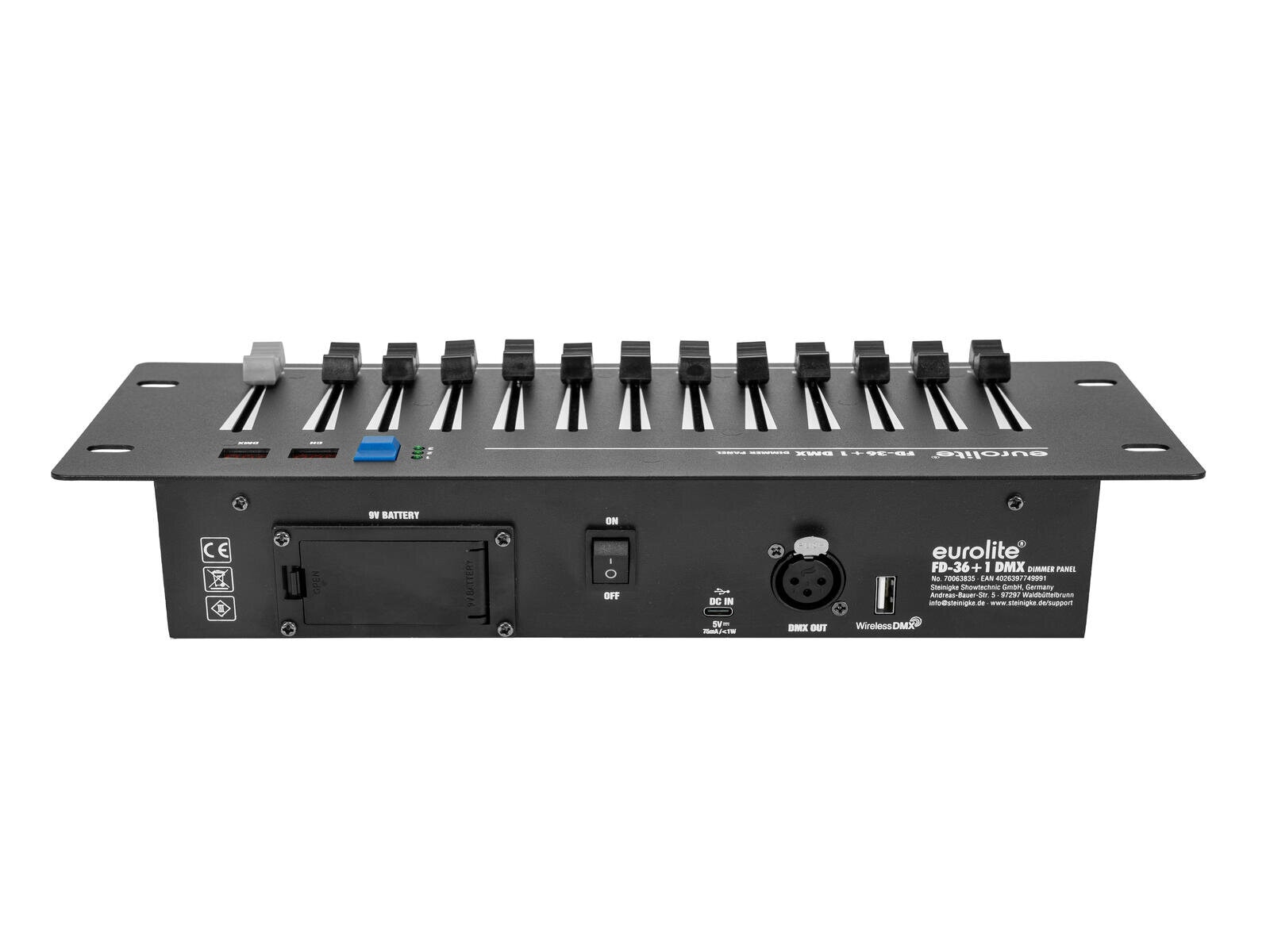

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; QuickDMX |
| Housing color: | Black matte |
| Display type: | 2 x 3 digit 7-segment LED display |
| Material: | Metal, painted |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 34 cm Width: 14 cm Height: 6 cm |
| Weight: | 1.55 kg |
