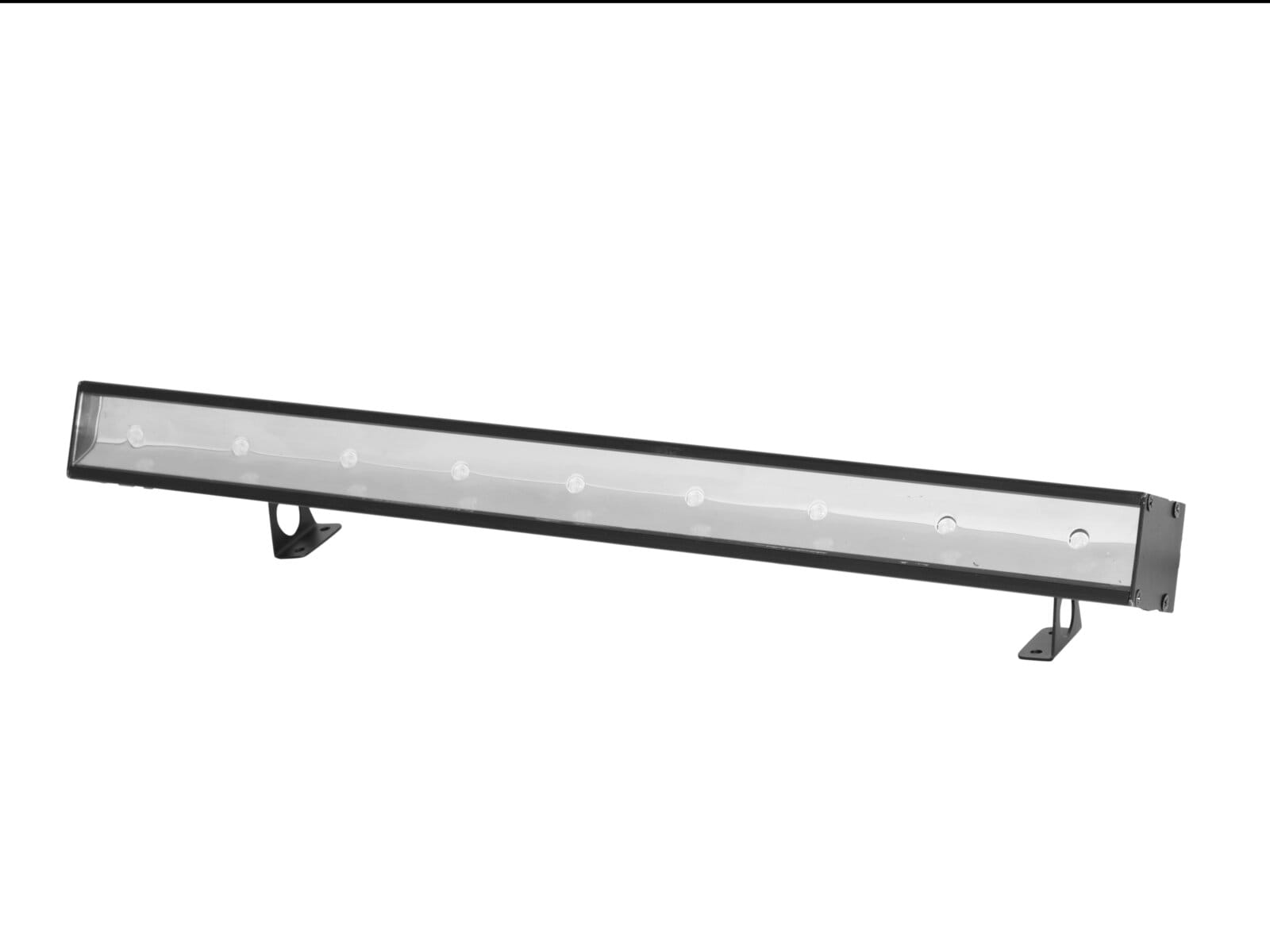

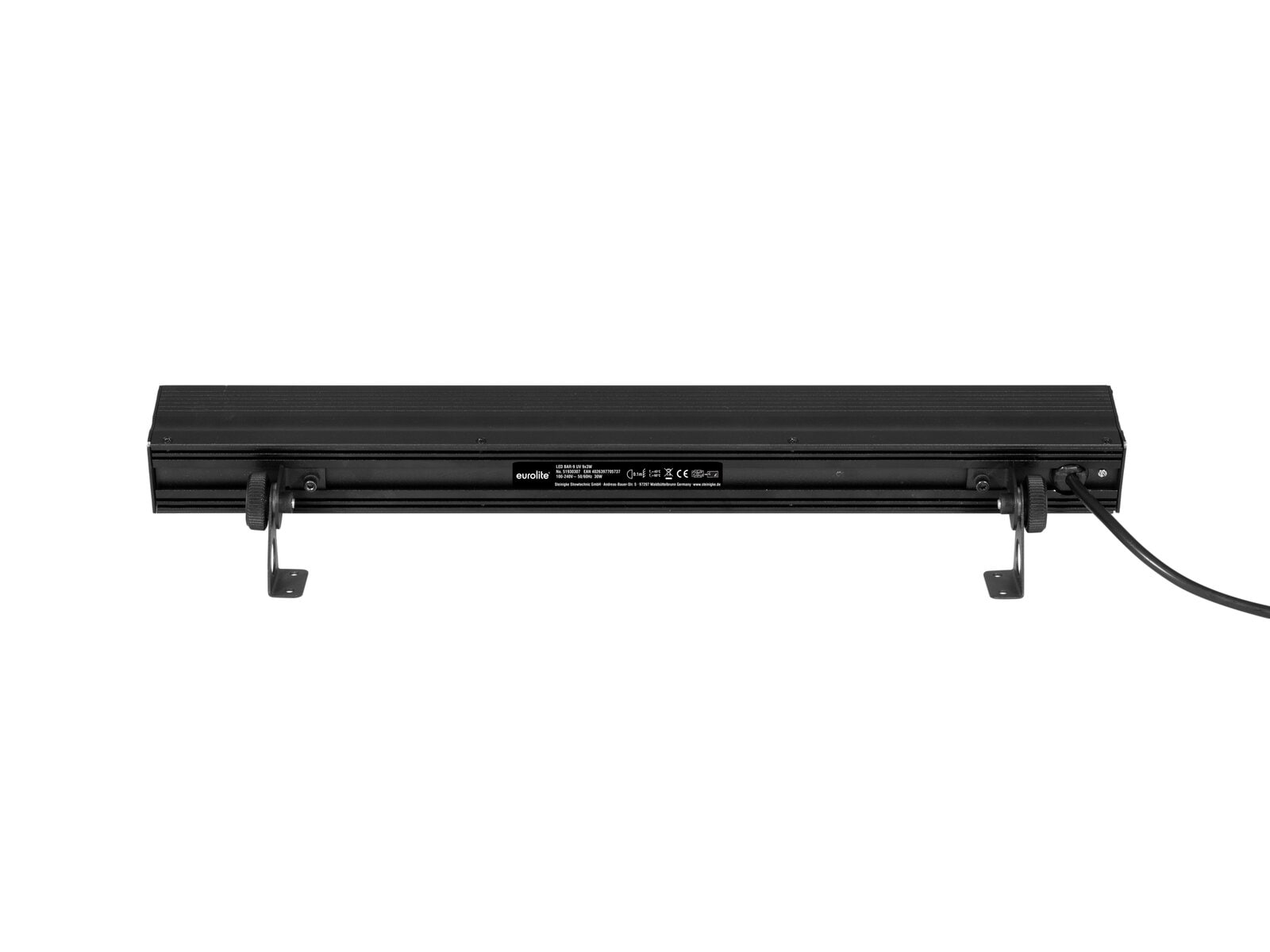

UV LED light bar with 9 x 3 W LED for stunning blacklight effects
- Perfect for decorative and illumination purposes
- Compact lightweight
- Slender housing
- 9 powerful LEDs 3 W high-power ultra violet (UV)
- UV effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 80°
- With mounting bracket
- Available in various sizes
- For application areas such as: Clubs/dancing school; decoration; party room; restaurants, bars and hotels; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; standing
Scope of delivery
- 1 x device
- 1 x user manual
- 2 x mounting bracket
- 2 x knurled screw
- 2 x washer
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 1.4 m |
| Lamp type: | LED lamp |
| LED type: | 9 x 3 W high-power ultra violet (UV) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 80° |
| Beam angle (1/2 peak): | 80° |
| Beam angle (1/10 peak): | 120° |
| Wavelength: | 400 nm |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| Diameter mounting holes: | 2 x Ø5mm |
| Material: | Aluminum |
| Dimensions: | Width: 50 cm Depth: 4.5 cm Height: 12.5 cm |
| Weight: | 1.10 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 2 x Ø10.5mm; 2 x Ø7mm |
| Material: | Metal, 1.5 mm |
| Color: | Black, matte, painted |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
