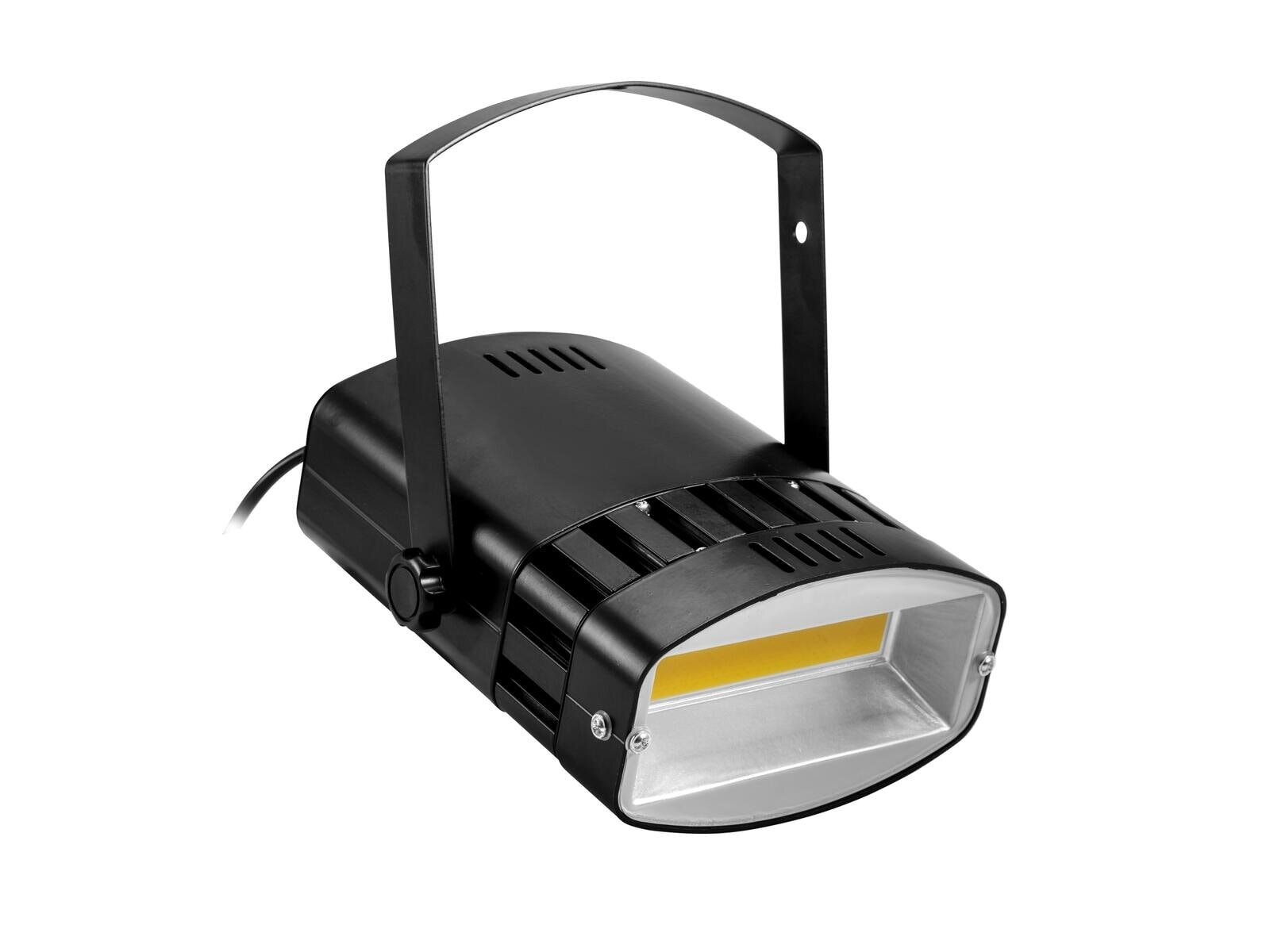

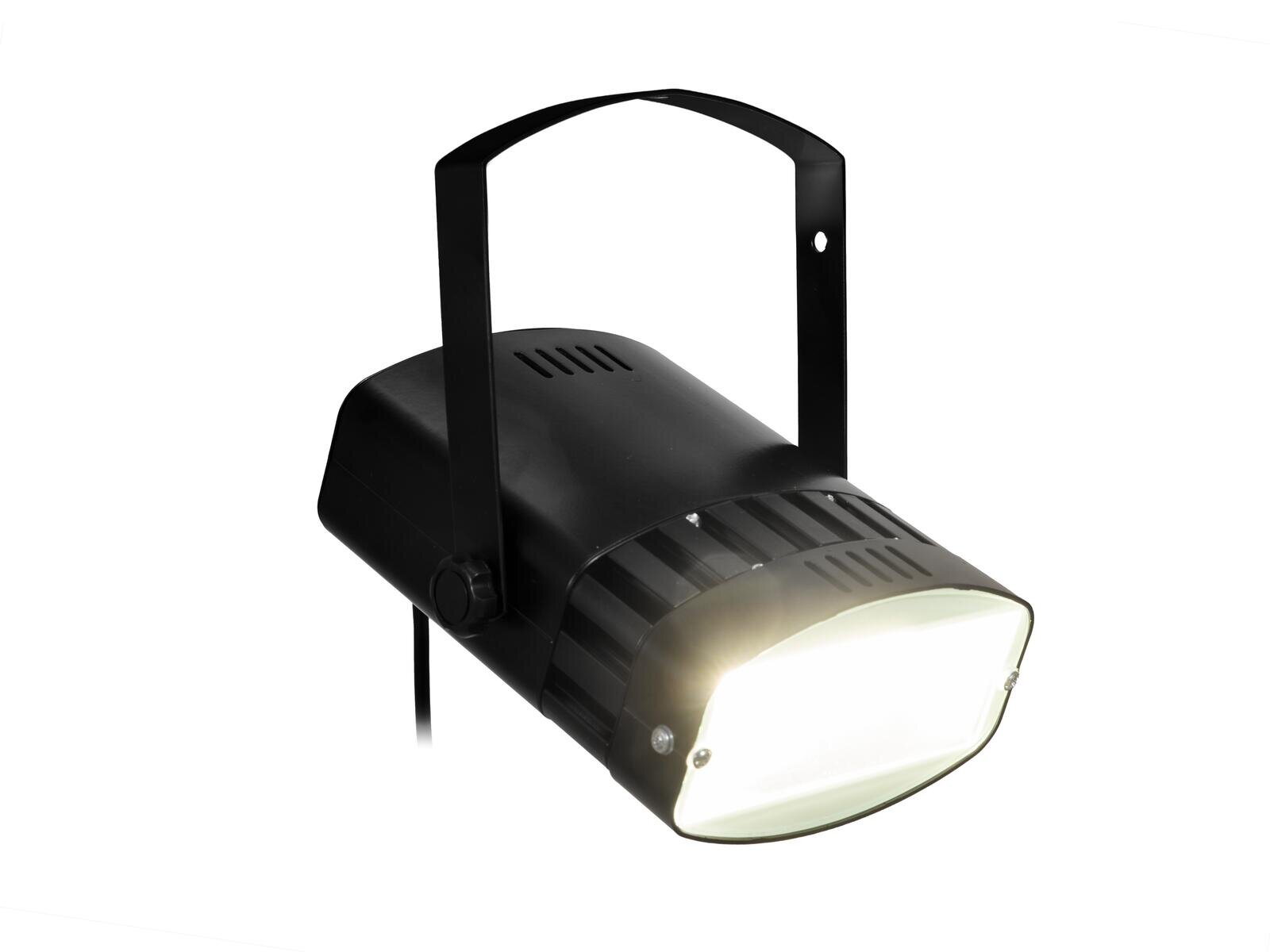

High power 50 W spotlight with neutral white light
- 1 powerful LED 70 W COB (chip-on-board) neutral white (NW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 50°
- Good color rendering index (CRI)
- With mounting bracket
- For application areas such as: Trade fair and shop fitting; advertisement/Shop window; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended; on stand; wall mounting
Scope of delivery
- 1 x spotlight
- 1 x barndoor
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 0.8 m |
| Fuse: | T 1 A fuse fix on board |
| Lamp type: | LED lamp |
| LED type: | 1 x 70 W COB (chip-on-board) neutral white (NW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 50° |
| Beam angle (1/2 peak): | 50° |
| Beam angle (1/10 peak): | 90° |
| Color temperature: | 4100K |
| Color rendering index (CRI): | 82 Ra |
| Illuminance in Lux (lx): | 1m: 2551 lx, 3m: 348 lx, 6m: 104 lx |
| Luminous flux: | 3462 lm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting; metal |
| Color: | Black |
| Dimensions: | Length: 21.0 cm Width: 20.5 cm Height: 22.0 cm |
| Weight: | 2.00 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | G |
| EPREL-Nr: | 1509814 |
| Barndoor | |
| Diameter mounting holes: | 2 x Ø4mm |
| Material: | Metal, 1 mm |
| Color: | Black, matte |
| Dimensions: | Width: 20 cm Depth: 2.3 cm Height: 14.3 cm |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 1 x Ø8mm |
| Material: | Metal, 2 mm |
| Angle | |
| Diameter mounting holes: | 6 x Ø4mm; 1 x Ø10mm |
| Material: | Metal, 2.5 mm |
| Color: | Silvergrey |
| Dimensions: | Length: 10.5 cm Width: 2.8 cm |
