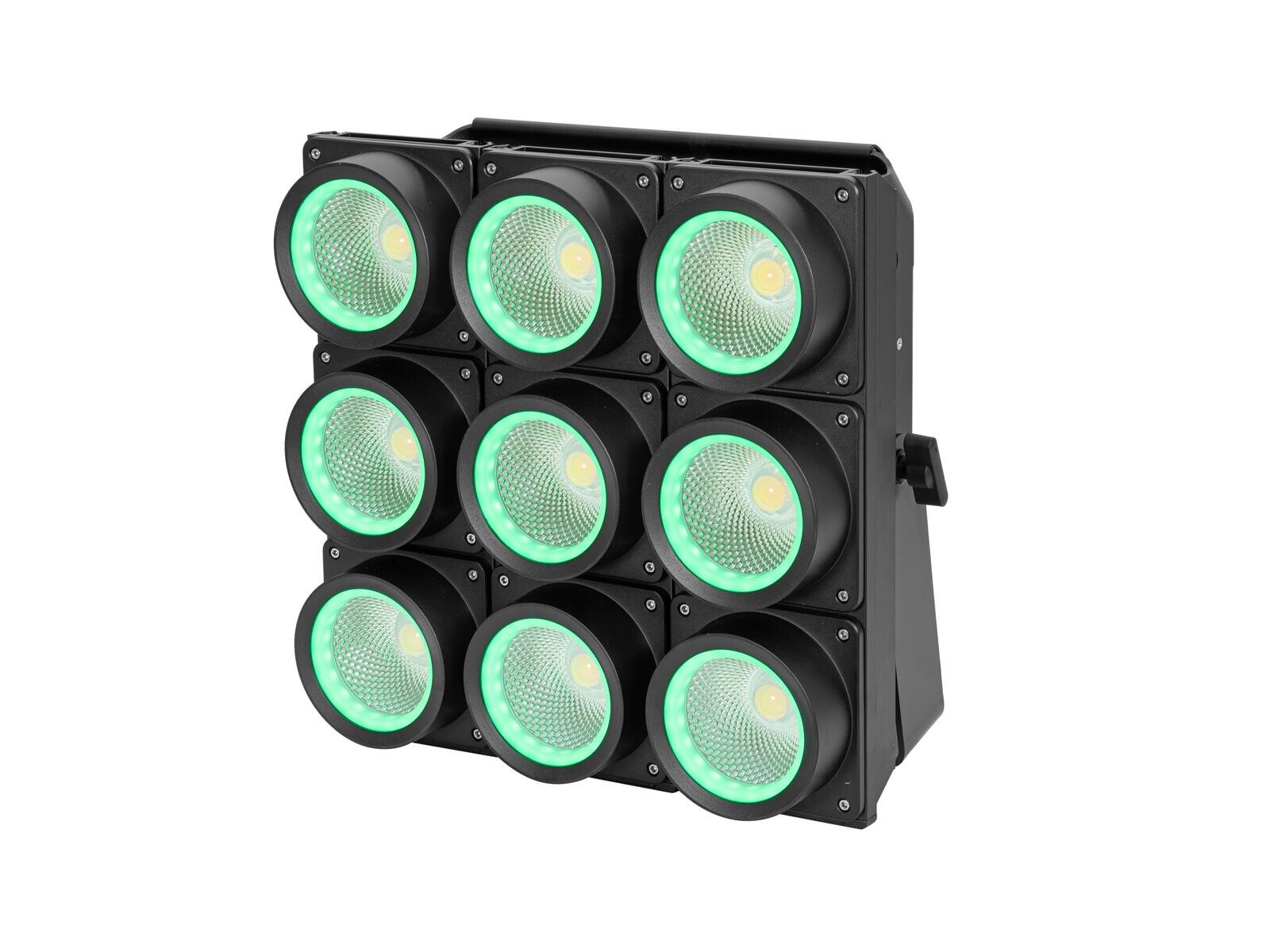

Weather-proof blinder with pixel control and atmo cluster
- Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
- One RGB LED segment is directed towards the front, one towards the reflector
- 360 powerful LEDs 0.2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
18 segments controlled separately - 9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
LEDs controlled separately - Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
- Strobe effect
- 15 integrated show programs
- The device is cooled by low-noise cooling fan
- Control via stand-alone; DMX; Art-Net; RDM; master/slave function
- Preprogrammed in Light Captain
- Flicker-free
- With a beam angle of 20°
- Variable color temperature 1800 K - 6000 K
- With mounting bracket; with omega bracket
- Multicolor LCD display
- Mains input and output for power linking up to 4 units
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
- Very quiet working noise
- Application possibility: Suspended; on stand
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 1 x XLR cable
- 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 330 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED type: | 360 x 0.2 W SMD 3528 3in1 TCL RGB (homogenous color mix) 9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix) |
| DMX channels: | 13; 18; 72; 85 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Low-noise cooling fan |
| Control: | Stand-alone; DMX; Art-Net; RDM; master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 58° |
| Color temperature: | 1800K - 6000K adjustable |
| Housing color: | Black |
| Attachment system: | Mounting bracket 2x omega bracket |
| Display type: | Multicolor LCD display |
| Connections: | 2 x RJ-45 (F) mounting version |
| Dimensions: | Width: 37.7 cm Depth: 20.5 cm Height: 38.4 cm |
| Weight: | 13.65 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
