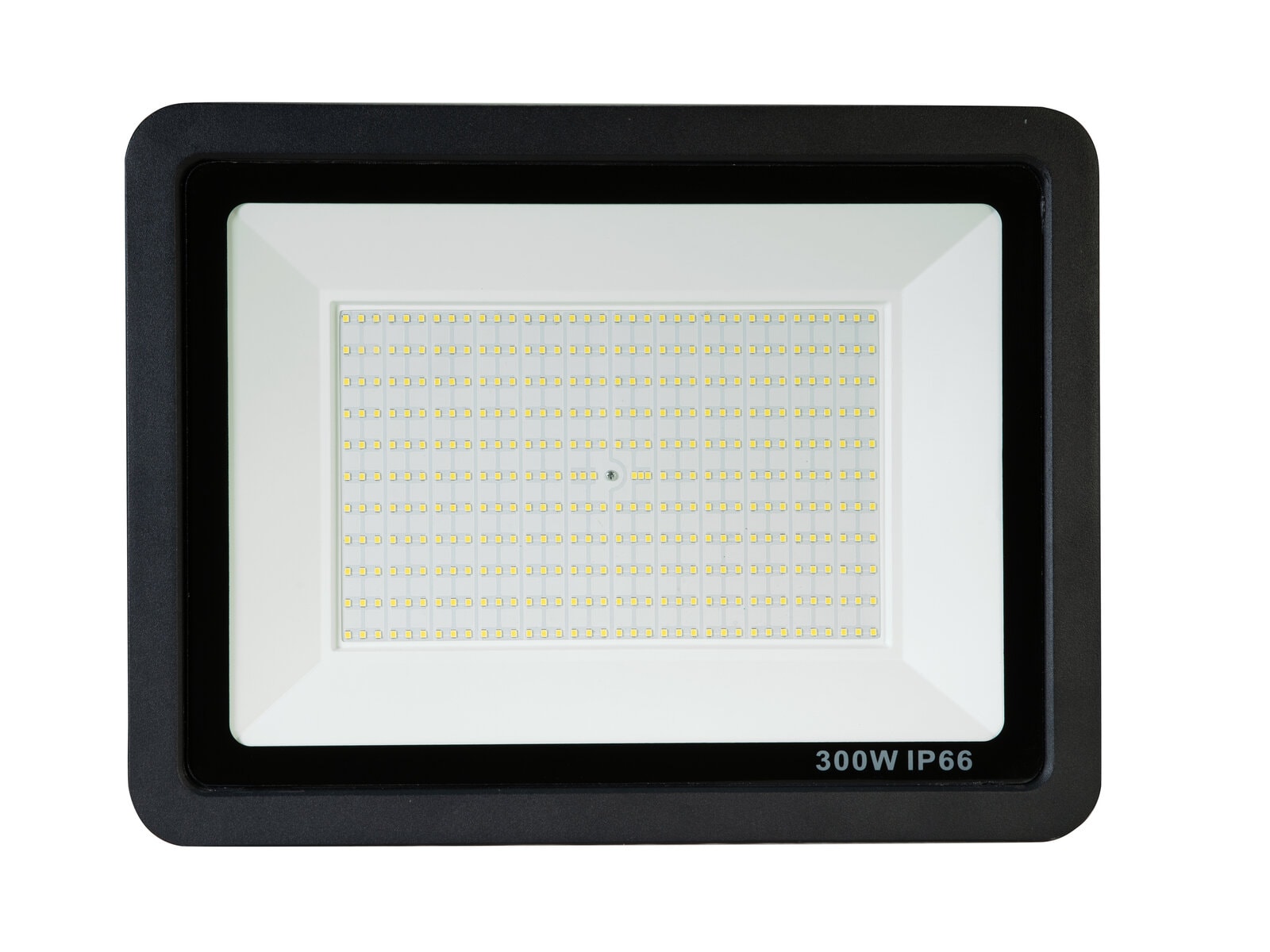

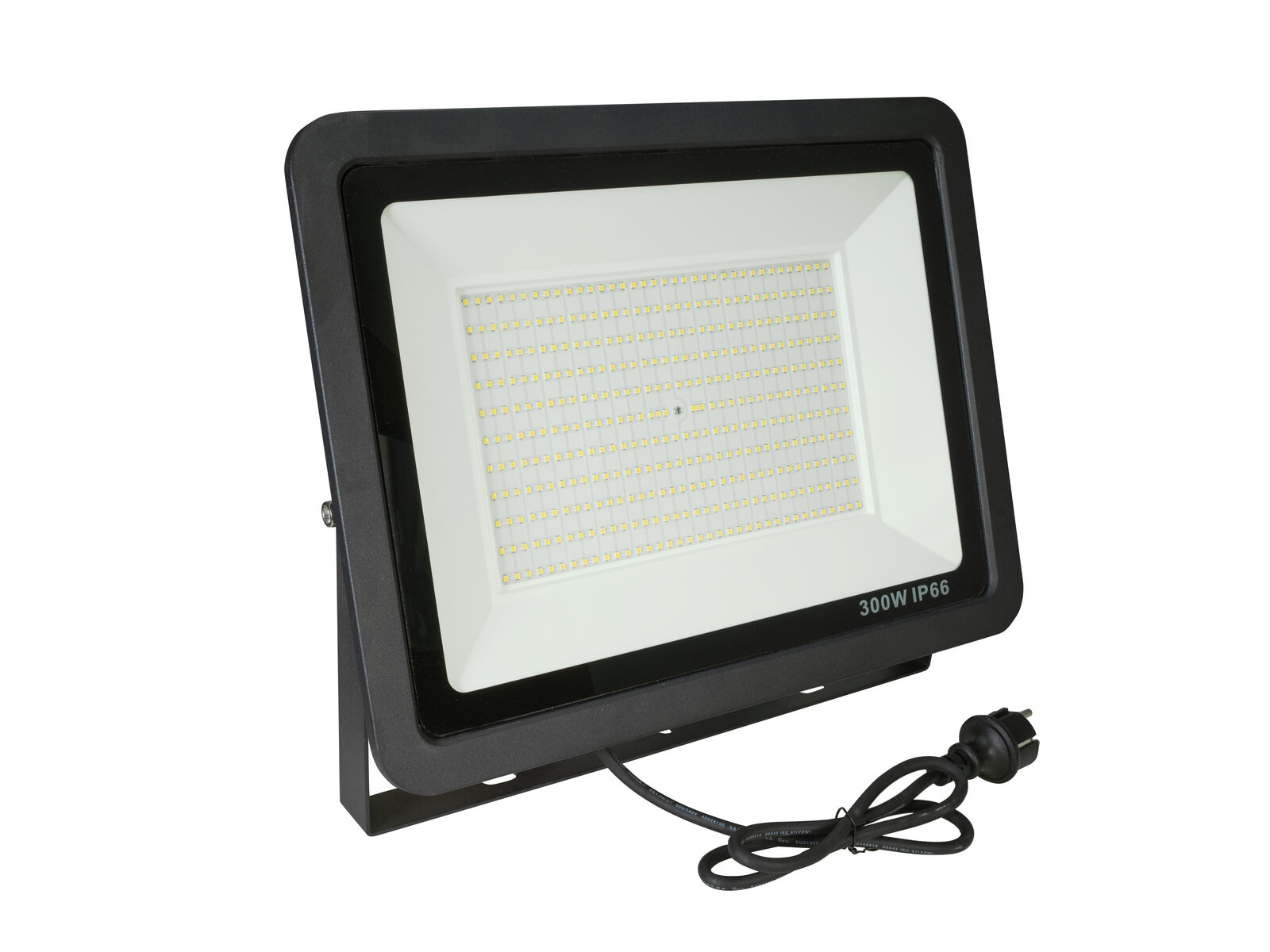

Flat outdoor floodlight (IP66) with white SMD LEDs

• 396 powerful LEDs SMD 2835 warm white (WW)
• The device is cooled by passive convection cooling
• Control via plug and play
• Good color rendering index (CRI)
• With Mounting bracket
• Suitable for outdoor use IP66
• Various versions available
• Silent operation
• With pressure compensation membrane

Package contents

• 1 x device, 1 x user manual

Power supply:
230 V AC, 50 Hz
Power consumption:
310 W
IP classification:
IP66
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 1,0 mm² H05RN-F
Cable length:
Approx. 1 m
Lamp type:
LED lamp
LED:
396 x SMD 2835 warm white (WW)
Color temperature:
3000K
Cooling:
Passive convection cooling
Control:
Plug and play
Beam angle (1/2 peak):
70°
Beam angle (1/10 peak):
120°
Color rendering index (CRI):
81 Ra
Luminous flux:
26578 lm
Housing color:
Black matte
Attachment system:
Mounting bracket
Material:
Aluminum casting
Dimensions:
Width: 44,5 cm
Depth: 4,7 cm
Height: 37,5 cm
Weight:
4,00 kg
Noise classification:
Class 0 (no noise at all)
Energy efficiency class (A - G):
F
Mounting bracket
Diameter mounting holes:
3 x Ø10mm
Material:
Metal, 3 mm
