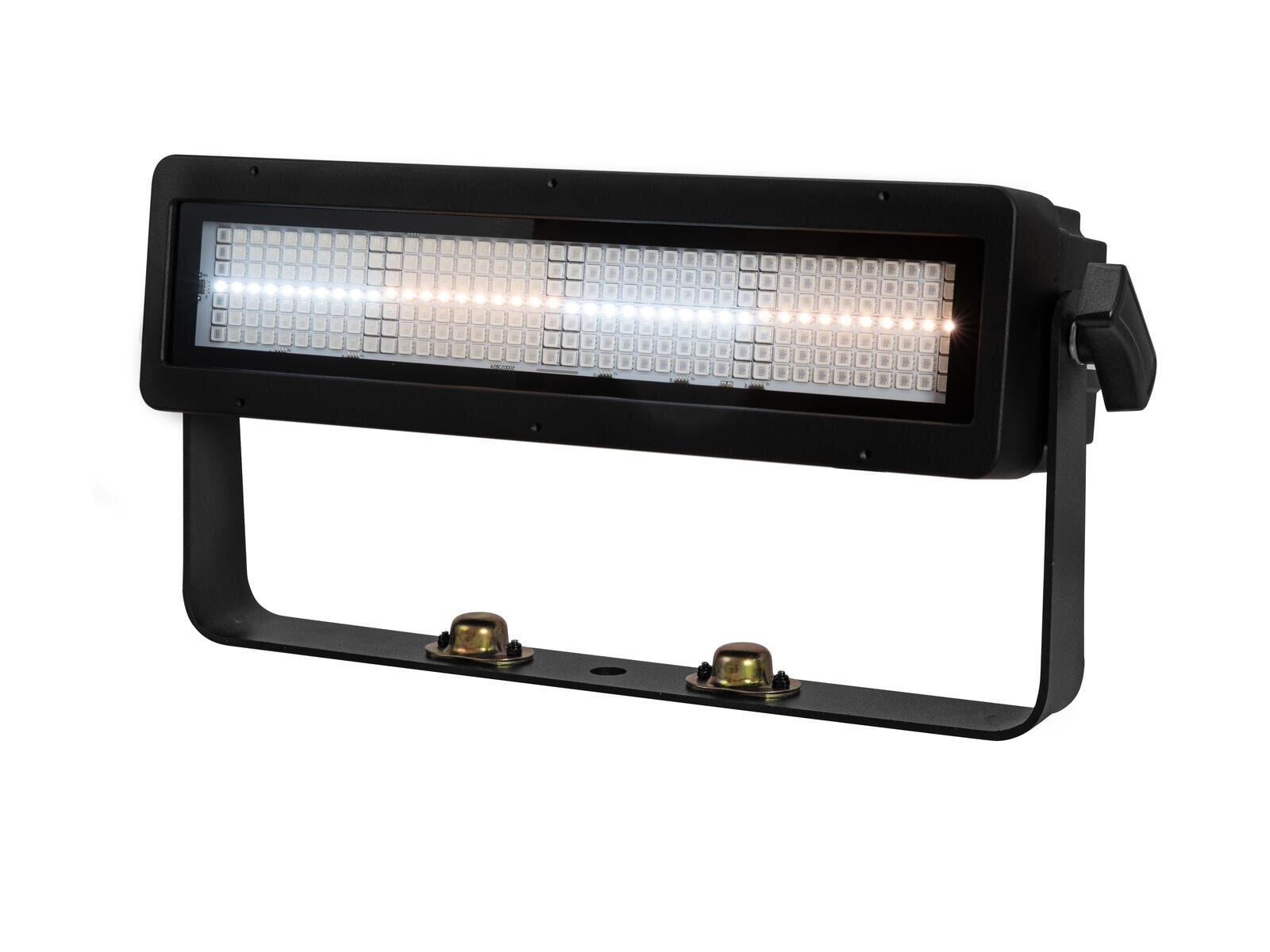

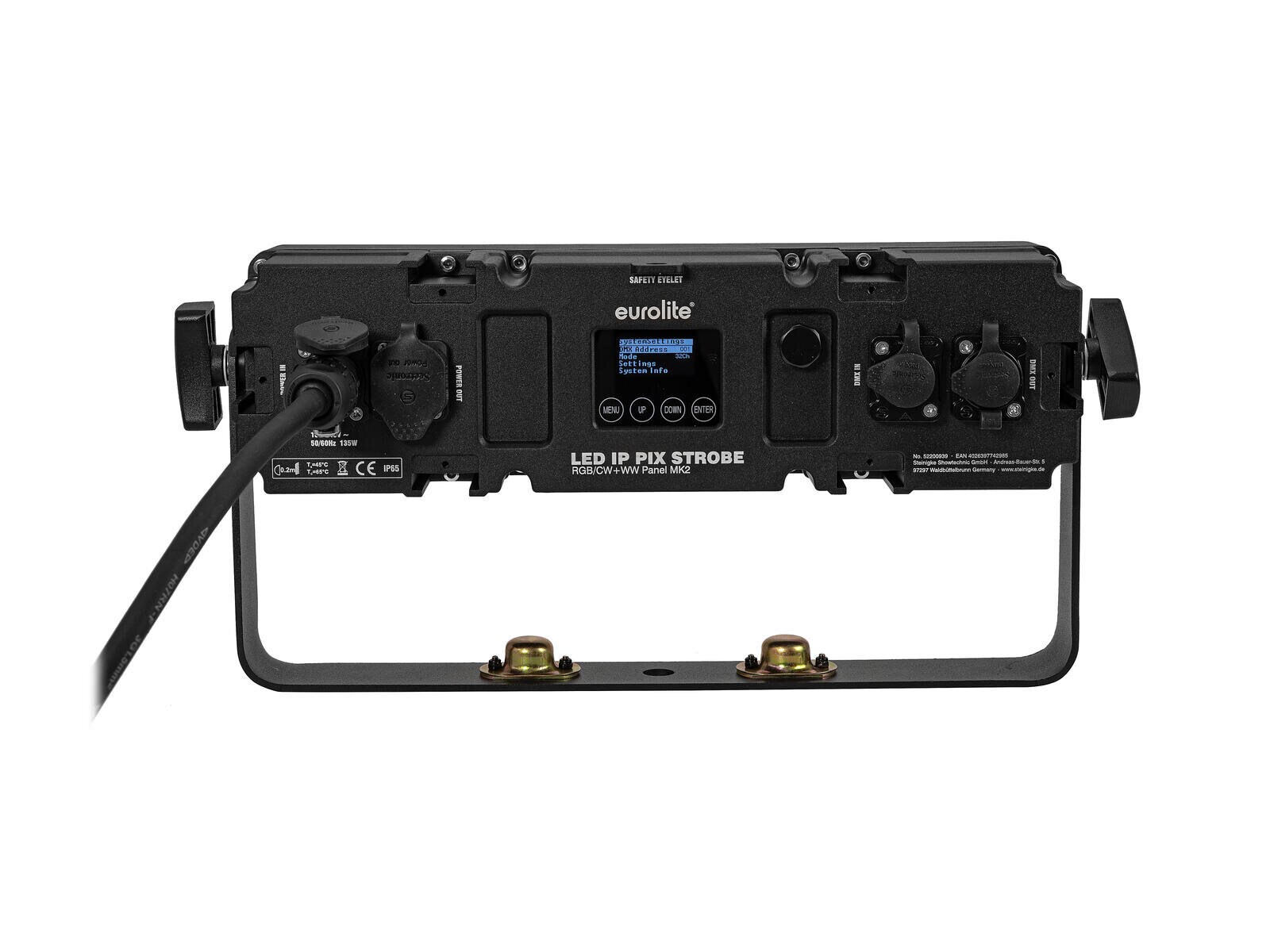

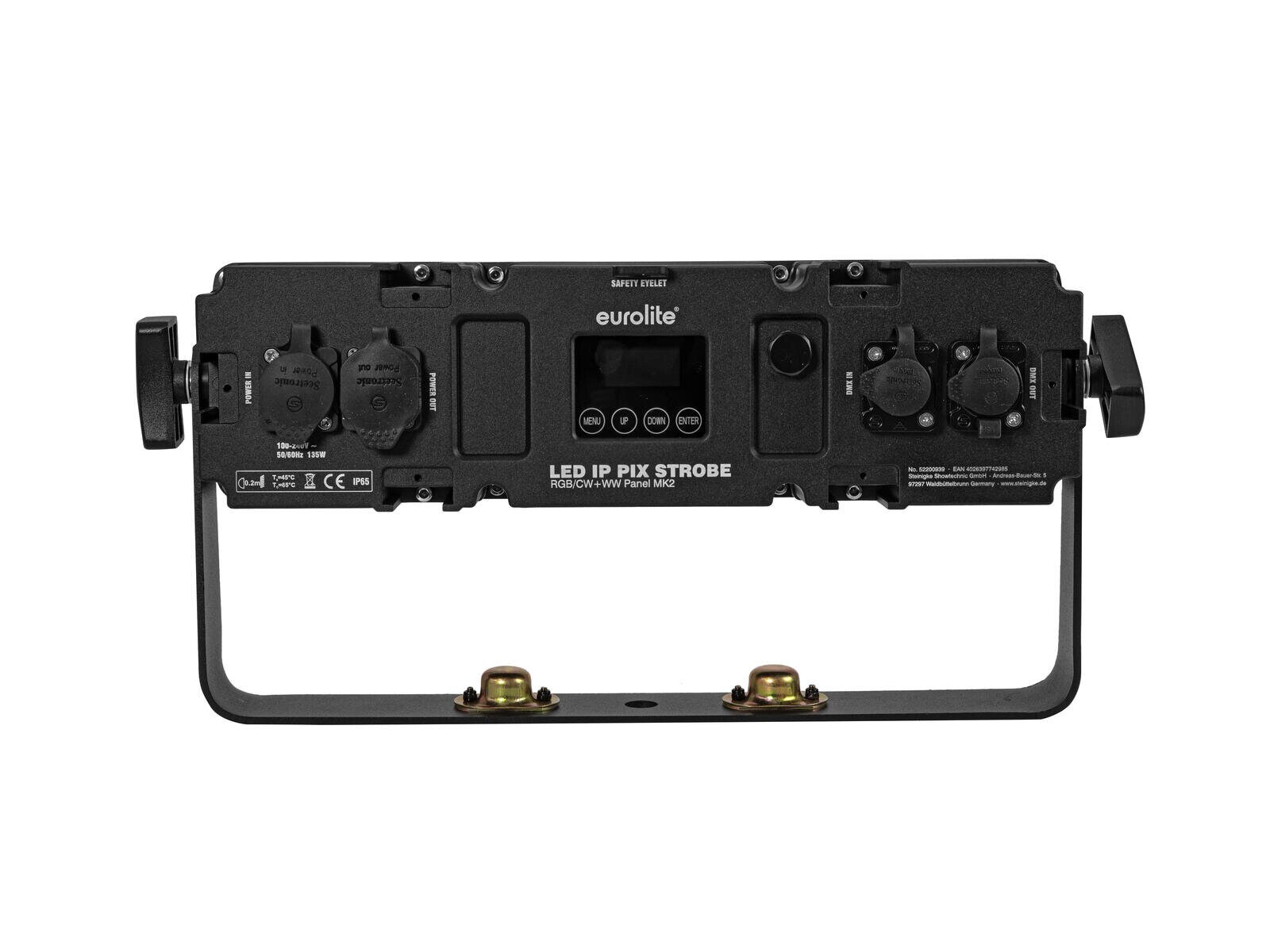

Outdoor spotlight (IP65) for stroboscope, ambient and animation effects
- Compact and bright
- Show programs for white and colored LEDs on separate DMX channels
- 240 powerful LEDs 0.5 W SMD 5050 3in1 TCL RGB
8 segments controlled separately - 40 powerful LEDs 1 W SMD 3030 2in1 BCL CW/WW
4 segments controlled separately - Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; color animations with two adjustable colors
- 20 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light via microphone; master/slave function; DMX
- Preprogrammed in Light´J; Light Captain
- Flicker-free
- With a beam angle of 120°
- Variable color temperature 3200 K - 6600 K
- With mounting bracket; with omega bracket
- OLED display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; theater; rental; architecture
- Silent operation
- Application possibility: Standing; suspended
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 135 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | T 5 A fuse fix in power supply |
| Lamp type: | LED lamp |
| LED type: | 240 x 0.5 W SMD 5050 3in1 TCL RGB 40 x 1 W SMD 3030 2in1 BCL CW/WW |
| Flash rate: | 1 - 25 Hz |
| DMX channels: | 6; 10; 18; 24; 25; 32 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; master/slave function; DMX |
| Preprogrammed in: | Light´J; Light Captain |
| Projection: | Flicker-free |
| PWM frequency: | 4000 Hz |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color temperature: | 3200K - 6600K adjustable |
| Housing color: | Black |

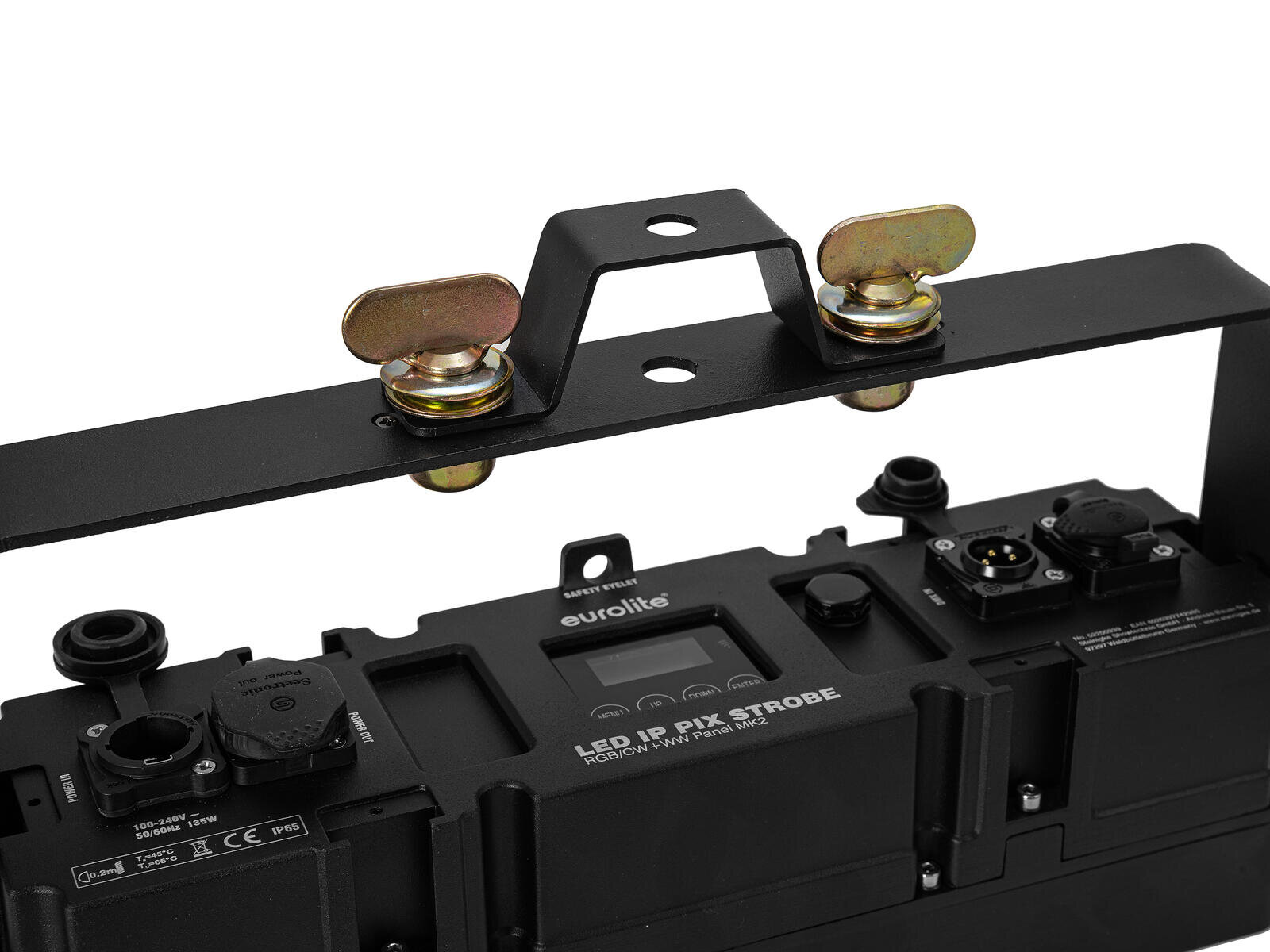

| Attachment system: | Mounting bracket Omega bracket |
| Display type: | OLED display |
| Use of brands: | Built with SEETRONIC connector |
| Dimensions: | Length: 38 cm Depth: 11 cm Height: 17.6 cm |
| Weight: | 3.68 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø13mm |
| Material: | Metal, 3 mm |
| Power cord | |
| Cable construction: | 3 x 1.5 mm² H07RN-F |
| Cable length: | Approx. 1.2 m |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
