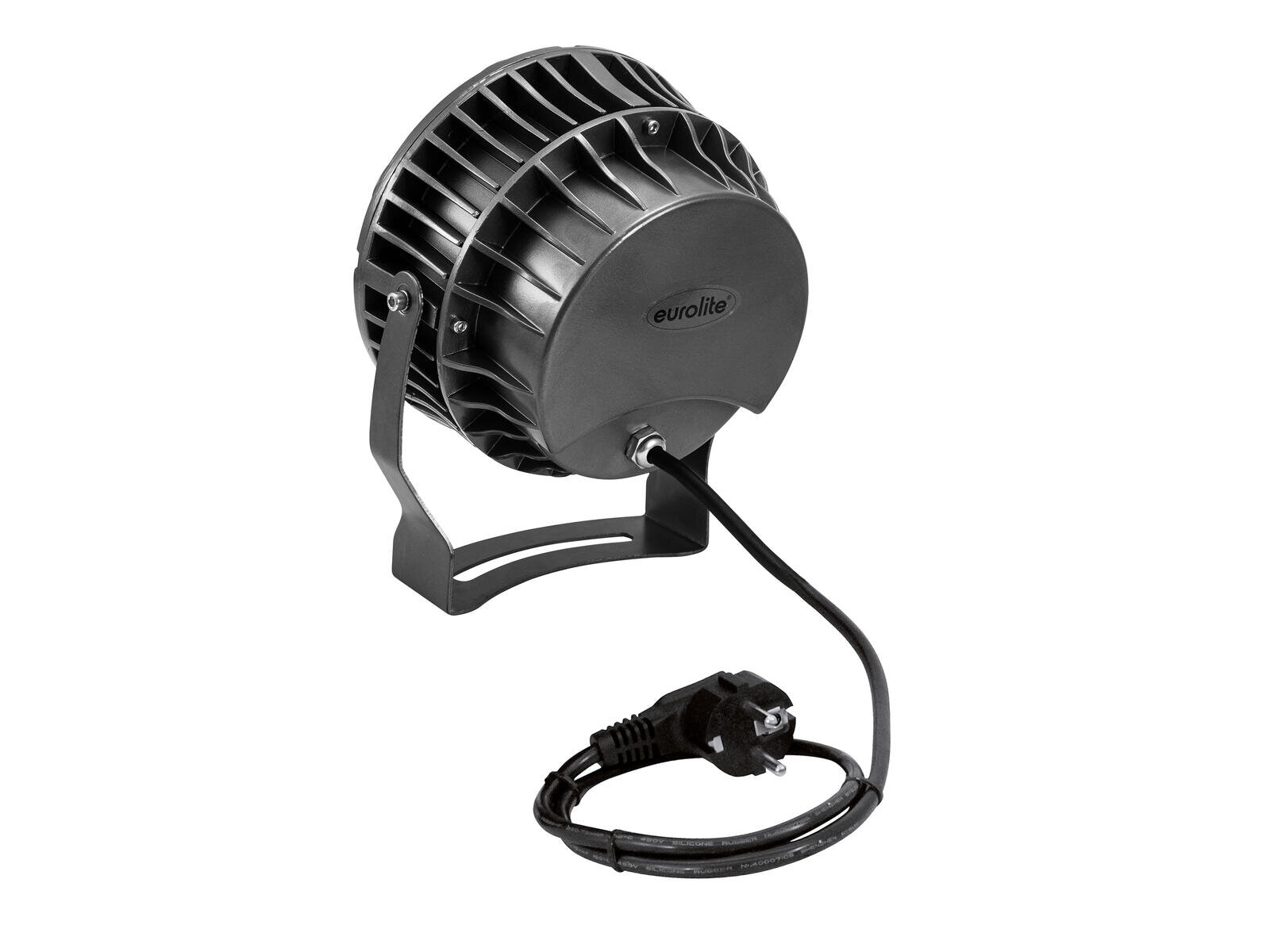

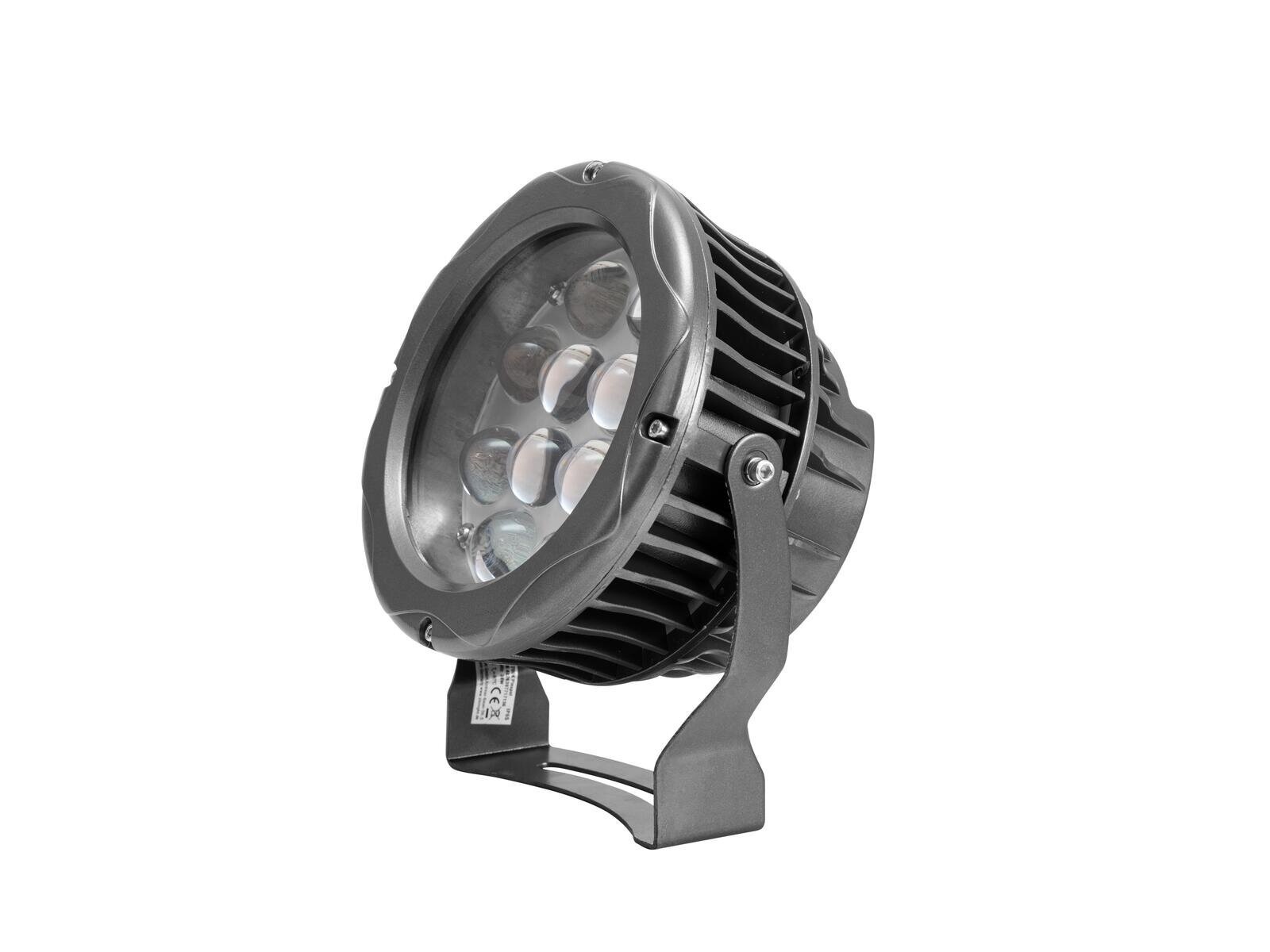

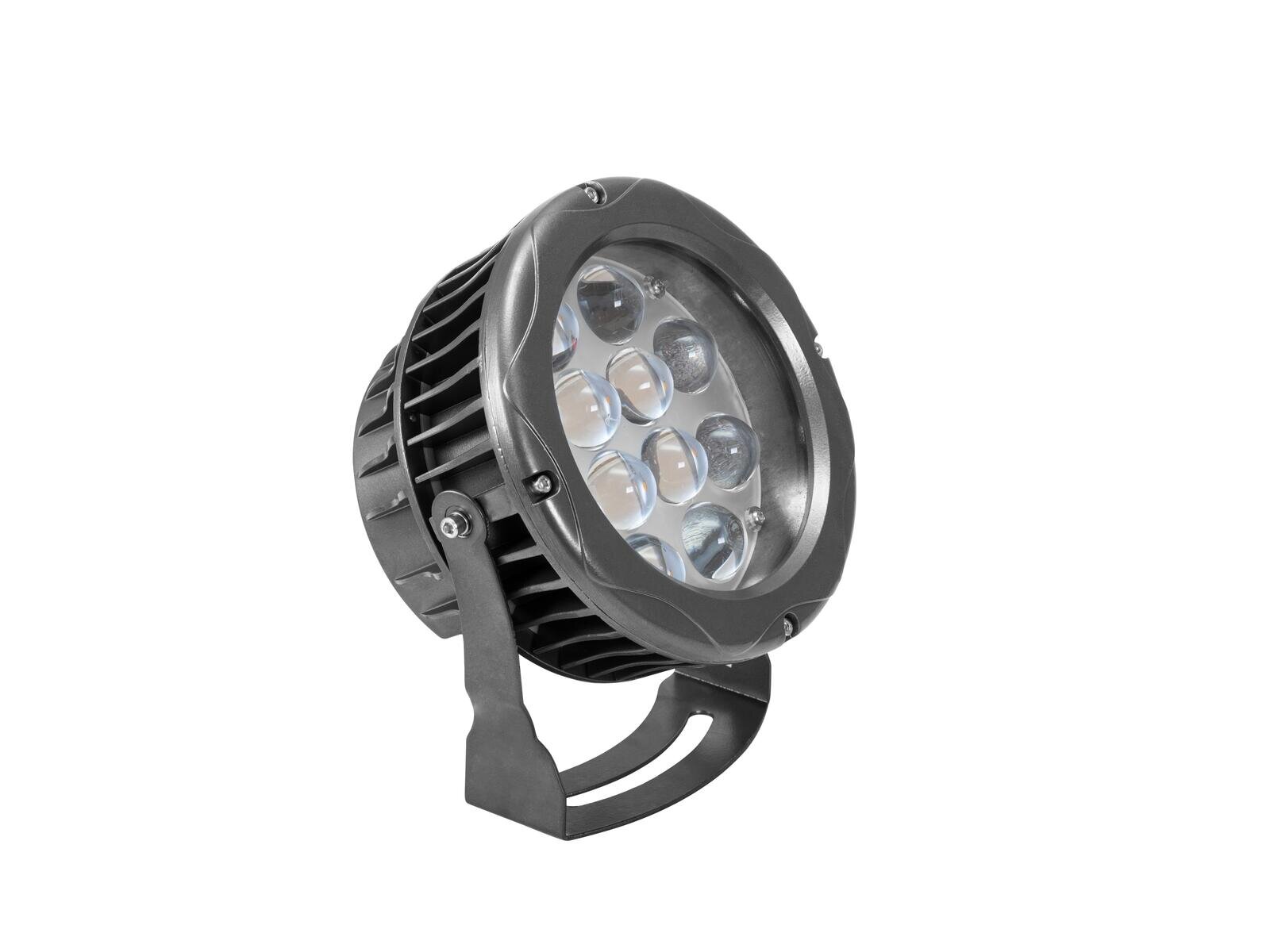

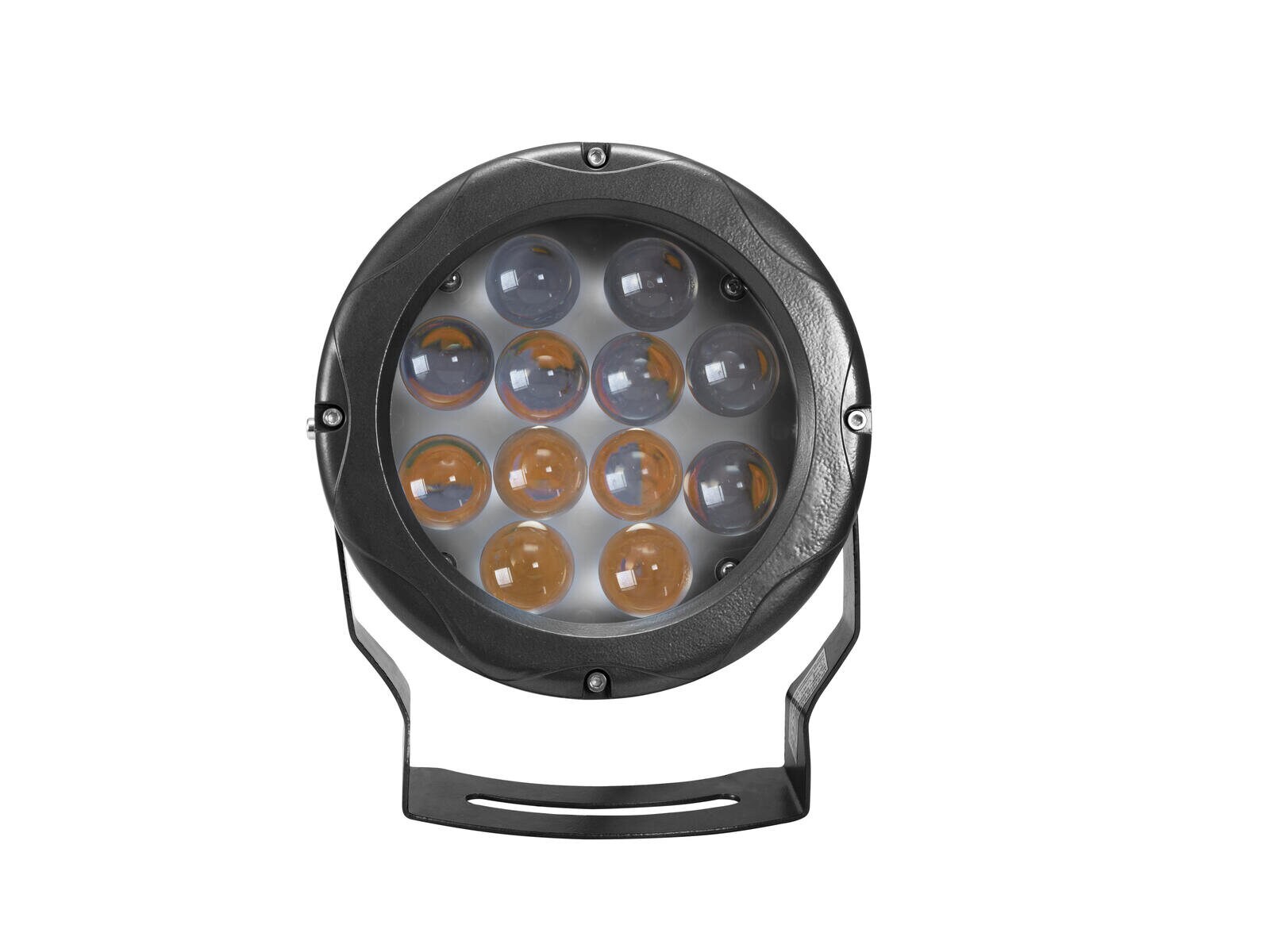

Weather-proof pinspot (IP65) with 12 strong 3 W LEDs in cold white (CW)
- Compact aluminum housing
- 12 powerful LEDs SMD 3535 cold white (CW)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 3°
- With mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Architecture; clubs/dancing school; decoration; Trade fair and shop fitting; restaurants, bars and hotels; video and photography
- Silent operation
Scope of delivery
- 1 x spotlight
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 38 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 1.0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED type: | 12 x SMD 3535 cold white (CW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 4° |
| Color temperature: | 6400K |
| Illuminance in Lux (lx): | 1m: 80787 lx, 3m: 15252 lx, 6m: 4364 lx |
| Luminous flux: | 1906 lm |
| Housing color: | Grey matte |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Length: 12.5 cm Width: 19 cm Height: 22.5 cm Diameter: Ø 18 cm |
| Weight: | 2.22 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A - G): | G |
| EPREL-Nr: | 1509800 |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm |
| Material: | Metal, 2 mm |
