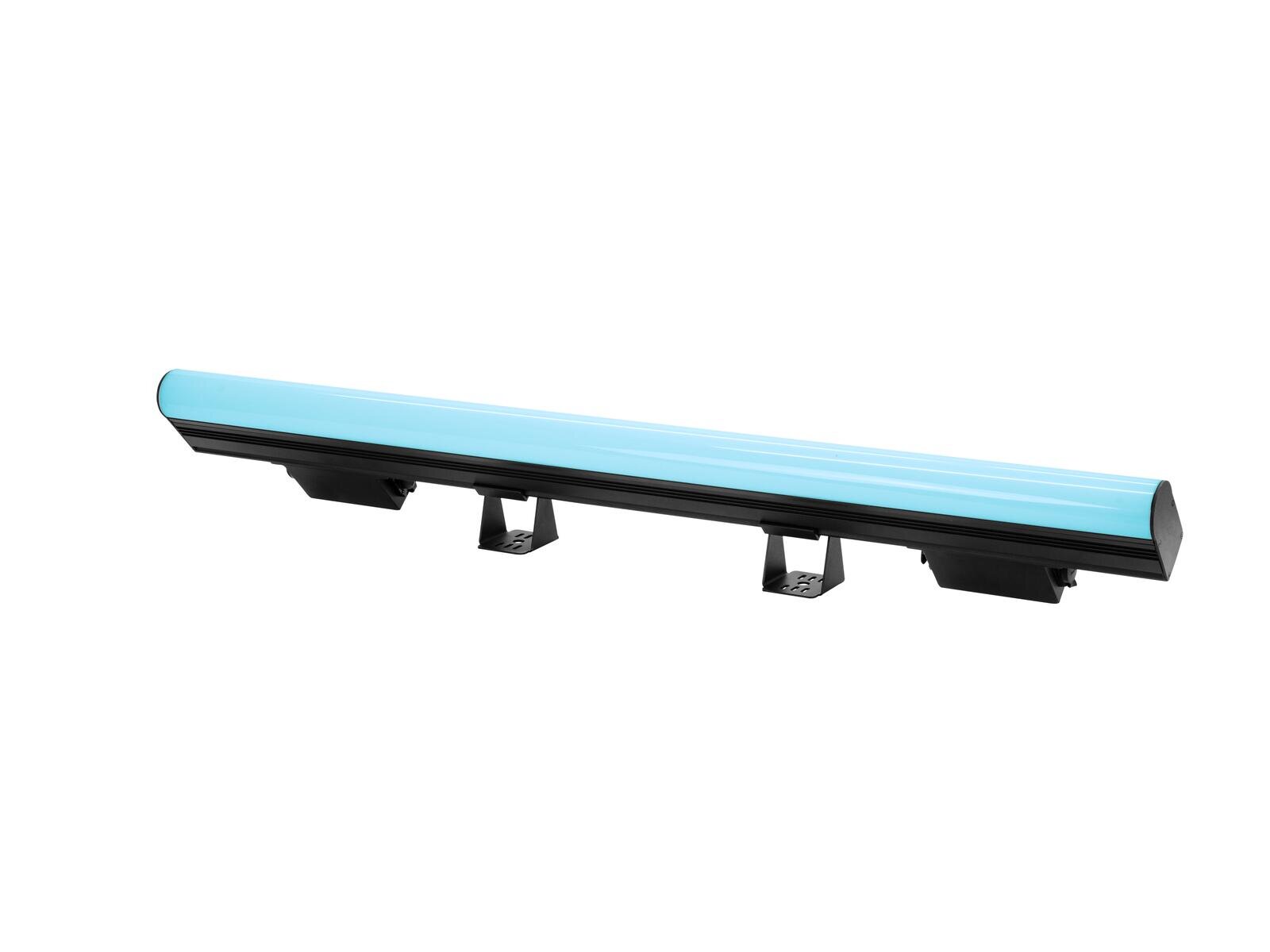

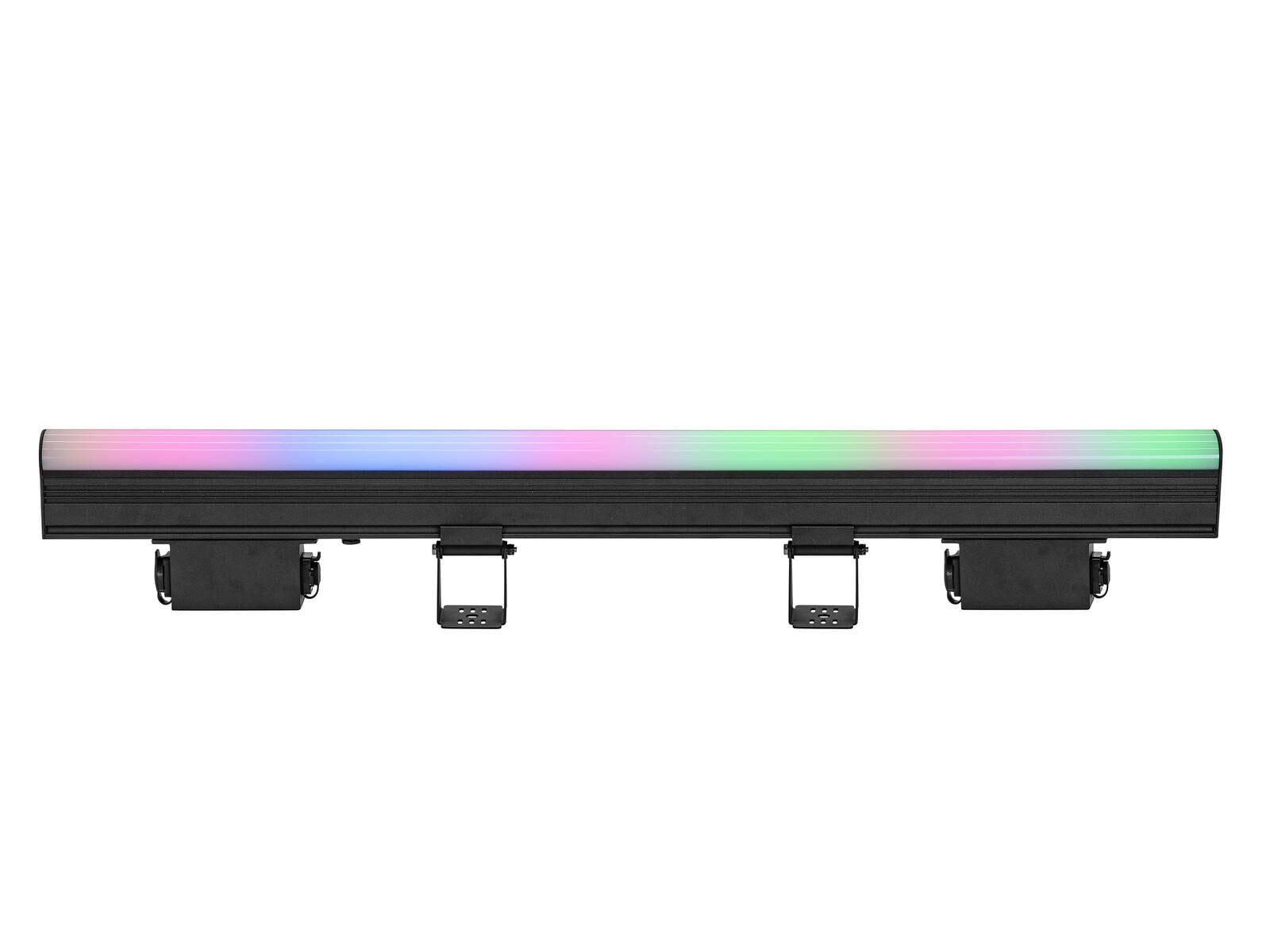

Weather-proof DMX pixel tube with RGB/WW color mixing
- 102 powerful LEDs 0.5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
34 segments controlled separately - Color change adjustable; Dimmer electronic; program speed adjustable; color animations with two adjustable colors
- 12 integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; master/slave function
- Preprogrammed in Light Captain; Colorchief
- Flicker-free
- With a beam angle of 120°

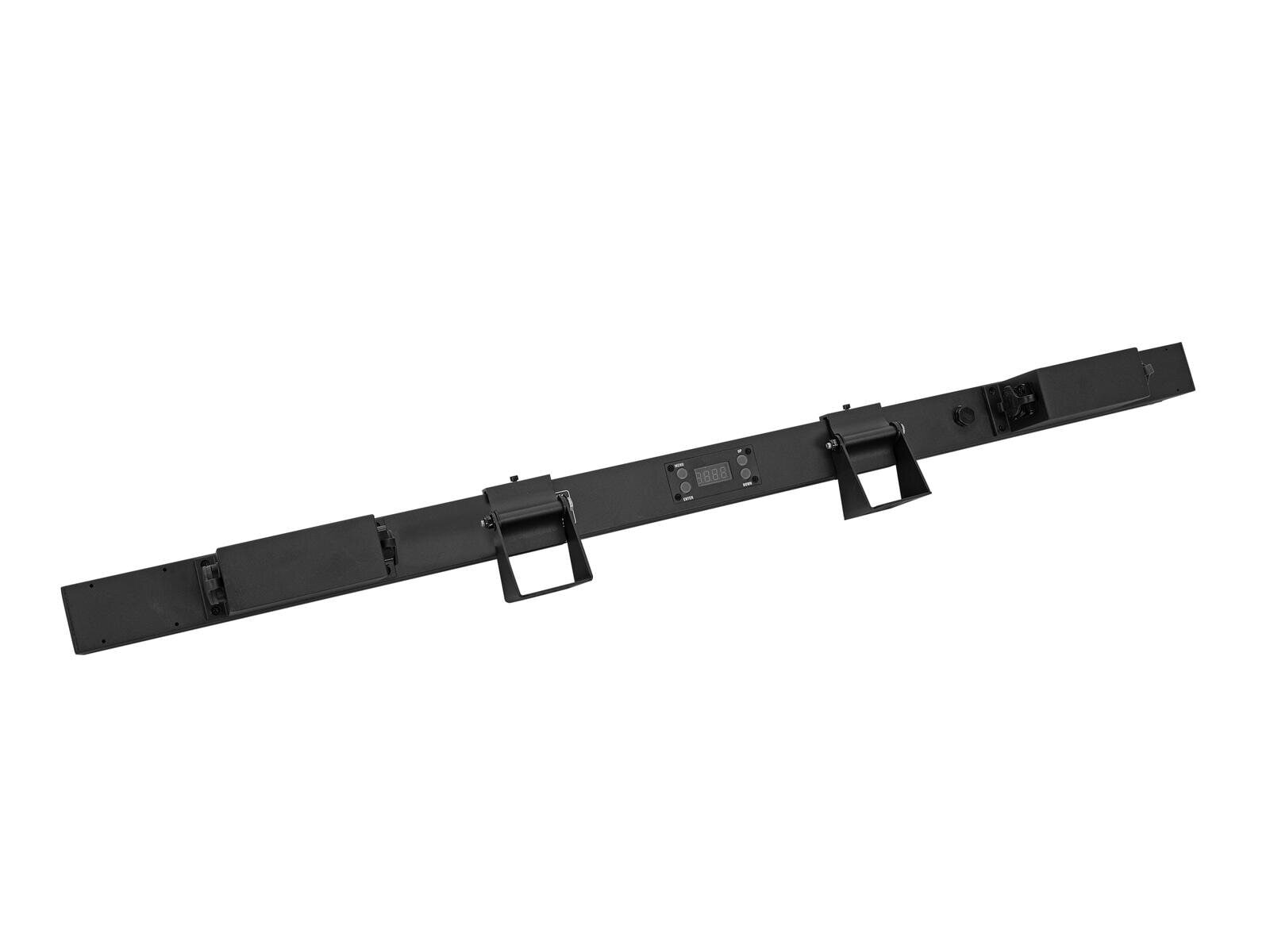

- With mounting bracket

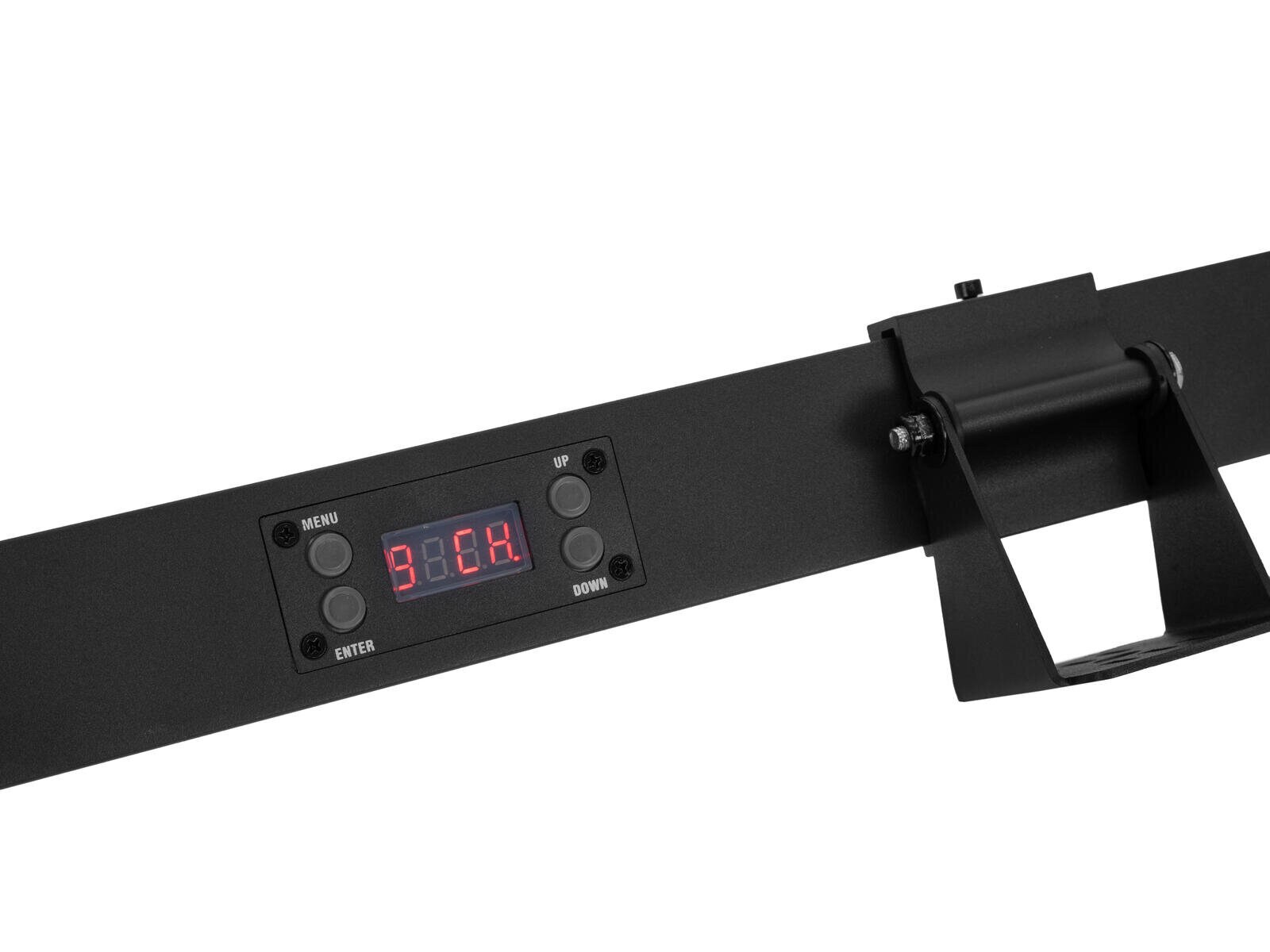

- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- Suitable for outdoor use IP65
- For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
- Silent operation
- Application possibility: Suspended; wall mounting
Scope of delivery
- 1 x light effect
- 1 x power cord
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 40 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Fuse: | 5 x 20 mm, F 1 A fuse serviceable |
| Lamp type: | LED lamp |
| LED type: | 102 x 0.5 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 4; 6; 9; 13; 20; 68; 136 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; master/slave function |
| Preprogrammed in: | Light Captain; Colorchief |
| Projection: | Flicker-free |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Housing color: | Black |
| Attachment system: | Ø 10mm 2x mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Length: 100.1 cm Width: 7.0 cm Height: 16.8 cm |
| Weight: | 3.84 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
