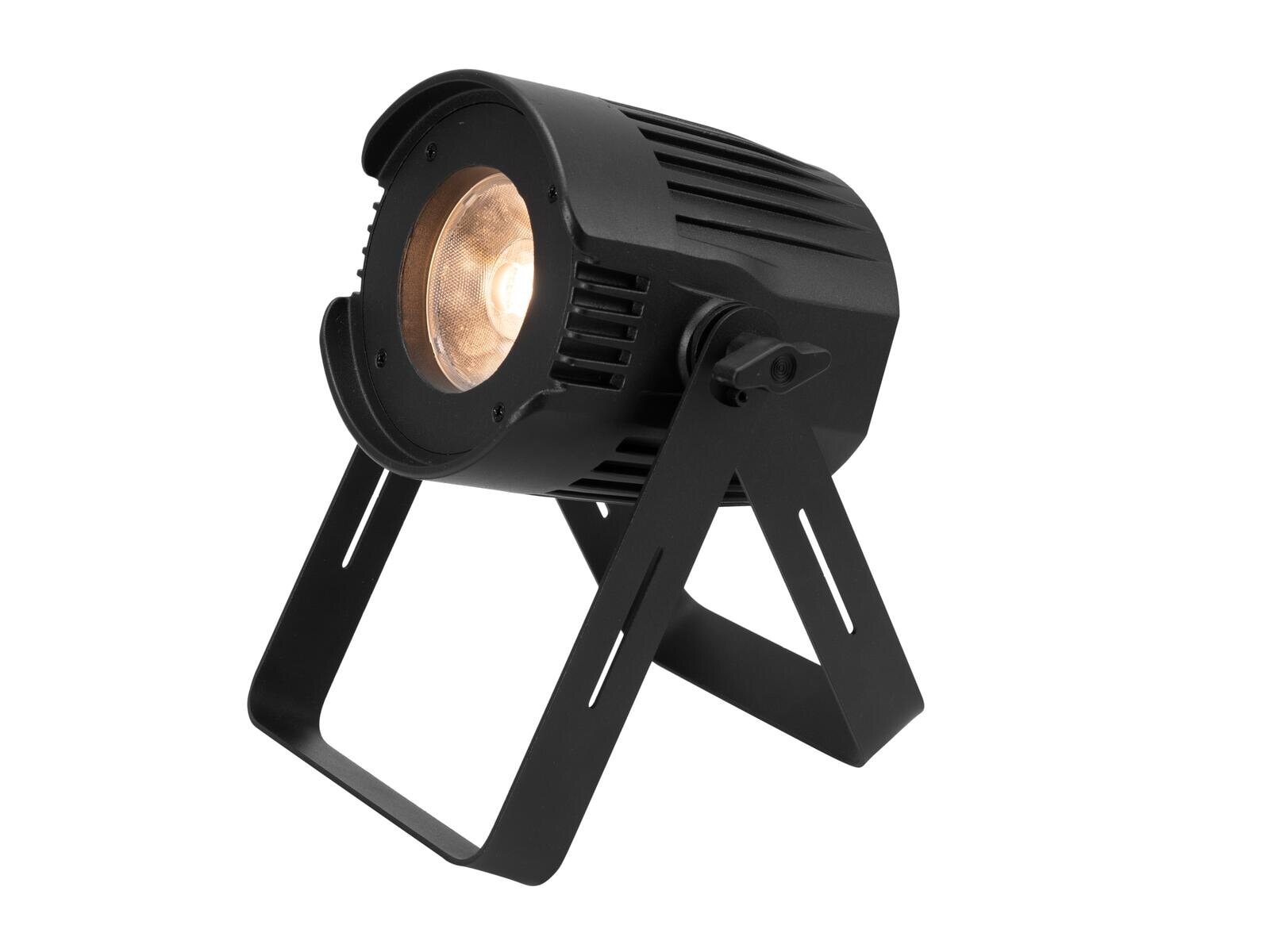

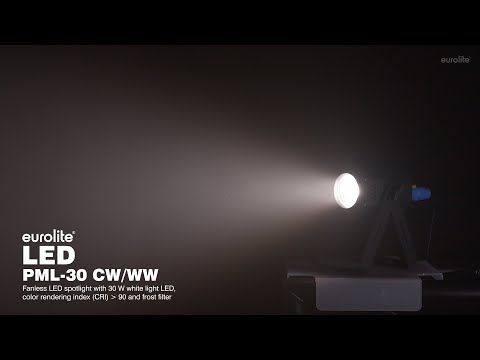

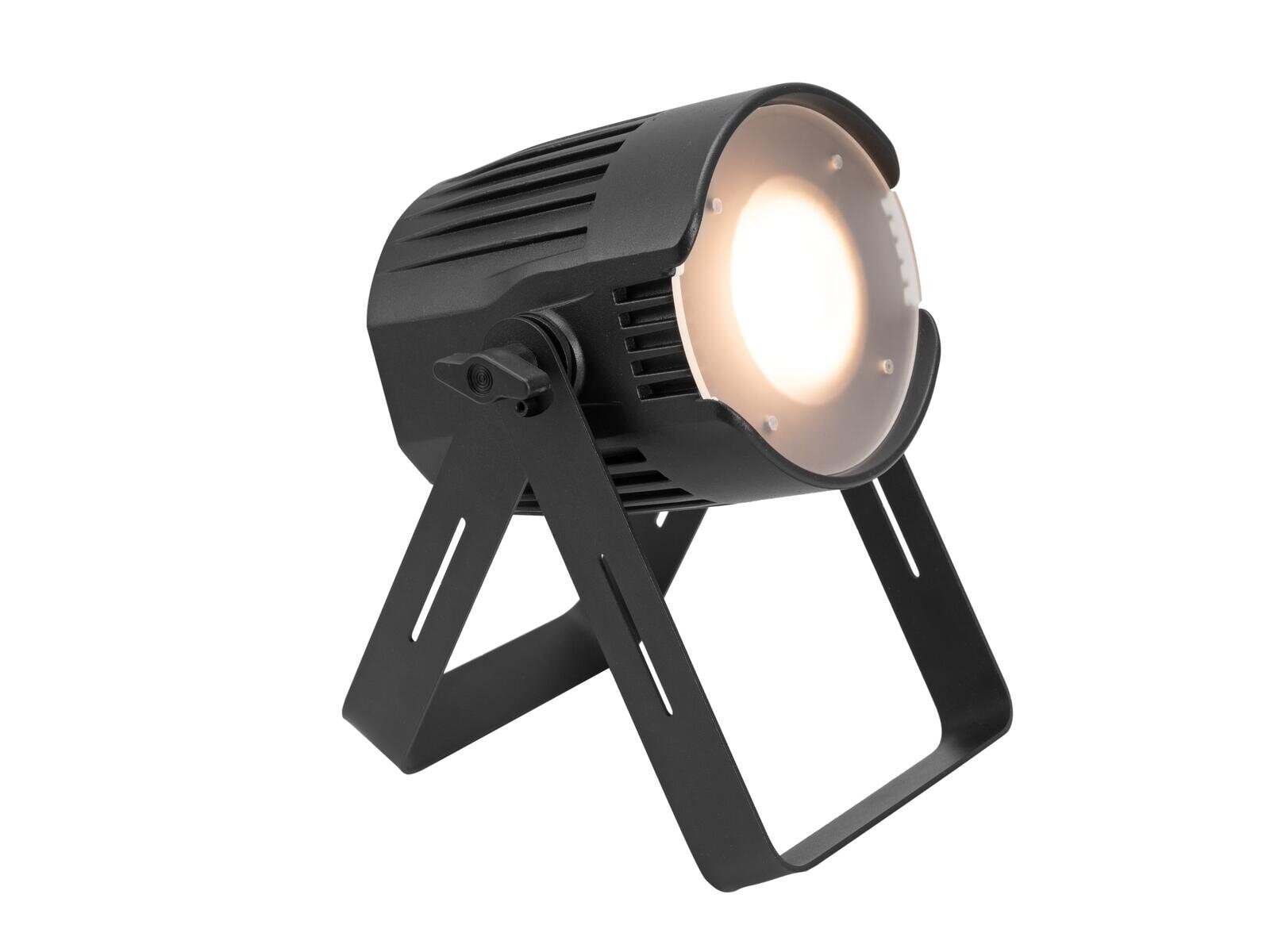

Fanless LED spotlight with 30 W white light LED, color rendering index (CRI) > 90 and frost filter
- Additional frost filter provides a wide, soft and homogeneous light
- Compact design
- 1 powerful LED 30 W COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix)
- Dimmer electronic
- Direct color selection
- The device is cooled by passive convection cooling

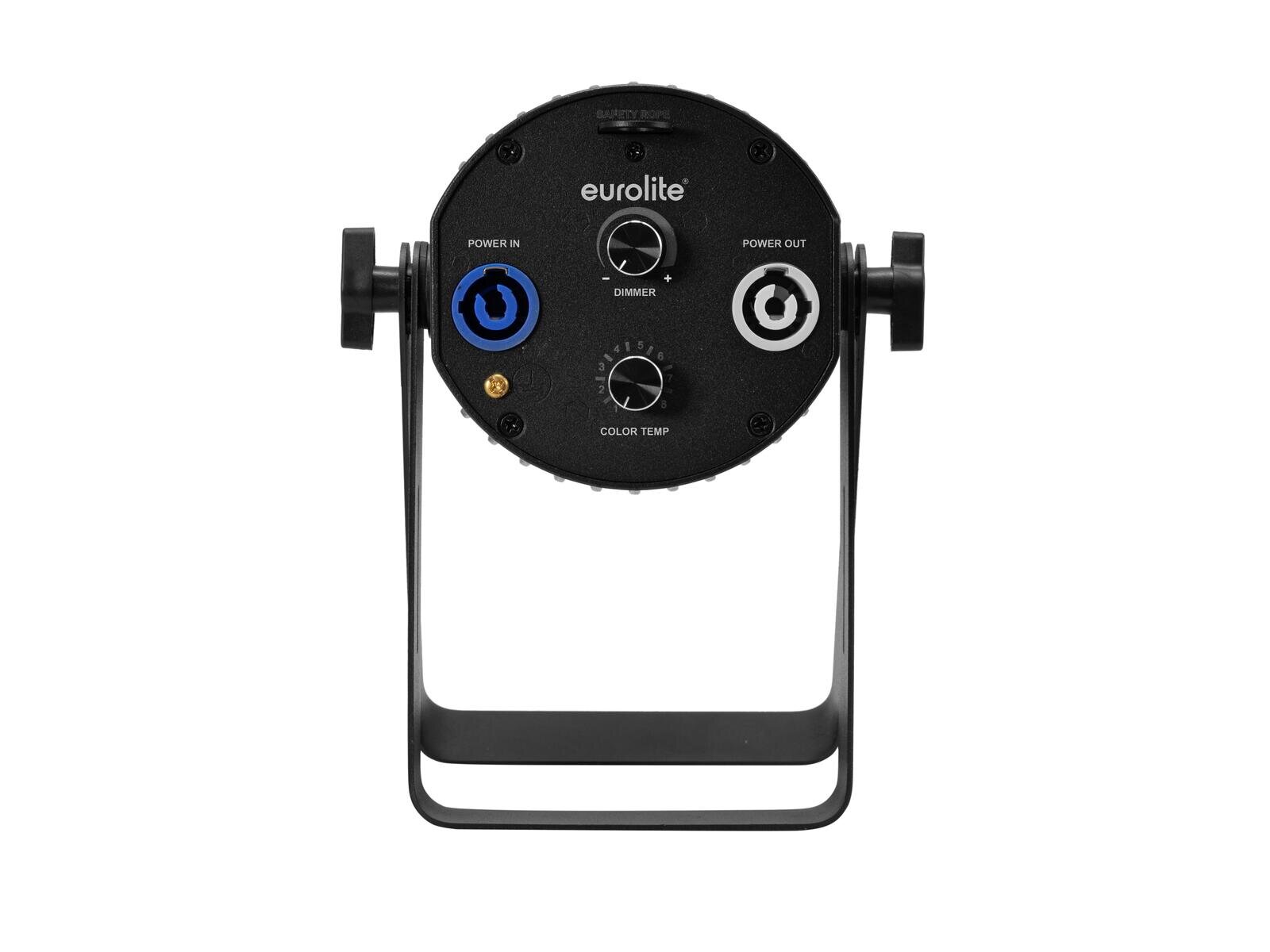

- Control via stand-alone; quick select potentiometer for brightness and color temperature
- Flicker-free
- With a beam angle of 20°
- Variable color temperature 2900 K - 5900 K
- Very high color rendering index (CRI)
- With double bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; decoration; Trade fair and shop fitting; restaurants, bars and hotels; video and photography; advertisement/Shop window
- Silent operation
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x spotlight
- 1 x user manual
- 1 x power cord

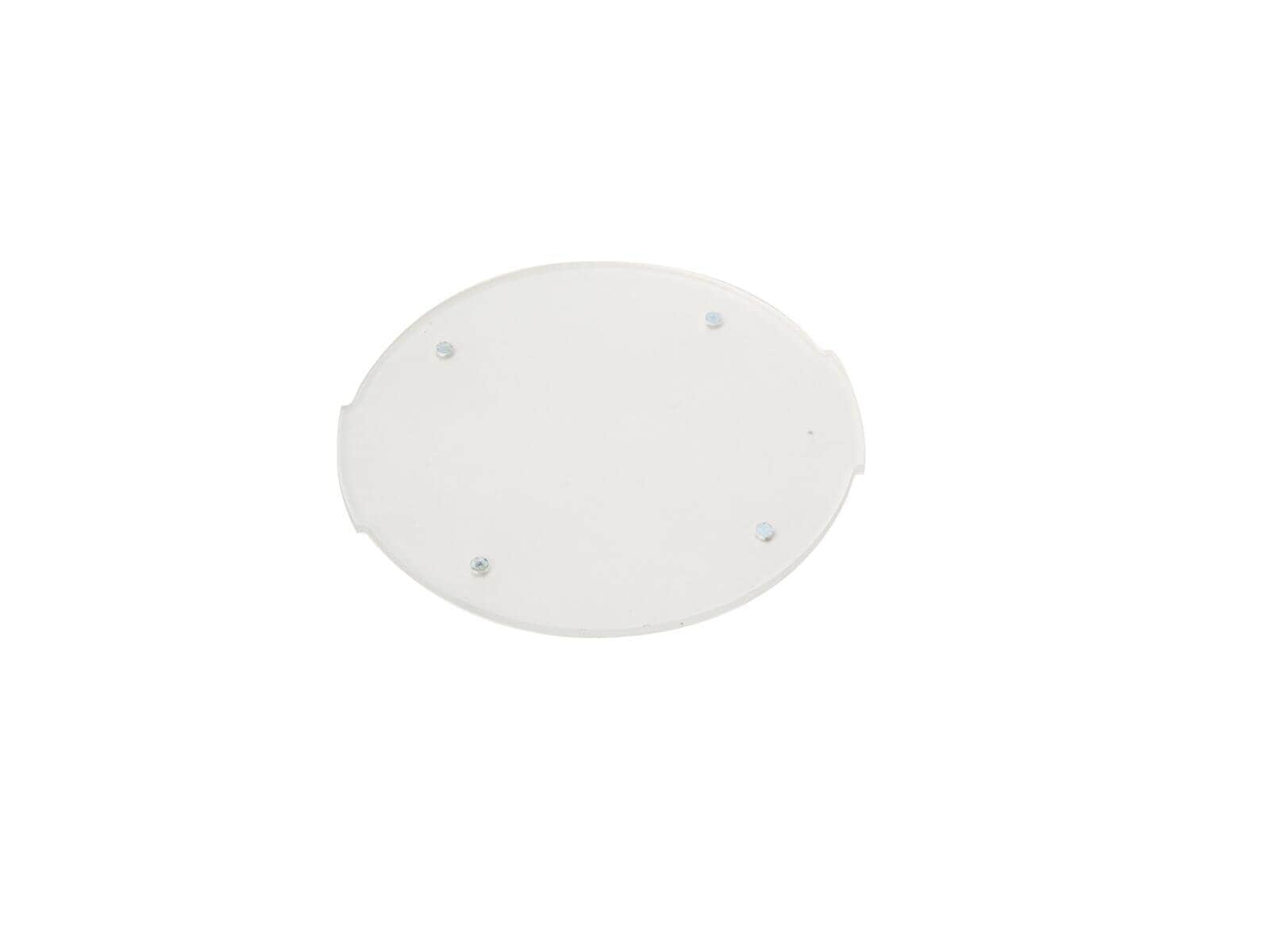

- 1 x frost filter
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 35 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

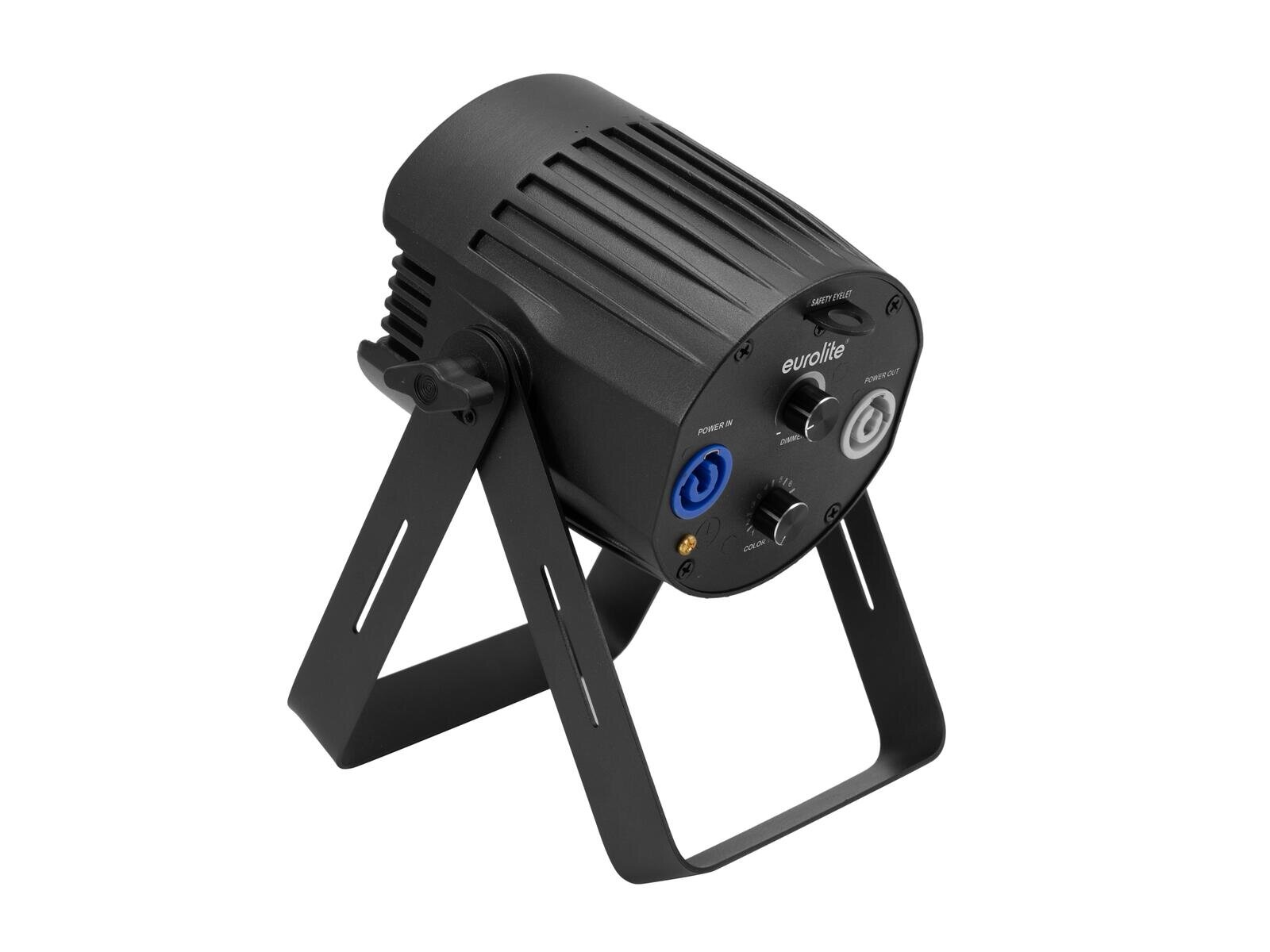

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED type: | 1 x 30 W COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix) |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; quick select potentiometer for brightness and color temperature |
| Projection: | Flicker-free |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° Frost filter 30° |
| Beam angle (1/10 peak): | 40° |
| Color temperature: | 2900K - 5900K adjustable |
| Color rendering index (CRI): | 90 Ra |
| Illuminance in Lux (lx): | Narrow cold white (CW) 1m: 14257 lx, 3m: 1387 lx, 6m: 351 lx Narrow warm white (WW) 1m: 11413 lx, 3m: 1109 lx, 6m: 281 lx Wide warm white (WW) 1m: 7289 lx, 3m: 697 lx, 6m: 175 lx Wide cold white (CW) 1m: 9107 lx, 3m: 872 lx, 6m: 218 lx |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Dimensions: | Length: 12 cm Width: 17.4 cm Height: 22.5 cm |
| Weight: | 1.89 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
