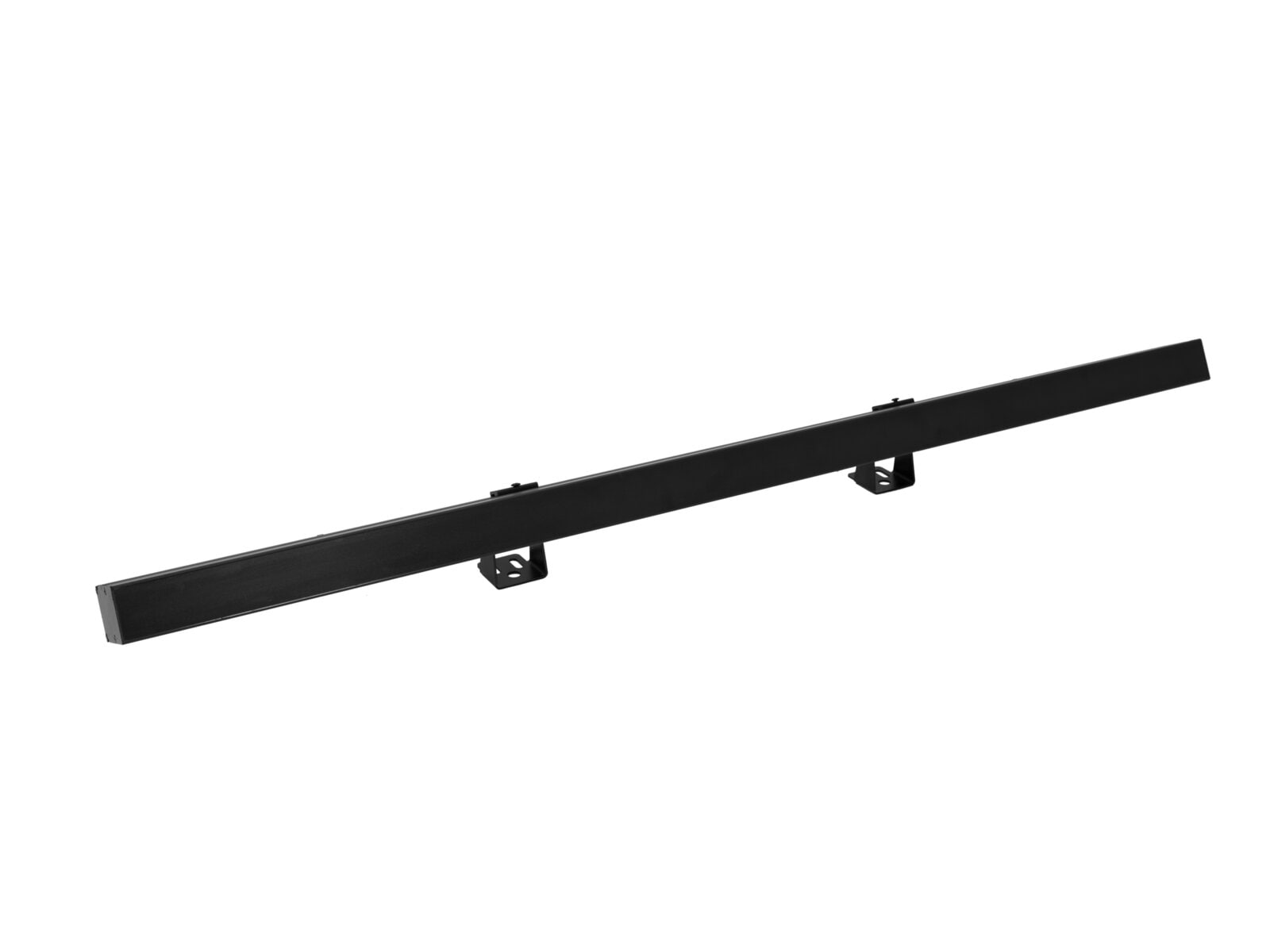

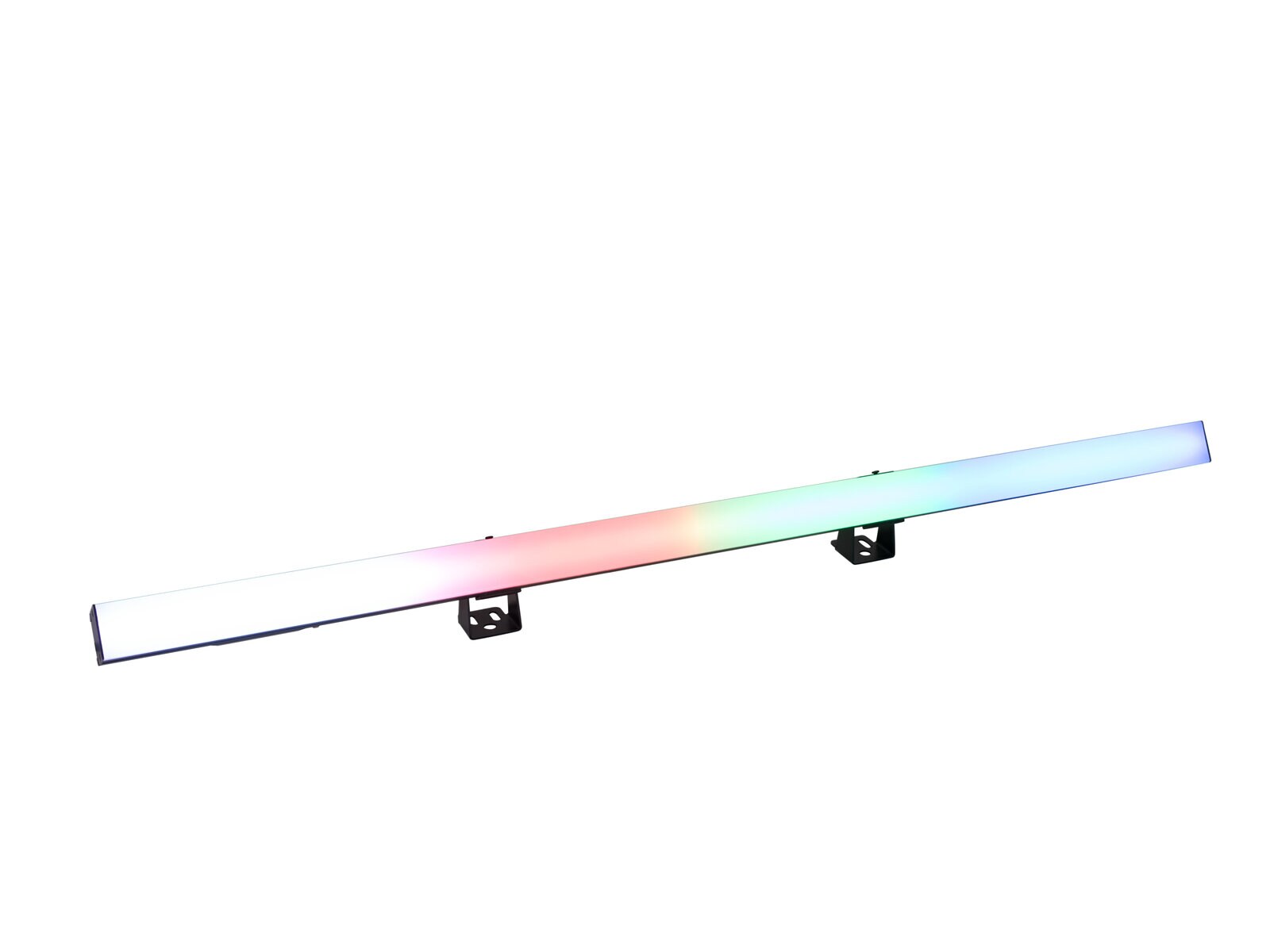

DMX controlled pixel tube with RGB color mixing

• DMX and power terminals intelligently designed for easy wiring
• Front cover: black
• 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
  32 segments separate controlling
• Color blend stepless; color change adjustable; colors preset; Dimmer electronic
• 12 integrated show programs
• Direct color selection for 17 preset colors
• The device is cooled by passive convection cooling
• Control via stand-alone; DMX; Sound to light via Microphone
• With a beam angle of 120°
• With Mounting bracket
• 4 digit 7-segment LED display
• Preprogrammed in Light Captain
• Silent operation
• Mains input and output for power linking up to 8 units

Package contents

• 1 x light effect, 1 x user manual, 1 x power cord

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
30 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 5; 8; 48; 96
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in:
Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 99,9 cm
Width: 5,95 cm
Height: 13,2 cm
Weight:
2,01 kg
Noise classification:
Class 0 (no noise at all)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
