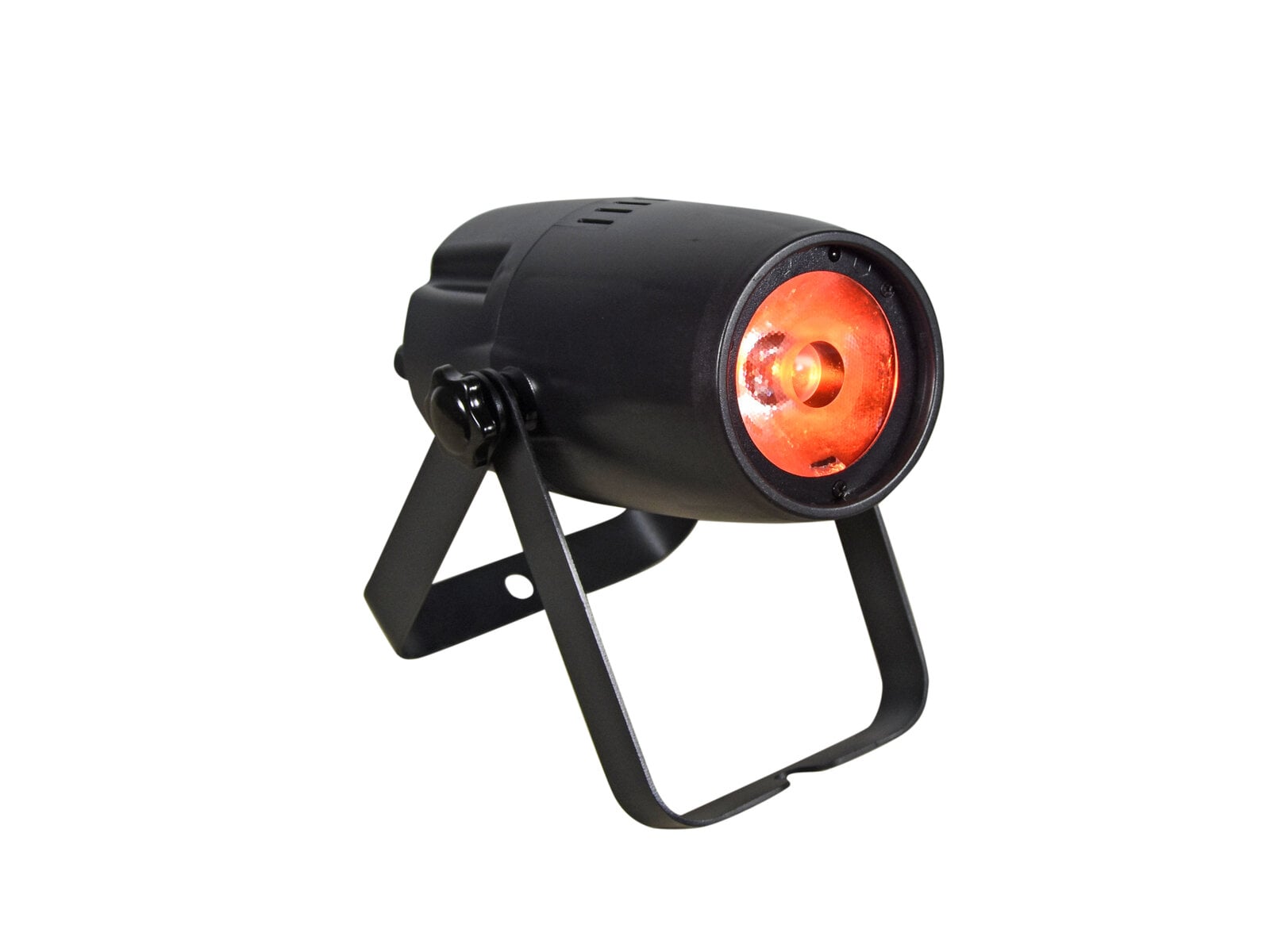

LED pinspot with COB LED and DMX control as well as IR remote control
- Additional frost filter provides a wide, soft and homogeneous light
- 1 powerful LED 10 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- 9 integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via IR remote control; stand-alone; DMX; sound to light via microphone; master/slave function
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 1; EASY SHOW 3; Colorchief
- Flicker-free
- With a beam angle of 4°
- With double bracket

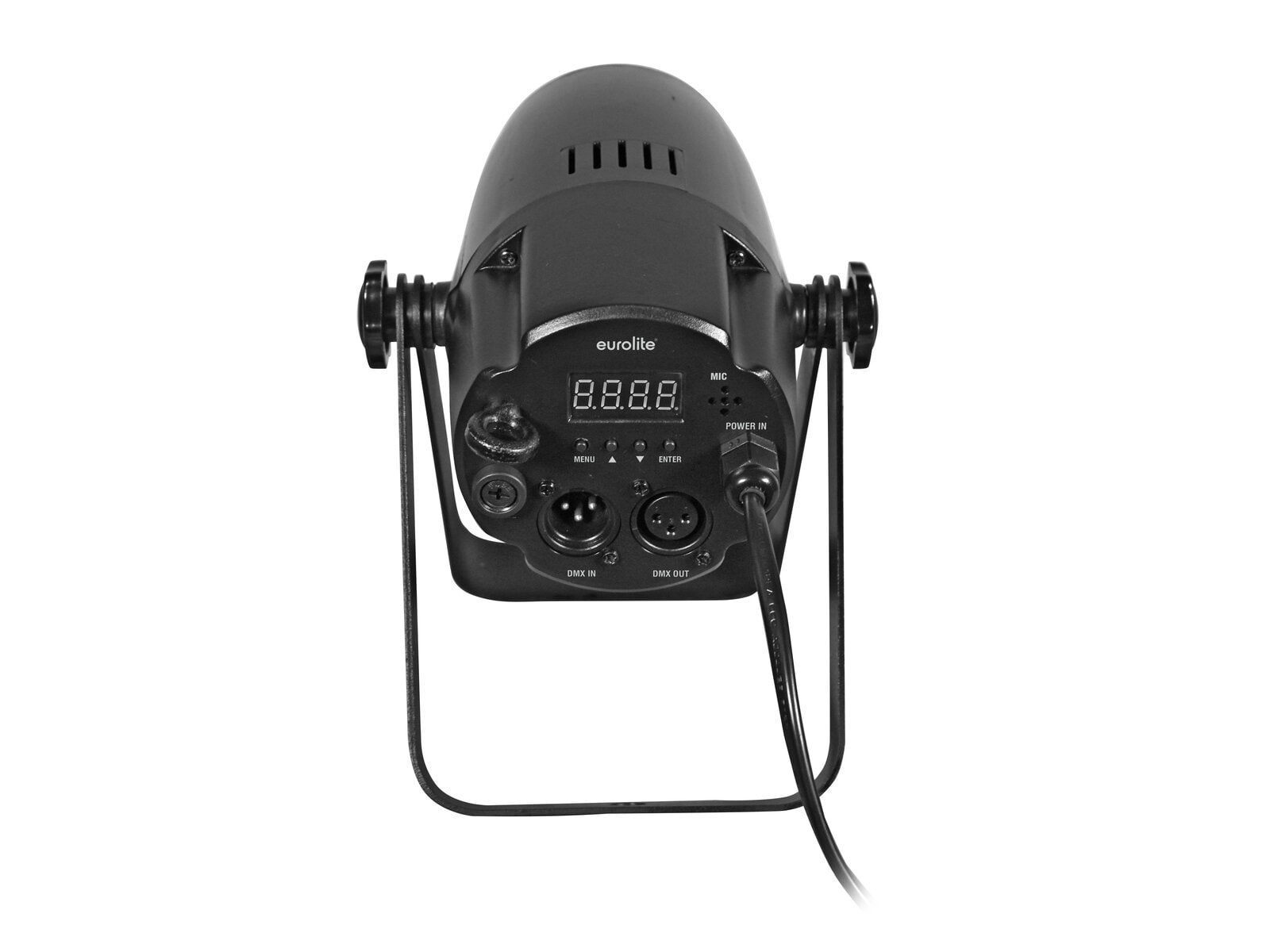

- 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x spotlight
- 1 x remote control
- 1 x battery
- 1 x frost filter
- 1 x lamp clamping ring
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Protection class: | Protection class II |
| Power connection: | Fixed power supply cord with Euro plug |
| Cable construction: | 2 x 0.75 mm² H05VVH2-F |
| Cable length: | Approx. 1 m |
| Fuse: | 5 x 20 mm, T 0.5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 10 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0.5 - 24 Hz |
| DMX channels: | 3; 4; 5; 6; 9 |
| Cooling: | Passive convection cooling |
| Control: | IR remote control; stand-alone; DMX; sound to light via microphone; master/slave function |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 1; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 23400 Hz |
| Beam angle: | 4° |
| Beam angle (1/2 peak): | Spot 4° Frost filter 16° |
| Beam angle (1/10 peak): | Spot 7° Frost filter 36° |
| Color temperature: | 6500K |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Plastic |
| Dimensions: | Length: 20.2 cm Width: 16.3 cm Height: 20.3 cm |
| Weight: | 1.03 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø11mm |
| Material: | Metal, 2 mm |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Frost filter | |
| Material: | Plastic, 1 mm |
| Dimensions: | Diameter: Ø 7.7 cm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
