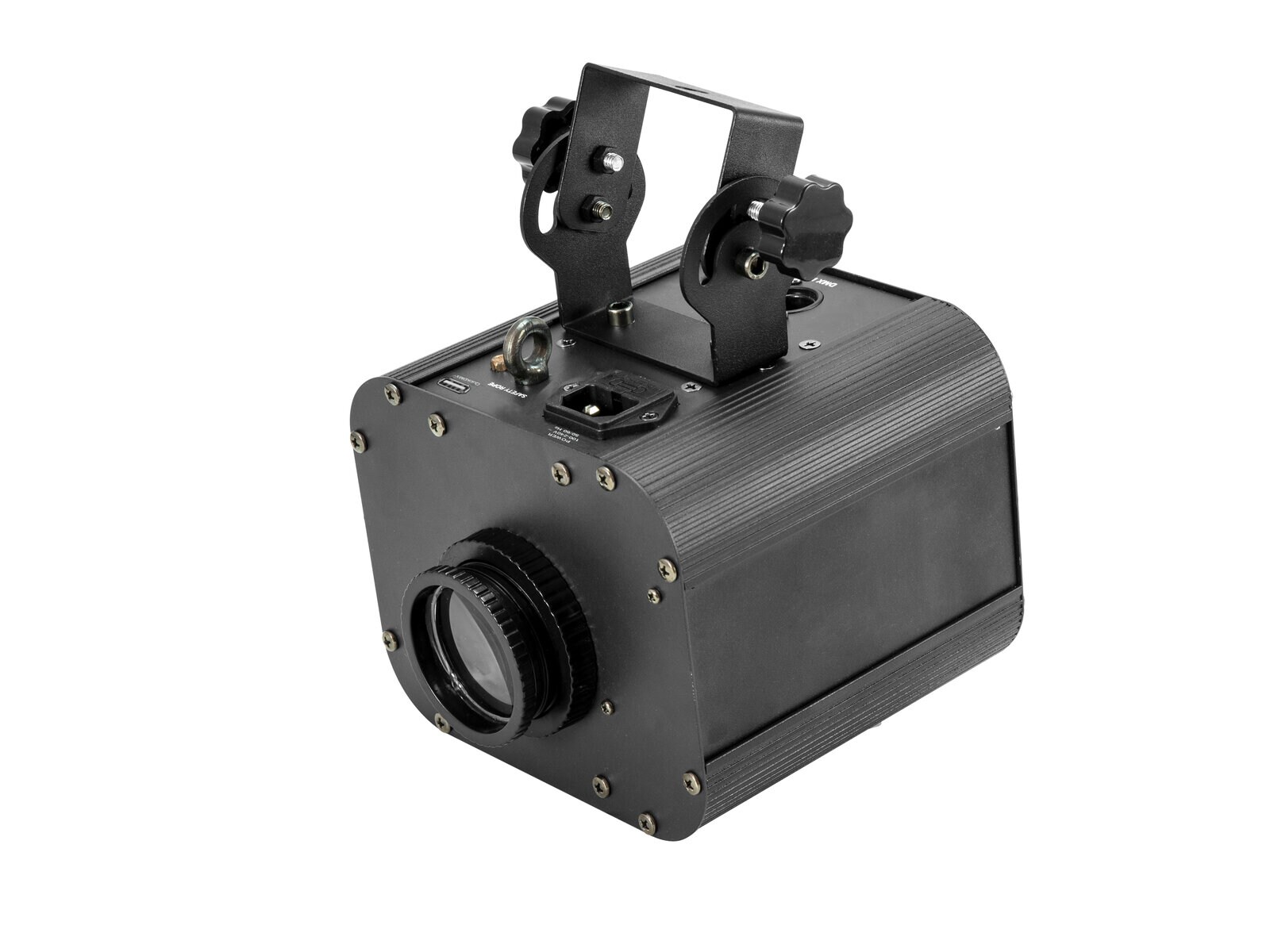

Bright LED color changer with 30 W LED, gobo and color wheel

• Compact design
• Beam reducer gobos make it perfect for illuminating mirror balls
• 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
• Color wheel; gobo wheel with static gobos; Focus manual
• Gobo effect
• Color wheel with 7 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with static gobos, 4 gobos, 3 color dichros and open
  shake effect
• Integrated show programs

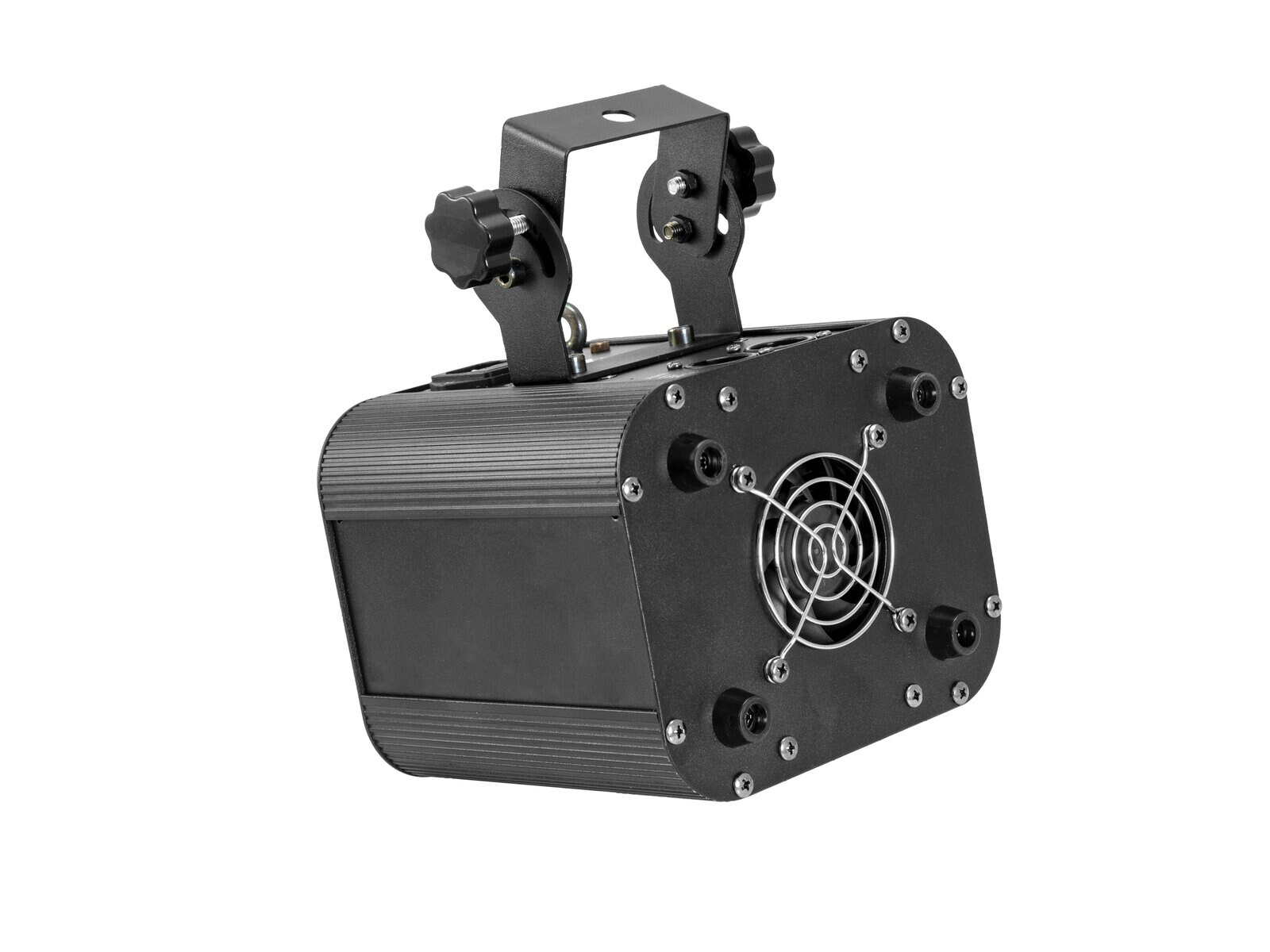

• The device is cooled by cooling fan
• Control via DMX; Sound to light via Microphone; Master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
• Flicker-free
• With a beam angle of 12°
• With Mounting bracket
• LCD display
• Dimmer electronic
• Preprogrammed in Light Captain; Light´J

Package contents

• 1 x light effect, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
45 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) cold white (CW)
Flash rate:
2 - 18 Hz
Equipment:
Color wheel; gobo wheel with static gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 4 gobos, 3 color dichros and open
Shake effect
DMX channels:
6
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; Sound to light via Microphone; Master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
12°
Beam angle (1/2 peak):
12°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Dimensions:
Length: 17,5 cm
Width: 16,0 cm
Height: 21,5 cm
Weight:
2,12 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
